TCP/IP, UDP , ARP, ICMP, Ipv4 DIN Rail RS232 to Ethernet Converters
ST-TCP-DR311Din Rail RS232 to Ethernet Converters Din Rail RS232 to Ethernet Converters ST-TCP-DR311 can transmit data transparently between TCP/IP and RS232, which are widely used in industrial automation.1-Simple configuration and easy to use.2-Compact, Light Weight3-Supports TCP server/client, ......
Send Inquiry
Product Description
ST-TCP-DR311
Din Rail RS232 to Ethernet Converters
Din Rail RS232 to Ethernet Converters ST-TCP-DR311 can transmit data transparently between TCP/IP and RS232, which are widely used in industrial automation.
1-Simple configuration and easy to use.
2-Compact, Light Weight
3-Supports TCP server/client, UDP server/client
4-Virtual COM S232 Port: Terminal Type
5-Industrial-grade, DIN-Rail mounting
Technical parameters
| Description | Parameter | Value |
| Hardware | Work Voltage | DC 5.0~36.0 V |
| Work Current | 130mA@5V | |
| Ethernet Port | RJ45,10/100Mbps | |
| Serial Port Baud rate | 600-460.8K(bps) | |
| Serial Port | RS232*1 (Terminal Type) | |
| Software | Network Protocol | TCP/IP, UDP, ARP, ICMP, IPV4 |
| IP Type | Static IP, DHCP | |
| DNS | Support | |
| Configuration | Software, Web-page, AT command | |
| Work Mode | TCP Server/TCP Client/ UDP Server/UD Client Modbus RTU to TCP | |
| Similar RFC2217 | Support | |
| httpsd Client | Support | |
| TCP Server Connection | Support to connect max 8 TCP client | |
| Network Caching | Send: 6Kbyte, Receive:4Kbyte | |
| Serial Port Caching | Receive:2Kbyte | |
| Average Transmission Delay | <10ms | |
| Software | VCOM, USRIOT_Cloud, Setup software, test proforma | |
| Packaging Mechanism | 4 bytes package time 1024 bytes package length | |
| Others | Certificate | CE, RoHs,FCC |
| Grade | IP30, 1.5KV | |
| Size | 71.0x60.0x25.0mm | |
| Work Temp | -40~85c | |
| Storage Temp | -40~105c | |
| Work Humidity | 5%~95% RH | |
| Storage Temp | 5%~95% RH |
Basic Function of Din Rail RS232 to Ethernet Converter ST-TCP-DR311

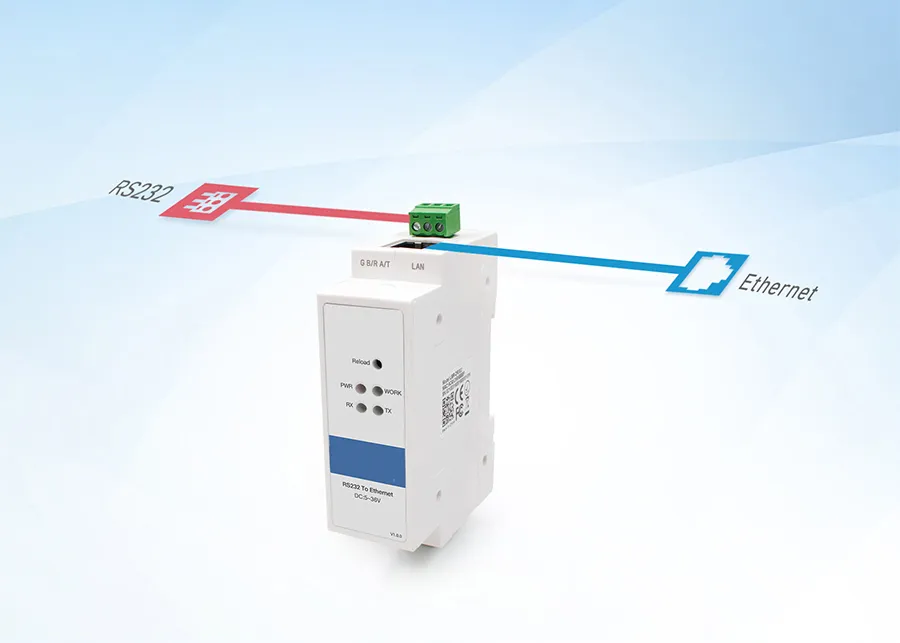

Realize bidirectional transparent transmission between RS232 and Ethernet
DIN-rail mounted RS232 to Ethernet Converter ST-TCP-DR311
Small size, easy to manage and maintain, cost-effective
Work mode

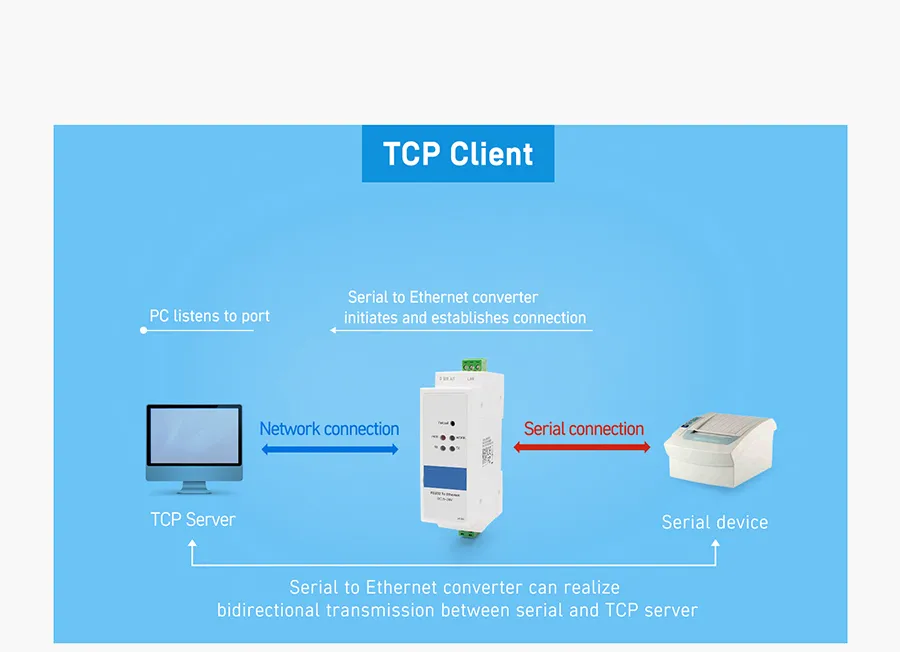

TCP CLIENT
Serial to Ethernet converter ST-TCP-DR311 will initiate TCP connection to the destination IP address that configured by the user and serial to Ethernet converter will continuously try to reconnect if establishing TCP connection unsuccessfully.

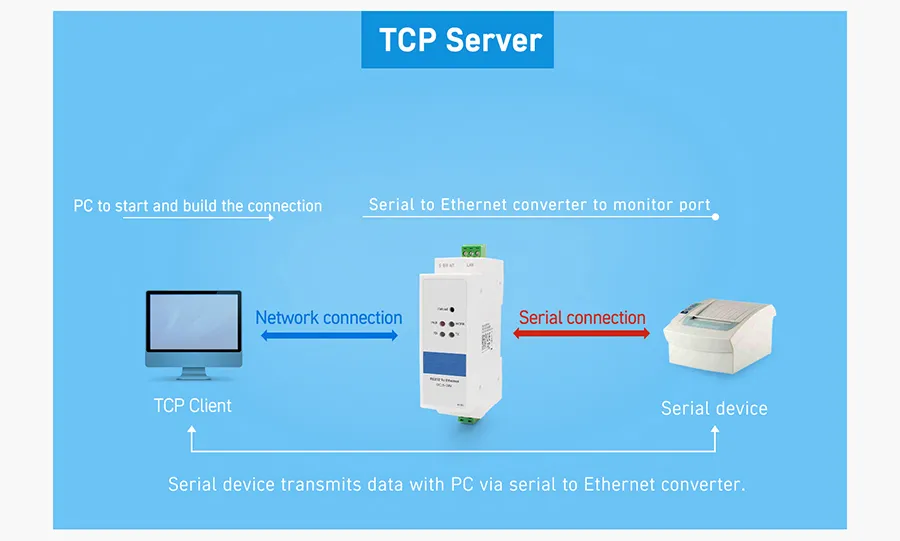

TCP SERVER
Serial to Ethernet converter ST-TCP-DR311 monitors the set port and waits for a TCP client connection. Data from the serial device will transmit to all successfully-connected via serial to Ethernet converter.

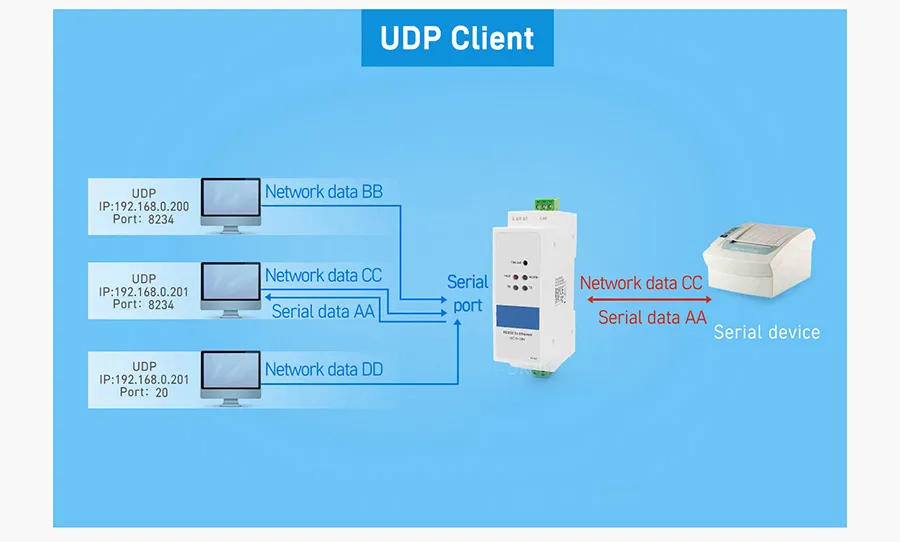

UDP CLIENT
ST-TCP-DR311 only communicates with the target interface of the target IP, thus to assure the accuracy of data transmission.

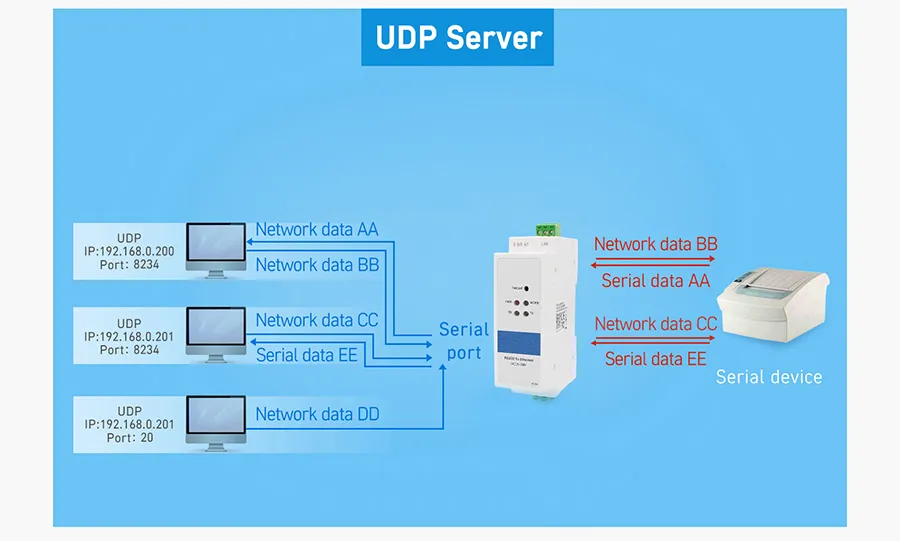

UDP server

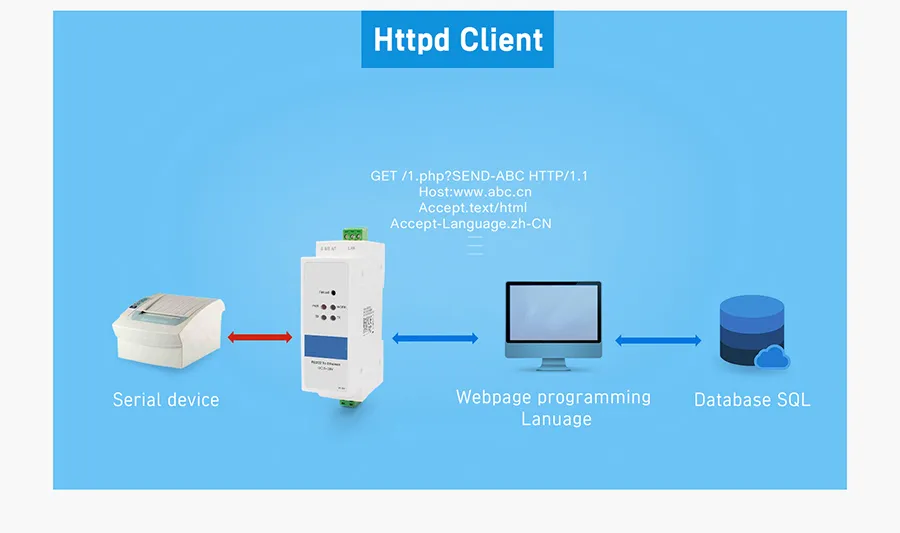

HTTPD CLIENT

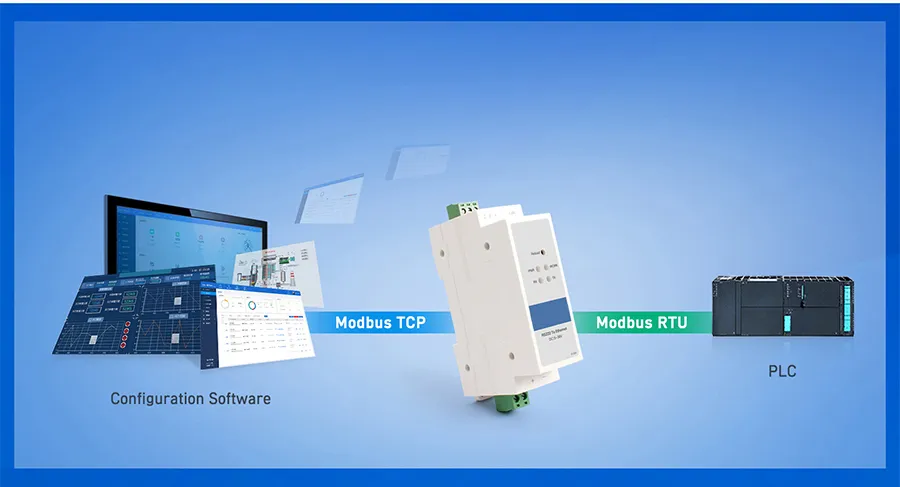

Support Modbus gateway
APPLICATIONS

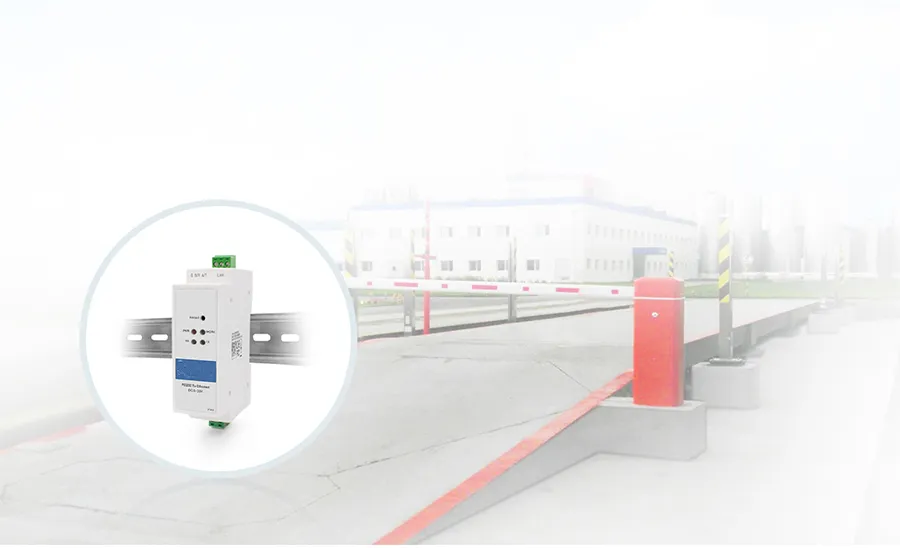

Unattended Weighing
Connect serial to ethernet converter ST-TCP-DR311 to barrier gate and it can realize remote control of barrier gate by Ethernet in control center.

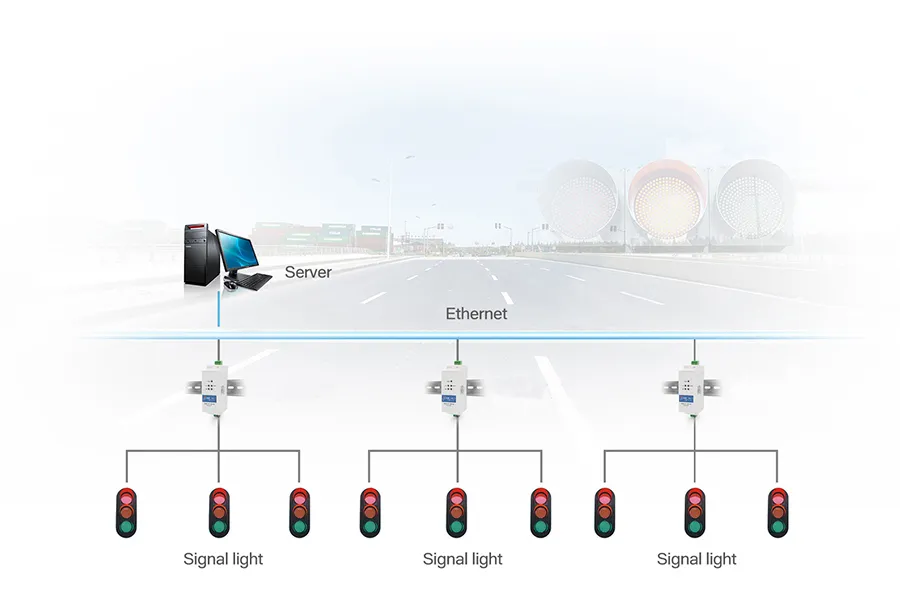

Traffic Lights Management System
Connect serial to Ethernet converter ST-TCP-DR311, and it can realize traffic data acquisition and processing by Ethernet in the control center. And the control room personnel can quickly make traffic scheduling and planning according to the site condition.
