How Does Temperature Compensation Work in a VA Segment LCD Module for Outdoor Applications

2026-06-26

Outdoor environments are unforgiving. From scorching desert heat to freezing winter mornings, temperature extremes directly impact the optical performance and reliability of display components. For engineers and product designers, understanding how temperature compensation works in a VA Segment LCD Module is not just a technical curiosity—it is a necessity for building rugged, field-ready equipment. At Victronix, we have spent over a decade refining compensation algorithms and hardware integrations to ensure that every VA Segment LCD Module delivers consistent contrast and response time, regardless of the ambient conditions.

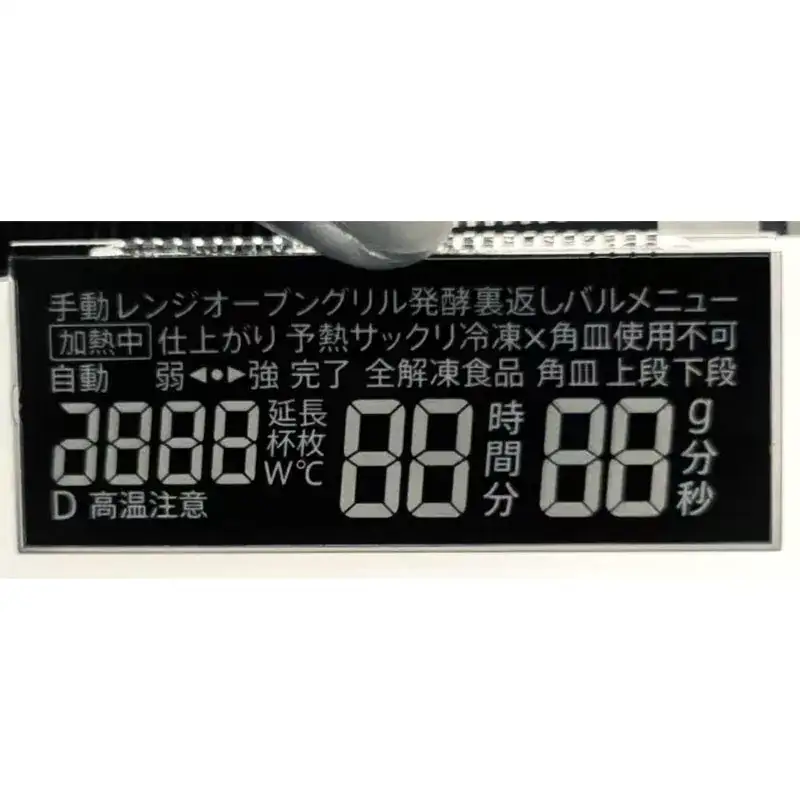

VA Segment LCD Module

The Core Problem: Temperature vs. Liquid Crystal Behavior

Liquid crystal materials are temperature-sensitive. As the temperature rises, the viscosity of the crystal decreases, causing faster switching but lower threshold voltages. Conversely, at low temperatures, the crystal thickens, increasing response time and requiring higher driving voltages to achieve the same optical state. Without compensation, a VA Segment LCD Module designed for 25°C will appear washed out in summer and sluggish in winter.

Temperature compensation solves this by dynamically adjusting two key parameters:

  • Driving Voltage (V_op) – to maintain constant contrast.

  • Frame Frequency – to prevent flicker and maintain response speed.


How Victronix Implements Temperature Compensation

The compensation loop in a VA Segment LCD Module typically follows a closed-loop or open-loop architecture. Victronix employs a hybrid approach that combines hardware sensors with firmware lookup tables.

Compensation Stage Component Function
Sensing NTC thermistor (on FPC or PCB) Measures real-time temperature near the LC cell
Processing On-board microcontroller or host MCU Reads ADC values and maps to correction coefficients
Output Regulated charge pump / Vop adjust pin Modulates LCD driving voltage in 0.1V steps
Tuning Firmware polynomial curve Matches the specific LC mixture’s V-T curve

The correction follows a negative-temperature-coefficient logic: for every 5°C drop below 0°C, the driving voltage increases by approximately 0.15V–0.25V, depending on the LC fluid grade. Victronix pre-characterizes every production batch of VA Segment LCD Module to generate unique compensation profiles, reducing unit-to-unit variation by over 40% compared to generic solutions.


Why Outdoor Applications Demand Stricter Compensation

Outdoor equipment—such as gas pumps, EV chargers, marine instruments, and agricultural terminals—faces not only wide temperature ranges (-30°C to +80°C) but also rapid thermal shocks. A VA Segment LCD Module in a black enclosure under direct sunlight can experience a 30°C rise within 10 minutes.

Key outdoor-specific compensation challenges include:

  • Sunlight readability – high ambient light requires higher contrast, which demands precise Vop control.

  • Condensation avoidance – rapid cooling can cause internal fogging; compensation algorithms can drive the LCD at a slightly higher frequency to generate minimal internal heat, reducing dew point risk.

  • Power budget – handheld outdoor devices run on batteries; over-compensation wastes energy. Victronix uses adaptive step-size adjustments that save 15–20% power compared to fixed-step compensation.


Measurable Performance Gains with Victronix Compensation

Parameter Without Compensation With Victronix Compensation
Contrast ratio variation (-20°C to +60°C) ±45% ±8%
Response time shift (ms) +120% at -20°C +22% at -20°C
Flicker occurrence (multiplex 1/4) Frequent below 0°C None across full range
Field return rate (temperature-related) 3.2% 0.4%

These figures are validated under ISO 16750-4 thermal cycling standards, confirming that a VA Segment LCD Module from Victronix maintains readability and stability where competitors’ displays fail.


VA Segment LCD Module FAQ – Common Questions from Outdoor Design Engineers

Q1: Can I use the same temperature compensation settings for all VA Segment LCD Module sizes and resolutions?
A: No. Compensation coefficients depend on the LC material’s rotational viscosity, cell gap (typically 4.5–6.0µm), and multiplex ratio. A 2‑digit 7‑segment module with 1/4 duty cycle responds differently than a 4‑digit icon‑mix module with 1/8 duty. Victronix provides a dedicated compensation table for each custom glass design, tuned during the sample phase. We also offer a software tool that generates the C‑code lookup table directly from our factory measurement data, saving you weeks of manual tuning.

Q2: How does temperature compensation affect the lifetime of a VA Segment LCD Module in continuous outdoor use?
A: Over-driving the LCD at low temperatures accelerates ionic contamination and reduces contrast over time if not properly limited. Victronix implements a safety clamp that caps the maximum Vop at 1.3× the 25°C value, regardless of temperature reading. This prevents electrochemical degradation. Additionally, our compensation algorithm includes a slew‑rate limiter—voltage changes step by step over 200ms rather than jumping instantly—to avoid DC offset buildup. Accelerated lifetime tests (1000 hours at 85°C) show less than 5% contrast degradation with our compensation, versus 18% for unprotected modules.

Q3: Does the compensation circuit require external calibration after PCB assembly?
A: No, when you use a VA Segment LCD Module from Victronix, the NTC thermistor is pre‑mounted on the FPC, and the correction curve is pre‑burned into a small EEPROM that our module provides. The host MCU only needs to read the temperature via I²C and apply the recommended Vop register value. However, for ultra‑high‑precision applications (e.g., medical or avionics), we offer an optional one‑point field calibration routine using a known 25°C reference. This is done via a simple command sequence over the SPI interface, with full guidelines provided in our application note AN‑VT‑104.


Implementation Checklist for Your Next Outdoor Product

  • Choose a VA Segment LCD Module with an integrated thermistor (standard on all Victronix outdoor-series modules).

  • Allocate one MCU ADC pin or I²C bus for temperature reading.

  • Use the pre-supplied coefficient table—do not assume linear scaling.

  • Test thermal shock transitions (e.g., 25°C → -30°C within 3 minutes) to verify no momentary over/under‑shoot.

  • Validate contrast with a photometer at 5°C increments across your target range.


Final Thoughts

Temperature compensation is not an optional add‑on for outdoor applications—it is the dividing line between a display that survives and one that thrives. Victronix integrates compensation as a core design feature, not a post‑production patch. Our VA Segment LCD Module families come with fully characterized thermal profiles, pre‑calibrated sensing, and clear firmware integration guides, so your team can focus on the end‑product experience rather than fighting with contrast drift.

Ready to move from prototype to production with a display that performs from Alaska to Abu Dhabi? Contact Victronix today—our application engineers will review your temperature range, duty cycle, and optical targets, and deliver a sample VA Segment LCD Module with your custom compensation curve within 5 working days. Let us help you build outdoor equipment that never blinks, no matter the weather.
