Product Description
Performance Characteristics
u It is intelligent optical receiver that built-in microcomputer, LED digital tube display operating state parameters.
u Adopt advanced optical AGC technology, the input optical power range extended to -9~+2dBm, and the output level remain unchanged.
u RF amplifier circuit adopts full GaAs MMIC amplifier device, effectively reduced the power consumption.
u Built-in perfect status monitoring circuit and support national standard II class network management transponder.
u Full electric control the output attenuation and equilibrium circuit, and achieve remote operation by NMS.

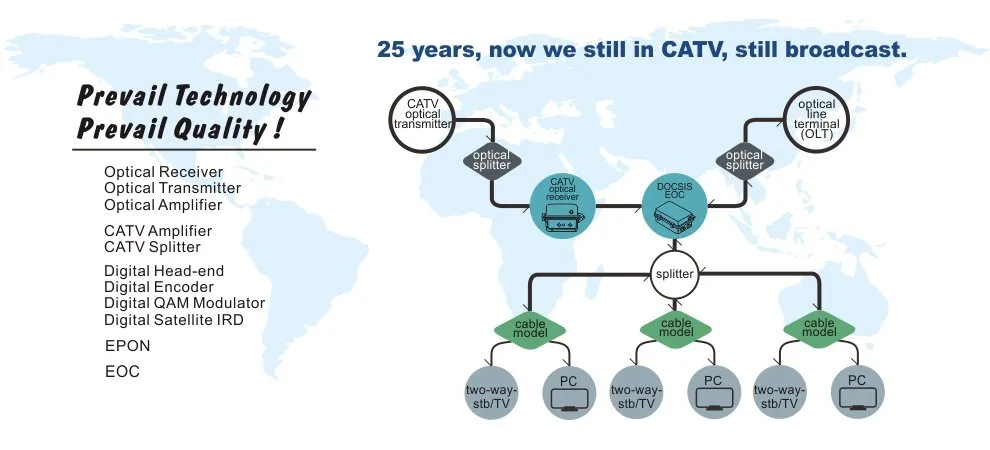

u Optional built-in optical filter or CDWM wavelength division multiplexer, satisfies the "one fiber three waves" networking mode.
Aluminum alloy material housing, power supply mode is DC +12 V external power supply
Models Description
Product Model | Product Description |
WR-1002RJ-II/NC | Unidirectional optical receiver mode, input wavelength range: 1100~1600nm. |
WR-1002RJ-II/WF | Built-in optical filter mode, optical receiver input wavelength range: 1550±20nm. |
WR-1002RJ-II/WD | Built-in CDWM wavelength division multiplexer, optical receiver input wavelength range: 1550±20nm; and looping out 1310/1490nm wavelength optical signal to connect with ONU equipment. |
Main Technical Performance
Optical AGC Control Range: -9~+2 dBm. C/N:≥ 51dB (@-1dBm input).
Operating Frequency: 45 ~ 862/1003MHz. C/CTB:≥ 65dB.
Flatness in Band: ±0.75dB. C/CSO:≥ 60dB.
Max Output Level: ≥ 108dBμV. Output Return Loss: ≥16dB.
5. General Characteristics
Operating Temperature: -20 ~ +55°C. Operating Voltage: DC +12V external power supply.
Consumption: ≤ 8W. Dimension: 140mm(L)X 95mm(W)X 35mm(H).
