45-2400MHz 2 RF Outputs Optical Receiver Satellite TV Receiver

Brief Introduction

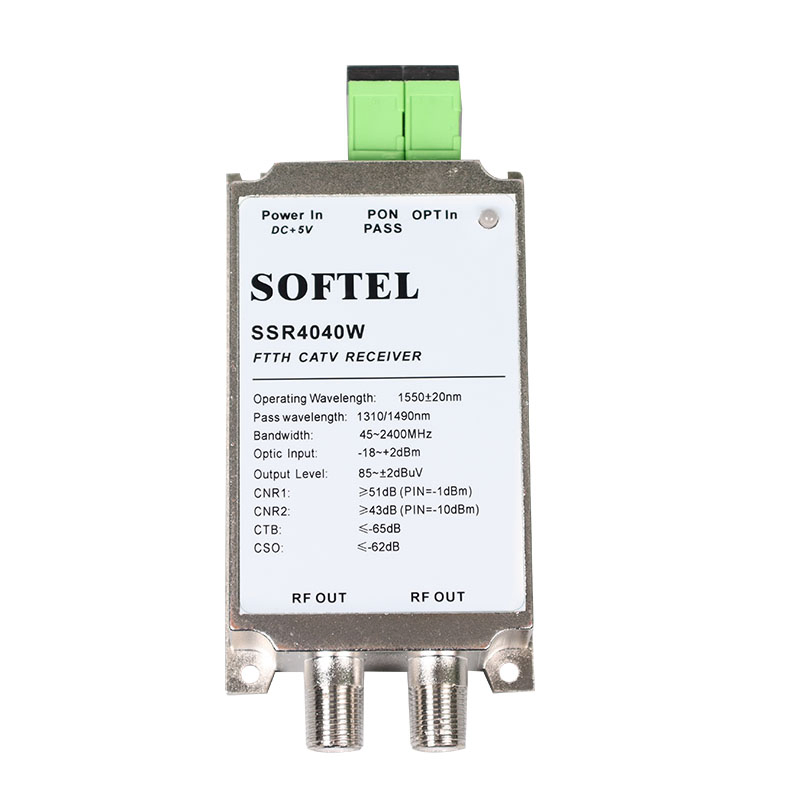

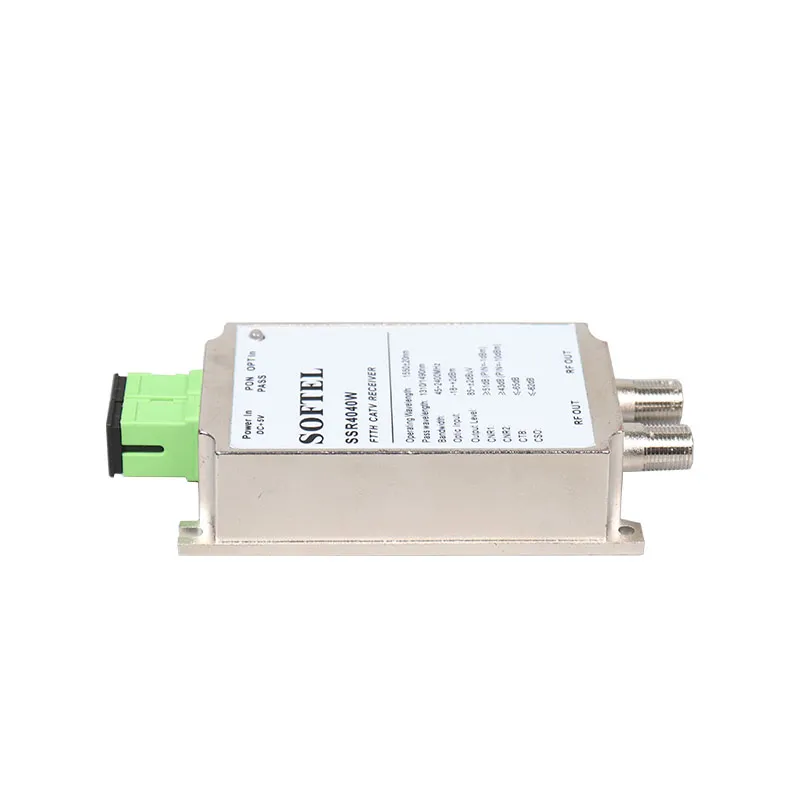

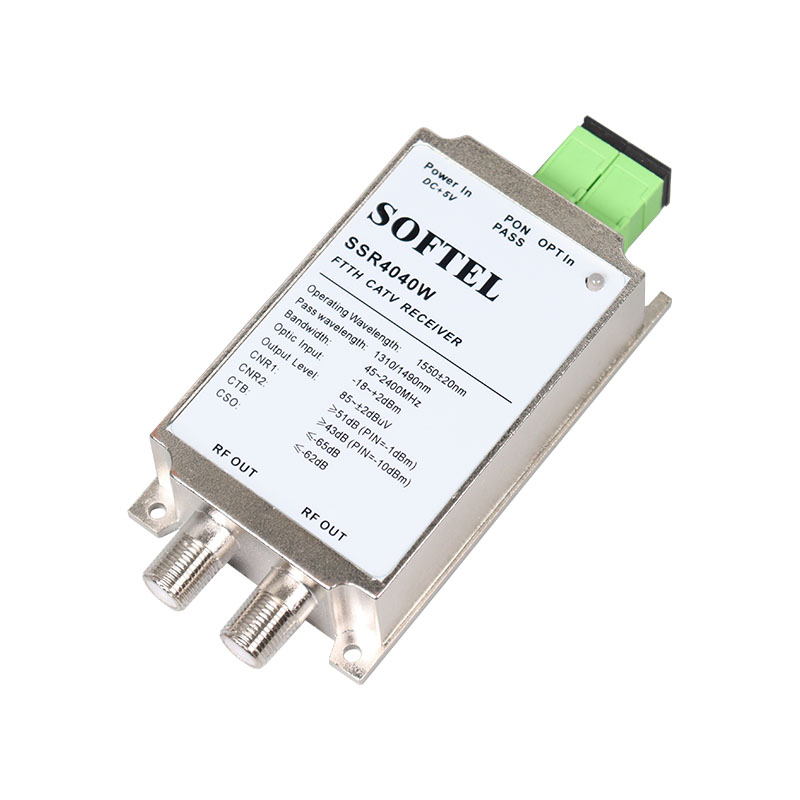

SSR4040AW, the operating bandwidth of 45~2400MHz, is a low power, high performance, cost-effective triple play, FTTH CATV optical receiver, Whether used in analog television or digital television. Products with high sensitivity optical receiver tube and special low noise matching circuit. Receiving at high optical power can be adjusted by PAD level, played limiting output, so SR4040AW within a large dynamic range of the received optical power of +2 dBm ~-21dBm, have excellent characteristics. Triple play, fiber to the home, using the SR2020AW can save a lot of optical fiber amplifier power resources. For operators, it can greatly reduce the cost of building the network.

Features

1.Designed For FTTH (Fiber to the Home Network)

2.Excellent Linearity and flatness

3.Frequency range 40-2300MHz For CATV And PON Pass

4.Voltage supply: +5V(DC)

5.Optical Connector: IN SC/APC, OUT SC/UPC

6.Aluminum Profiles housing,excellent heat dissipation

7.Smaller size and easier install

8.Red-LED Power Indication

9.Green-LED Optical Power Indication(Optical power >-13dBm)

Specification

Number Item		Unit	Description	Remark
Customer Interface
1	RF Connector		75Ω"F" connector
2	Optical Connector(Input)		SC/APC	Type of Optical Connector (Green color)
3	Optical Connector(Onput)		SC/APC
Optical Parameter
4	Input Optical Power	dBm	2~-20
5	Input Optical Wavelength	nm	1310/1490/1550
6	Optical Return Loss	dB	>45
7	Optical Isolation	dB	>32	Passing Optical
8	Optical Isolation	dB	>20	Reflect Optical
9	Optical Insert Loss	dB	<0.85	Passing Optical
10	Operating Optical Wavelength	nm	1550
11	Pass Optical Wavelength	nm	1310/1490	Internet
12	Respnsibility	A/W	>0.85	1310nm
		A/W	>0.85	1550nm
13	Optical Fiber Type		SM 9/125um SM Fiber
RF Parameter
14	Frequency Range	MHz	45-2400
15	Flatness	dB	±1	40-870MHz
15		dB	±2.5	950-2,300MHz
16	Output Level RF1	dBuV	≥79	At -1dBm Optical Input
16	Output Level RF2	dBuV	≥79	At -1dBm Optical Input
18	RF Gain Range	dB	20
19	Output Impedance	Ω	75
20	CATV Output Freq. Response	MHz	40 ~870	Test in Analog Signal
21	C/N	dB	42	-10dBm inpput,96NTSC,OMI+3.5%
22	CSO	dBc	57
23	CTB	dBc	57
24	CATV Output Freq. Response	MHz	40 ~1002	Test in Digital Signal
25	MER	dB	38	-10dBm inpput,96NTSC
26	MER	dB	34	-15dBm inpput,96NTSC
27	MER	dB	28	-20dBm inpput,96NTSC
Other Parameter
28	Power Input Voltage	VDC	5V
29	Power Consumption	W	<2
30	Dimensions(LxWxH)	mm	50× 88× 22
31	Net weight	KG	0.136	Not included power adapter
