Product Description

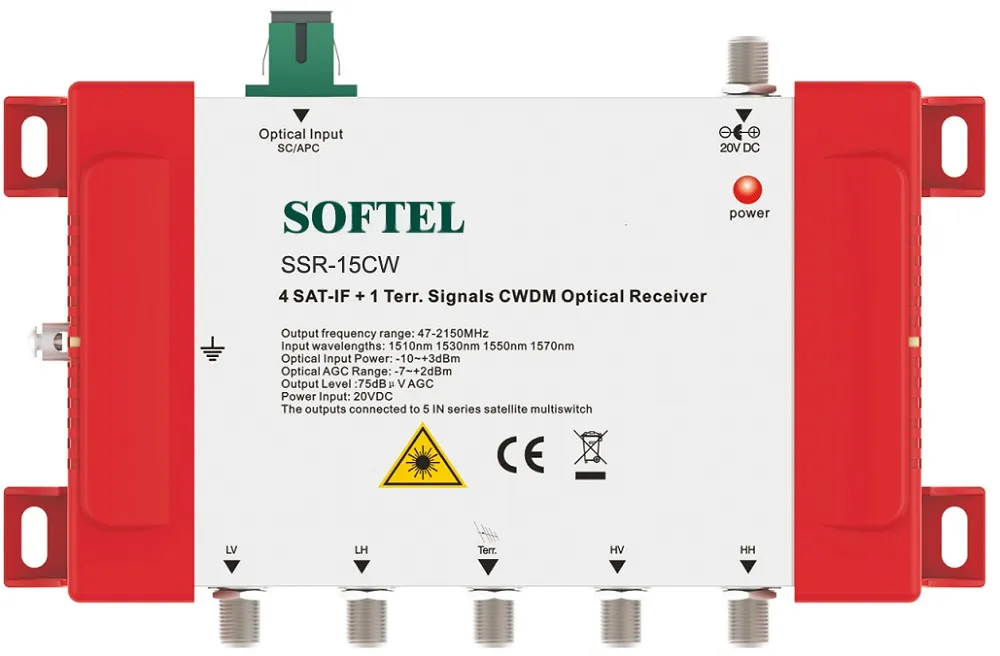

4 Sat-If +1 Terr. Signals CWDM Optical Receiver

Features

Designed for satellite optical system

Wide operating frequency range: 47-2150MHz

Excellent linearity and flatness

Using 1-core single-mode fiber, high return loss

Build-in CWDM, using high linear PD

Output connected to 5 IN series satellite multiswitch

Build-in optical AGC function

Red-LED for power indication

Smaller size and easier installation

Specification

ITEM	Parameters
FR connector	F-female
Optical Connector	SC/APC
Power Supply	F-female
Input Optical Wavelength	LV-RX: 1510nm LH-RX: 1530nm HV+Terr.-RX: 1550nm HH-RX: 1570nm
Input Optical Power	-10 ~ +3dBm -7 ~ +2dBm @AGC
Output Impedance	75 Ω
Frequency Range	47-2150MHz
Output Level	≥75dBuV @AGC
AGC Stability	±1dB
Power Supply	20 VDC
Power Consumption	<10 W
Dimensions	19512840mm
