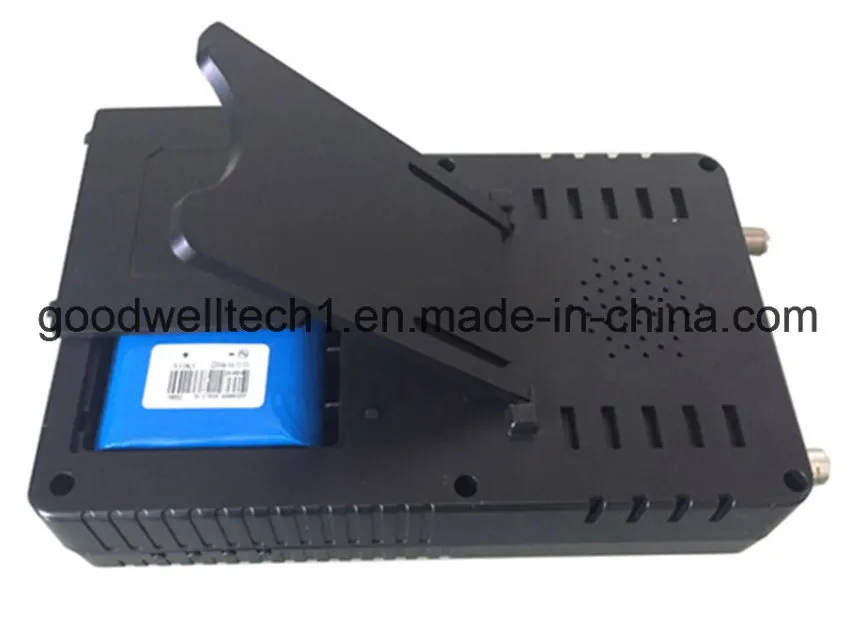

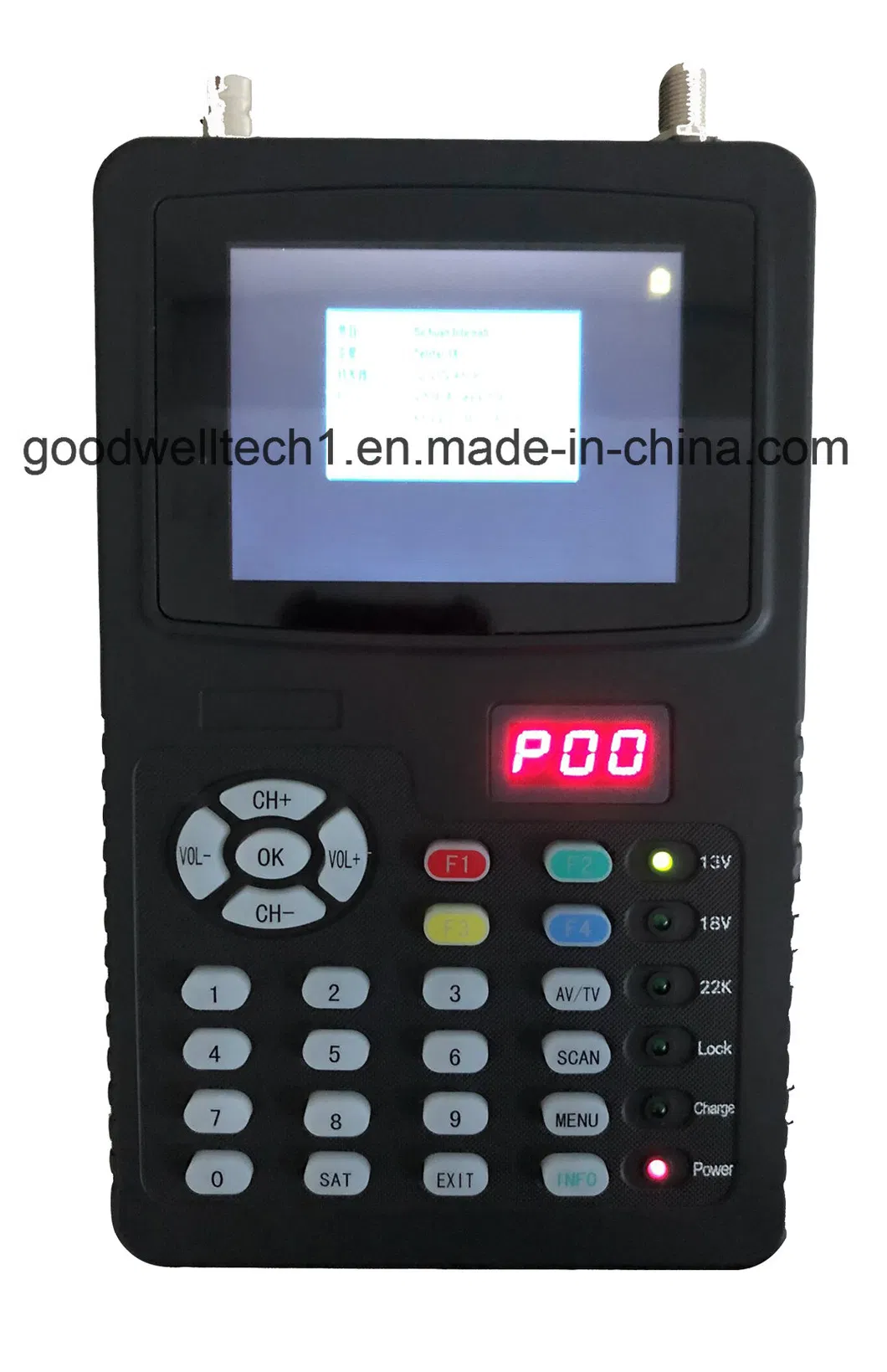

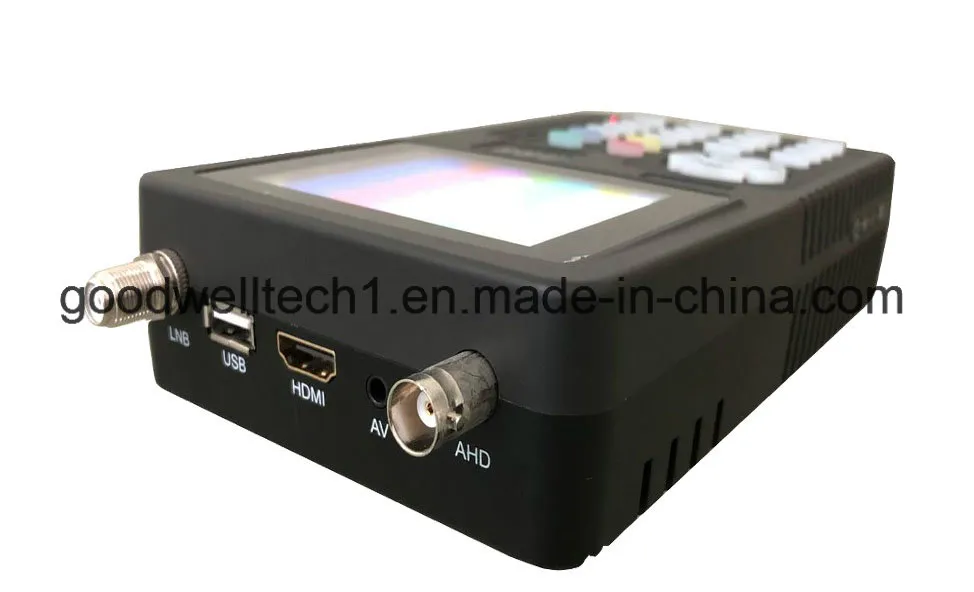

HDMI Output Ahd Input 3.5

Product Description

Support AHD/TVI/CVI CCTV Camera Testing 3.5" Handheld Digital TV Finder

Unique Features :

1.Support DVB-S standard. Fully display DVB-S, DVB-S2, MPEG-2, MPEG-4(H.2.64/AVC) digital satellite signals; High quality video, audio display with HDMI output.

2.Support AHD input ,AHD/CVI/TVI video display,coaxial high-definition simulation, according to the video products own vehicle with DC12V power supply only output to the camera, engineering treasure is the preferred product.

3.Support AV input: analog video and audio input display as DVD and other multimedia player.

4.Built-in satellite signal warning; with DC12V Output for CCTV Camera ;

5. 3.5 standard audio and video input and output port which is convenient to export to other TV broadcast equipment with enter audio and video signal, HDMI output. When receive the satellite, it also can export the TV signal and HD signal synchronously

Specifications :

Model No.	359G+
Screen Size	3.5"
Display Size	73x51mm(4:3display)
LCD Display	Dots pixels: 320x 240 (230400Pixes)
Satellite Signal Video Decoding	DVB-S/S2,MPEG-2/4 display
Satellite Signal Test	DVB-S/S2,MPEG-2/4,signal alarm & signal test.
Menu Languages	English,French,Russian;Arabic;Portuguese;;Turkish;Deutsch,Italiano;Spanish;Polish;Persian;Indonesia
LNB Connector	F type male puly : 75Ω(F)
LNB Frequency Range	950MHz-2150MHz(DVB-S/S2)
LNB Signal Level	-80~ -20dBm
LNB Symbol Rate	13/18V.max400mA(DVB-S/S2)
LNB Switch Control	22KHz(turn on/off/auto)
DiSEqC	1.0, 1.1, 1.2, USALS
LNB Minimum electric level	About 35dBuV (noise)
LNB Maximum electric level	About 90dBuV
Demodulation	QPSK/8PSK/16PSK
Audio decoding	MPEG-1 and MPEG-2 layer I&II, Dolby Digital Audio,E-AC3,WMA and HE-AAC Digital Audio
Video Format	PAL/NTSC/SECAM
Video Decoding	MPEG-2
HDMI Output	480i /480P/576i / 576P / 720P /1080i /1080P HD signal output.H.264, MPEG2 and MPEG1
AV(Video&Audio)	AV State: 3.5 port Audio & Video input TV State: 3.5 port Audio & Video output
USB Input	USB Update ; USB Media Player(PVR, Video, Music, Image)
Lithum Battery	11.1V/2200mAh
Power Supply	In AC100-220V Charge 13.5V/1.5A; Out DC12V / 1A
Unit Size	384x 110x 40mm
Unit Weight	500g (Including battery pack)
