Product Description

ARM processor with 1500MHz Quad-core CPU

Hi3798MV200 Main chips

256MB NAND Flash

1GB DDR3 Memory

DVB-S2X+DVB-S2X tuner Built-in

Supported officially by OpenATV,OpenPLI

Specification: -

Linux Operating System
ARM processor with 1500MHz Quad-core CPU
Hi3798MV200 Main chipset
More than 4.10x linux kernel
DVB-S2X+DVB-S2X twin tuner built-in
Support 4K- 2160p
256MB NAND Flash / 1GB DDR3 Memory
1x Smart Card
WIFI 300MHZ Built-in
SD card (TF card) for recording, 8GB, 64GB, 128GB (optional)
1 x USB2.0
1x HDMI 2.0
MPEG-2 / H.264 and H.265 Hardware Decoding
HEVC / H.265 2160p60 Main-10 multi-format decoder
10/100 Mbit Ethernet Interface
Multimedia plug-in supported
Advanced EPG (Electronic Program Guide)
User-friendly linux Menu system
Full automatic service scan
Various OSD skins supported
Various Channel Editing Programs
Easy and fast software-upgrade via USB
Low deep-standby power consumption under 1 W
Parental Control
Plugin Service
Excellent sound quality in Dolby Digital
OSD into many languages and graphics (Skins)
Web interface, WEB Remote control
DiSEqC 1.0 / 1.1 / 1.2 and USALS
External power supply 12V 3A

Zgemma H9.2s with 2xdvb-S2X Multistream Tuner 4K UHD E2 Linux Receiver

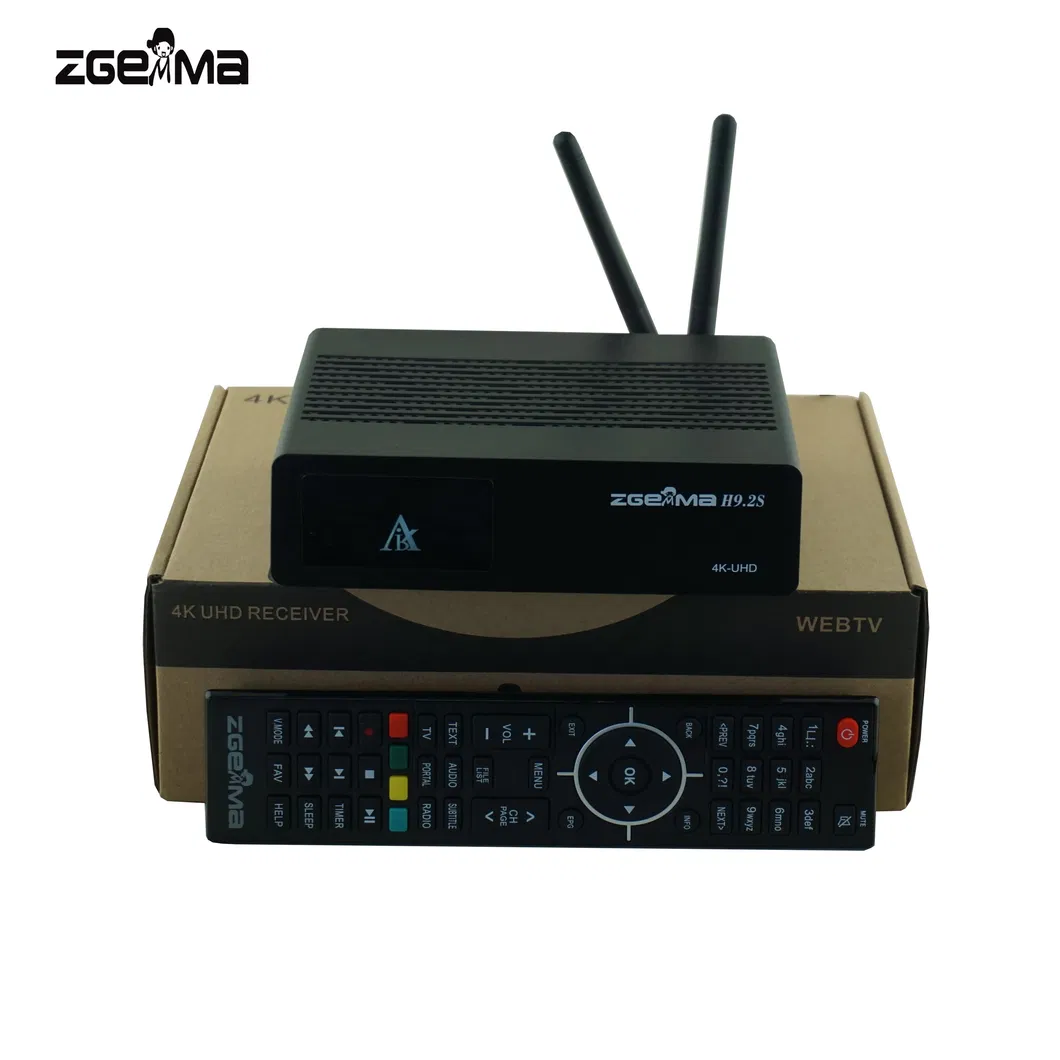

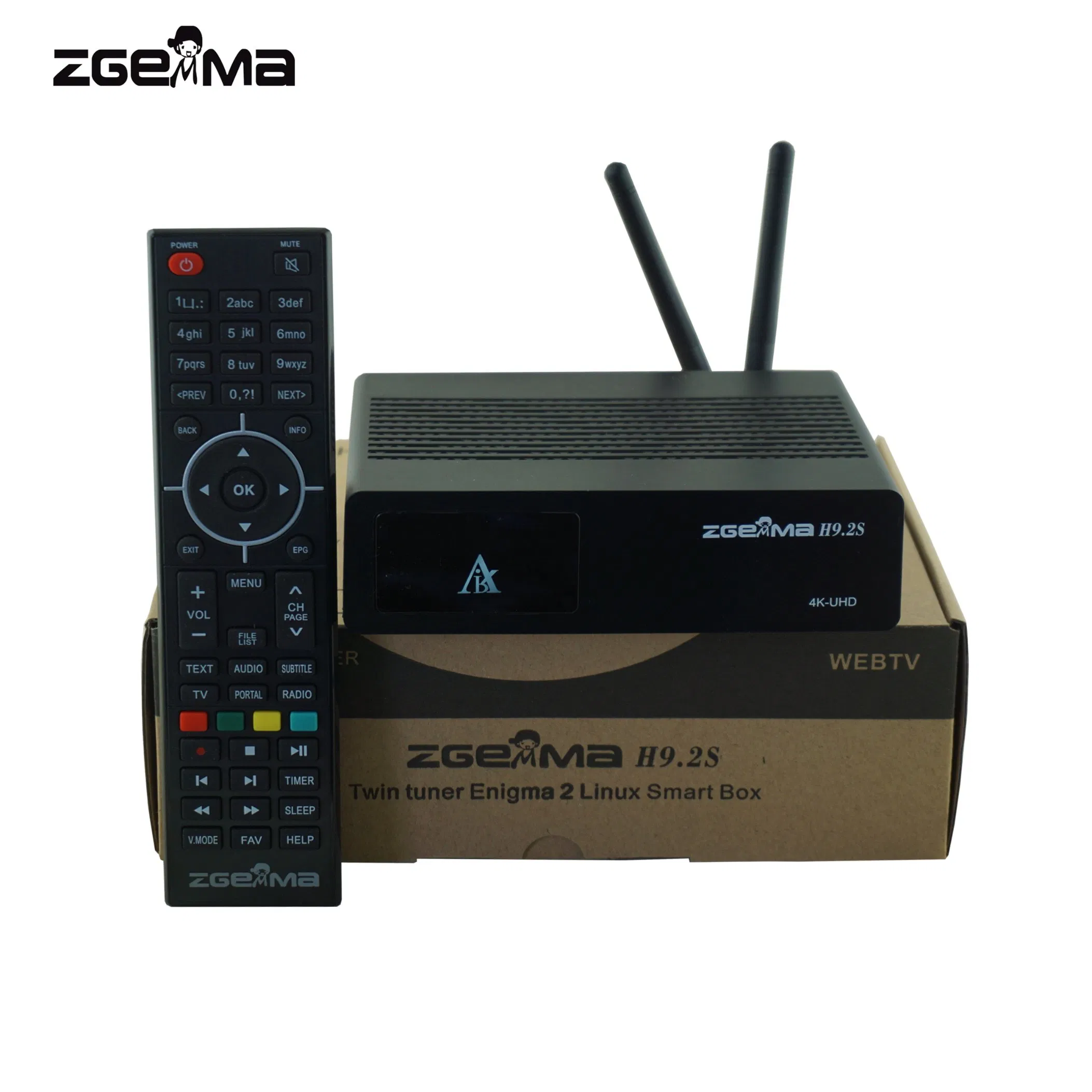

Packaging

10pcs packed in one carton
Zgemma H9.2S Box	1pc
WIFI Antenna	2pc
Remote Controller	1pc
Power Supply	1pc
HDMI Cable	1pc
User Manual	1pc

Note: We supply these receivers strictly as FTA only. We will not provide them with any patches pre-loaded and we can not help with any support for this. We provide support for the actual ZGEMMA hardware and for FTA reception only.
