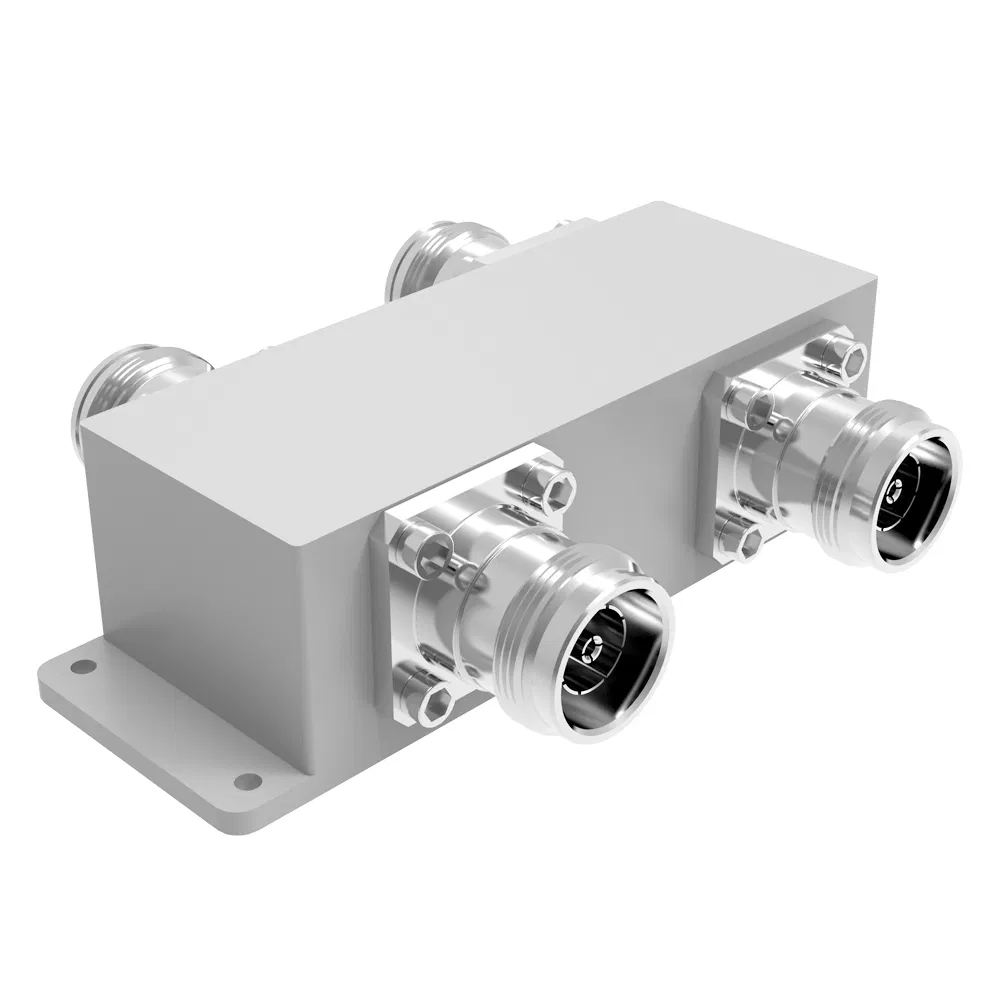

2700-6000MHz IP65 4.3-10 Female 2in 2out Hybrid Coupler / 2: 2 Combiner
Product Data sheetsPart NumberVN-HC2x2-2760-OPOperating Frequency ( MHz )2700-6000Impedance ( Ohm )50VSWR1.2Coupling (dB)3Insertion Loss (dB)±0.5Isolation (dB)26IM3 (dBc @ 2×43dBm)-150ApplicationIndoor & OutdoorDegree of ProtectionIP65Operating Temperature ( ºC )-4......
Send Inquiry
Product Description
Product Data sheets
| Part Number | VN-HC2x2-2760-OP |
| Operating Frequency ( MHz ) | 2700-6000 |
| Impedance ( Ohm ) | 50 |
| VSWR | 1.2 |
| Coupling (dB) | 3 |
| Insertion Loss (dB) | ±0.5 |
| Isolation (dB) | 26 |
| IM3 (dBc @ 2×43dBm) | -150 |
| Application | Indoor & Outdoor |
| Degree of Protection | IP65 |
| Operating Temperature ( ºC ) | -40 ~ + 80 |
| Interface | 4.3-10 Female |
| Handling Power (Watt, max) | 500 |
| Peak Power (Watt, max) | 1500 |
| Dimension (mm)(L×W×H, excl connector) | 114.1X36X32.5 |
| Net Weight (g) | 450±20 |
| Packing Dimensions (mm,L×W×H) | 170X100X40 |
| Packing Carton Size (mm,L×W×H) | 520X360X110 |
| ROHS Compliance | Yes |
| Revision | R1 |
| Date | 31-December -2020 |
Our Company

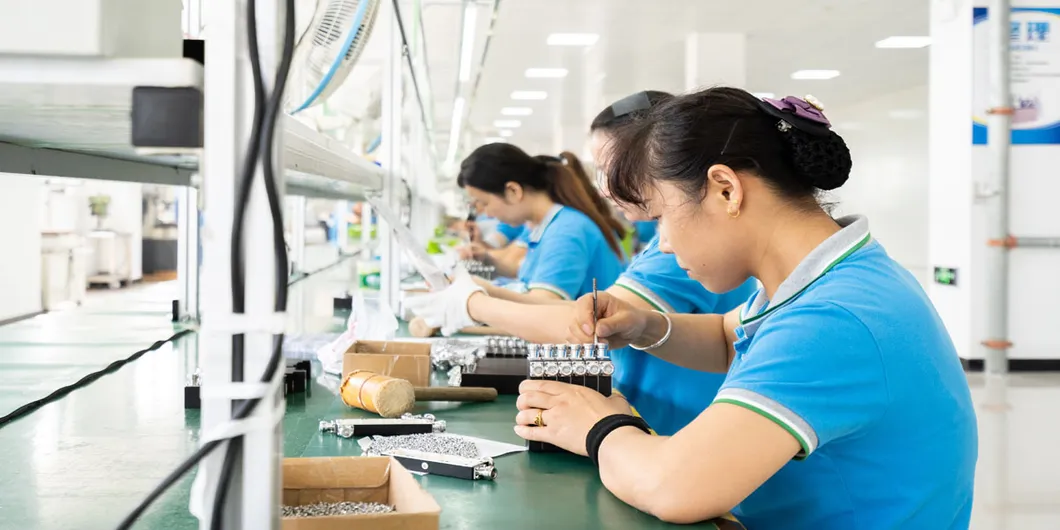

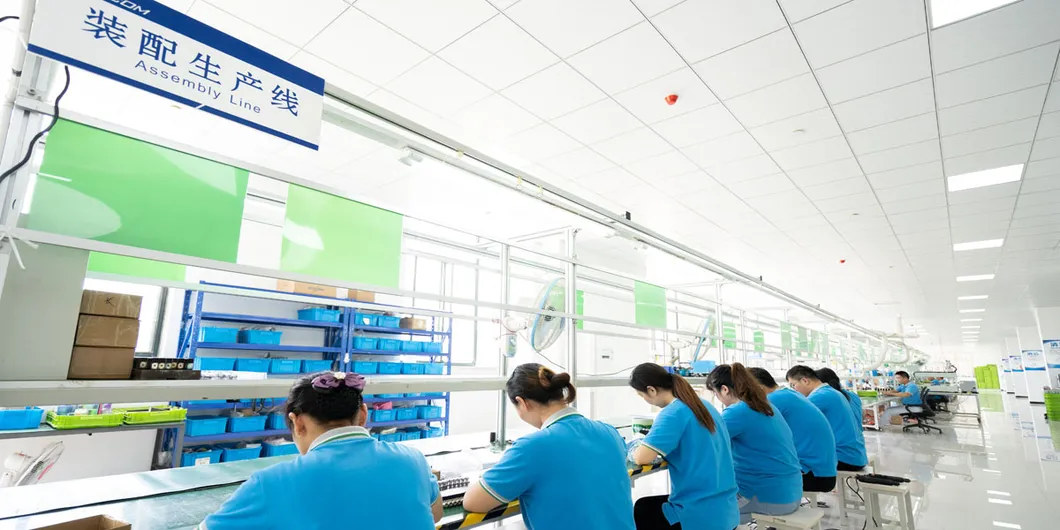

Our Workshop

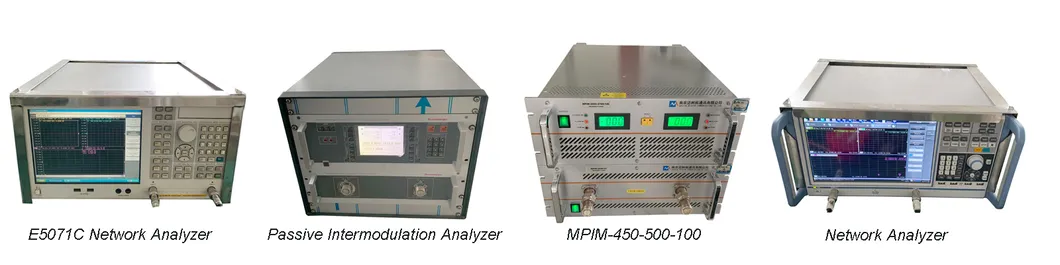

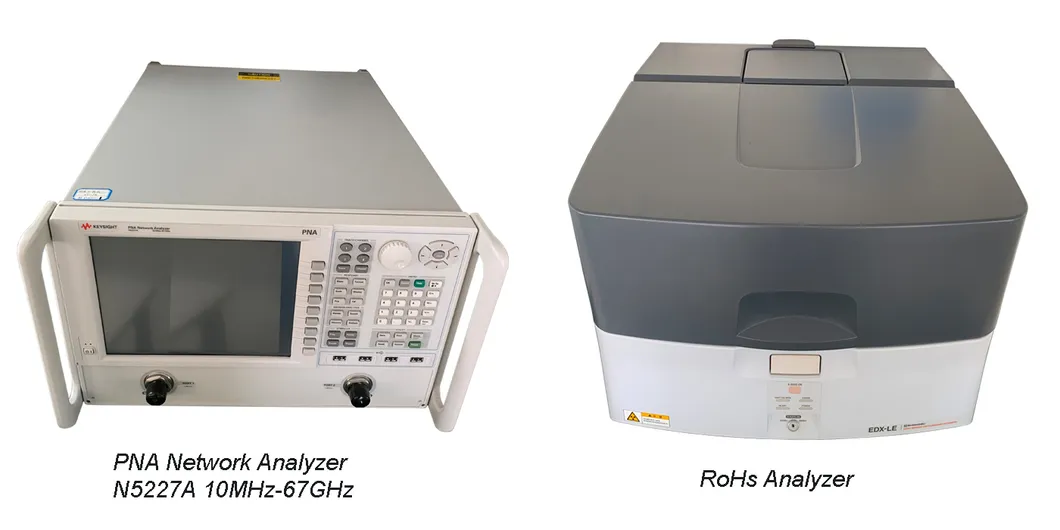

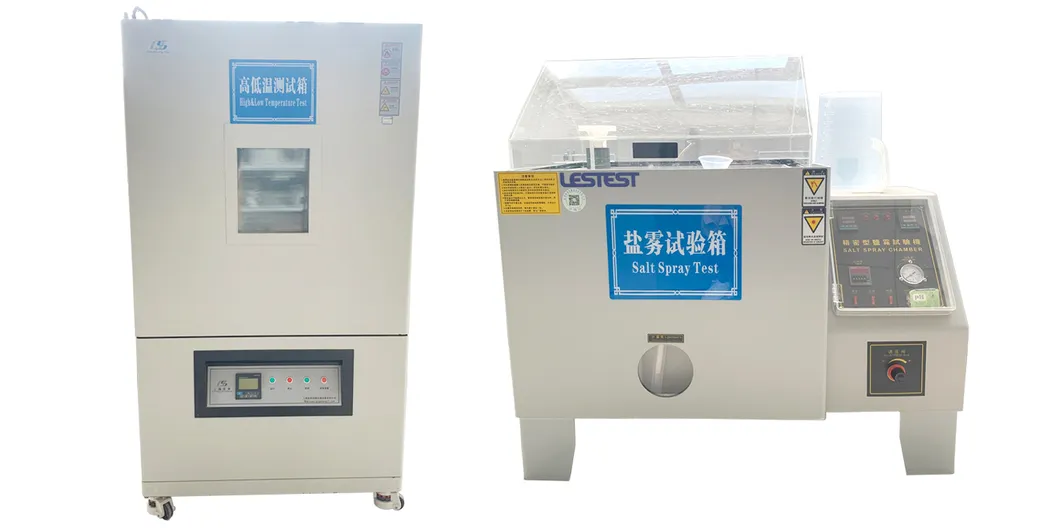

Our Test Machine
