Handheld Alcohmeter Uart/ Ttl Nmea-0183 Super Sensitivity Mediatek Mt3337 Chip Set GPS Module with Antenna

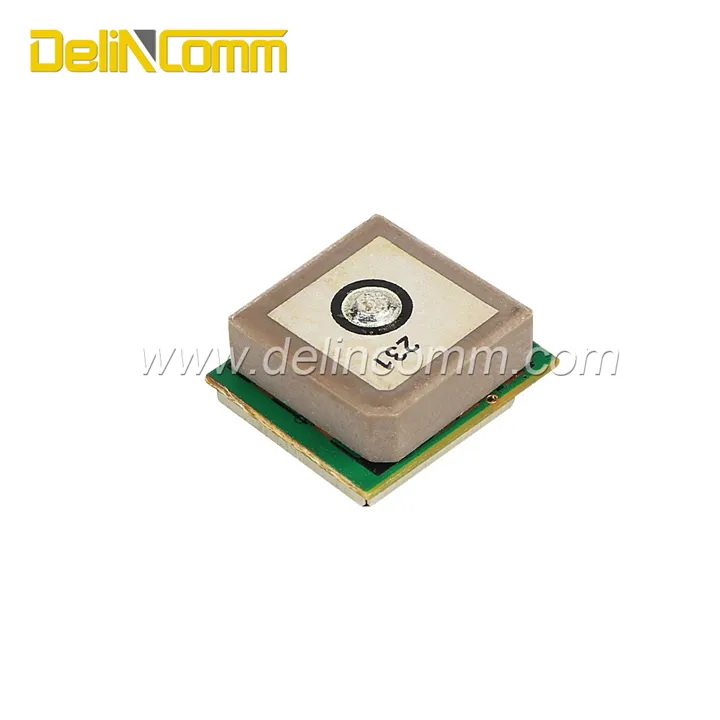

The Delin Comm DL-1513N-GCMR is a complete GPS engine module that features super sensitivity, ultra low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete serial data message with position,velocity and time information is presented at the serial int......
Send Inquiry
Product Description

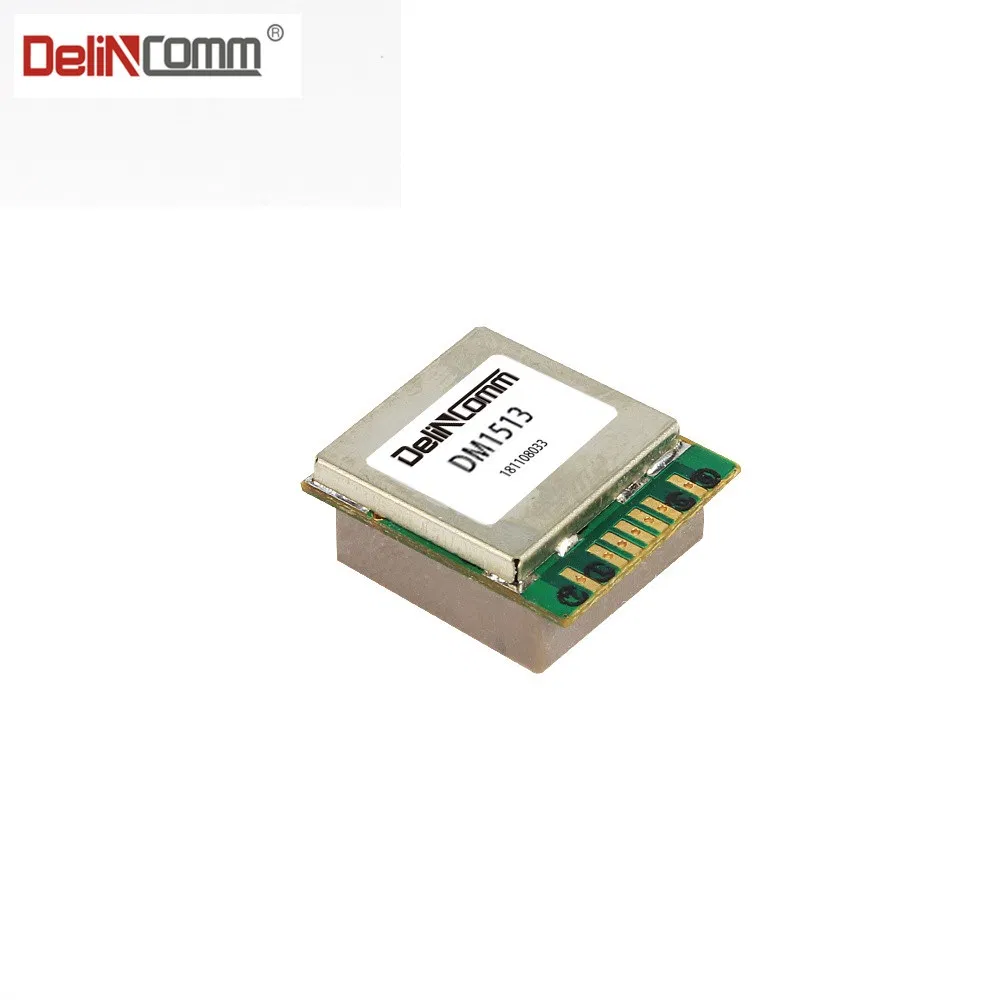

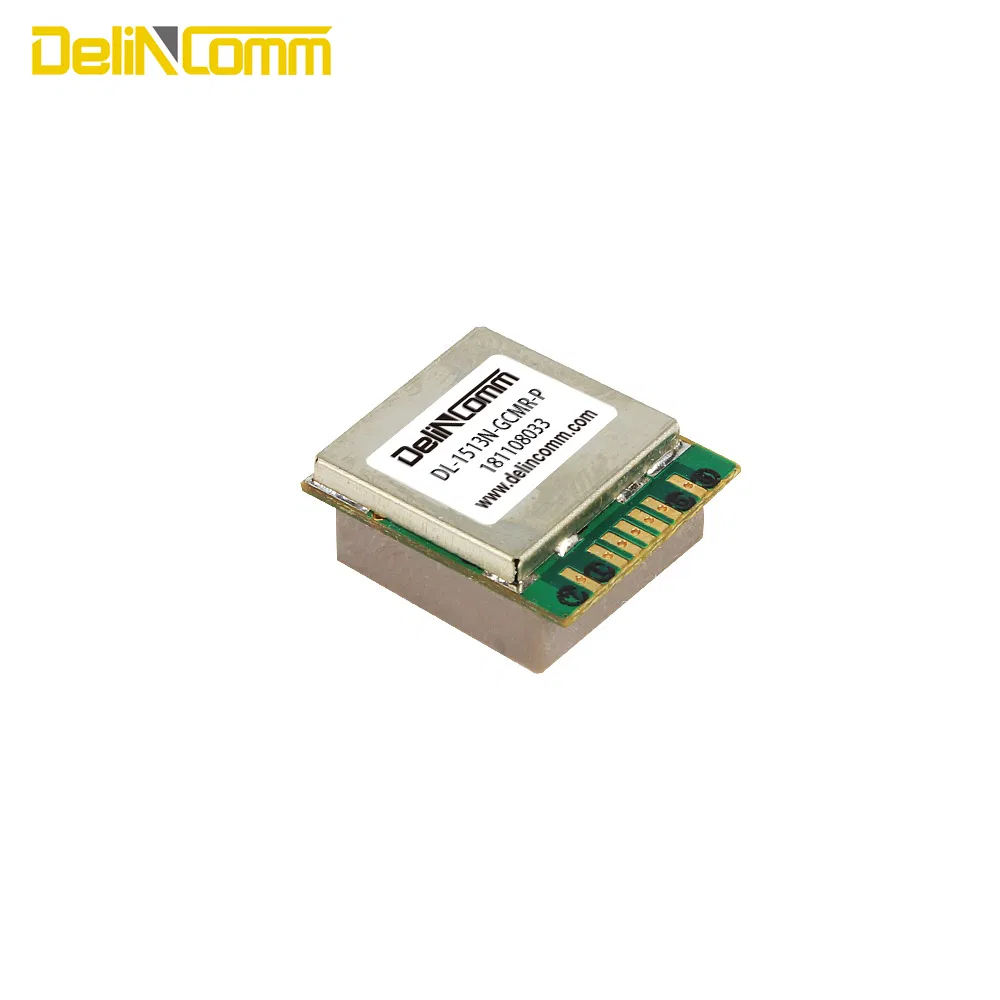

The Delin Comm DL-1513N-GCMR is a complete GPS engine module that features super sensitivity, ultra
low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete
serial data message with position,velocity and time information is presented at the serial interface with NMEA
protocol or custom protocol.
Applications
Features
low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete
serial data message with position,velocity and time information is presented at the serial interface with NMEA
protocol or custom protocol.
Applications
LBS (Location Based Service)
PND (Portable Navigation Device)
Vehicle navigation system
Mobile phone
Features
- Build on high performance, low-power MediaTek MT3337 chip set
- Ultra high Track sensitivity: -165dBm
- Extremely fast TTFF at low signal level
- Built in high gain LNA
- Low power consumption: Max [email protected]
- NMEA-0183 compliant protocol or custom protocol
- Operating voltage: 2.8V to 4.3V
- Operating temperature range:-40to85ºC
- Patch Antenna Size: 12x12x4mm
- Module Size: 15.3x13.2x7.5mm
- Communication type: UART/TTL
- RoHS compliant (Lead-free)
| Parameter | Specification |
| Power Supply | Supply voltage: 2.8V~4.3V Typical: 3.3V |
| Power Consumption | Acquisition: 28mA @VCC=VBAT=3.3V |
| Tracking: 25mA @VCC=VBAT=3.3V | |
| Standby: 2.0mA @VCC=VBAT=3.3V | |
| Backup: 15uA @VBAT=3.3V | |
| Receiver Type | Code 66 search channels, GPS&QZSS L1 1575.42MHz C/A |
| 22 simultaneous tracking channels | |
| Sensitivity | Tracking: -165dBm |
| Re-acquisition: -156dBm | |
| Acquisition: -148dBm | |
| TTFF (Autonomous) | Cold start: 35s type @-130dBm |
| Warm start: 30s type @-130dBm | |
| Hot start : 1s type @-130dBm | |
| Horizontal Position Accuracy (Autonomous) | <2.5m CEP @-130 dBm |
| Update Rate | 1Hz |
| Accuracy of 1PPS Signal | not enabled |
| Acceleration Accuracy | Without aid: 0.1m/s² |
| Dynamic Performance | Maximum altitude: 18,000m |
| Maximum velocity: 515m/s | |
| Acceleration: 4G | |
| UART Port | UART Port: TXD and RXD |
| Supports baud rate from 4800bps to 115200bps, 9600bps by default | |
| UART port is used for NMEA output, MTK proprietary commands input | |
| Temperature Range | Normal operation : -40°C ~ +85°C |
| Storage temperature: -45°C ~ +125°C | |
| Physical Characteristics | Size: 15.3±0.20 ×13.2±0.20 ×7.5±0.20mm |
| Weight: Approx. 3.8g |
