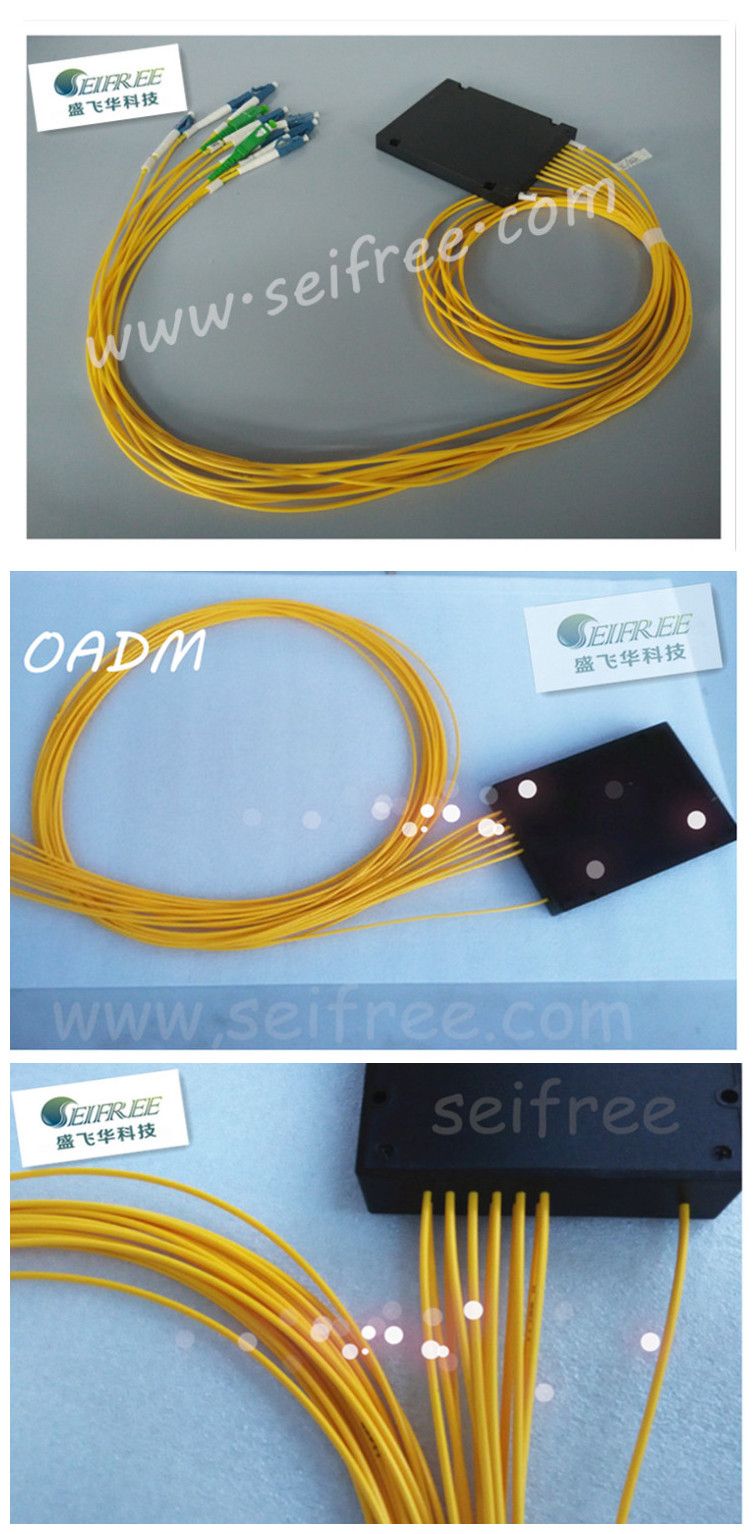

Optical Fiber Passive 0104 OADM (optical multiplexer)
OADMOptical add/drop Multiplexer (OADM)are based on thin film filter technology. The devices are available on ITU channel spacing of 100GHz, 200GHz and 20nm. They are designed and manufactured to meet Telcordia GR-1221-CORE requirements and RoHS compliant.Applications ......
Send Inquiry
Product Description
OADM
Optical add/drop Multiplexer (OADM)are based on thin film filter technology. The devices are available on ITU channel spacing of 100GHz, 200GHz and 20nm. They are designed and manufactured to meet Telcordia GR-1221-CORE requirements and RoHS compliant.
Applications Features
SONET High Channel Isolation
SDH Flat and Wide Passband
OXC system
Ordering Information
SOADM- - - - - - - -
Package and Mounting Dimension (mm)
Specification
Optical add/drop Multiplexer (OADM)are based on thin film filter technology. The devices are available on ITU channel spacing of 100GHz, 200GHz and 20nm. They are designed and manufactured to meet Telcordia GR-1221-CORE requirements and RoHS compliant.
Applications Features
SONET High Channel Isolation
SDH Flat and Wide Passband
OXC system
Ordering Information
SOADM- - - - - - - -
| Space | Channel/ Ports | First Channel(nm) | Fiber Type | Pigtail Dia. | Pigtail Length | Package | Connector Type |
| D1=100G | 0104=λ1D/λ1A | 270(1)=1270(1) | E=SMF-28e | 09=0.9mm | 05=50cm | FU(A)=FC/UPC(APC) | |
| D2=200G | 0204=λ1D/λ2A | 290(1)=1290(1) | B=SMF-28e XB | 20=2mm | 10=100cm | B2(3,4) | SU(A)=SC/UPC(APC) |
| C=20nm | 0206=λ1,2D/λ1,2A | / | 30=3mm | C2(3,4) | |||
| C33=1550.92 | 20=200cm | D(1, 3) | LU(A)=LC/UPC(APC) | ||||
| / | 0810=λ1,2,3,4D/λ5,6,7,8A | L87=1588.73 | X=Customization | ||||
Package and Mounting Dimension (mm)
| Stainless Steel Tube (A) | Plastic Box (B) | Aluminum alloy Box (C) | Aluminum alloy Rack (D) | |||||||||||
| Outline | Outline | Outline | Mounting | Outline | Mounting | Outline | ||||||||
| / | / | / | / | / | / | D1=129x29x160 | ||||||||
| B2=100x80x10 | 70x73.5x4Φ3.2 | C2=90x72x8 | 86x68x4Φ3 | D2=129x58x160 | ||||||||||
| B3=120x80x18 | 80x74.5x4Φ3.2 | C3=110x95x7.5 | 99x84x4Φ3.5 | D3=485x43.5x230 | ||||||||||
| B4=141x115x18 | 100x106x4Φ3.2 | C4=110x95x15 | 99x84x4Φ3.5 | D4=485x87x230 | ||||||||||
| Item | M=N | M≠N | ||||||||||||
| Dropλx=M, Addλy=N | 0104 | 0206 | 0308 | 0410 | 0204 | 0406 | 0608 | 0810 | ||||||
| φ0.9(φ2,φ3) Plastic Box | B2 | B2 | B2 | B2 | B2 | B2 | B2 | B2 | ||||||
| φ0.9(φ2/φ3) Aluminum Alloy Box | C2 | C2 | C2 | C3 | C2 | C2 | C2 | c3 | ||||||
| LGX | D1 | D1 | D1 | D2/ D1 (LC) | D1 | D1 | D1 | D2/ D1 (LC) | ||||||
| 19 Inches Rack | D3 | D3 | D3 | D3 | D3 | D3 | D3 | D3 | ||||||
Specification
| Operating Wavelength(nm) | ITU-T Grid | Parameter | Unit | Value | ||||||||
| Channel Space | 100G | 200G | CWDM | Fiber Type | / | SMF-28e/ SMF-28e XB | ||||||
| Channel Number | 2 | 4 | 8 | 2 | 4 | 8 | 2 | 4 | 8 | PMD | dB | <0.1 |
| [email protected] | >0.30 | >0.60 | >14.0 | Directivity | dB | >40 | ||||||
| Passband Flatness | <0.50 | Return Loss | dB | >45 | ||||||||
| IL(In->Drop@λdrop) | <1.4 | <2.5 | <3.2 | <1.4 | <2.5 | <3.2 | <1.4 | <2.5 | <3.2 | Pigtail Dia. | mm | 0.9 / 2 / 3 |
| IL(Add->Out@λadd) | <1.4 | <2.5 | <3.2 | <1.4 | <2.5 | <3.2 | <1.4 | <2.5 | <3.2 | Pigtail Length | cm | >50 |
| IL(In->Out@λother) | <1.6 | <2.8 | <4.3 | <1.6 | <2.8 | <4.3 | <1.6 | <2.8 | <4.3 | |||
| Isolation(Adjacent) | >25 | >30 | Power Handing | mW | <300 | |||||||
| Isolation(Non-Adjacent) | >45 | Operating Tem. | ºC | -20~ +70 | ||||||||
| Isolation(In->Out@λdrop) | >25 | Storage Tem. | ºC | -40~ +85 | ||||||||
| PDL(Max) | 0.1 | / | 0.15 | 0.2 | 0.1 | 0.15 | 0.2 | |||||
| PMD(Max) | 0.15 | 0.2 | 0.25 | 0.15 | 0.2 | 0.25 | 0.15 | 0.2 | 0.25 | |||
| Return Loss | >45 | |||||||||||
