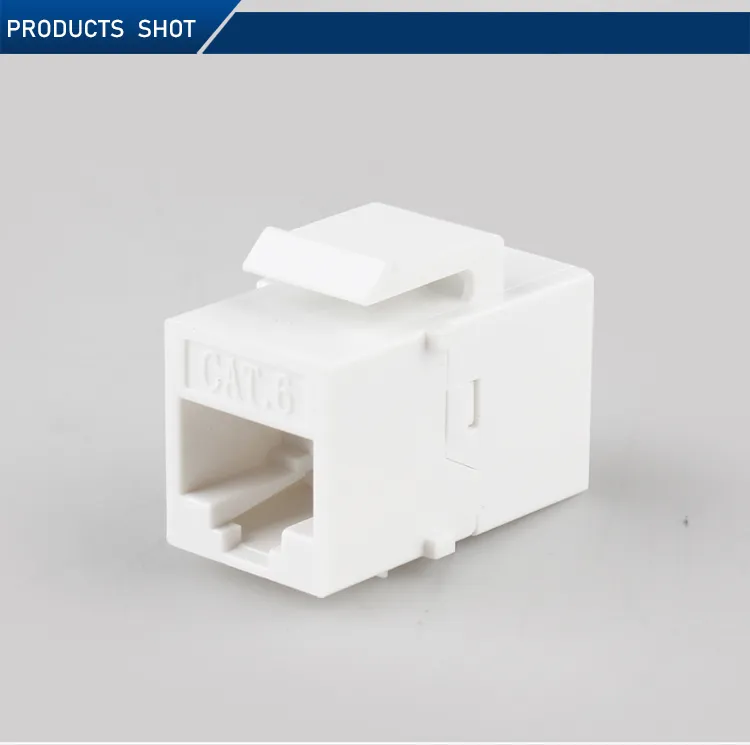

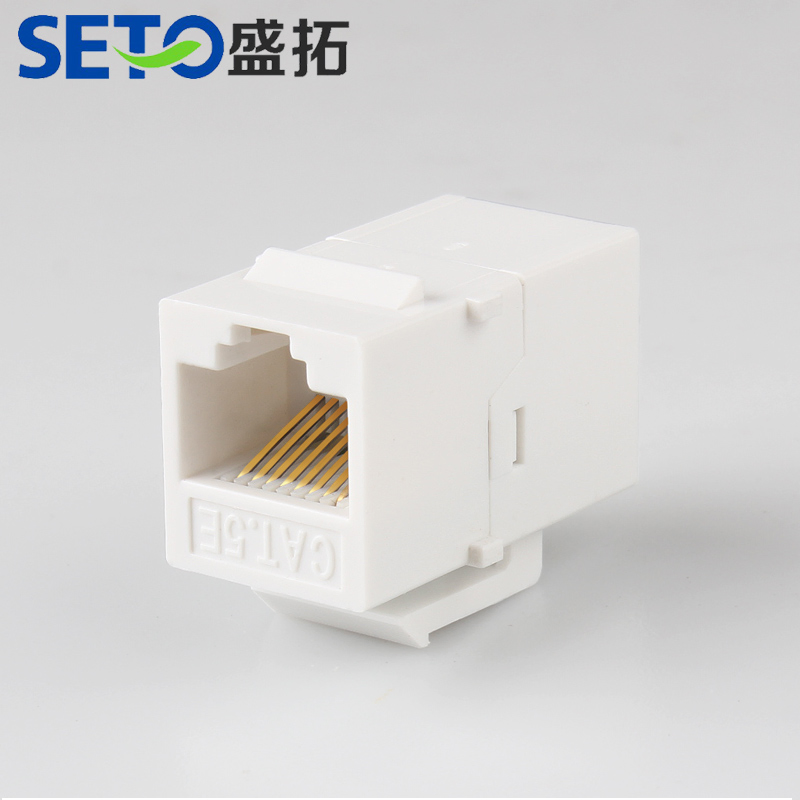

    Seto White Black RJ45 Coupler F/F 8p8c UTP 180 Degree
    • Seto White Black RJ45 Coupler F/F 8p8c UTP 180 DegreeSeto White Black RJ45 Coupler F/F 8p8c UTP 180 Degree
    • Seto White Black RJ45 Coupler F/F 8p8c UTP 180 DegreeSeto White Black RJ45 Coupler F/F 8p8c UTP 180 Degree
    • Seto White Black RJ45 Coupler F/F 8p8c UTP 180 DegreeSeto White Black RJ45 Coupler F/F 8p8c UTP 180 Degree
    • Seto White Black RJ45 Coupler F/F 8p8c UTP 180 DegreeSeto White Black RJ45 Coupler F/F 8p8c UTP 180 Degree

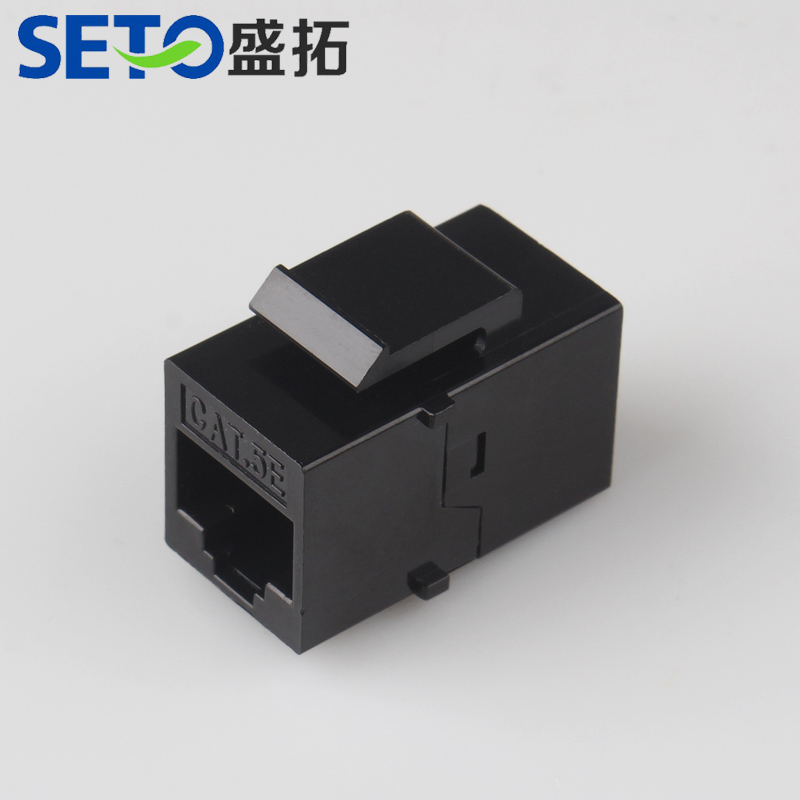

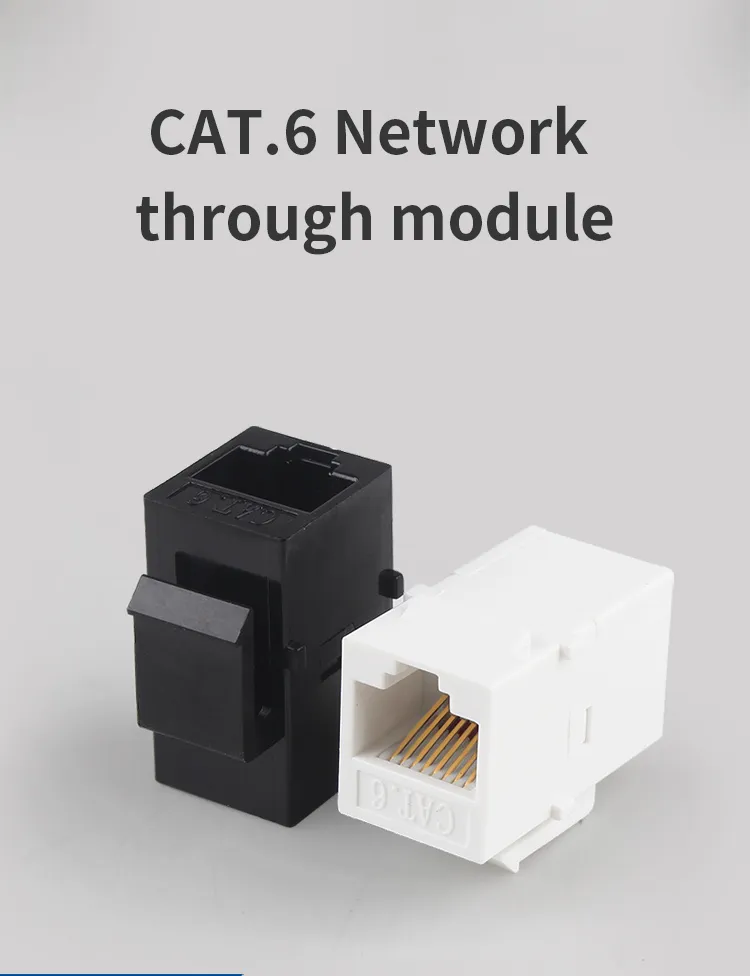

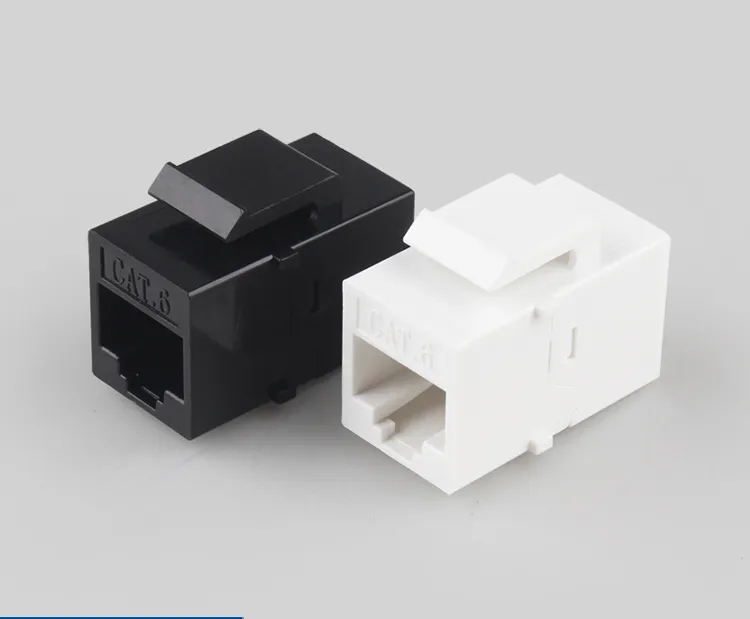

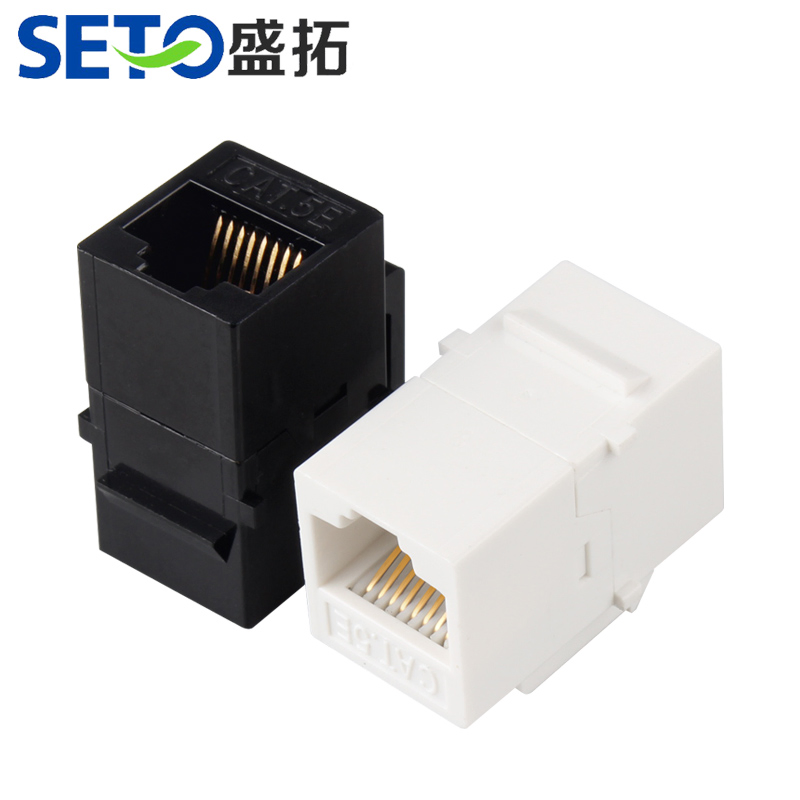

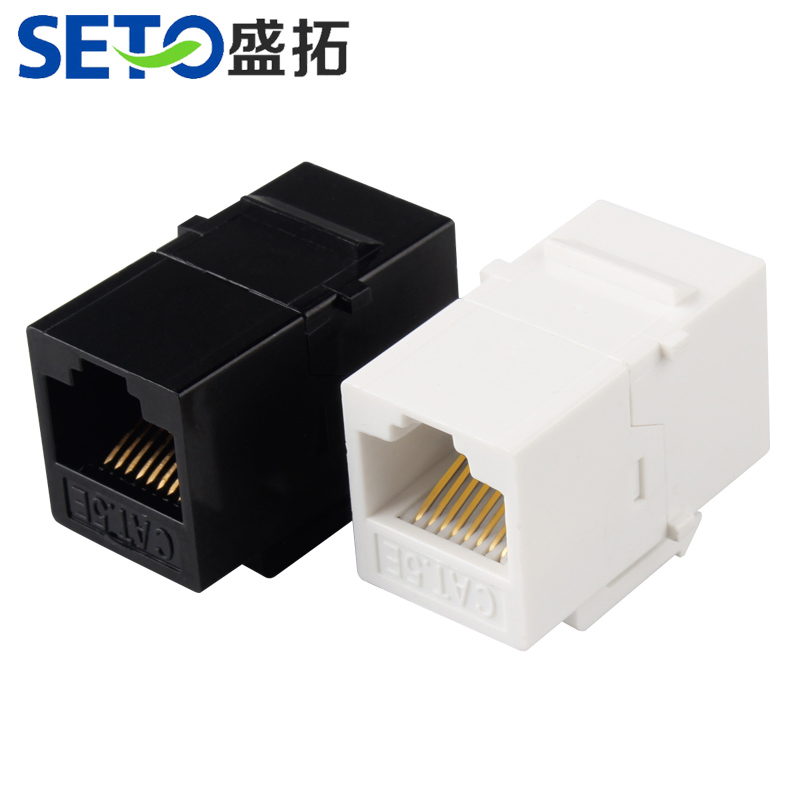

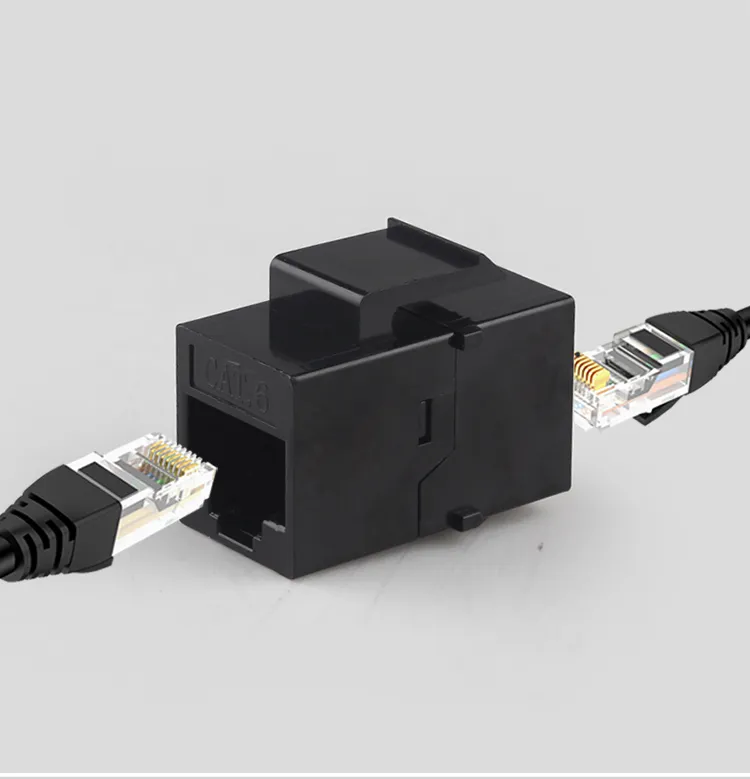

    Seto White Black RJ45 Coupler F/F 8p8c UTP 180 Degree

    Standard 110 and LSA dual use punching tool make operation more convenientElectrical Characteristics·DC Resistance: ≤300mΩ·Contact Resistance: ≤20mΩ· Dielectric strength: 1000V(AC750V)1min no break down and flashover· Insu......

    Send Inquiry

    Product Description


    Standard 110 and LSA dual use punching tool make operation more convenient

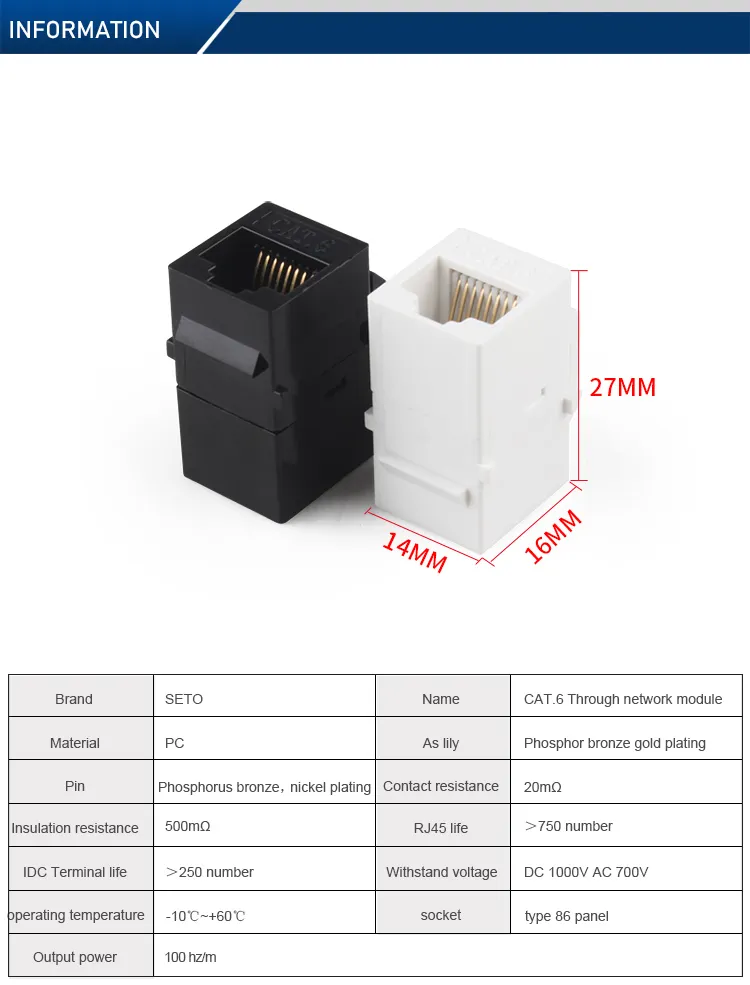

    Electrical Characteristics
    ·DC Resistance: ≤300mΩ
    ·Contact Resistance: ≤20mΩ
    · Dielectric strength: 1000V(AC750V)1min no break down and flashover
    · Insulation Resistance: ≥1000MΩ

    Physical Characteristics

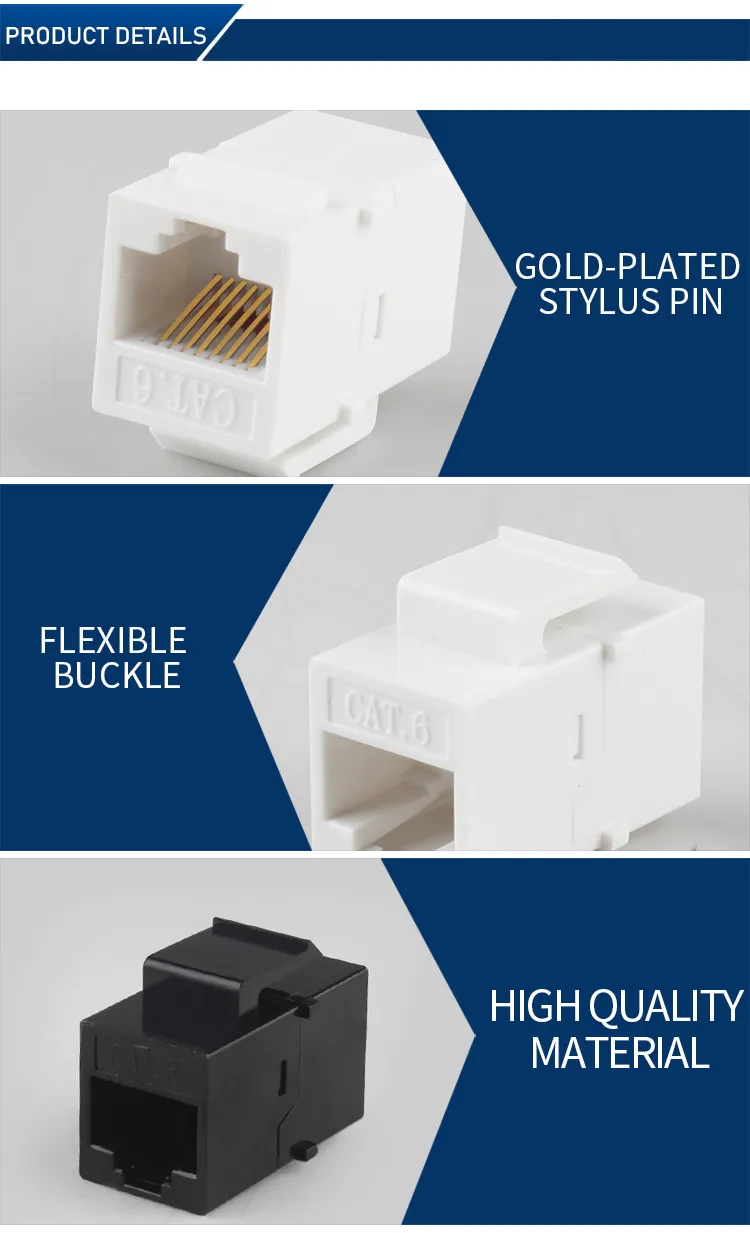

    Phosphor bronze with nickel plated , connector pins with golden plated
    IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
    Inserting Duration: ≥750 times
    Punching Duration: ≥250 times
    Jack housing plastic part: UL 94V-2,RED,YELLOW,BLUE,GREEN,BLACK and other colors available
    Termination caps material UL94V -2
    Working temperature: -25ºC~60ºC

    Seto White Black RJ45 Coupler F/F 8p8c UTP 180 DegreeSeto White Black RJ45 Coupler F/F 8p8c UTP 180 DegreeSeto White Black RJ45 Coupler F/F 8p8c UTP 180 DegreeSeto White Black RJ45 Coupler F/F 8p8c UTP 180 DegreeSeto White Black RJ45 Coupler F/F 8p8c UTP 180 DegreeSeto White Black RJ45 Coupler F/F 8p8c UTP 180 DegreeSeto White Black RJ45 Coupler F/F 8p8c UTP 180 DegreeSeto White Black RJ45 Coupler F/F 8p8c UTP 180 Degree
    Quick Details
    Model Number: cat6  keystone

    Place of Origin: Zhejiang, China

    Brand Name:SETO

    Material:
    PC+ Phosphor Bronze+ Circuit Board

    Classification:RJ45

    Application:Internet Cable, Telecom
    Supply Ability
    Supply Ability
    1000 Piece/Pieces per Day
    Packaging & Delivery
    Packaging Details
    1 pcs 1 PE bag
    Port
    Ningbo, Shanghai, Shenzhen, etc.
    Lead Time:
    Quantity(Pieces)1 - 1000>1000
    Est. Time(days)5To be negotiated
