Srwf-1028 Wireless RF Module 433/470/868/915MHz Data Module
1.Product introduction 1)Wireless transceiver modules SRWF-1028 can be used in any standard or nonstandard user protocol. 2)The module has highly be avoided disturbance ability, long transmission range. In the open field the distance can reach 4500m (4800bps, use AT -6 antenna). 3)Low power co......
Send Inquiry
Product Description
1.Product introduction
1)Wireless transceiver modules SRWF-1028 can be used in any standard or nonstandard user protocol.
2)The module has highly be avoided disturbance ability, long transmission range. In the open field the distance can reach 4500m (4800bps, use AT -6 antenna).
3)Low power consumption, Transmitting current 300~550mA, Receiving current 32~38mA.
4)The frequency is 403MHz/433MHz/470MHz/868MHz/915MHz.
5)User can order the channel. We can supply 8 channels normally. As the user needs we can design 16/32 channels also.
6)The module has TTL/RS232/RS485 interface, 7E1, 8N1, 7E2, 8E1, 8O1, 9N1 verify.
7)We can supply the 1200bps/2400bps/4800bps/9600bps/19200bps baud rate. Users can choose one of the baud rate as you want.
8)The user can also choose any antenna to match the modules.
2. Technical Specification
3.Product features and application
Features:
Application:
1). Water, electricity, gas, heating automatic meter reading and charging system.
2). Active RFID electronic label
3). Municipal street lighting and wireless intelligent lighting control
4). M2M industrial equipment and instruments
5). Monitoring the operation state of wind power generator
6). LED display for the fairway buoy and field temporary site
7). Wireless crane scale, wireless electronic scale
8). Interactive voting, bank queuing management system
9). Automotive collision avoidance, alarm, rescue system
10). Building energy consumption monitoring, wireless sensor network
11). Intelligent household management system
12).Intelligent transportation data communication

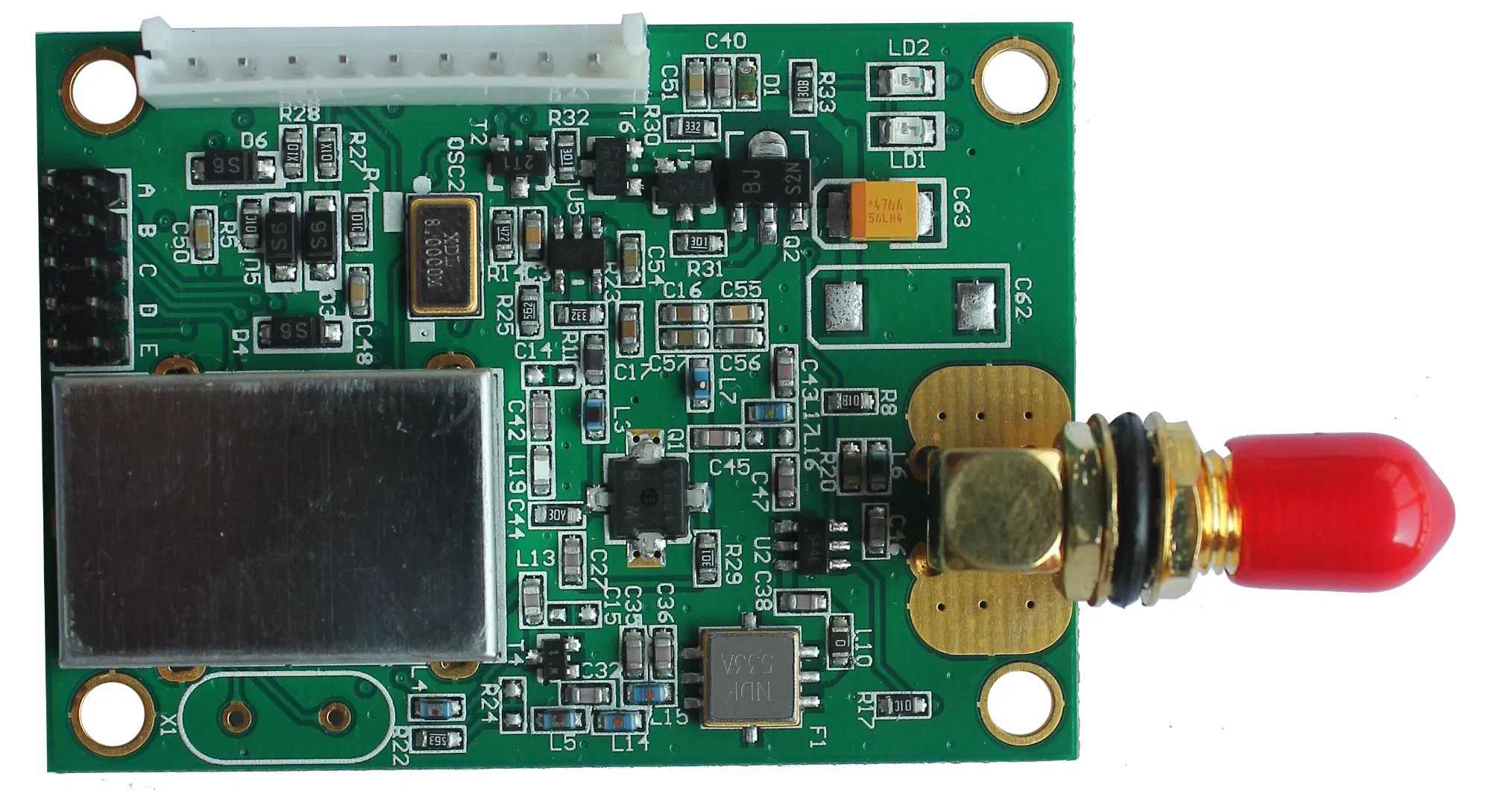

4.Product details
1)Wireless transceiver modules SRWF-1028 can be used in any standard or nonstandard user protocol.
2)The module has highly be avoided disturbance ability, long transmission range. In the open field the distance can reach 4500m (4800bps, use AT -6 antenna).
3)Low power consumption, Transmitting current 300~550mA, Receiving current 32~38mA.
4)The frequency is 403MHz/433MHz/470MHz/868MHz/915MHz.
5)User can order the channel. We can supply 8 channels normally. As the user needs we can design 16/32 channels also.
6)The module has TTL/RS232/RS485 interface, 7E1, 8N1, 7E2, 8E1, 8O1, 9N1 verify.
7)We can supply the 1200bps/2400bps/4800bps/9600bps/19200bps baud rate. Users can choose one of the baud rate as you want.
8)The user can also choose any antenna to match the modules.
2. Technical Specification
| Item | Parameter | Note | |
| Modulation mode | GFSK/FSK | ||
| Working frequency | 403MHz/433MHz/470MHz/868MHz/915MHz | ||
| Transmitting power | 27dBm (0.5W) | ||
Receiving sensitivity | -119dBm(403MHz/2400bps) -119dBm(433MHz/2400bps) -119dBm(470MHz/2400bps) -116dBm(868MHz/2400bps) -115dBm(915MHz/2400bps) | ||
| Channel | 8channel | User can order | |
| Channel isolation | 60dB | ||
Bandwidth of the channel | 12.5K 25K 50k | 1200~4800bps 9600bps 19200bps | |
| Carrier frequency error | ±5K | -20~70ºC | |
Transmitting current | 300~400mA 350~450mA 400~500mA 450~550mA | 470MHz 403MHz 433MHz/868MHz 915MHz | |
| Receiving current | 32~38mA | ||
| Baud rate | 1200/2400/4800/9600/19200bps | User can choose one of them before order | |
| Interface mode | UART TTL/RS-232/RS-485 | 19200bps is inapplicability | |
| Dimension | 53mm×38mm×10mm | ||
| Transmit distance | 2500m | AT-14antenna(3dbi) 4800bps | |
3.Product features and application
Features:
- The adjustable transmitting power
- Multiple working frequency band
- High anti-interference and low BER(Bit Error Rate)
- Multi-Channel
- Multi-interface modes
- Multi-baud rate and serial port data format
- Meet both industrial or residential designs
- Low power sleep mode, suitable for battery powered systems
- Electrostatic protection
- The standard design, meet various international standards
Application:
1). Water, electricity, gas, heating automatic meter reading and charging system.
2). Active RFID electronic label
3). Municipal street lighting and wireless intelligent lighting control
4). M2M industrial equipment and instruments
5). Monitoring the operation state of wind power generator
6). LED display for the fairway buoy and field temporary site
7). Wireless crane scale, wireless electronic scale
8). Interactive voting, bank queuing management system
9). Automotive collision avoidance, alarm, rescue system
10). Building energy consumption monitoring, wireless sensor network
11). Intelligent household management system
12).Intelligent transportation data communication

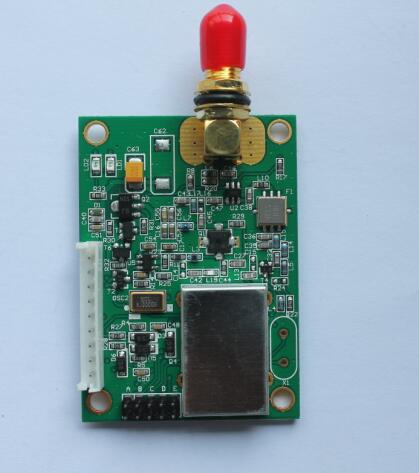

4.Product details
