UMTS 2100mhzfilter
Specifications of BTS FilterModel: BT-F1950M15MV001Product Picture Technical Specifications Type1Ports In- 1Port OutPass Band Range(Customized)1950~1965MHz2140~2155MHzInsertion Loss<1.5dB (1950~1965MHz)<0.8dB (2140~2155MHz)Stop band attenuation:>40dB (1970~1975MHZ)>50dB (1980~2000MHZ)VS......
Send Inquiry
Product Description
Specifications of BTS Filter
Model: BT-F1950M15MV001
Model: BT-F1950M15MV001

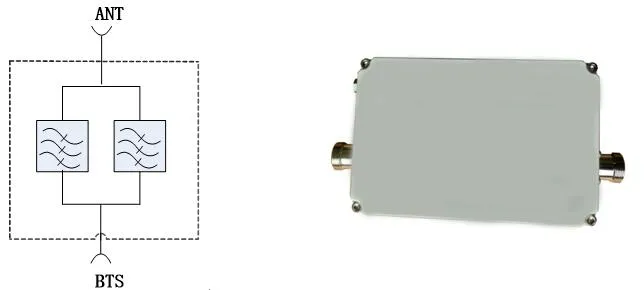

Product Picture |
Technical Specifications |
| Type | 1Ports In- 1Port Out |
| Pass Band Range(Customized) | 1950~1965MHz 2140~2155MHz |
| Insertion Loss | <1.5dB (1950~1965MHz) <0.8dB (2140~2155MHz) |
| Stop band attenuation: | >40dB (1970~1975MHZ) >50dB (1980~2000MHZ) |
| VSWR | <1.25 |
| Inter-modulation (3rd order) | <-150dBc(@ 2 x 20 W |
| Average Power (W) | >200W |
| Input Tx Peak Power | ≥2000W Max |
| Impedance | 50Ω |
| Connector Type | 7/16 DIN Female (long neck) |
| Dimensions | 307x168x79mm |
| Application | Indoor or Outdoor (IP66) |
| Operating Temperature (°C) | -30°C to +65°C |
| Mounting | Wall mounting: With 4 Screws/Mast mounting: With addition clamp set |
| Wight | ≤2.2kg |

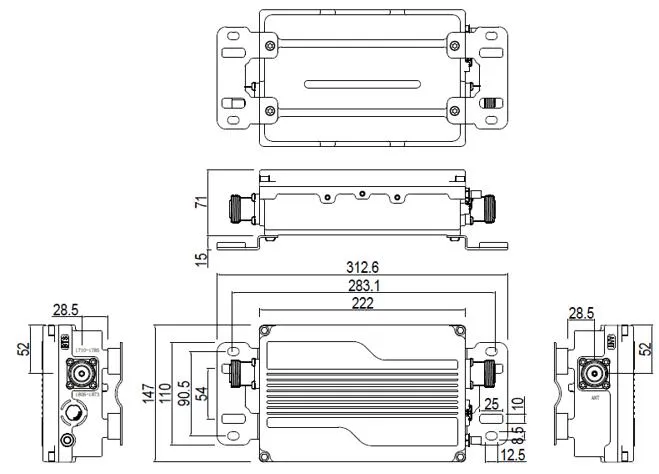

Outline Drawing for Single Unit:
