Weather Resistant Outdoor Telephone, Underground Vandal Resistant Telephone
Weather Resistant outdoor Telephone Underground Vandal Resistant TelephoneDescription:1.Standard Analogue phone2.Robust construction, Vandal resistant3.All weather protection IP664.Tamper resistant fixings5.Simple installation6.Fast-fit terminal connection7.With horn and beacon, loudness of sound ca......
Send Inquiry
Product Description
Weather Resistant outdoor Telephone Underground Vandal Resistant Telephone
Description:
1.Standard Analogue phone
2.Robust construction, Vandal resistant
3.All weather protection IP66
4.Tamper resistant fixings
5.Simple installation
6.Fast-fit terminal connection

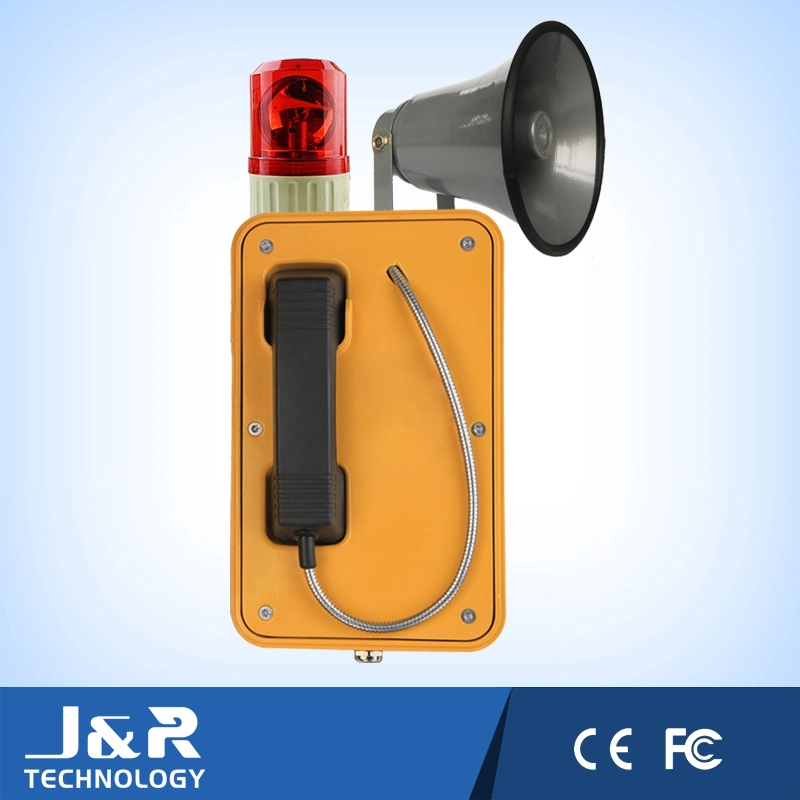

7.With horn and beacon, loudness of sound can be 110~120 DB
8.Programmable for auto-dial
9.Can be programmed remotely by tone phone
10.Non-volatile memory
11.Telephone line powered
12.Weatherproof and corrosion resistant handset
13.Stainless steel armoured handset cord
14.CE, FCC compliant
Applications:

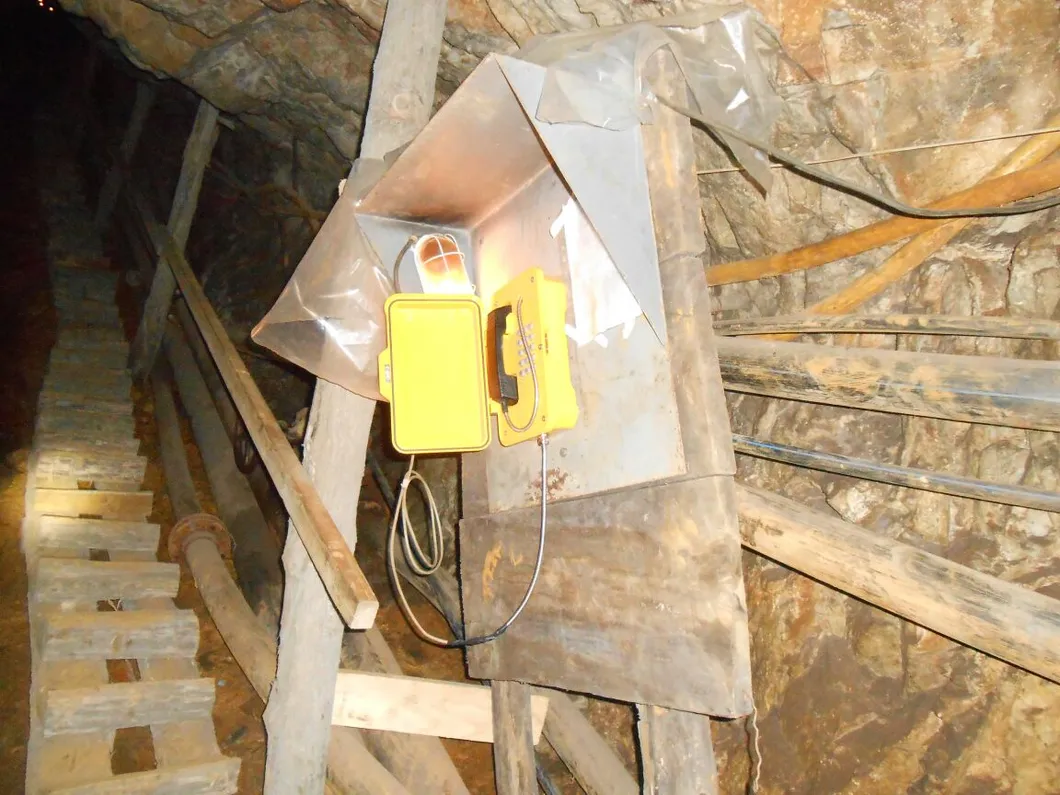

The Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy
industry which require very reliable telephony under adverse conditions.

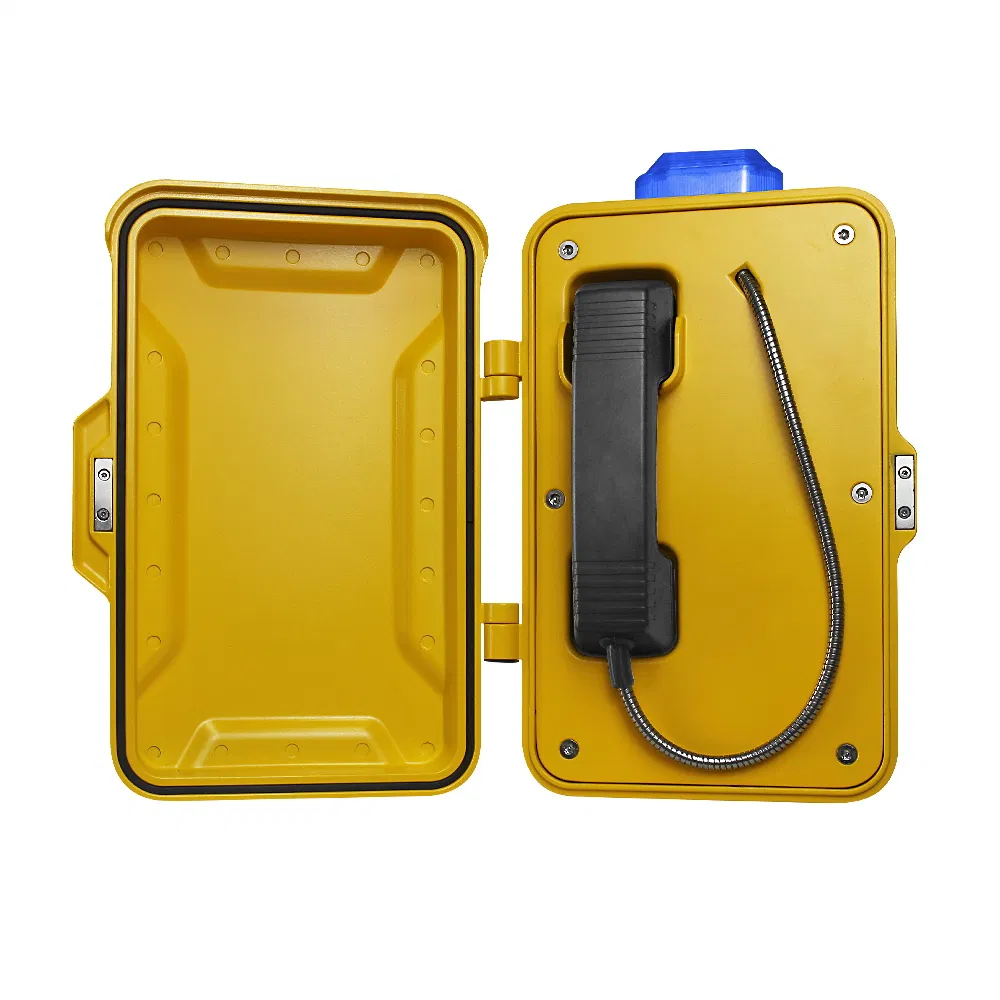

The telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing
complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Technical parameters:
Package:
Carton size:200*300*440( mm )
Packaging materials: pearl cotton, carton
Net weight: 5.5KG
Gross weight: 6.5KG
Relative explation:
a. Maintenance cost is comparable to the actual quotation given by J&R.
b. For unconfirmed products, J&R will ship them back to the purchaser.
c. Repaired components enjoy a warranty repair service of one year.
d. Responsibility for loss/damage does not transfer to J&R until the returned product is received by J&R or a J&R authorized representative.
e. Upon completion of repair/replacement, J&R will return the product to Customer.
Description:
1.Standard Analogue phone
2.Robust construction, Vandal resistant
3.All weather protection IP66
4.Tamper resistant fixings
5.Simple installation
6.Fast-fit terminal connection
7.With horn and beacon, loudness of sound can be 110~120 DB
8.Programmable for auto-dial
9.Can be programmed remotely by tone phone
10.Non-volatile memory
11.Telephone line powered
12.Weatherproof and corrosion resistant handset
13.Stainless steel armoured handset cord
14.CE, FCC compliant
Applications:
The Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy
industry which require very reliable telephony under adverse conditions.
The telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing
complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Technical parameters:
| Operating Temperature | -30°C to +65°C |
| Storing | -40°C to +75°C |
| Network Feature | WAN/LAN: support Bridge mode. Support PPPoE for xDSL support VLAN Support Stun penetration |
| Adapter(Input/Output) | Input:100-240VAC 50~60Hz Output:5V/1A |
| Power Consumption | Idle:1.5W/Active:1.8W |
| Ringing Tone | Shrill warble tone 80 dBA @ 1 metre typical |
| M.T.B.F. | excess of 50,000 hours using |

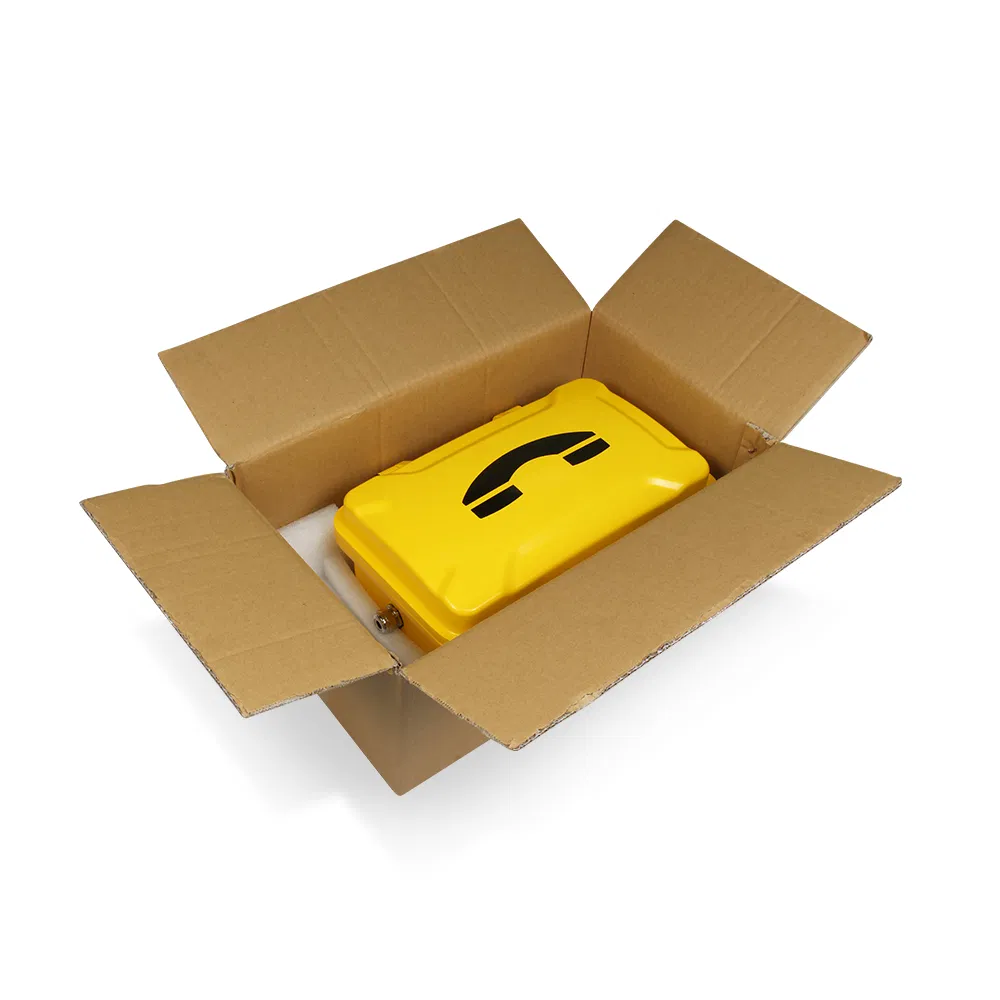

Package:
Carton size:200*300*440( mm )
Packaging materials: pearl cotton, carton
Net weight: 5.5KG
Gross weight: 6.5KG
Relative explation:
a. Maintenance cost is comparable to the actual quotation given by J&R.
b. For unconfirmed products, J&R will ship them back to the purchaser.
c. Repaired components enjoy a warranty repair service of one year.
d. Responsibility for loss/damage does not transfer to J&R until the returned product is received by J&R or a J&R authorized representative.
e. Upon completion of repair/replacement, J&R will return the product to Customer.
