Weatherproof Hotline Telephone for Tunnels, Water Resistant Industrial Ringdown Telephone
This industrial hotline telephone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.
Main Features of the Weatherproof Hotline Telephone for Tunnels, Water Resistant Industrial Ringdown Telephone
- Standard Analogue phone or SIP phone
- Aluminum alloy die-casting bod
- Vandal resistant handset and armored cord
- Weather proof protection to IP66-IP67
- Programmable for auto-dial
- Wall / Pillar mounting, simple installation
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, RoHS, ISO9001 compliant
- Phone line powered (Analogue)
- External power supply or PoE (SIP)
- RJ45 Port for SIP connection
OPTIONAL

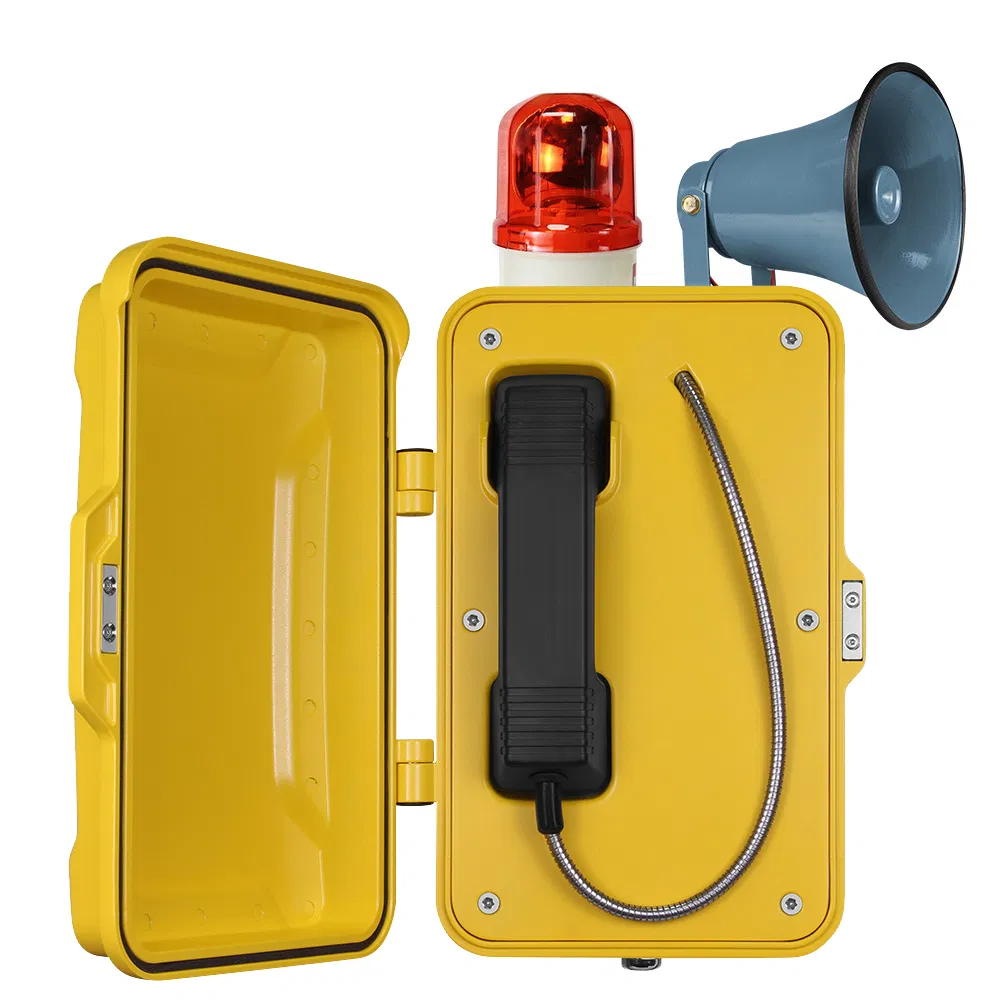

- Add Horn & Lamp on the top
- Key lockable latch
- Upper & lower internal mounting plates
- Flat label area or custom embossed logo on door
- Vandal resistant screws for upper mounting plate
APPLICATIONS of the Weatherproof Hotline Telephone for Tunnels, Water Resistant Industrial Ringdown Telephone

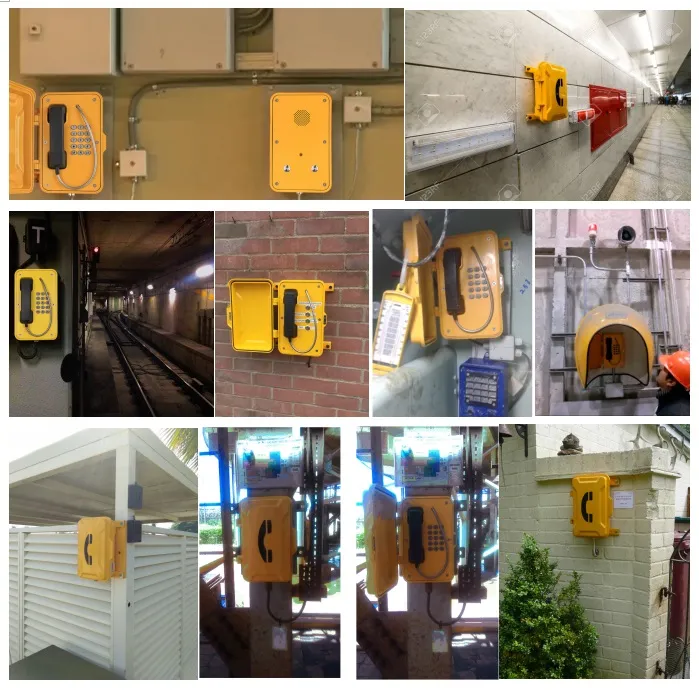

This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
Technical parameters of the Weatherproof Hotline Telephone for Tunnels, Water Resistant Industrial Ringdown Telephone
| Operating Temperature | -30°C to +65°C |
| Storing Temperature | -40°C to +75°C |
| Ringing Tone | Shrill warble tone 80 dBA @ 1 metre typical |
| M.T.B.F. | Excess of 50,000 hours using |
| Dialing | MF (tone) |
| Lightning / Transients | Protection to ITU-T k.21 enhanced levels |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
CERTIFICATIONS
Package of the Weatherproof Hotline Telephone for Tunnels, Water Resistant Industrial Ringdown Telephone

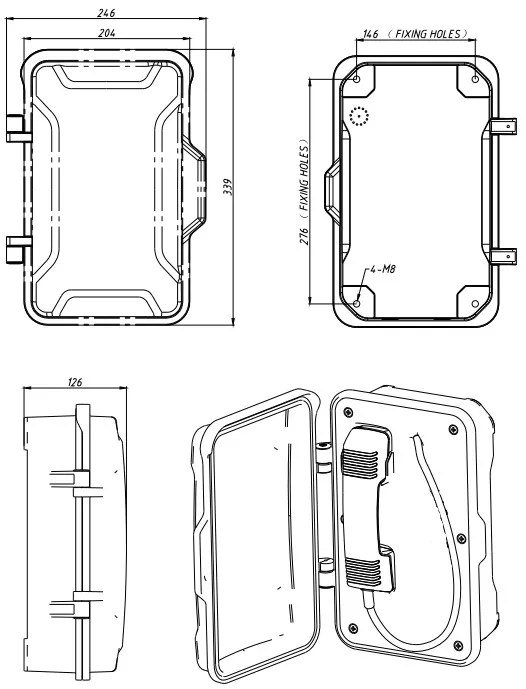

Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm)
Packaging materials: pearl cotton, carton
Net weight: 6 KG
Gross weight: 7 KG
FAQ
Q: Do you have any MOQ limit?A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What do IP Ratings mean?A: IP Ratings apply to enclosures such as our telephone cabinets. They indicate how the enclosure protects against water and dust ingress, the higher the better.
Q: How to proceed an order ?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q: How can I pay you?A: Many convenient methods for choose: Paypal, T/T, L/C.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Q: What's the quality standard of your products?A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
