1 5 Way Fiber Optic Cassette ABS Splitter

Product Description

1 5 way fiber optic cassette ABS splitter

Products Overview:

Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated
optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power
reservation in realization, the distribution of wavelength range covers EPON technology used
1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive
optical network access technology FTTP fiber network system, broadband passive optical optical
distributor (POS) use.

Products Advantages:

Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Good delivery time 3-7days
Good product capacity: 20000pcs connector each day

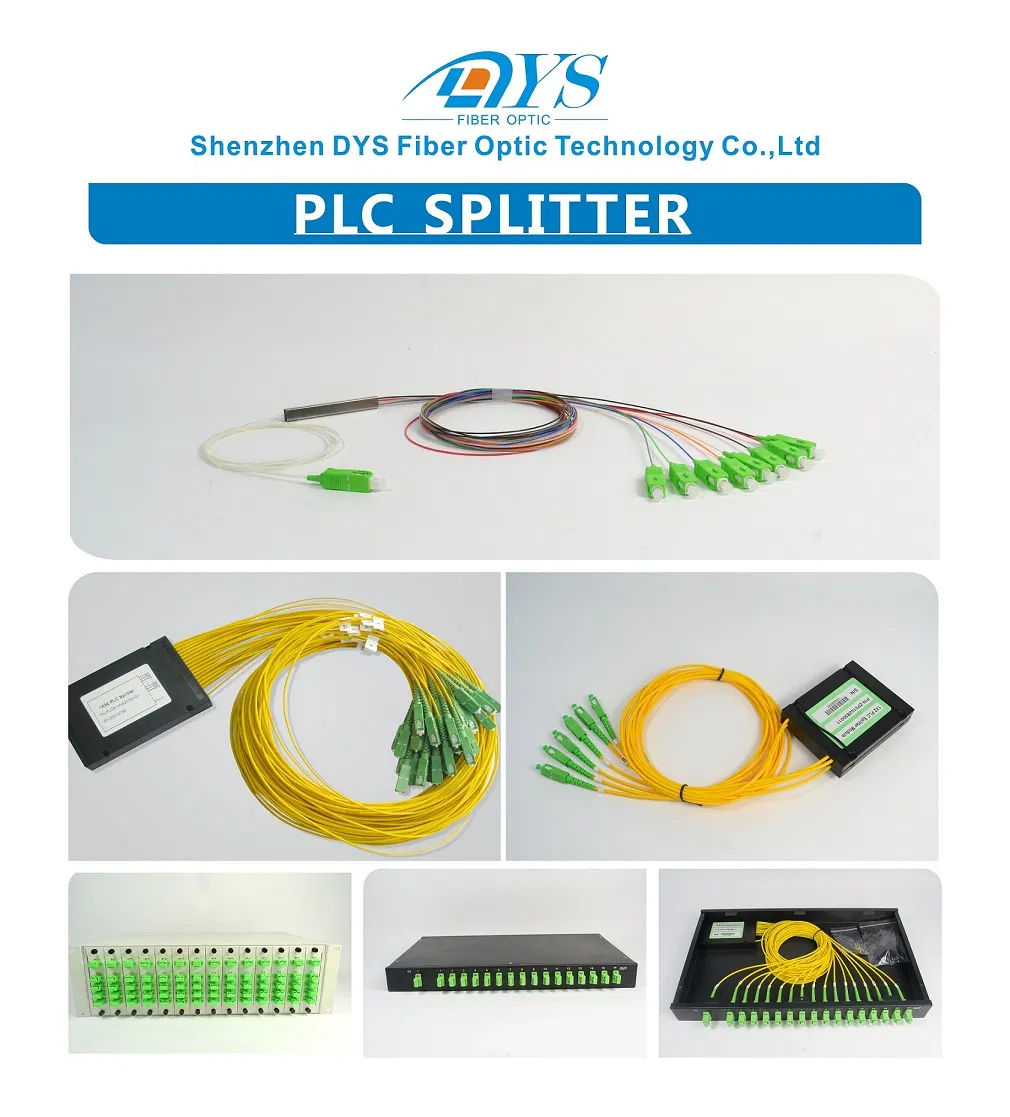

Specification of PLC Splitter

Type		1x2		1×4		1×8		1×16	1×32		1×64		2x2	2×4	2×8	2×16		2×32		2×64
Operating wavelength(nm)		1260-1650
Insertion loss (dB)	Typical	3.6	6.8		10.0		13.0		16.5	20.5		4.0		7.3	10.5	13.5	17.0		20.5
	Maximum	3.8	7.2		10.7		13.9		17.2	22.0		4.2		7.6	10.8	14.0	17.5		22.0
Uniformity (dB)	Typical	0.4	0.5		0.6		1.0		1.0	2.5		0.6		0.8	1.0	1.5	2.0		2.0
	Maximum	0.6	0.8		1.0		1.4		1.6	2.5		0.8		1.0	1.5	2.0	2.5		2.5
Polarization Dependent Loss (dB)	Typical	0.1	0.1		0.15		0.2		0.2	0.2		0.1		0.1	0.1	0.2	0.2		0.2
	Maximum	0.2	0.3		0.3		0.3		0.3	0.3		0.2		0.2	0.3	0.4	0.4		0.4
Wavelength dependent loss (dB)	Typical	0.1	0.1		0.15		0.3		0.3	0.1		0.1		0.1	0.1	0.1	0.2		0.2
	Maximum	0.2	0.3		0.3		0.5		0.5	0.2		0.2		0.2	0.3	0.5	0.5		0.5
Return loss (dB)	Minimum	UPC:50 APC:55
Directivity (dB)	Minimum	55
Operating temperature(°C)		-20 to 70
Storage temperature (°C)		-40 to 85
Optical fiber type		SMF-28e Or customer required
Optical fiber length (m)		1M or customize
Remarks:
1 . Measured at room temperature and excludes connector loss. 2 . For devices with connectors insertion loss will be 0.3 dB higher.
