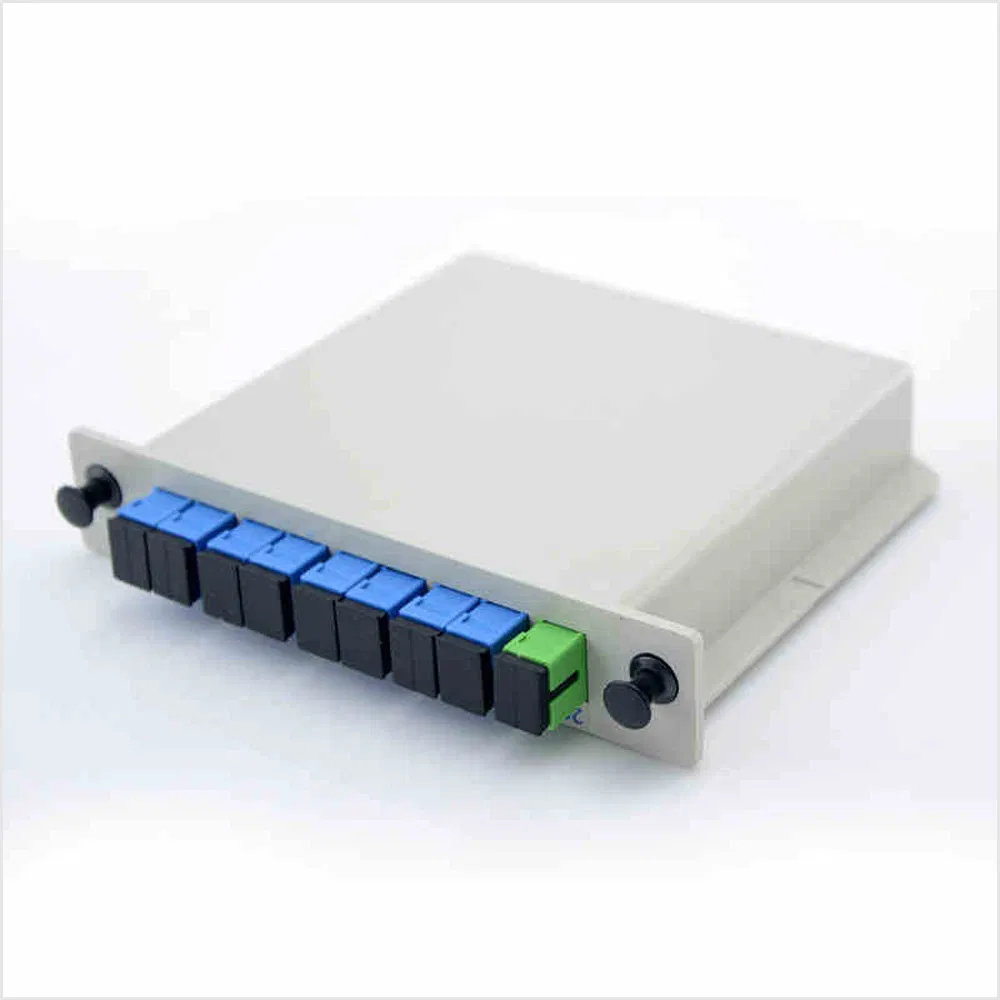

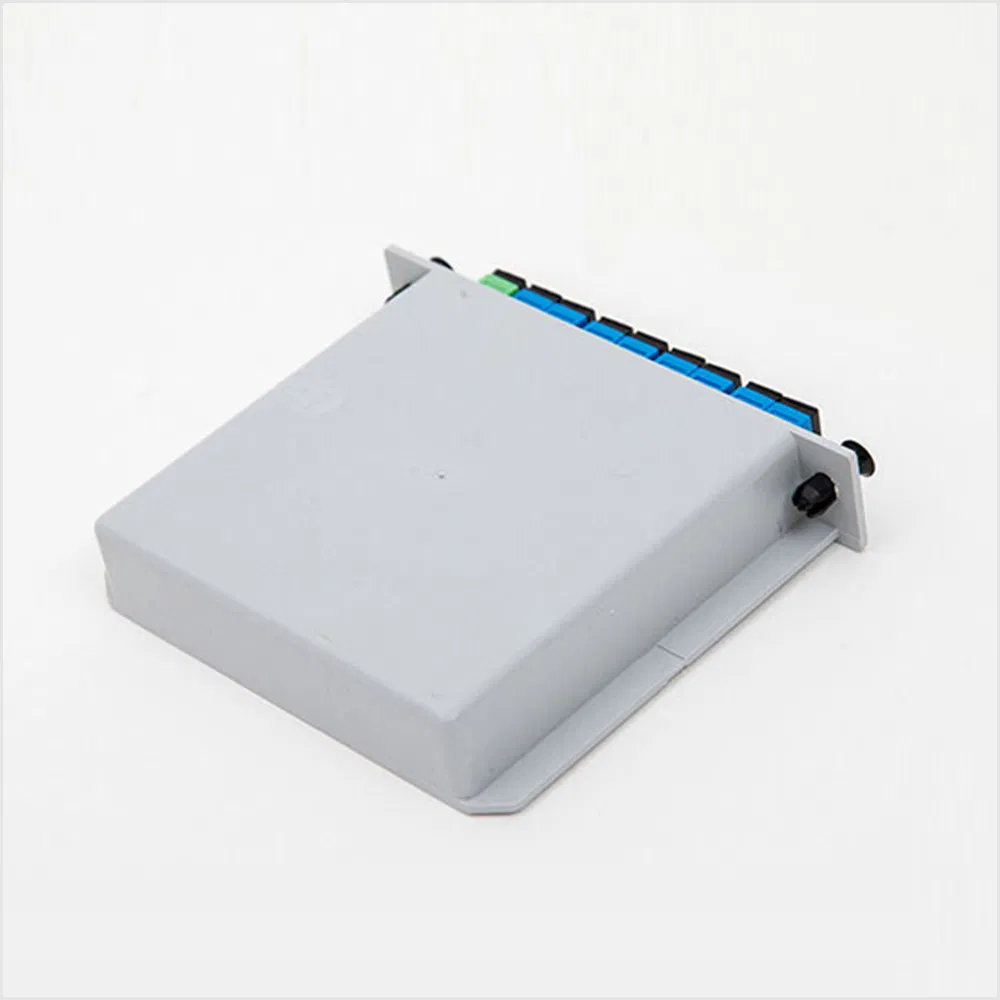

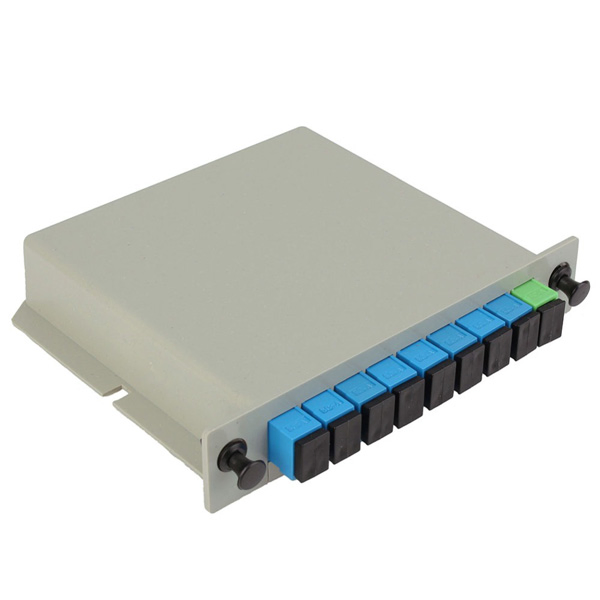

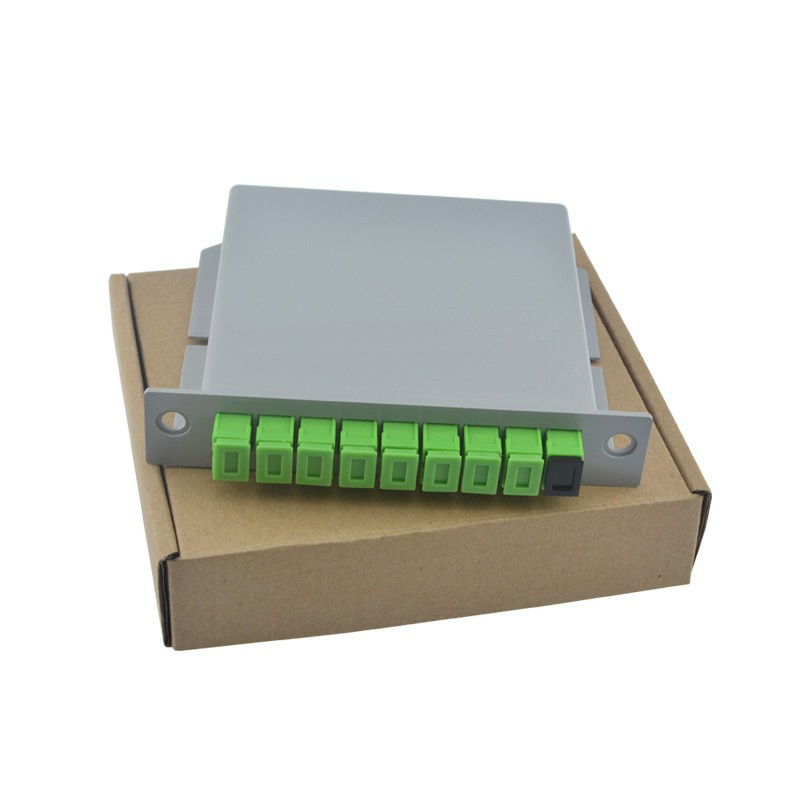

1 to 8 Lgx ABS Sc Fiber Optic PLC Splitter Module
SC APC PLC splitter family(1xN,2xN) features either ribbon or individual fiber output, with specifications that are tailored for different application and markets. All splitters provide guaranteed optical performance and high reliability that surpasses Telcordia requirements.
Features
1.Low Insertion loss
2.Low PDL
3.Compact Design
4.Good channel-to-channel uniformity
5.Wide Operating Wavelength:From 1260nm to 1650nm
Applications
1.FTTX Systems
2.PON Networks
3.CATV Links
4.Optical Signal Distribution
PLC Splitter Specification
Table 1 - 1×N PLC Splitter
Table 2 - 2×N PLC Splitter
Notes:
1.Specified without connectors.
2.Add an additional 0.30dB loss per connector.
Our services
1.Order inquiry: Keep working time from 9AM to 23PM to gurantee the first reply to clients,and 24 hours
no Cellphone power off
2.Order production: Keep very close touch with production department to gurantee the right delivery time to client
3.Before shipment: Our sales would double check the order quantity,package and strength of cartons to avoid lost and damage
4.After shipment: Keep tracking shipping status and reporting to clients
5.Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR
Any query about this 1 to 8 PLC Splitter,pls leave me an inquiry or contact me directly.
SC APC PLC splitter family(1xN,2xN) features either ribbon or individual fiber output, with specifications that are tailored for different application and markets. All splitters provide guaranteed optical performance and high reliability that surpasses Telcordia requirements.
Features
1.Low Insertion loss
2.Low PDL
3.Compact Design
4.Good channel-to-channel uniformity
5.Wide Operating Wavelength:From 1260nm to 1650nm
Applications
1.FTTX Systems
2.PON Networks
3.CATV Links
4.Optical Signal Distribution
PLC Splitter Specification
Table 1 - 1×N PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Wavelength (nm) | 1260~1650 | ||||||
| Fiber Type | G657A or customer specified | ||||||
| Insertion Loss (dB) | 3.8 | 7.1 | 10.2 | 13.5 | 16.6 | 19.8 | 23.8 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
| Return Loss (dB) | 55 | ||||||
| Polarization Dependent Loss(dB) | 0.2 | 0.25 | 0.3 | 0.35 | 0.35 | ||
| Directivity (dB) | 55 | ||||||
| Wavelength Dependent Loss(dB) | 0.3 | 0.5 | |||||
| Temperature Stability(-40~85 °C )(dB) | 0.4 | 0.5 | |||||
| Operating Temperature (°C) | -40~85 | ||||||
| Storage Temperature (°C) | -40~85 | ||||||
| Device Dimension (mm) (L*W*H) | 40*4*4 | 40*4*4 | 40*4*4 | 50*4*4 | 50*7*4 | 60*12*4 | NA |
| Module Dimension (mm) (L*W*H) | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*8 | 140*115*18 | 140*15*18 | 140*15*18 |
| Mini-Module Dimension (mm) (L*W*H) | 50 *7*4 | 50*7*4 | 50*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | NA |
Table 2 - 2×N PLC Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 |
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Fiber Type | G657A or customer specified | ||||||
| Insertion Loss (dB) | 4.0 | 7.5 | 10.8 | 14.1 | 17.4 | 20.7 | 24.5 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
| Return Loss (dB) | 55 | ||||||
| Polarization Dependent Loss(dB) | 0.2 | 0.25 | 0.3 | 0.35 | 0.35 | ||
| Directivity (dB) | 55 | ||||||
| Wavelength Dependent Loss(dB) | 0.3 | 0.5 | |||||
| Temperature Stability(-40~85 °C)(dB) | 0.4 | 0.5 | |||||
| Operating Temperature (°C) | -40~85 | ||||||
| Storage Temperature (°C) | -40~85 | ||||||
| Device Dimension (mm) (L*W*H) | 40*4*4 | 50*4*4 | 50*4*4 | 50*7*4 | 60*7*4 | 60*12*4 | NA |
| Module Dimension (mm) (L*W*H) | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 140*115*18 | 140*115*18 | 140*115*18 |
| Mini-Module Dimension (mm) (L*W*H) | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | NA |
Notes:
1.Specified without connectors.
2.Add an additional 0.30dB loss per connector.
