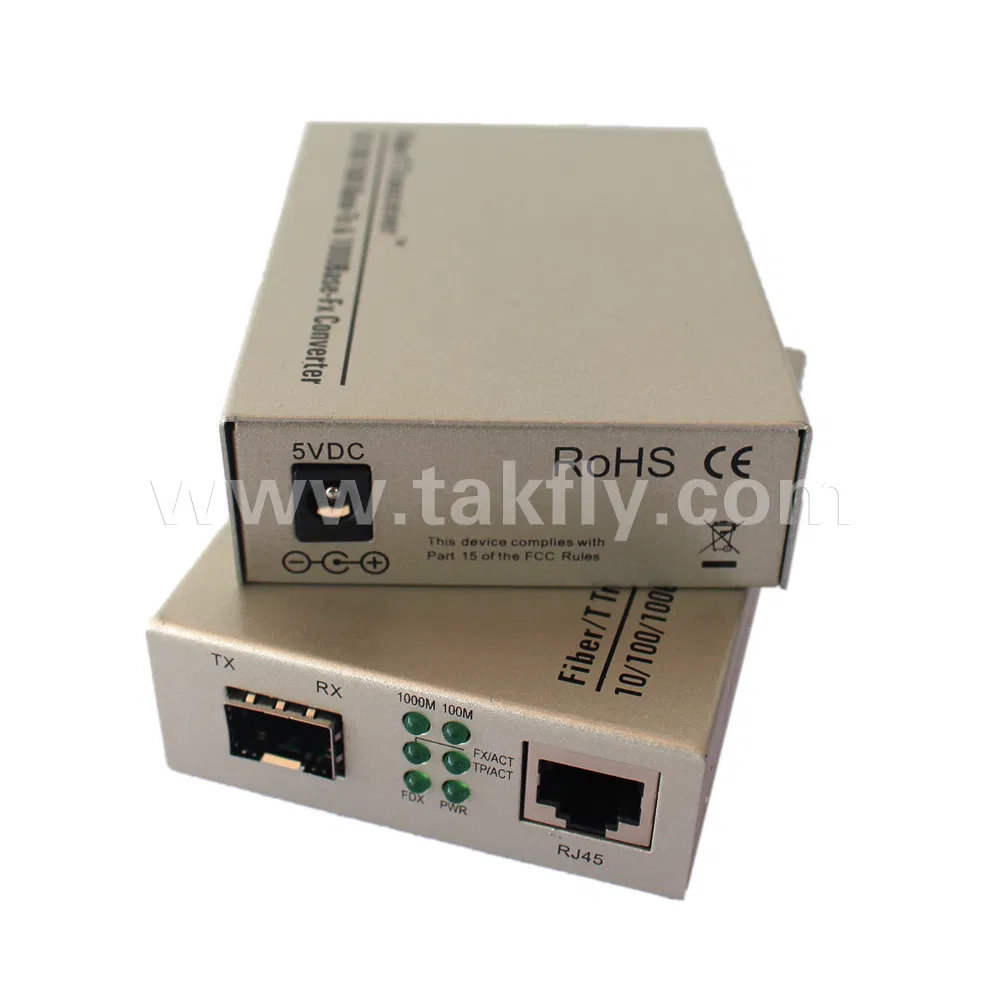

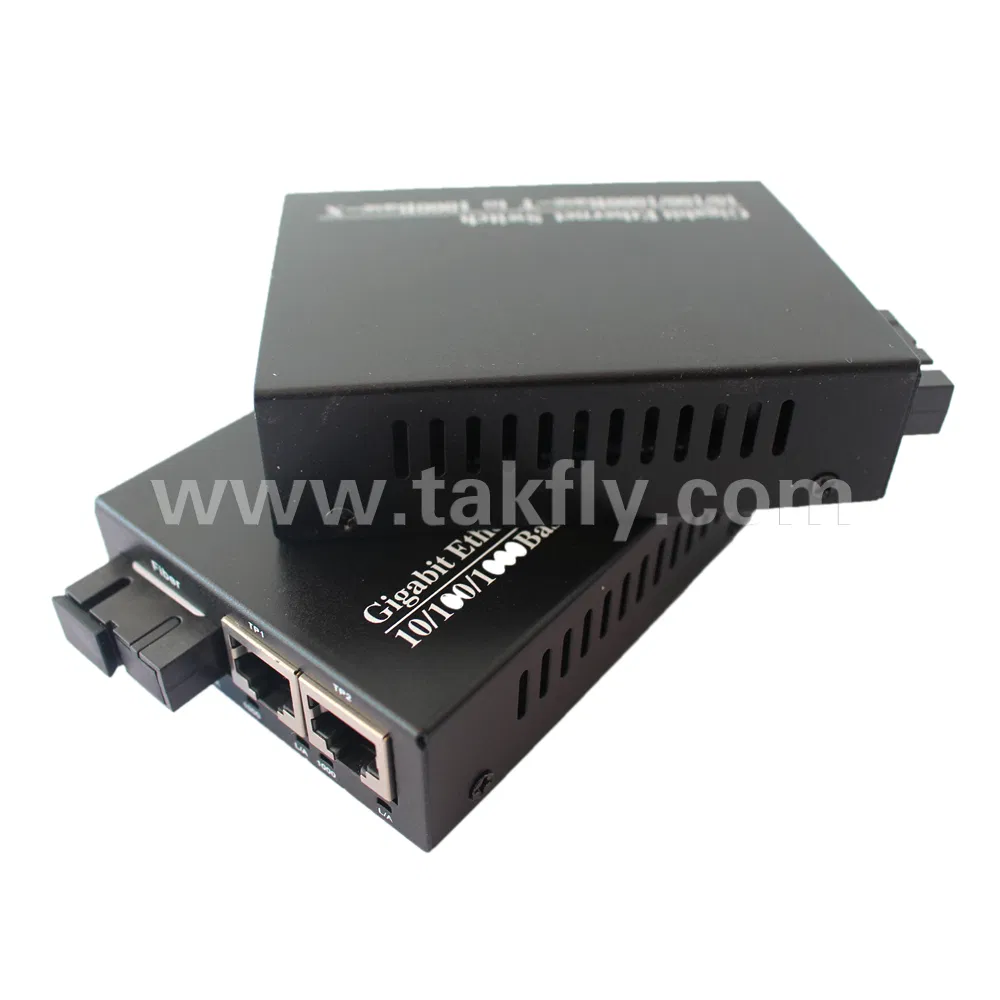

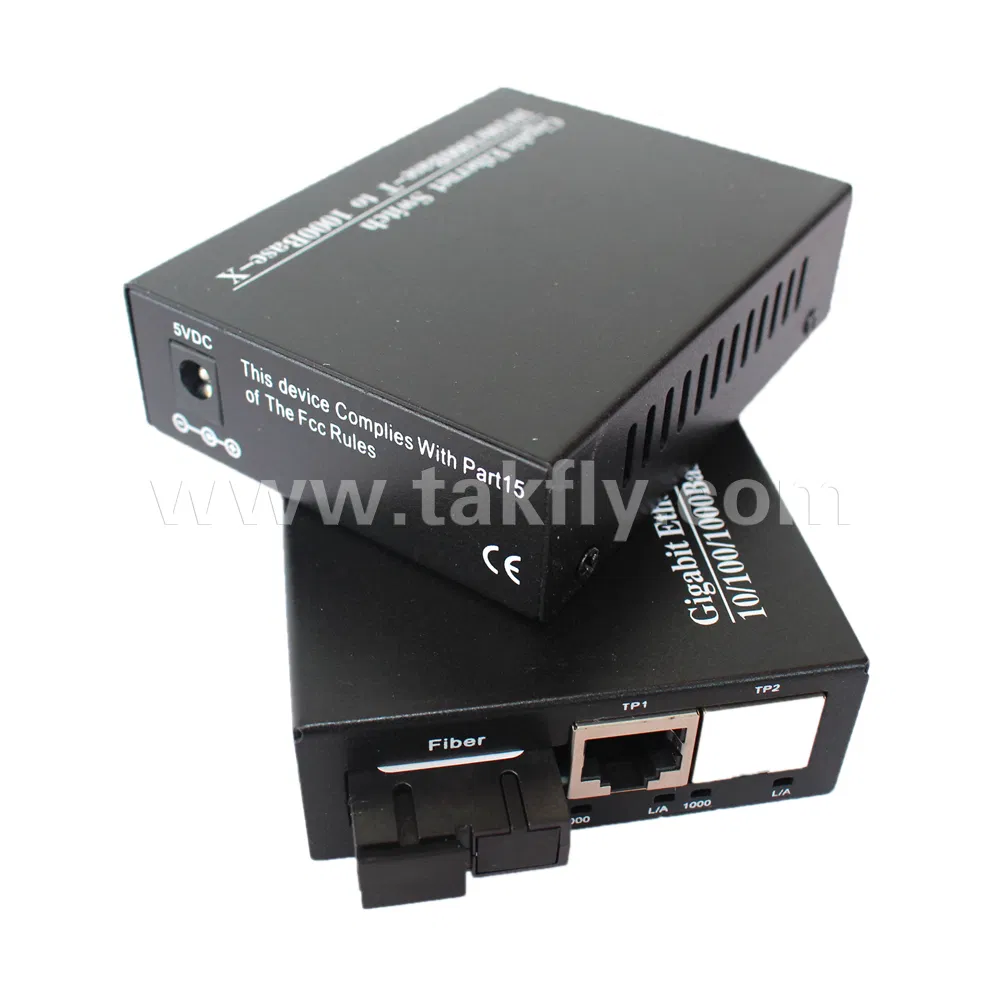

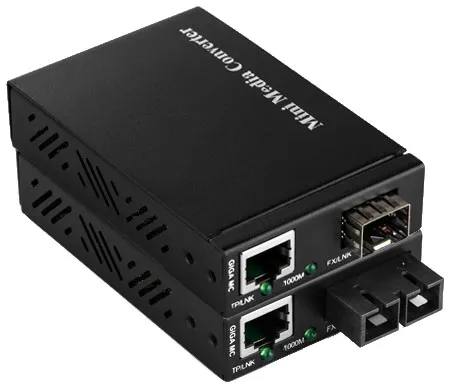

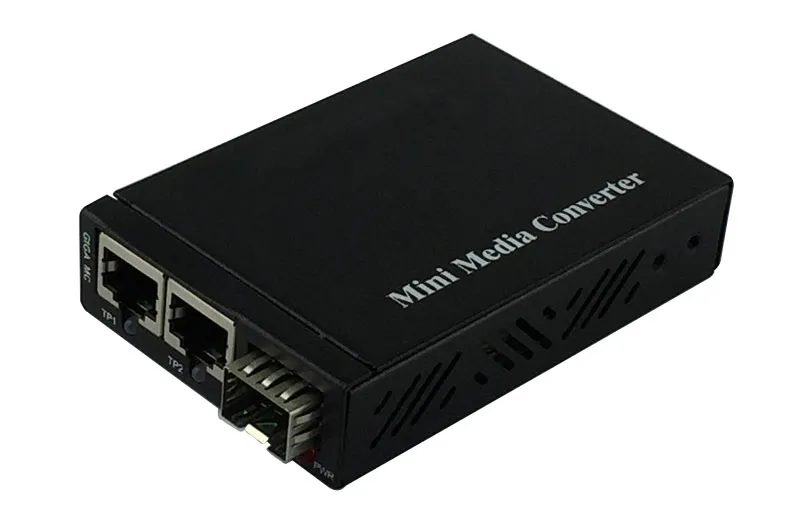

1000m Unmanaged Fiber Media Converter SC/SC 80km
1000m Unmanaged Fiber Media Converter Sc/Sc 80kmFiber optic media converter---Overcome the distance limitations of traditional network cables with fiber media convertersThese converters connect different types of network cabling and help you extend networks between buildings and over longer distance......
Send Inquiry
Product Description
1000m Unmanaged Fiber Media Converter Sc/Sc 80km
Fiber optic media converter---Overcome the distance limitations of traditional network cables with fiber media converters
These converters connect different types of network cabling and help you extend networks between buildings and over longer distances.
Description:
The MC series fiber optic media converters are a full line of products that transparently connects copper network devices to fiber optic network cabling.
Fiber media converter support Ethernet and Gigabit Ethernet twisted-pair electrical signal to the 100Base-FX and 1000Base-FX light signal interconversion. It expands the network transmitting range limit from the copper wire 100meters to 2km (MM optical fiber),120km (SM optical fiber).
Feature:
Compliant with IEEE802.3 and IEEE802.3u 100BaseTX/FX standards
Extends standard Ethernet cable limits
Autosensing MDI/MDIX Crossover for Network Port
Fully transparent to the network
Supports any network device, including IP cameras
Easy to install, no set up required.
No MAC or IP addressing required.
LED indicators for network signals, link status and power
Technical specification
Fiber optic media converter---Overcome the distance limitations of traditional network cables with fiber media converters
These converters connect different types of network cabling and help you extend networks between buildings and over longer distances.
Description:
The MC series fiber optic media converters are a full line of products that transparently connects copper network devices to fiber optic network cabling.
Fiber media converter support Ethernet and Gigabit Ethernet twisted-pair electrical signal to the 100Base-FX and 1000Base-FX light signal interconversion. It expands the network transmitting range limit from the copper wire 100meters to 2km (MM optical fiber),120km (SM optical fiber).
Feature:
Compliant with IEEE802.3 and IEEE802.3u 100BaseTX/FX standards
Extends standard Ethernet cable limits
Autosensing MDI/MDIX Crossover for Network Port
Fully transparent to the network
Supports any network device, including IP cameras
Easy to install, no set up required.
No MAC or IP addressing required.
LED indicators for network signals, link status and power
Technical specification
| Warranty Information | |
| Warranty | 2 years |
| Hardware | |
| Industry Standards | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-FX | |
| IEEE 802.3u 100BASE-TX | |
| PoE | No |
| WDM | No |
| Performance | |
| Fiber Operating Mode | Full-Duplex |
| Fiber Type | Single-Mode |
| Max Transfer Distance | 80km |
| Maximum Data Transfer Rate | 10/100/1000Mbps |
| MTBF | 65,000 Hours |
| Wavelength | 1310nm/1550nm |
| Connector(s) | |
| Local Unit Connectors | 1 - RJ-45 Female |
| Remote Unit Connectors | 1 - Fiber Optic SC Duplex |
| Indicators | |
| LED Indicators | 1 - Ethernet Link & Activity (ON - Ethernet Link OK, Blinking - Activity on Ethernet Link) |
| 1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault | |
| 1 - Fiber Link & Activity (On - Fiber Link OK, Blinking - Activity on Fiber Link) | |
| 1 - Full ( Full duplex) | |
| 1 - Power | |
| 1 - Speed rate | |
| Power | |
| Center Tip Polarity | Positive |
| Input Voltage | 110-250V AC |
| Output Current | 0.2A - 1.0A |
| Output Voltage | 5V - 12V DC |
| Plug Type | M |
| Power Consumption (In Watts) | 2.4 |
| Power Source | AC Adapter Included |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Color | Black / Grey |
| Enclosure Type | Plastic |
| Included in Package | 1 - Media Converter 1 - Power Adapter 1 - User's Manual |
