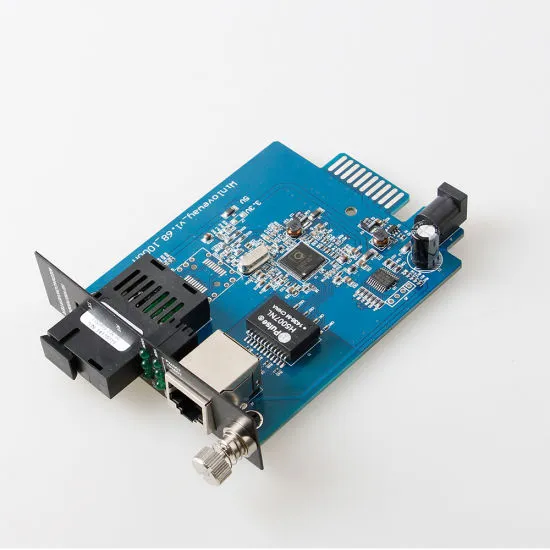

100Mbps Media Converter Card-Type
Card-type or stand-alone, apply in centralized management 2U aluminum chassisUsing WDM wavelength 1310nm and 1550nm to achieve single fiber bi-directional transmissionBroadcast filtering feature/Address auto learning/ Automatic update feature/Store and forward operating mechanismCache is 512KB, MAC ......
Send Inquiry
Product Description
•

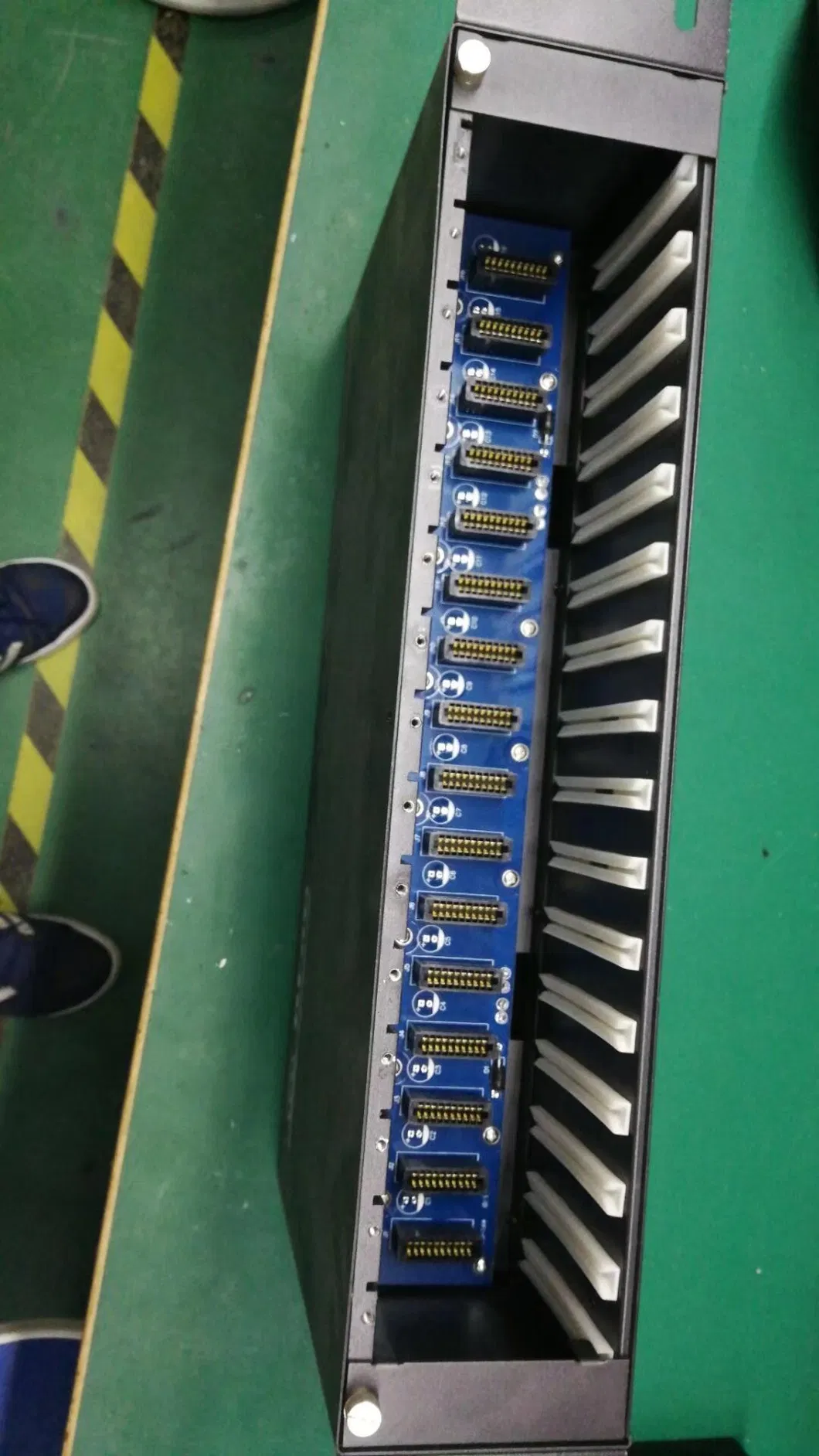

Card-type or stand-alone, apply in centralized management 2U aluminum chassis
Using WDM wavelength 1310nm and 1550nm to achieve single fiber bi-directional transmission
Broadcast filtering feature/Address auto learning/ Automatic update feature/Store and forward operating mechanism
Cache is 512KB, MAC address table is 4KB
Ethernet 10Base-T or 100Base-Tx to 100Base-Fx, or 1000Base-T to 1000Base-LX/SX fiber media converte
Support IEEE 802.3u, IEEE 802.3x, IEEE 802.3z/AB, IEEE 802.1d
Supports full-duplex or half-duplex backpressure flow control work, and with auto-negotiation capability
TP port supports 1000Mbps, 100Mbps, 10Mbps, two TP port could match different rate (When full-duplex bandwidth up to 2*Mbps)
Provide remote link loss diagnostics,TP port and FX port link connection diagnostic,dynamic data transmission,full / half duplex,rate indicator
Provide single RJ-45 port , and support automatically cross-recognition, connected with switch,set line
FX port with good feature, strong compatibility and high reliability, can be well compatible with Cisco, Nortel, 3COM etc
Excellent after-sales service, providing three years quality assurance and life-long maintenance services
Application
Harsh industrial environment or higher requirements for lightning protection
Urban Intelligent Traffic Monitoring System (ITS), Safe City
highway monitoring system, electronic road monitoring, network cameras
large industrial enterprise security monitoring systems, network multifunction system
Remote multimedia teaching / campus monitoring, remote network video conference system
| Technical Specification | |
| Product Name | 10/100/1000M Single Mode Dual Fiber Media Converter (Card-type) |
| Model | ZRK-GE-20 |
| Description | 10/100/1000M 1 TP Port Single Mode Dual Fiber Ethernet Media Converter |
| Ports | 1 10/100/1000Mbps copper RJ45 Port + 1 10/100/1000Mbps SC Port |
| Transmision Distance | 20Km |
| Optical Fiber | Single Mode Dual Fiber |
| Fiber Bandwidth | 1.25G |
| Ethernet Bandwidth | 1000MHz |
| Network Media | 100BASE-TX/1000BASE-TX:super cat.5 UTP Cable |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI |
| Forward Mode | Store and Forward |
| EMI Compatiblity | FCC Class A, CE |
| Total Power | Total power consumption is 5W |
| After-sales | 2 year warranty, life-long maintenance |
