Product Description

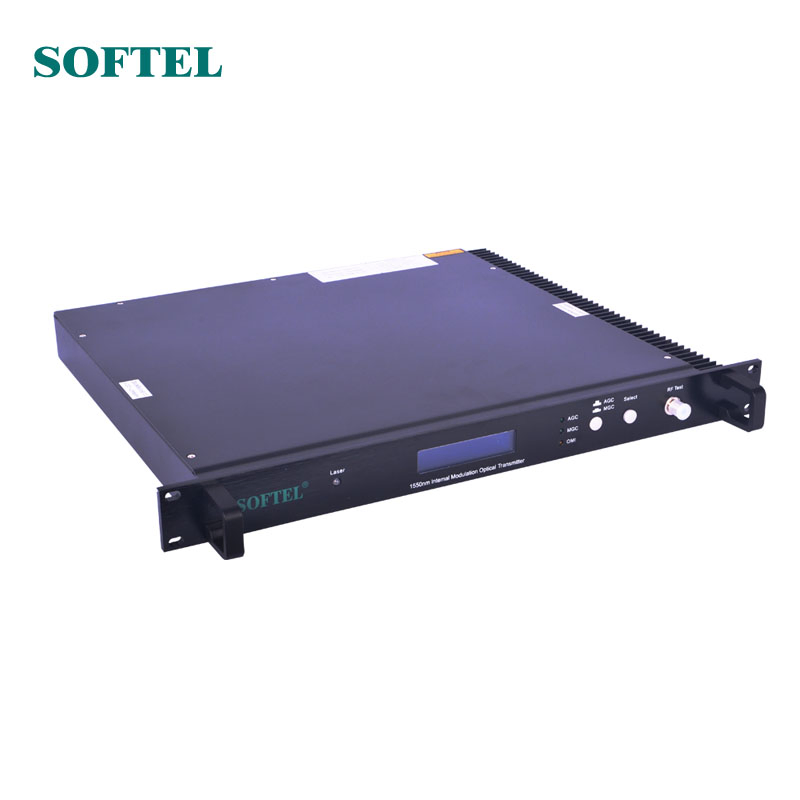

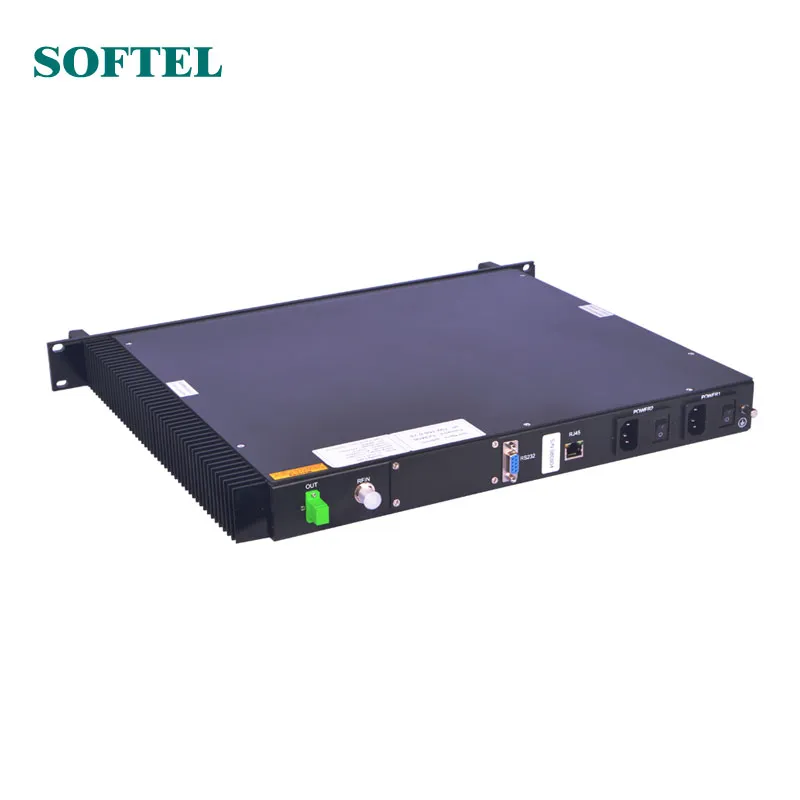

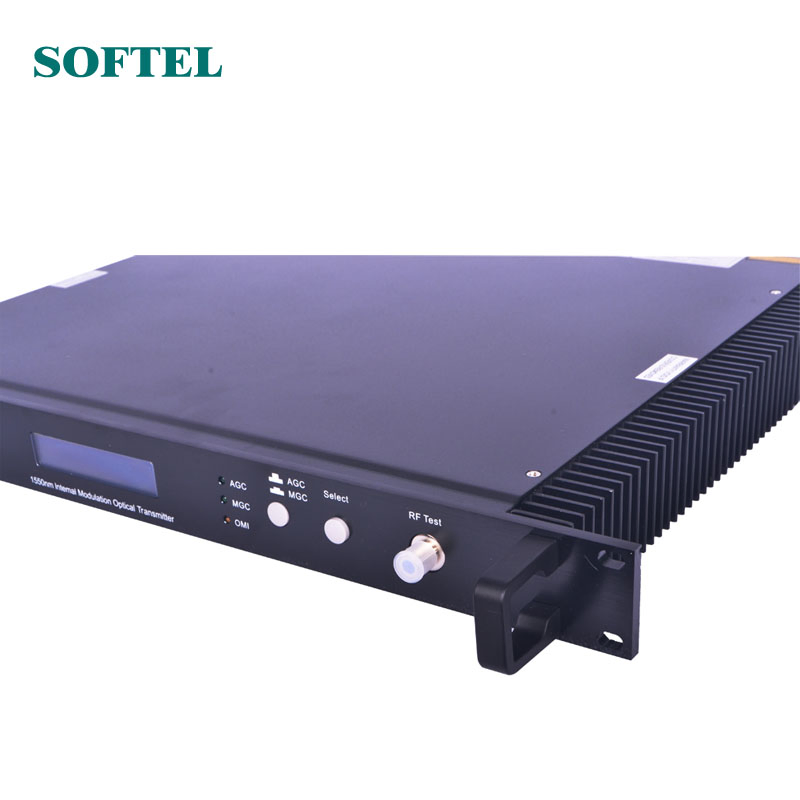

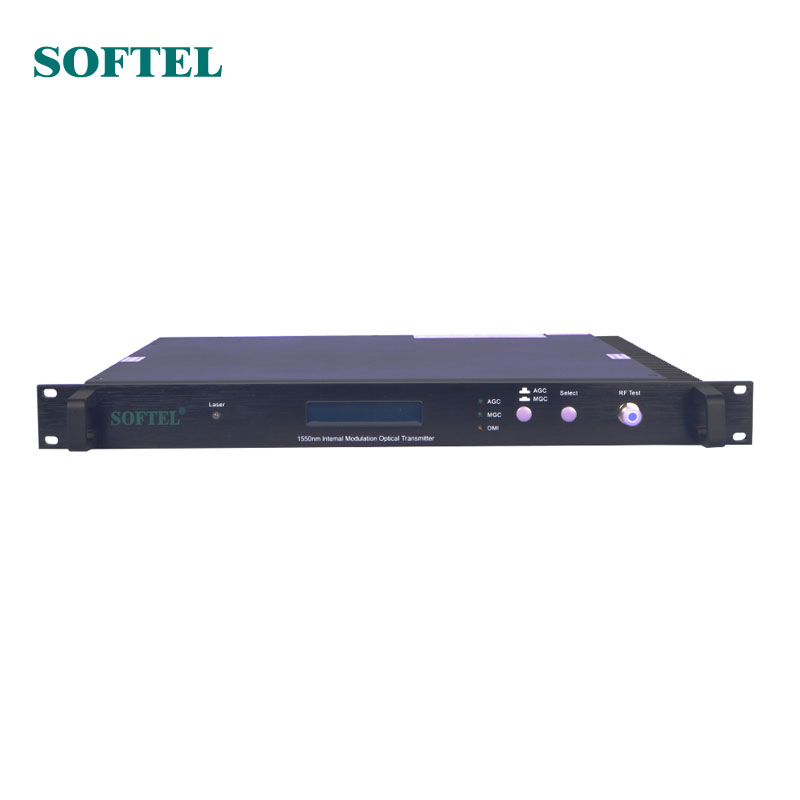

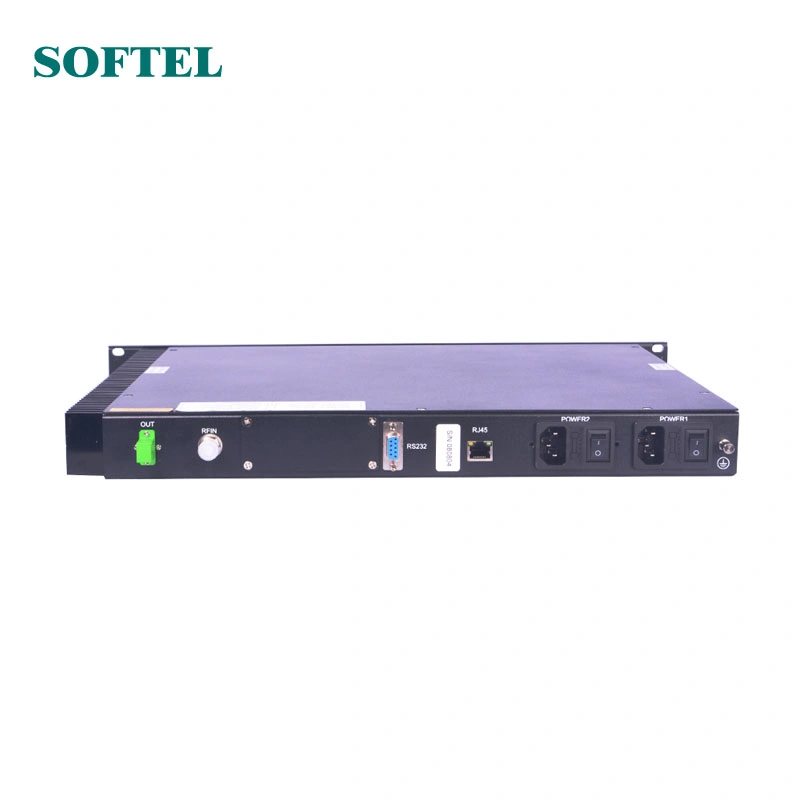

Softel 1550nm FTTx PON Optical Erbium-Doped Fiber Amplifier (EDFA) with Output Optical Power of 18dBm for CATV Network

·Characteristic
1. Adopt several international patents pre-distortion dealing technology to guarantee the fine non-linear index, good CSO,CTB and C/N.

Adopt famous brand 1550 nm DFB laser instrument guarantee low noise, high power and high dependability.

2. Can initiate the mode SBS function, offer more elastic disposition.

3. Adopt Automatic Gain Control design, make different RF input level keep about equal output performance still, Simplify installing and operation sequence.

4. The built-in microprocessor offers fine control performance and state to show that is controlled.

5. RS485 controls the interface to control by carrying on the remote state.

6. 191U high-standard framework type installation.

ITEM	UNIT	PARAMETER
Optical Parameter
Optical Wavelength	nm	1550±5
Laser Type		DFB Laser
Optical Modulating Mode		Outside Modulating
Connector Type		FC/APC,SC/APC
Optical Output Port		2
Optical Modulating Depth	mW	3%±0.25
Suppression Threshold	dBm	13/16/18 or Adjustable
RF Parameter
Frequency Range	Mhz	47~862
Input Level	dBμV	75~85
Flatness in Band	dB	±0.75
Input Impedance	Ω	75
Input Return Loss	dB	≥16(47~550Mhz); ≥14(550~862Mhz)
Connector Type		F Type
Circuit Performance
C/CTB	dB	≥65
C/CSO	dB	≥65
C?N	dB	≥53
General Performance
Supply Voltage	V	AC 160V~250V (50Hz)
Consumption	W	30
Operating Temperature		0~+45
Storage Temperature		-20~+65
Relative Humidity	%	Max 95% No Condensation
