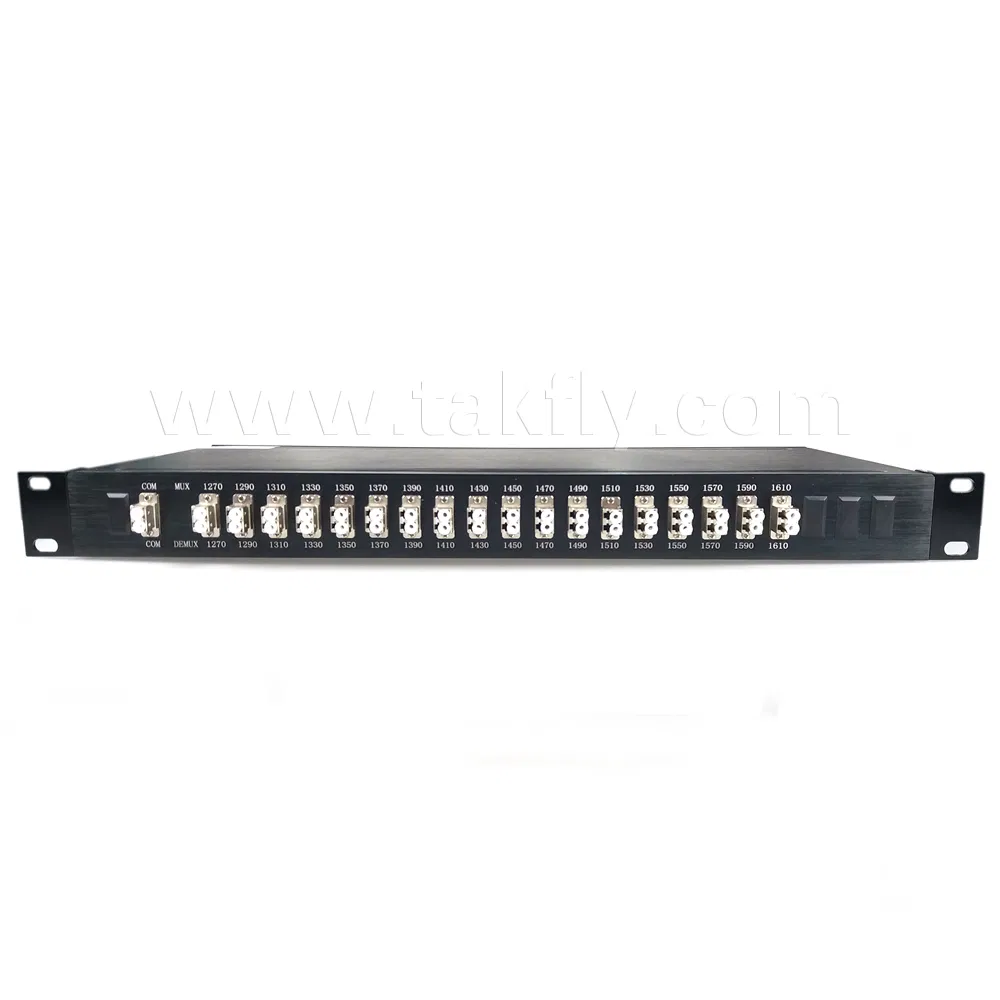

16-18 CH CWDM Rack Multiplexer Mux Demux Optical Wdm
16-18 CH CWDM Rack Multiplexer mux demux Optical Wdm100GHz (WDM) CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offers high stability and reliability, and has small package size. Operating wavelength is from 1270nm to 1610nm(1261n......
Send Inquiry
Product Description
100GHz (WDM) CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offers high stability and reliability, and has small package size. Operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.
Mux/Demux WDM Features:
Low Insertion Loss
High Isolation
High Reliability and Stability
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)
Wide Operating Temperature: -40 to +85ºC
Brief spec:
2~18Channels available.
Wavelength: 1270nm-1610nm
Com port: simplex or duplex.
Fiber connector: LC/SC or other.

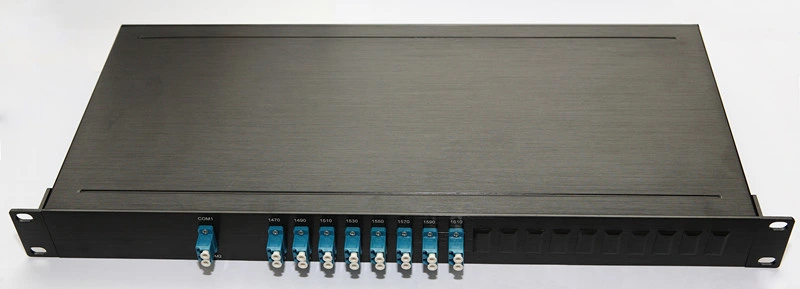

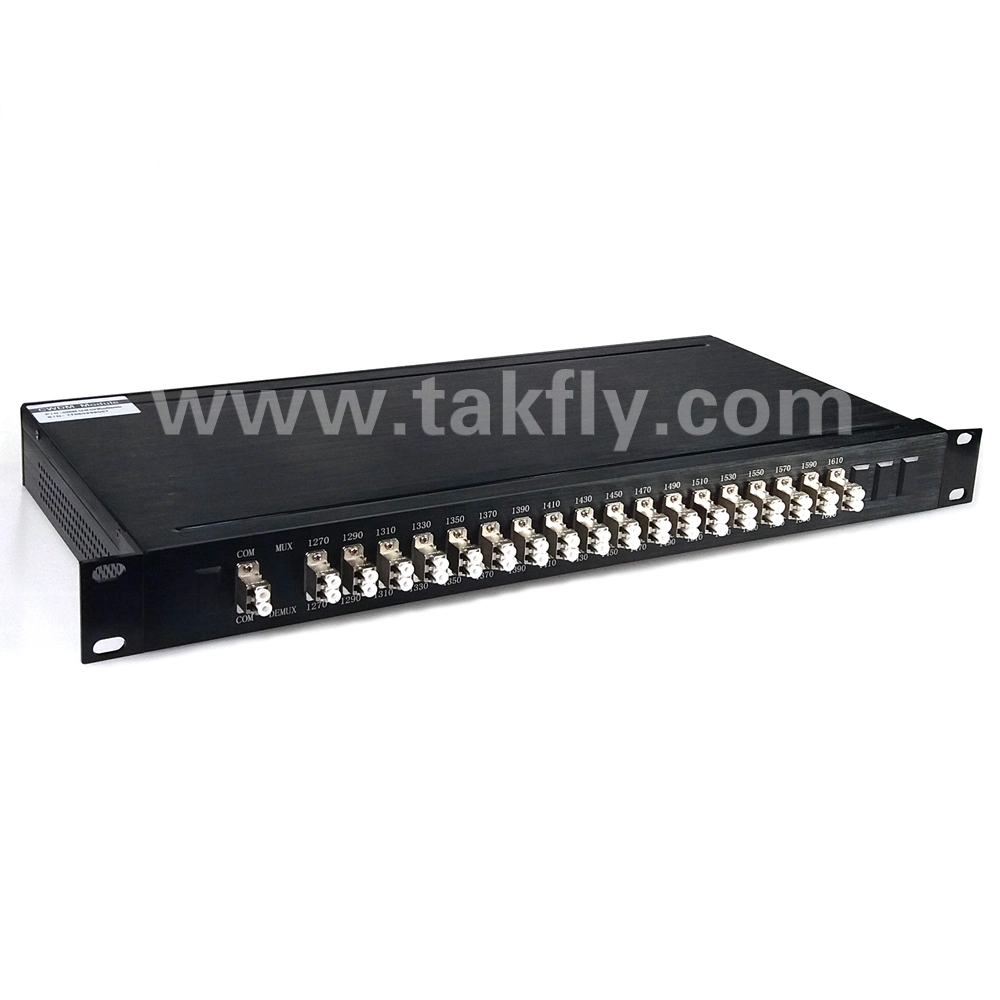

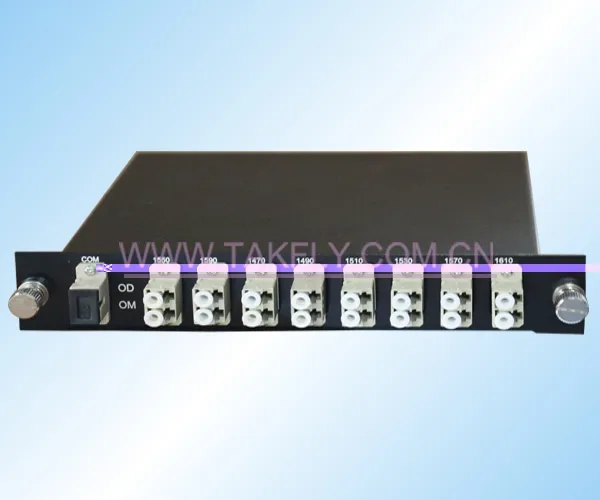

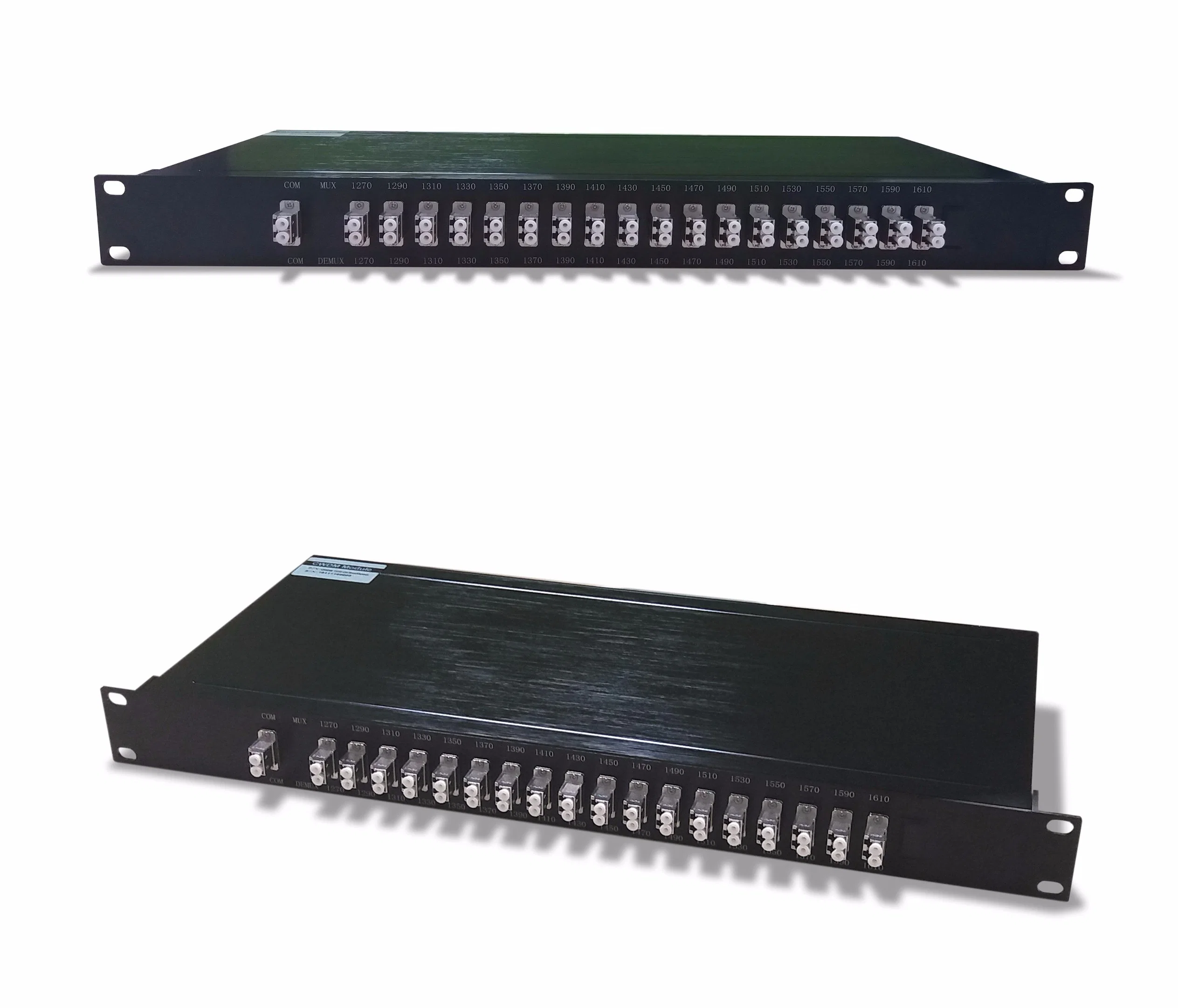

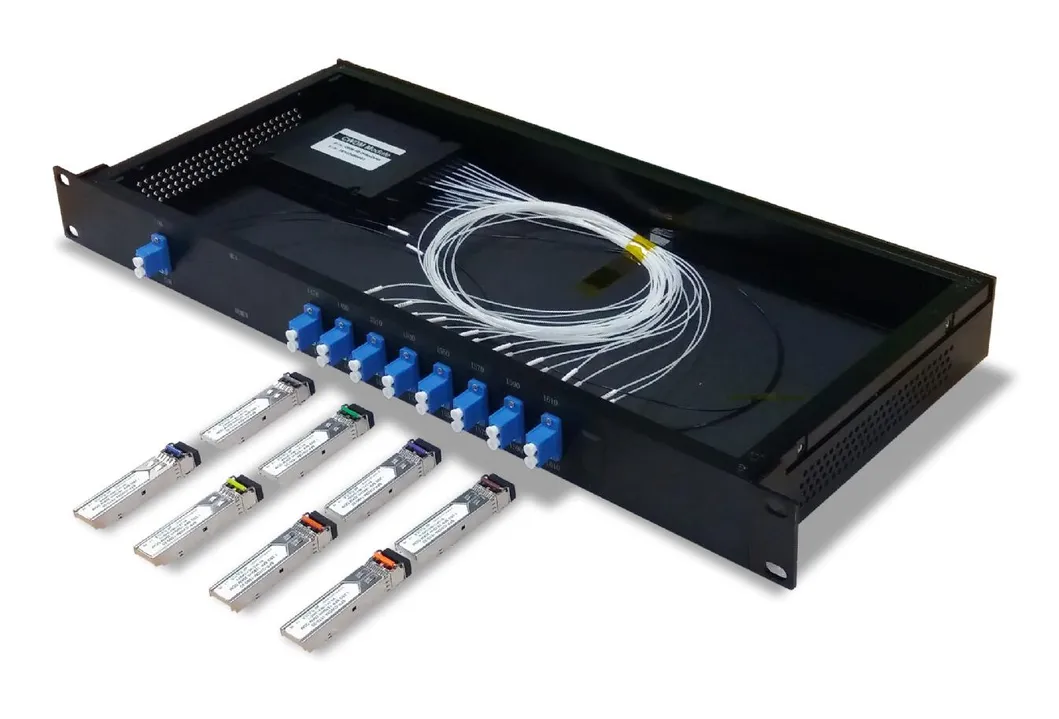

Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
CWDM Solutions and CWDM SFP.
Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.
OEM/ODM is acceptable, so tell us your requirements.

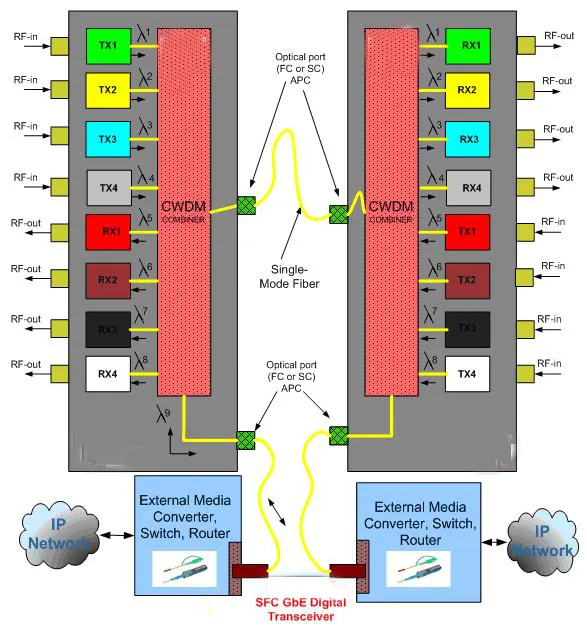

Mux/Demux WDM Applications:
CWDM System
Add/Drop
PON Networks
CATV Links
Mux/Demux WDM Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
Mux/Demux WDM Performance Specifications
Parameter | 4 Channel | 8 Channel | 18 Channel | ||||
Mux | Demux | Mux | Demux | Mux | Demux | ||
Channel Wavelength (nm) | 1270~1610 | ||||||
Center wavelength Accuracy (nm) | ±0.5 | ||||||
Channel Spacing (nm) | 20 | ||||||
Channel Passband (@-0.5dB bandwidth (nm) | >13 | ||||||
Insertion Loss (dB) | ≤1.6 | ≤2.5 | ≤3.0 | ||||
Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
Channel Ripple (dB) | 0.3 | ||||||
Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
Inertion Loss Temperature Sensitivity (dB/°C) | <0.005 | ||||||
Wavelength Temperature Shifting (nm/°C) | <0.002 | ||||||
Polarization Dependent Loss (dB) | <0.1 | ||||||
Polarization Mode Dispersion | <0.1 | ||||||
Directivity (dB) | >50 | ||||||
Return Loss (dB) | >45 | ||||||
Maximum Power Handling (mW) | 300 | ||||||
Opterating Temperature (°C) | -5~+75 | ||||||
Storage Temperature (°C) | -40~85 | ||||||
Package dimension (mm) | L100 x W80 x H10 or L140xW100xH15 | ||||||
Above specification are for device without connector.
CWDM solution:
SFP compatible Brand: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.
Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Guarantee:
›& Brand new.
›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty(From the date of shipment).
Any question about optical WDM,pls leave me an inquiry or contact me directly.
