Product Description
OLT-E16
Description

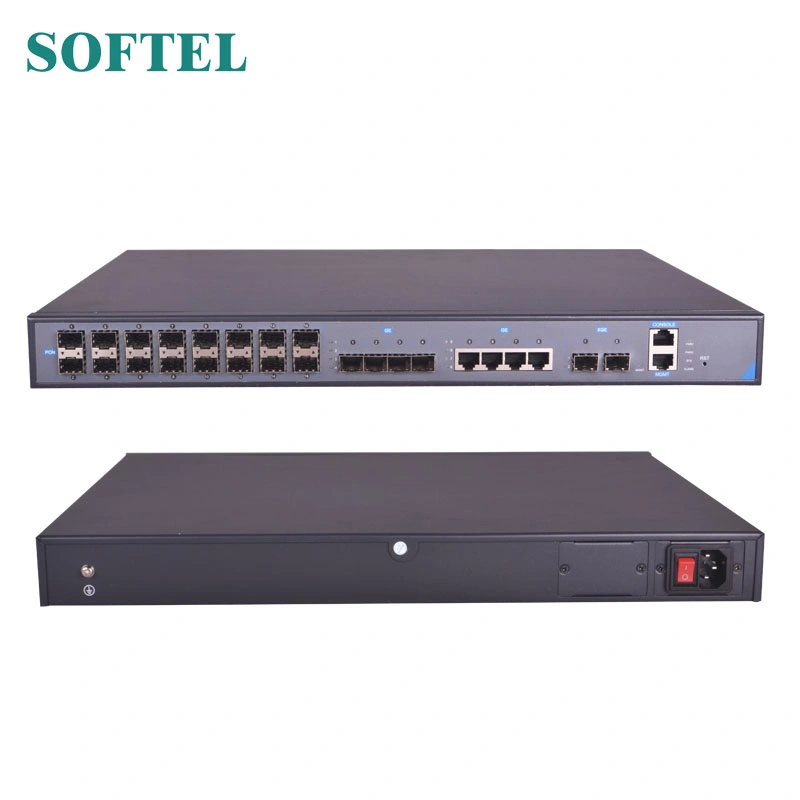

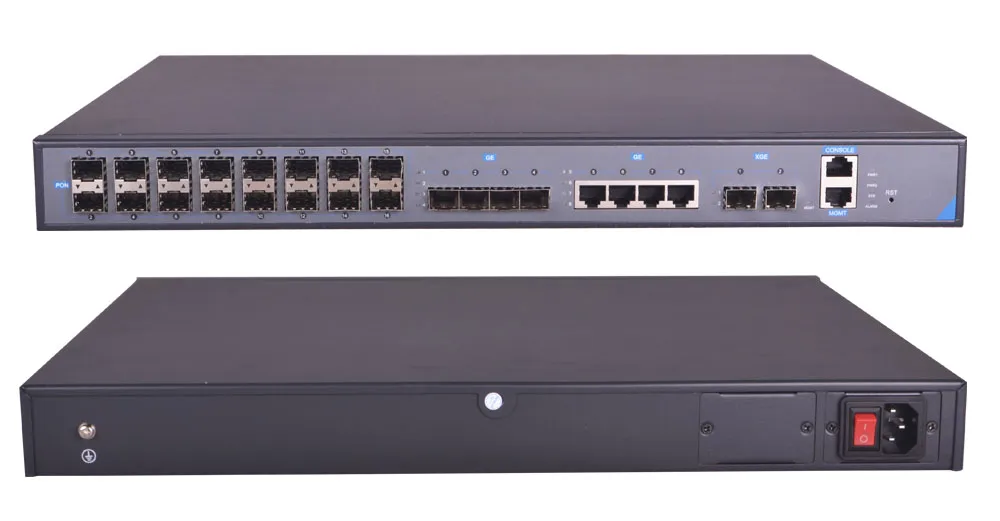

This 1U high 19 inch rack mount EPON OLT is nifty, convenient, flexible, easy to deploy, with high performance. It is appropriate to deploy in an compact room environment, and widely used for "Triple-Play", CPN, IP Camera, Enterprise LAN and IOT applications. It provides 4GE(copper) and 4GE optical interface, 2*10Gb uplink interface, and 16 EPON ports for downstream. It can support max 1024 ONUs under 1:64 splitter ratio.
Specifications:
| Item | OLT-E16 | |
| Chassis | Rack | 1U 19 inch standard box |
| Uplink Port | QTY | 10 |
| Copper | 10/100/1000M auto-negotiable,RJ45:8pcs | |
| Optical interface | 4 GE | |
| 10Gb uplink interface | 2*10Gb | |

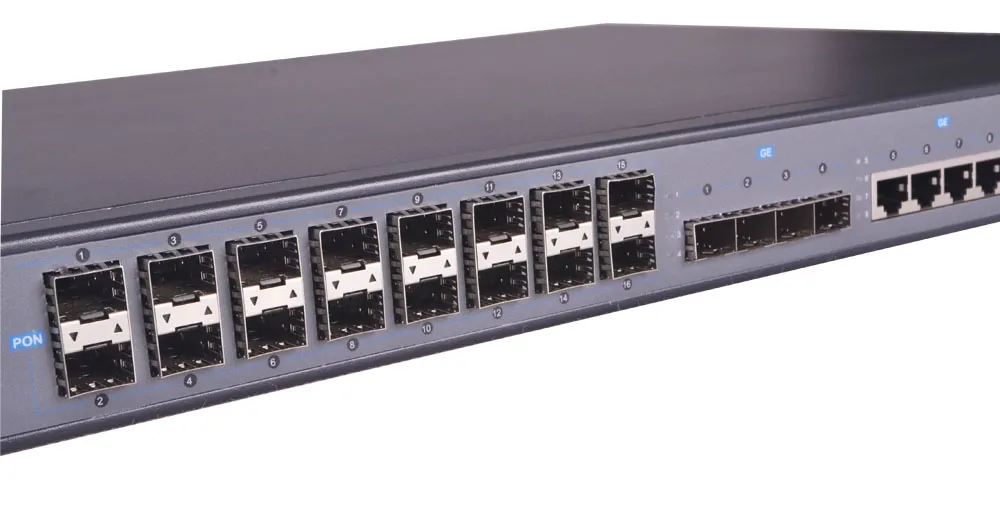

| PON Port | QTY | 16 |
| Physical Interface | SFP Slots | |
| Connector Type | 1000BASE-PX20 | |
| Max splitting ratio | 1:64 | |

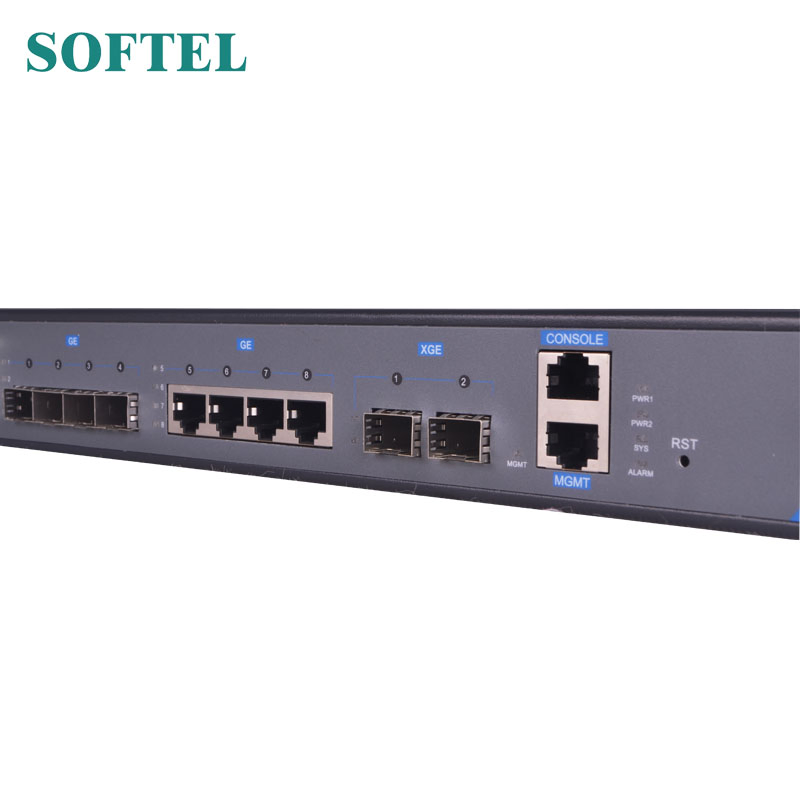

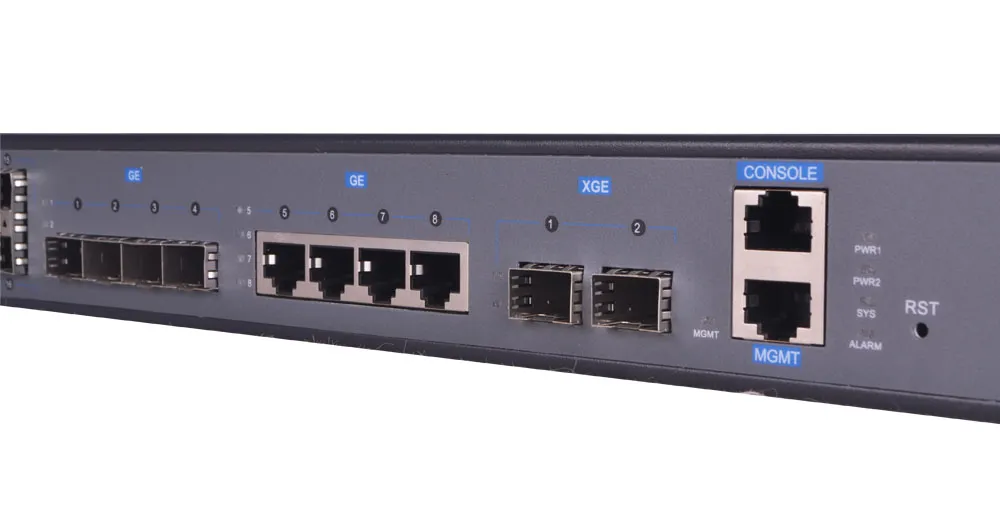

| Management Ports | 1*100BASE-TX out-band port | |
| 1CONSOLE port | ||
PON Port Specification (Apply to Softel PON module)
| Transmission Distance | 20KM |
| PON port speed | Symmetrical 1.25Gbps | |
| Wavelength | 1490nm TX,1310nm RX | |
| Connector | SC/PC | |
| Fiber Type | 9/125μm SMF | |
| TX Power | +2.5~+7dBm | |
| Rx Sensitivity | -27dBm | |
| Saturation Optical Power | -6dBm | |
| Management Mode | SNMP, Telnet, and CLI management mode. | |
| Management Function | Fan Group Detecting | |
| Port Status monitoring and configuration management; | ||
| Layer-2 switch configuration such as Vlan, Trunk, RSTP, IGMP, QOS, etc; | ||
| EPON management function: DBA, ONU authorization, ACL, QOS, etc; | ||
| Online ONU configuration and management | ||
| User management | ||
| Alarm management | ||
| Layer-two Switch | Support port VLan and protocol Vlan | |
| Support Vlan tag/Untag , vlan transparent transmission; | ||
| Support 4096 VLAN | ||
| Support 802.3dd trunk | ||
| RSTP | ||
| QOS based on port ,VID,TOS and MAC address | ||
| IGMP Snooping | ||
| 802.x flow control | ||
| Port stability statistic and monitoring | ||
| EPON Function | Support port-based rate limitation and bandwidth control; | |
| In compliant with IEEE802.3ah Standard | ||
| Up to 20KM transmission Distance | ||
| Support data encryption, group broadcasting, port Vlan separation, RSTP, etc. | ||
| Support Dynamic Bandwidth Allocation (DBA) | ||
| Support ONU auto-discovery/Link detection/remote upgrade of software; | ||
| Support VLAN division and user separation to avoid broadcast storm; | ||
| Support various LLID configuration and single LLID | ||
| configuration .Different user and different service could | ||
| provide different QoS by means of different LLID channels. | ||
| Support power-off alarm function ,easy for link problem detection | ||
| Support broadcasting storm resistance function | ||
| Support port isolation between different ports | ||
| Support ACL and SNMP to configure data packet filter flexibly | ||
| Specialized design for system breakdown prevention to maintain stable system | ||
Support dynamic distance calculation on EMS online Support RSTP, IGMP Proxy | ||
| Dimension | 440mm(L)*350mm(W)*44mm(H) | |
| Weight | 6KG | |
| Power Supply | 220VAC | AC: 90V~240V, 47/63Hz |
| -48DC | DC:-36V~-72V | |
| Power Consumption | 70W | |
| Operating Environment | Working Temperature | 0~50ºC |
| Storage Temperature | -40~85ºC | |
| Relative Humidity | 5~90%(Non-conditioning) | |
