1X2 Ports LC /LC Multimode Steel Tube Type Fbt Coupler
1x2 ports LC /LC Multimode Steel Tube Type FBT CouplerDetails:Optical coupler is an optical device that combines or splits power from optical fibers.Optical splitter divides light from a single fiber into two or more fiber channels.Features:Various coupling ratioSingle mode and multi mode availableL......
Send Inquiry
Product Description

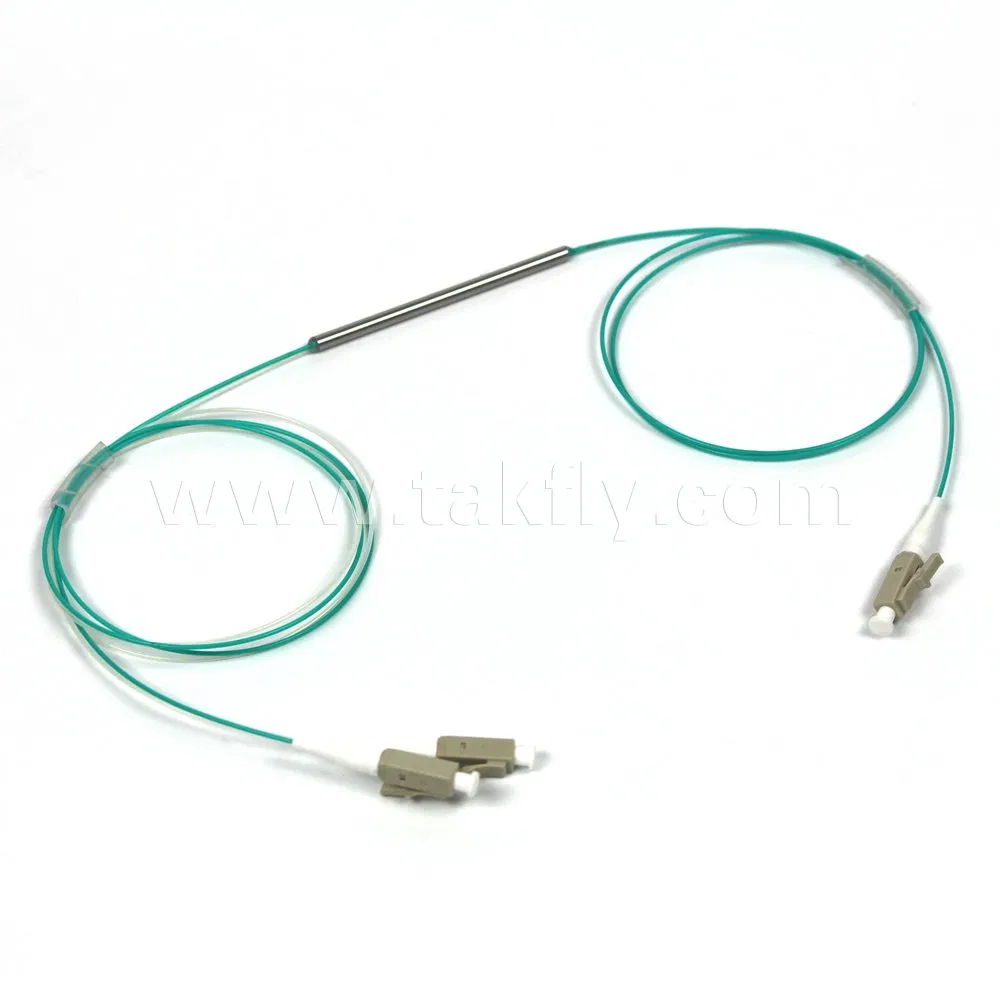

1x2 ports LC /LC Multimode Steel Tube Type FBT Coupler
Details:
Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.
Features:
Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available
Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting
Details:
Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.
Features:
Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available
Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting
Parameter | Configuration | |||
| N x 4 (N=1, 2, 4) | N x 8 (N=1, 2, 8) | N x 16 (N=1, 2, 16) | N x 32 (N=1, 2, 32) | |
| Operate Wavelength(nm) | 1310/1550, or customized | |||
| Bandwidth(nm) | ± 20 | |||
| Max. Excess Loss(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
| Typ. Insertion Loss(dB) | 6.2 | 9.3 | 12.4 | 15.5 |
| Max. Insertion Loss(dB) | 6.8 | 10.2 | 13.6 | 17 |
| Uniformity(dB) | 1.2 | 1.8 | 2.4 | 3 |
| PDL(dB) | 0.08 | 0.12 | 0.16 | 0.2 |
| Thermal Stability(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
| Directivity(dB) | ≥ 60 | |||
| Operate Temperature() | -20+70 | |||
| Lead Length(m) | 1 or customized | |||
| Lead Type(mm) | φ 3.0, φ 2.0, φ 0.9 | |||
| Package Dimension(mm, L*W*H) | A: φ 3.0, L=50 | B: 89*19*8 | C: 99*79*9 | D: 140*114*18 |
