1X8 Optical Steel Tube Type PLC Splitter Optic/Fiber Optic Splitter
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribut......
Send Inquiry
Product Description
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. DYSFO' PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Features
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
6. Rich Text Editor, specificationDescription, Press ALT 0 for helpExcellent environmental stability
7. Compact size and various package
Applications
1. FTTX networks
2. PON networks
3. CATV links
4. Data Communication

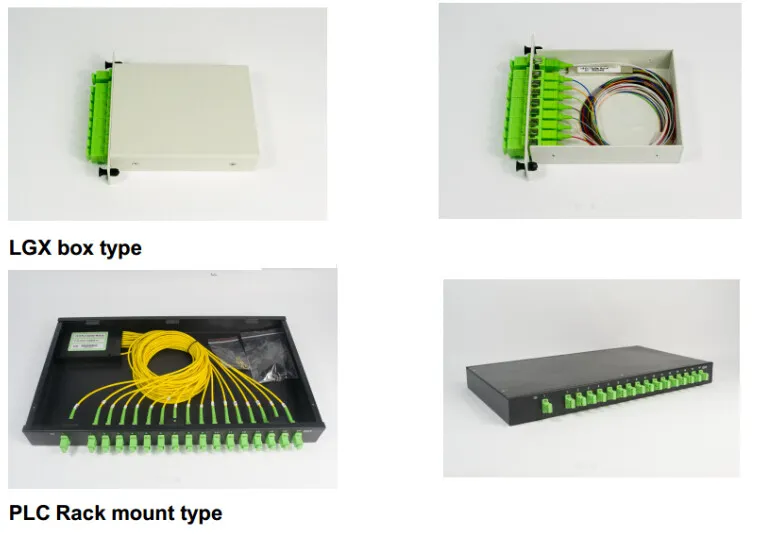

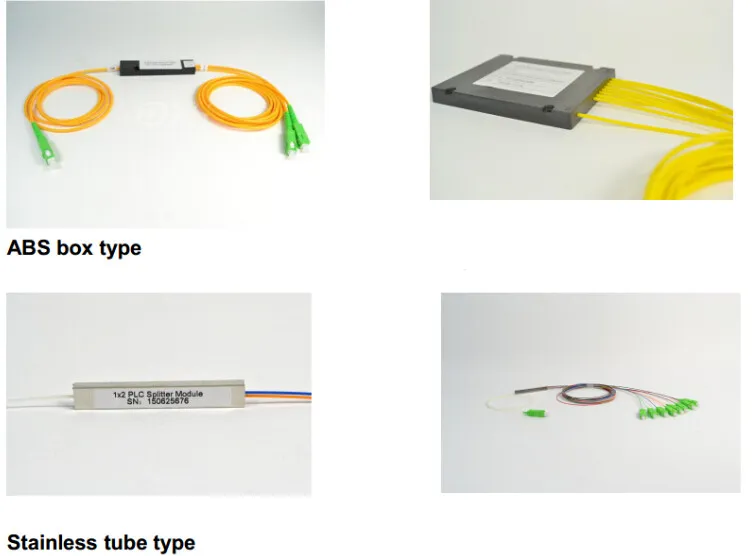

Types
1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter
4. Cassette type PLC splitter Module
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module
Performance
| 1×N PLC splitter (measured at room temperature and excludes connector loss) | |||||||
| Type | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | |
| Fiber type | 9/125 um SMF-28e or customer appoint | ||||||
| Operating wavelength(nm) | 1260~1650 | ||||||
| Insertion loss(dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| (P/S)Max | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | 20.5/21.0 | |
| Loss uniformity(dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Polarization dependent loss(dB) | Max | 0.15 | 0.15 | 0.2 | 0.2 | 0.2 | 0.3 |
| Directivity(dB) | Min | 55 | |||||
| Return loss(dB) | Min | UPC:50 APC:60 | |||||
| Operating temperature(ºC) | -40~85 | ||||||
| Storage temperature(ºC) | -40~85 | ||||||
