Product Description

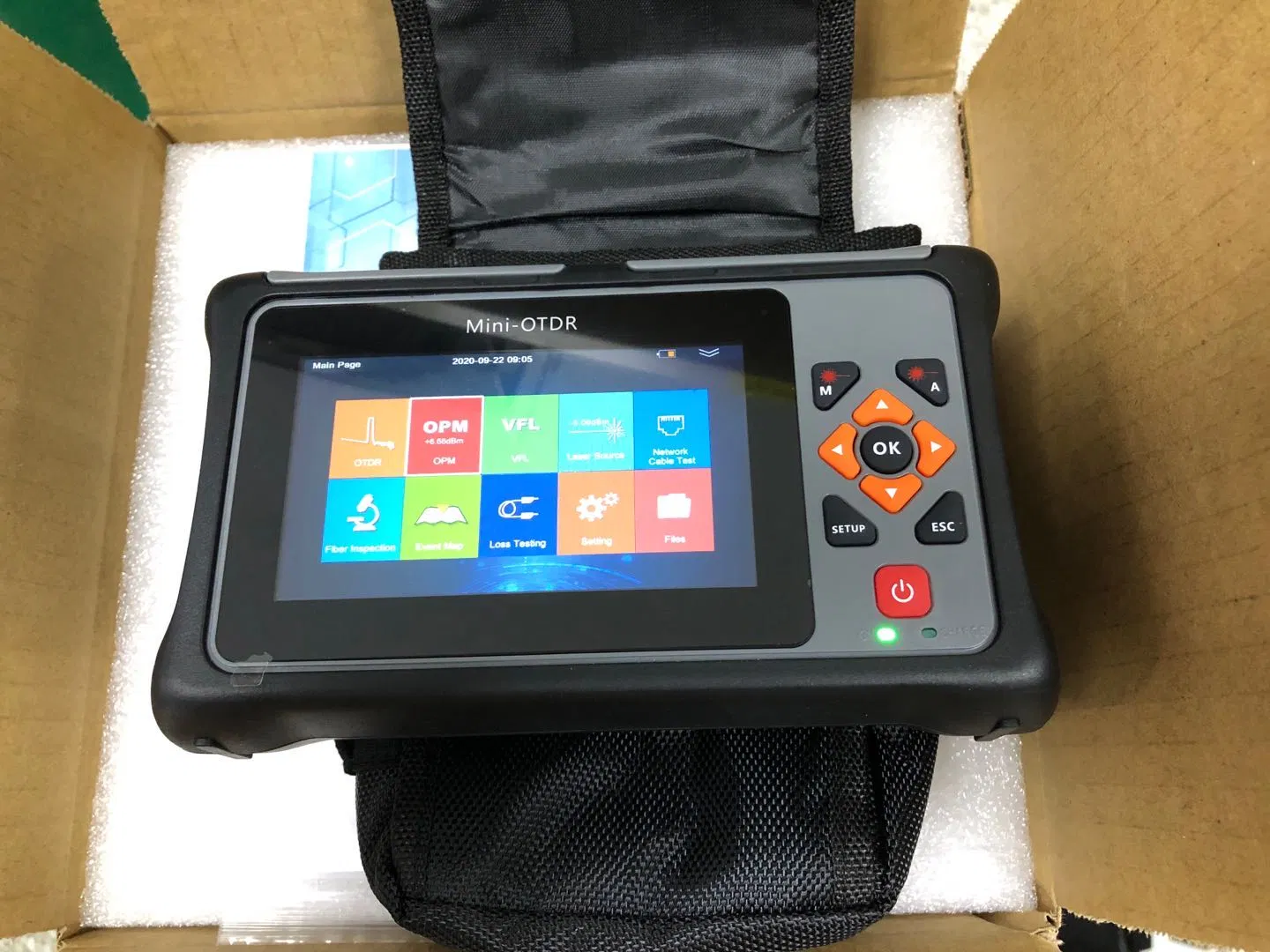

T-OT560-A24D MINI OTDR
Instrument characteristics:
Physical indicators:
Accessories
Instrument characteristics:

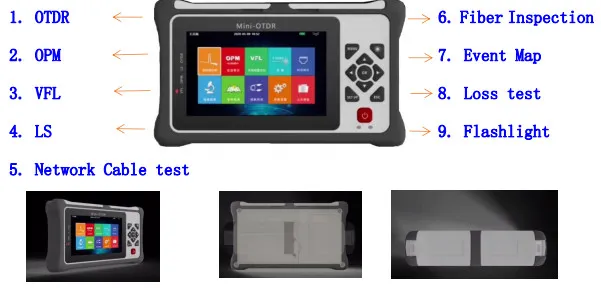

- Nine-in-one function
- The 4.3-inch full-view capacitive touch screen supports multi-touch
- Cover plate type tempered glass panel, don't worry about screen scratch
- Support horizontal version, vertical version, perfect fusion of the two habits of user operations
- Support charging treasure charging, do not worry about the battery is not enough
- In line with the international standards of test data with perfect simulation software, so that your report more simple
- Sink type light port design, so that the instrument light port to get better protection
- Support U disk, SD card and Micro USB export data protection
- Any interface supports screen capture
Physical indicators:
- 4.3-inch capacitive touch screen with full viewing , TFT 800x480 resolution
- Lithium battery: 5200mAh/ 3.7v, standby time > for 10 hours
- Size: 175x105x45mm, weight: 560g (including battery)
- Working temperature: -10~+55°C, storage temperature: -20~+80°C
| Model No. | Wavelength | Dynamic Range | Max. Test Range |
| TOT560-A24D | 1310/1550nm | 24/22dB | 80km |
| Measuring range | 100m,500m,2km,5km,10km,20km,40km,80km/90km | ||
| Sampling resolution | Minimum: 0.2m | ||
| Event dead zone | < 2.0m | ||
| Attenuation dead zone | < 7.0m | ||
| The sampling point | 64,000 point | ||
| Linearity | ≤0.05dB/dB | ||
| Loss threshold | 0.01dB | ||
| Loss resolution | 0.001dB | ||
| Range resolution | 0.01m | ||
| Range accuracy | ±(0.5m+Range×3×10-5+Sampling resolution) (Excluding refractive index error) | ||
| Memory | >40000 | ||
| Data interface | 2 USB(Type A×1, Micro USB×1, SD card) | ||
| Screen | 4.3-inch TFT-LCD (Standard distribution capacity touch screen) | ||
| Battery | 3.7V/5200mAh | ||
| Temperature | Working temperature:-10ºC~+55ºC; Storage temperature:-20ºC~+80ºC | ||
| Humidity | ≤95%(No condensation) | ||
| Size/Weight | 175x105x45mm / 0.56kg(Contain the battery) | ||
| OPM | Type A:+10dBm~-70dBm;Type B:+26dBm~-50dBm | ||
| VFL | 10mW,CW/2Hz | ||
| LS(Laser Source) | The output power:-5dBm,Modulation frequency:CW/270Hz/1KHz/2KHz | ||
| Network Cable test | Support network wire sequence testing and wire alignment | ||
Accessories
| Standard | FC adaptor, Power adapter, Lithium battery, USB cable, Quick guide, Portable package |
