Product Description

★Description
MPO Trunk Patch Cord,MPO Male to MPO Female Connector,24Core Single Mode G.657A optical cable,cable diameter:3.0MM,LSZH,(Standard Loss: ≤ 0.7dB) or (Low Loss:≤ 0.35dB) is optional,Polarity Type:(Type A:TIA-568-C.3A),(Type B:TIA-568-C.3B),(Type C:TIA-568-C.3C) is Optional,Length:1M,2M,3M…is Optional.

★Features
⊙Small diameter cable can optimize the air flow in the data center, effectively control the heat;
⊙Meet the requirements of high-speed, big data, support the requirements of 10Gb / s, 40Gb / s, 100Gb / s.
⊙The combination of high quality fiber optic cables and components ensures support for data center links;

★Product Specification

ITEM	Fiber Type	Single Mode	Multi Mode
Fiber Count	8/12/16/24/48/72/144 Core

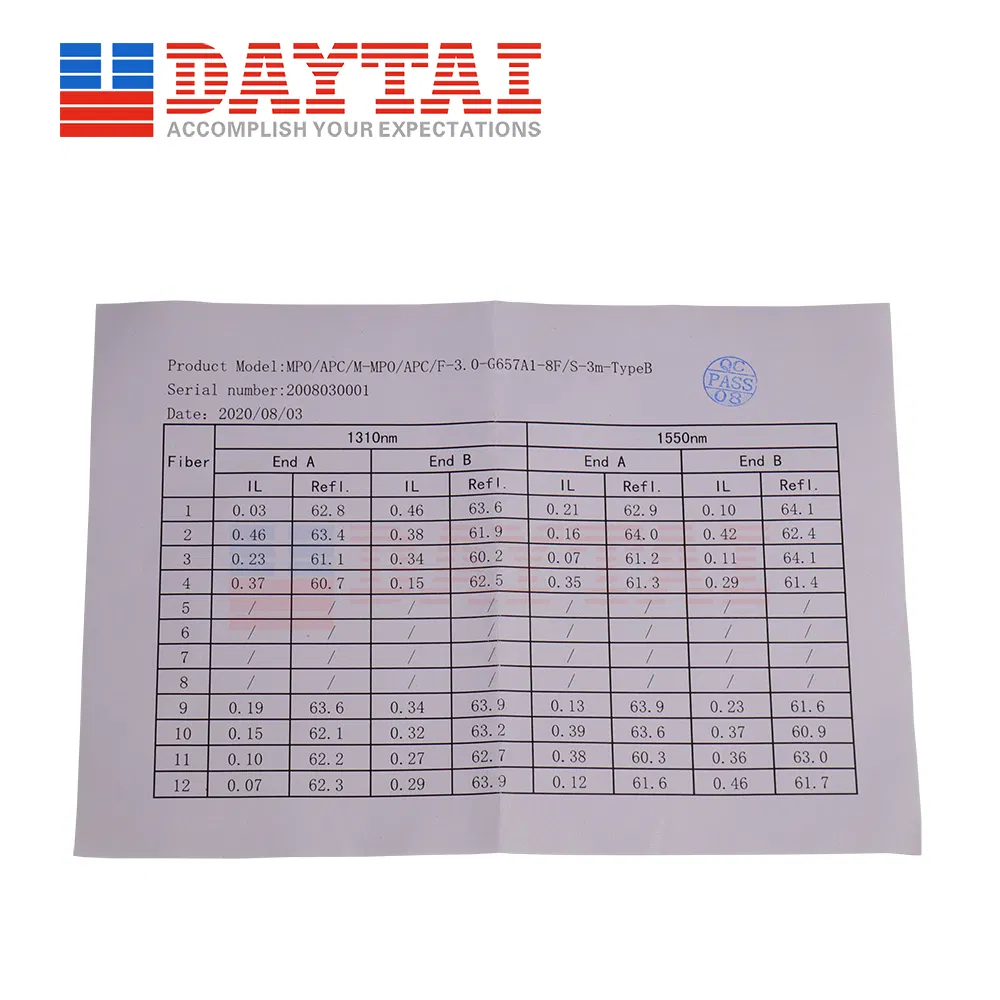

Standard Insertion Loss	Typical	0.30dB	0.35dB
	Max	0.60dB	0.50dB
Low Insertion Loss	Typical	0.20dB	0.20dB
	Max	0.35dB	0.30dB
Return Loss (dB)	≥60 APC, ≥50PC	≥20

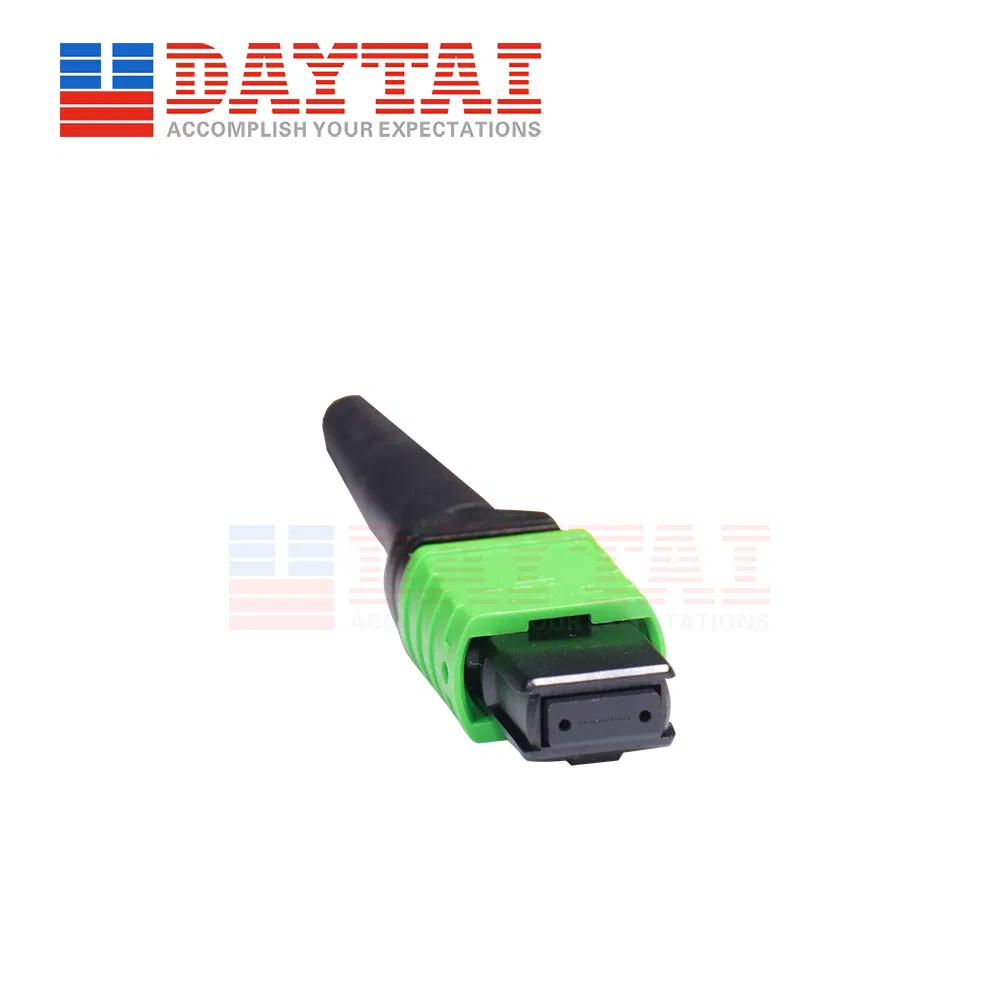

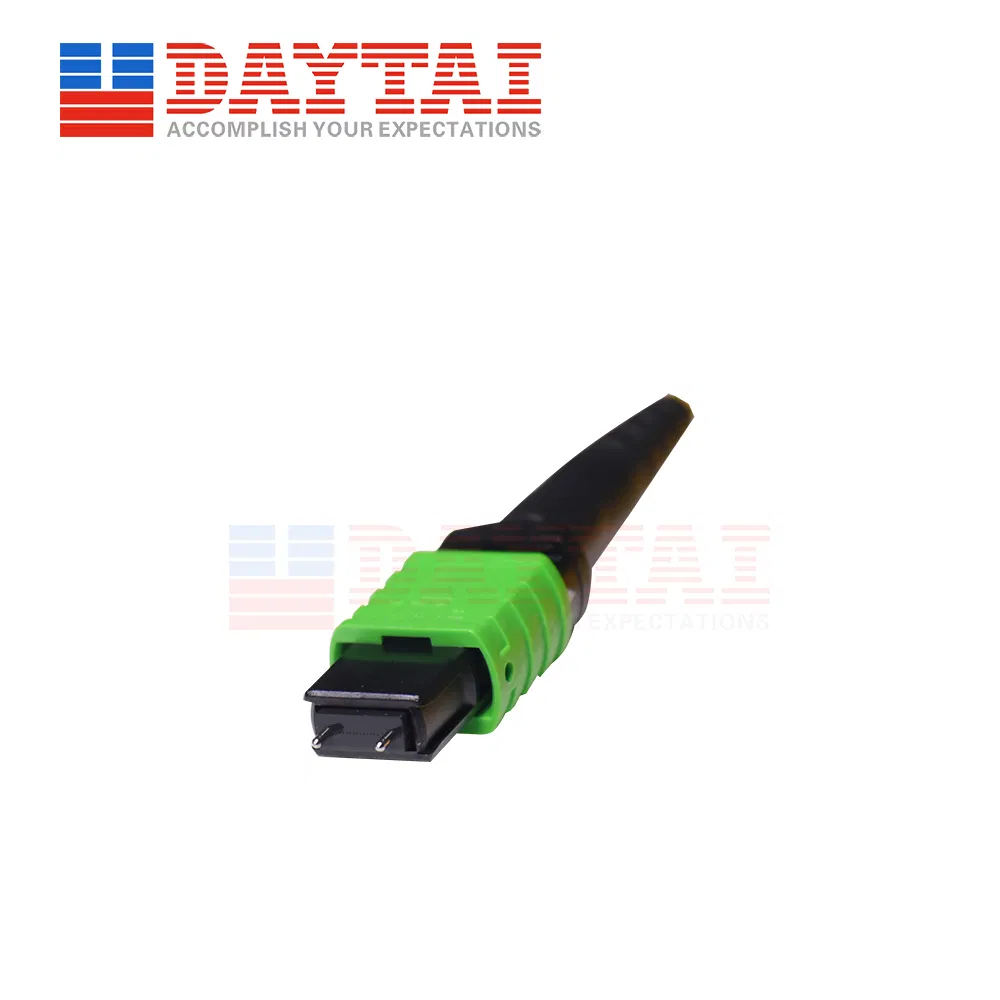

Male / Female		Male: With PIN / Female: Without PIN
Mechanical durability (dB)		≤0.2 200 times mate-demate
Test wavelength (nm)		1310/1550	850/1300
Maximum Installation Tension (N)		500
Minimum bending radius of cable (Static)		10 times the cable diameter
Minimum bending radius of the cable (Dynamic)		20 times the cable diameter
Work temperature (ºC)		-40-+85
