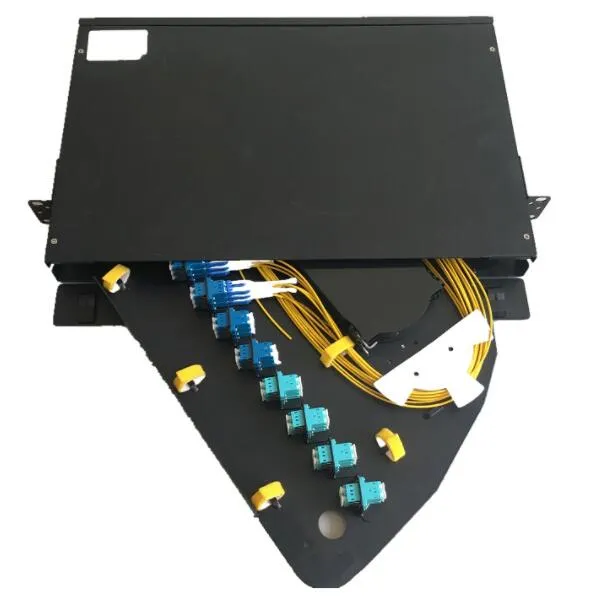

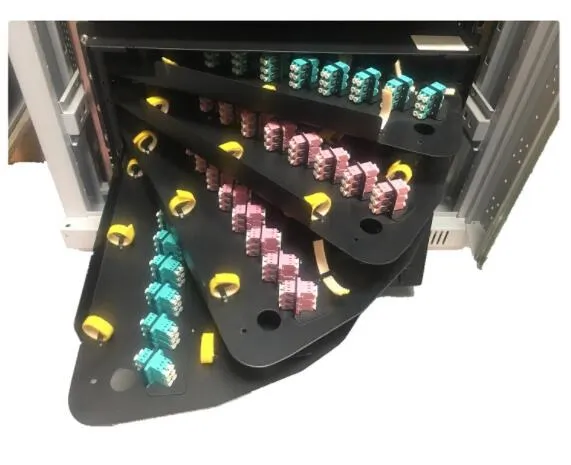

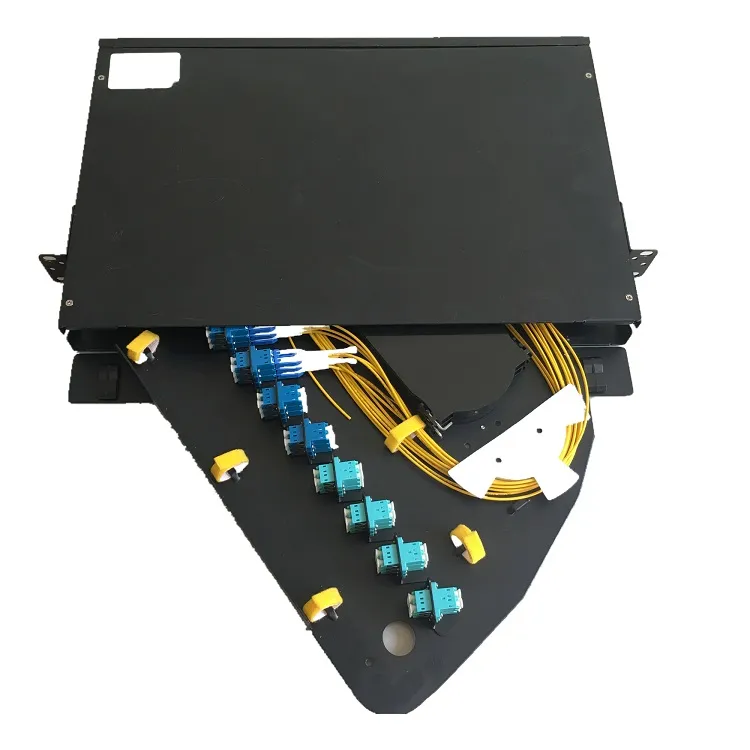

24f , 72f, 144f ODF Swing Type
ODF Swing Rack Mount Type We have fiber optic patch panel is modulized design with Swing tray inside.Each Swing tray can splice 24fibers. It could be pre-installed with various kinds of fiber optic adapters and pigtails. It is ideal for indoor fiber optic cables connection storage, distribution and......
Send Inquiry
Product Description
We have fiber optic patch panel is modulized design with Swing tray inside.Each Swing tray can splice 24fibers. It could be pre-installed with various kinds of fiber optic adapters and pigtails. It is ideal for indoor fiber optic cables connection storage, distribution and management.
Features of this ODF Swing Rack Mount Type
Standard size, Splice tray inside changeable
Can be used in 19'', 23'' standard distribution frame
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
Front mark on the plate is easy for identification and operation
24C, 48C, 72C,96C optional, with or without fiber optic pigtails and adapters
Cold-roll steel or Aluminum material optional.
Electrostatic Powder spraying,Black or Hoar color optional.
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Model No. | Fiber count | Height | A | B | Weight(kg) Cold-roll steel | Weight(kg) Aluminum |
ODF-OPERW1U24-B | 24C | 1U | 31.8 | 44.2 | 13.0 |
|
ODF-OPERW2U48-B | 48C | 2U | 44.5 | 88.2 | 10.3 |
|
ODF-OPERW3U72-B | 72C | 3U | 88.9 | 133.1 | 7.5 |
|
ODF-OPERW4U96-B | 96C | 4U | 44.5 | 177.5 | 5.0 |
