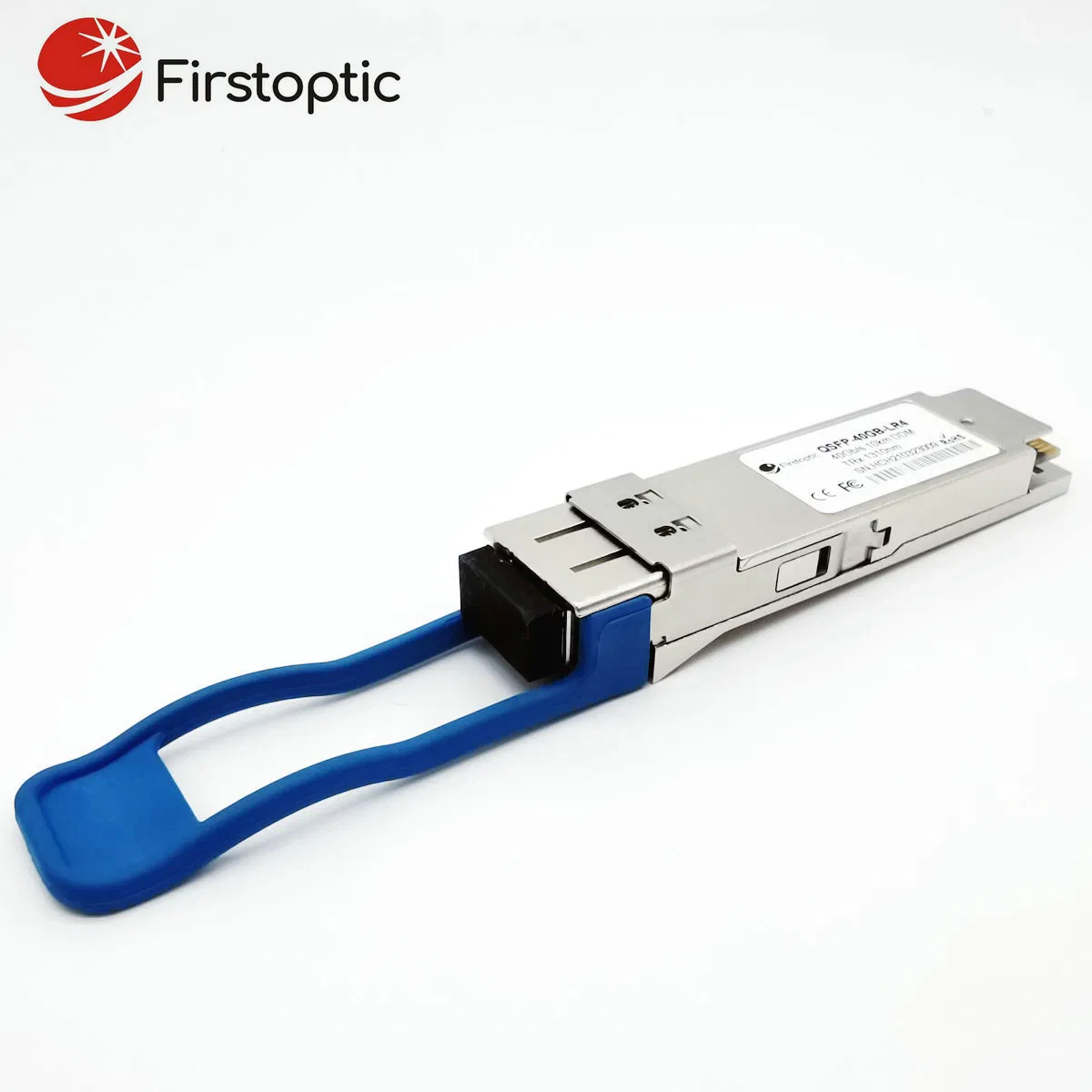

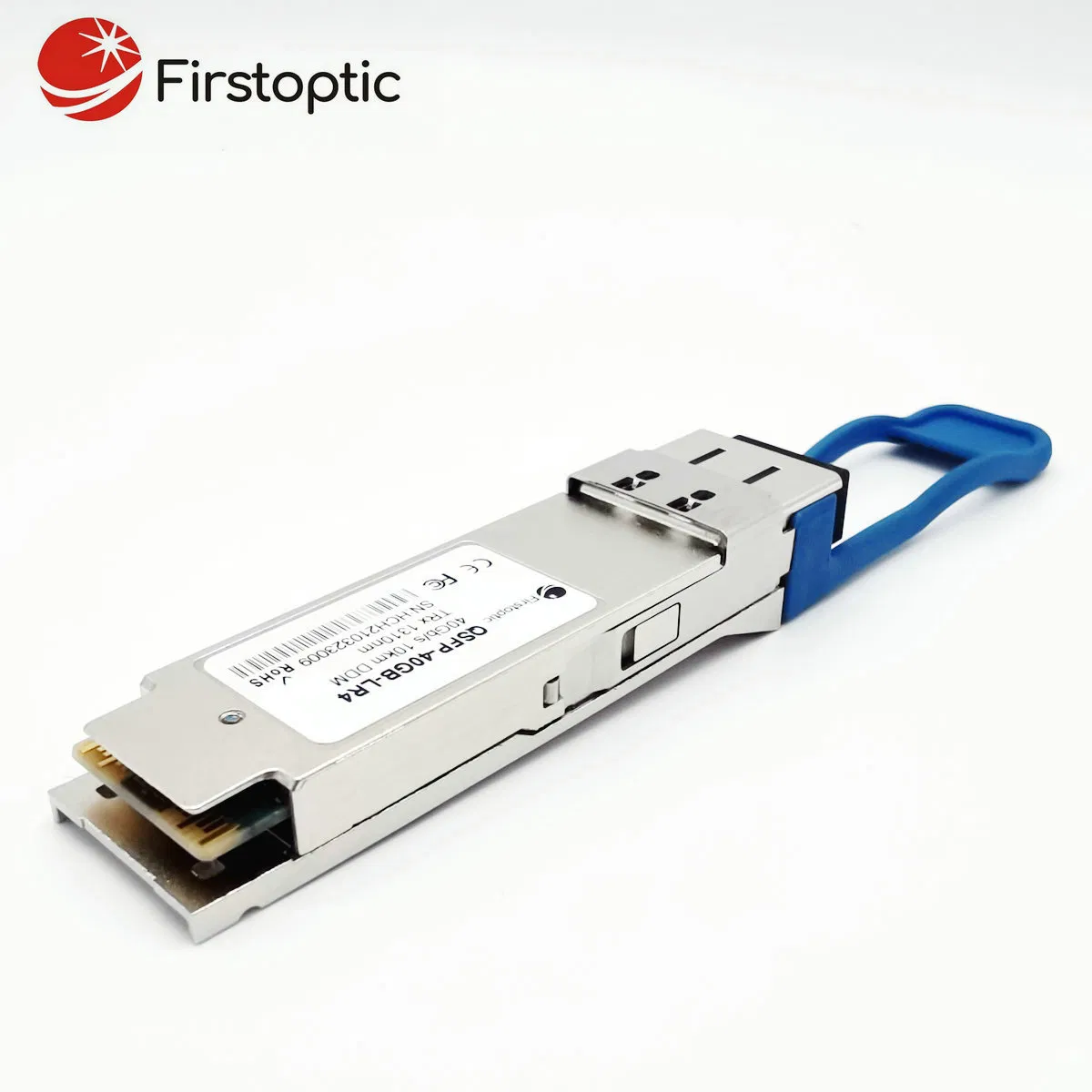

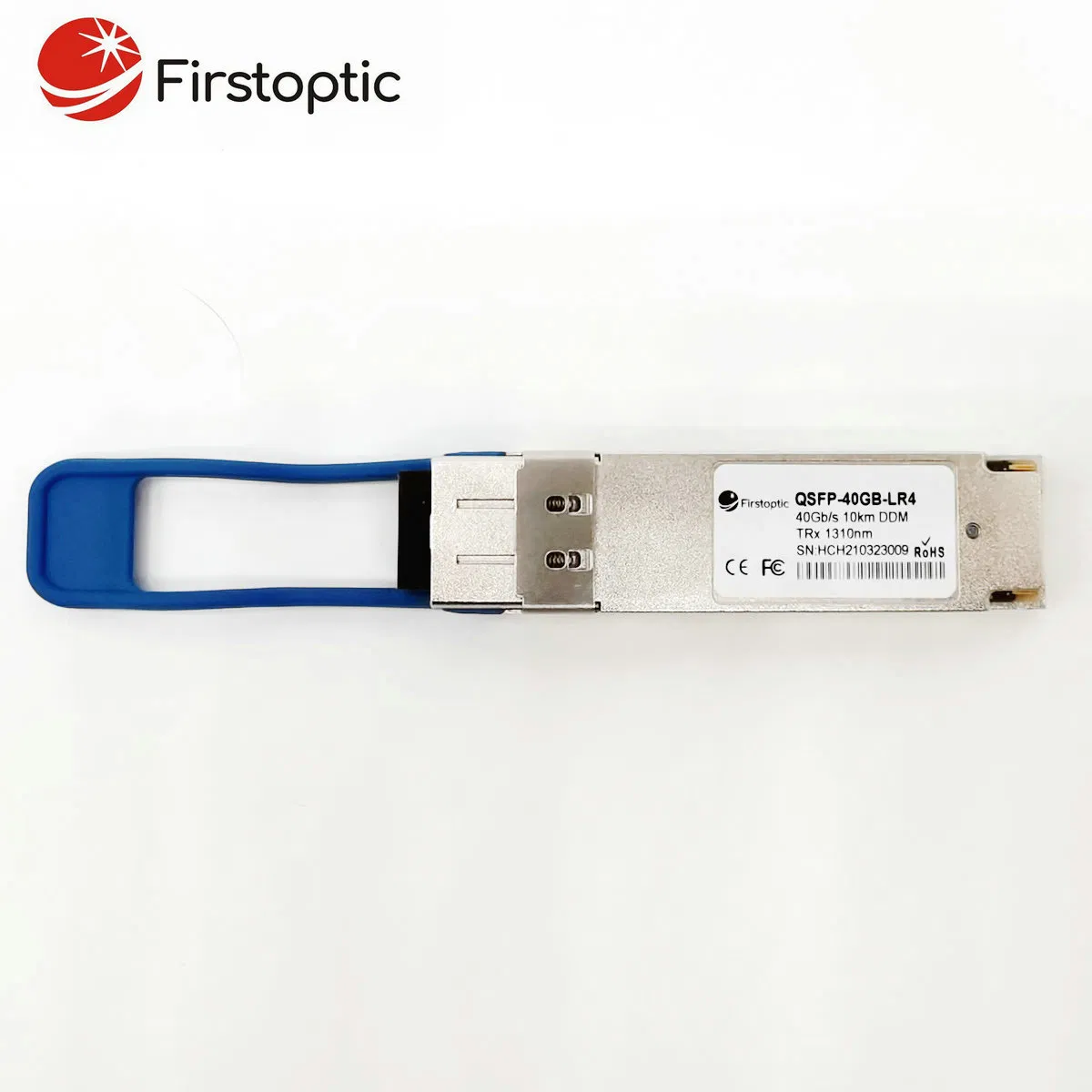

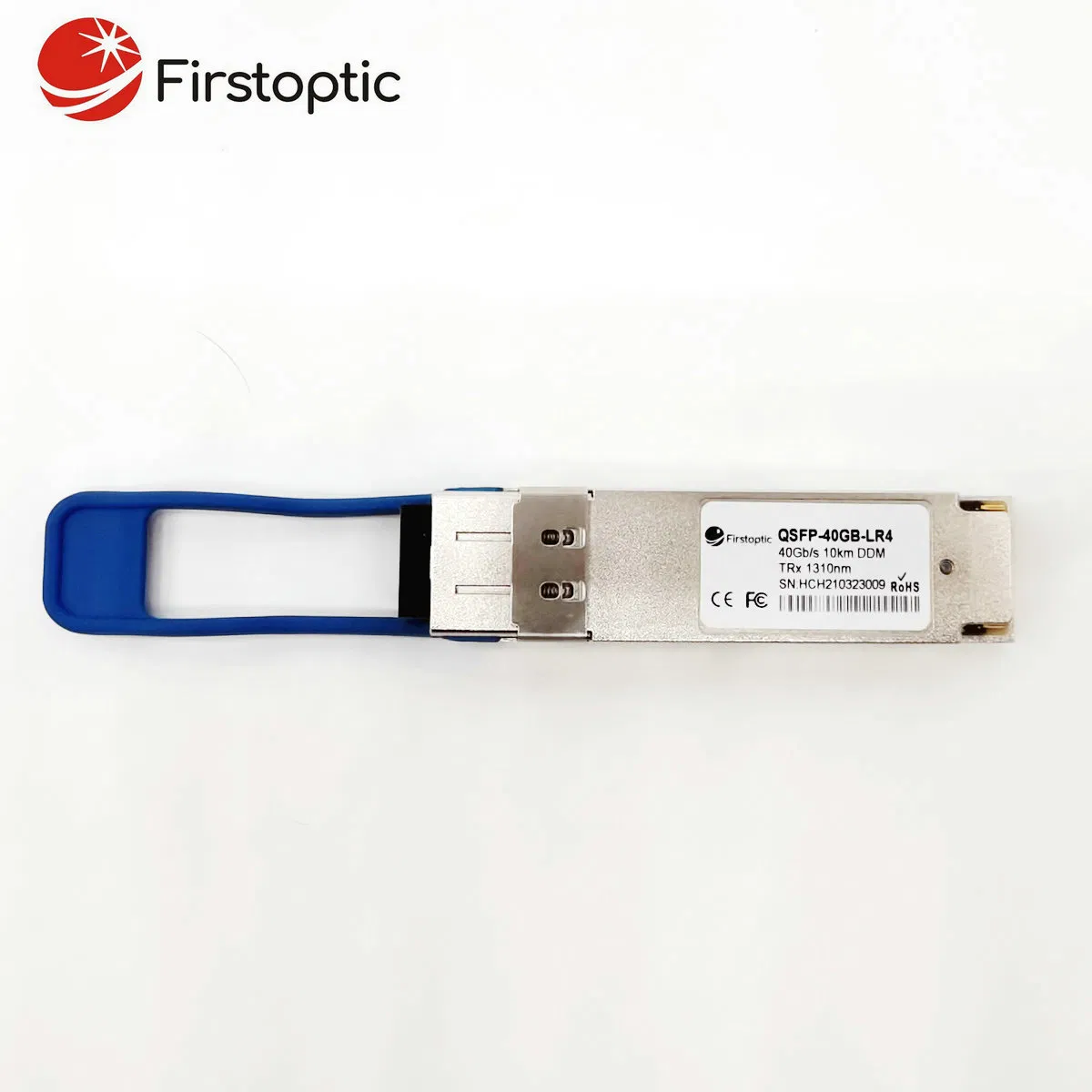

Arista Networks QSFP-40G-PLR4 Compatible 40GBASE-PLR4 QSFP+ 1310nm 10km DOM MTP/MPO SMF Optical Transceiver Module
SpecificationsArista Networks QSFP-40G-PLR4 Compatible 40GBASE-PLR4 QSFP+ Optical Transceiver Module for Ethernet and Data Center (Parallel SMF, 1310nm, 10km, MTP/MPO, DOM)The 40GBASE-LR4 QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode ......
Send Inquiry
Product Description
Specifications
The 40GBASE-LR4 QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
Arista Networks QSFP-40G-PLR4 Compatible 40GBASE-PLR4 QSFP+ Optical Transceiver Module for Ethernet and Data Center (Parallel SMF, 1310nm, 10km, MTP/MPO, DOM)
The 40GBASE-LR4 QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
Product Specification
| HCH Modle No | QSFP-40G-PLR4 | Vendor Name | HCH |
| Form Factor | QSFP+ | Max Data Rate | 44.4Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | MTP/MPO-12 | Cable Type | SMF |
| Transimitter Type | 4×DFB | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -6~-1dBm | Receiver Sensitivity | <-14.4dBm |
| Powerbudget | 8.4dB | Receiver Overload | 2.3dBm |
| Power Consumption | 2.5W | Extinction Ratio | 6dB |
| Transmit and Dispersion Penalty | 2.6dB | Modulation Format | NRZ |
| Packaging Technology | BOX Packaging | Host FEC | Supported |
| Bit Error Ratio (BER) | 1E-12 | Protocols | OTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant |
| Application | 40GBASE Ethernet, OTN OTU3 C4S1-2D1, OTU3e1 and OTU3e2, Data Center | Warranty | 3 Years |
Describe
40G QSFP+ include SR4, PSM IR4, PSM LR4, LR4, ER4.This series of products adopt LC or MPO interface, compatible with IEEE802.3bm, SFF-8436;With features of low power consumption, small size and high speed, it is beneficial to increase capacity, improve port density and reduce power consumption of data center, which is widely used in data center, MAN and other environments.
40G QSFP+ include SR4, PSM IR4, PSM LR4, LR4, ER4.This series of products adopt LC or MPO interface, compatible with IEEE802.3bm, SFF-8436;With features of low power consumption, small size and high speed, it is beneficial to increase capacity, improve port density and reduce power consumption of data center, which is widely used in data center, MAN and other environments.
Features
* Hot-pluggable QSFP+ form factor
* 4 independent full-duplex channels
* Up to 11.2Gbps per channel bandwidth
* Aggregate bandwidth of > 40Gbps
* QSFP MSA compliant
* VCSEL/DFB/EML transmitter

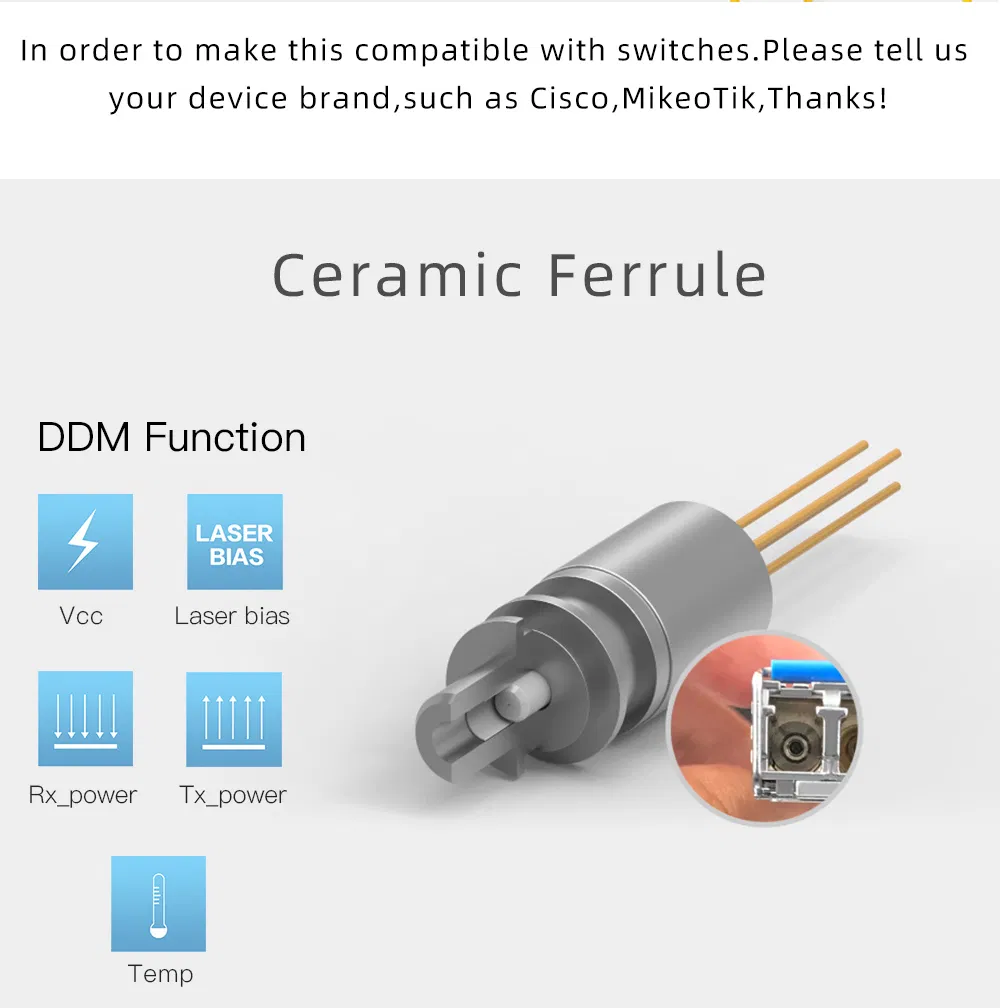

* Built-in digital diagnostic functions
* Duplex LC receptacles/Single MPO-12 receptacle
* Single +3.3V power supply operating
* TX input and RX output CDR retiming
* Temperature range 0°C to 70°C
* RoHS-6 Compliant
Our Company
* 4 independent full-duplex channels
* Up to 11.2Gbps per channel bandwidth
* Aggregate bandwidth of > 40Gbps
* QSFP MSA compliant
* VCSEL/DFB/EML transmitter
* Built-in digital diagnostic functions
* Duplex LC receptacles/Single MPO-12 receptacle
* Single +3.3V power supply operating
* TX input and RX output CDR retiming
* Temperature range 0°C to 70°C
* RoHS-6 Compliant
