Automatic Fusion Splicing Machine Fiber Optic Fusion Splicer

Product Description

Automatic Fusion Splicing Machine Fiber Optic Fusion Splicer

Product Description

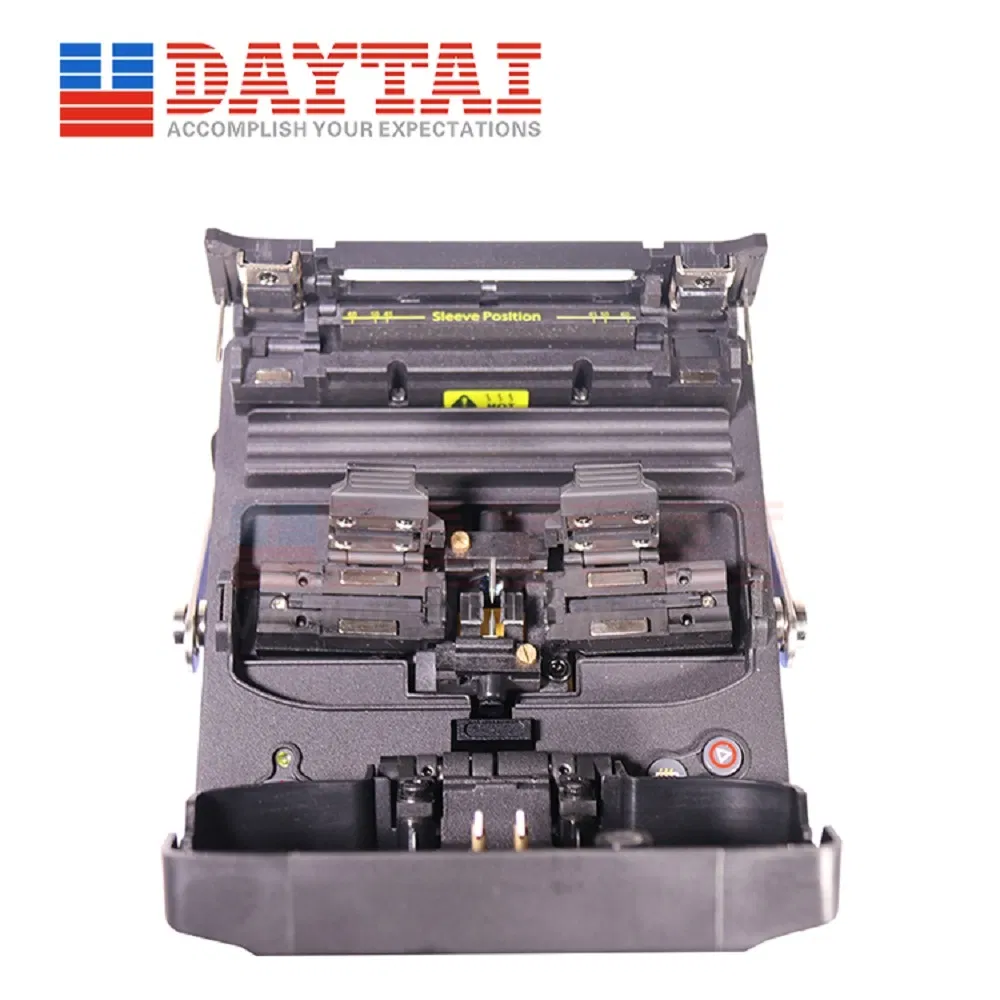

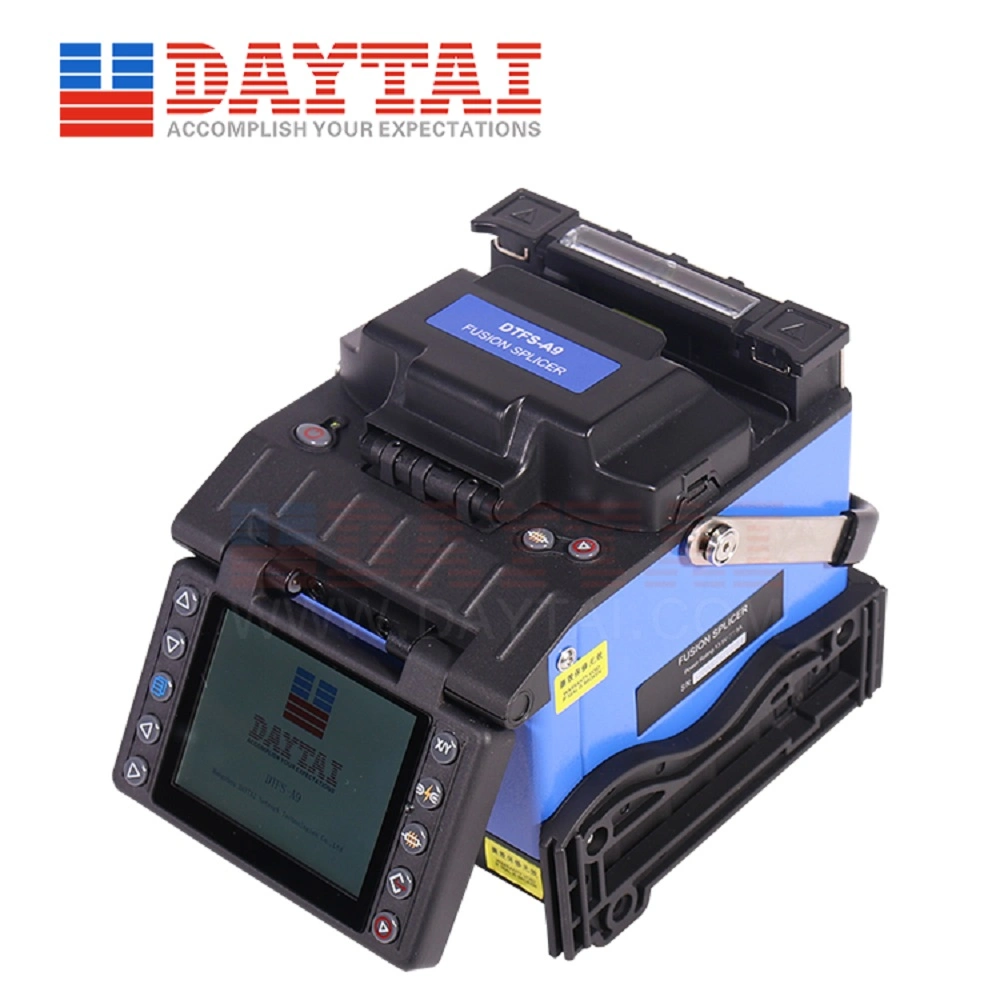

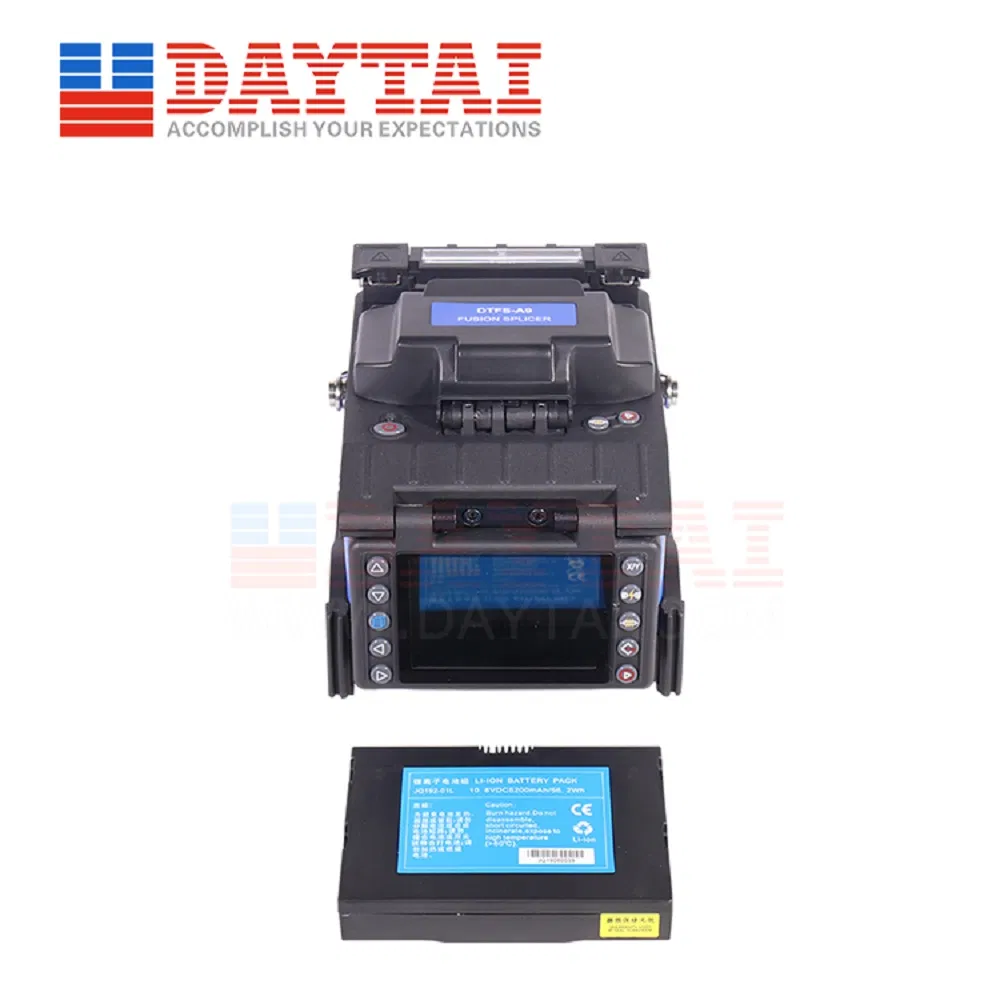

Fusion Splicer DTFS-A9,Splicing program:53 (templet), 40(user),Fiber image magnification:120X (X or Y view),60X (X and Y view),

Monitor:3.5 inch color LCD monitor,Operating condition:0-5000m above sea level, -10-50°C Max wind velocity of 15m/s,Dimension:

122mm(L)xl48mm(W)xl30mm(H).

★Features

⊙USB interface

⊙Fiber core can be display clearly

⊙Software upgrade via USB interface

⊙Auto check quality of cleaved end face

⊙Core to core alignment by PAS technology

(PAS: Profile Alignment System)

⊙Single X or Y view and X & Y view simultaneously

⊙3.5 inch color LCD monitor with clear digital image display

Specification

ITEM
Applicable fibers	SM MM DS NZDS
Fiber diameter	Cladding diameter:80-150pm
Fiber count	Single
Fiber cleaved length	8-16mm (Coating diameter:250pm)
Actual average splice loss	0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Typical splicing time	Typical 9 sec (standard SM fiber)
Return loss	>60dB
Splicing mode	Auto, Calibrate, Normal, Special
Fiber aligning method	Meticulous, Core, Clad, Manual
Splicing program	53 (templet), 40(user)
Tube heating program	9 (templet),24(user)
Tube typical heating time	Typical 30 sec
Protection sleeve length	60mm, 40mm
Storage of splice result	4000 results, 20 parameter per result
Fiber image magnification	120X (X or Y view), 60X (X and Y view)
Battery capacity	Typical 300 cycles (splice and tube heating)
Monitor	3.5 inch color LCD monitor
Tension test	2N
Electrode life	2500
Terminal	USB
Power supply	AC 100-240V with AC adapter DC13.5V Inner Li-battery (5200mAH)
Operating condition	0-5000m above sea level, -10-50°C Max wind velocity of 15m/s
Dimension	122mm(L)xl48mm(W)xl30mm(H)
Weight	1.47Kg excluding battery 1.73Kg including battery
