Product Description

Description

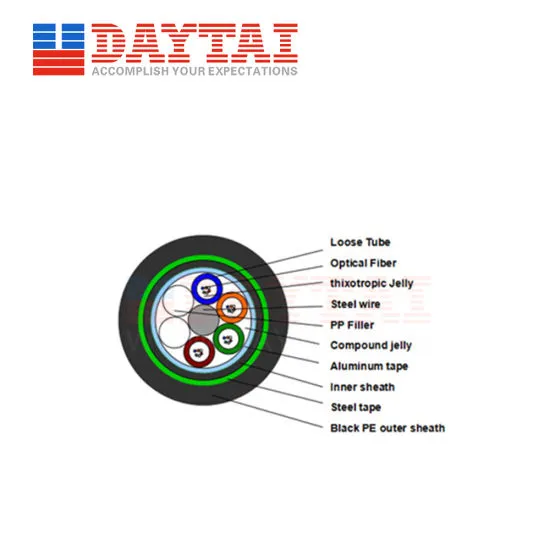

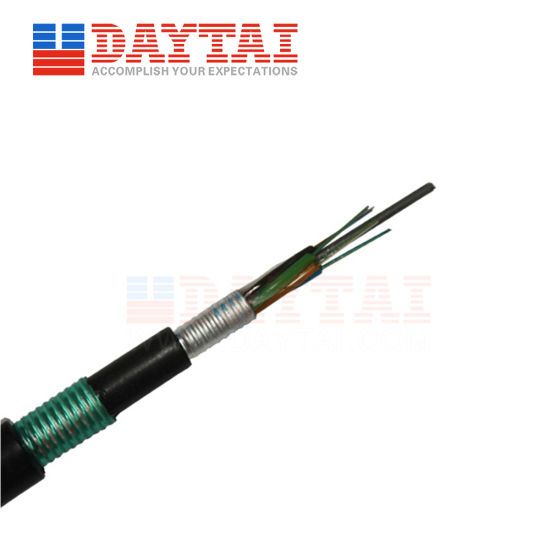

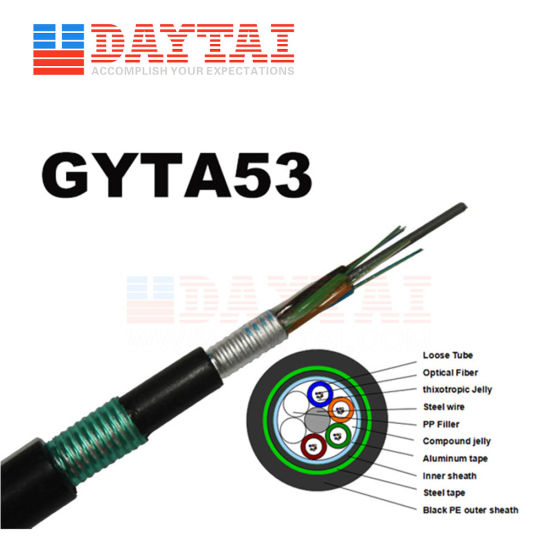

Fiber Optic Cable,The structure of GYTA53 (outdoor optical cable used for telecommunication with metalliccentral strength, loose and layer-stranded tube style, aluminum-polyethylenecover, and vertically corrugated steel tape armored) is covering the inner-fulfilled waterproof compound loose tube, which is made ofhigh modulus plastic, with the single mode and multi-mode optical fiber. The center of the cable's core is steel wire. For some optical cables with certain number of core, this steel wire could be a strand, or covered with a tight pack of polyethylene (PE). The compact and round shape cable core is a combination of the loose sleeve pipe (gasket for packing) and center-strengthened core, thegap in the cable core is filled with water retarding compound. (the core number of the vertical-laid moisture retarding belt out of the cable core is over 96).The PE sheath will appear after being vertically covered with the plastic-plated aluminum belt, The polyethylene over layer will be made after the double-side plastic-plated aluminum belt is covered vertically.

Product Performance

Fiber count		2~36	38~60	62~72	74~84	86~96	98~108	110~120	122~132	134~144
CSM/Steel wire (mm)		--/2.0	--/1.8	2.2	3.2/2.0	4.0/2.0	4.8/2.2	5.6/2.2	6.4/2.2	7.2/2.2
Element number		6	5	6	7	8	9	10	11	12
Max. cores in tube		6	12	12	12	12	12	12	12	12
Cable diameter		14.0	14.6	15.2	16.0	16.8	17.6	18.4	19.2	20.0
Weight		185	200	215	240	265	290	315	345	375
Tensile strength (N)	Long term	1000
Tensile strength (N)	Short term	3000
Crush Resistance (N/100MM)	Long term	1000
Crush Resistance (N/100MM)	Short term	3000
Bending Radius (MM)	Dynamic	≥20 * Cable diameter
Bending Radius (MM)	Static	≥10 * Cable diameter
Operating Temperature (ºC)		-40~+60
Application			Aerial ,Direct burial
