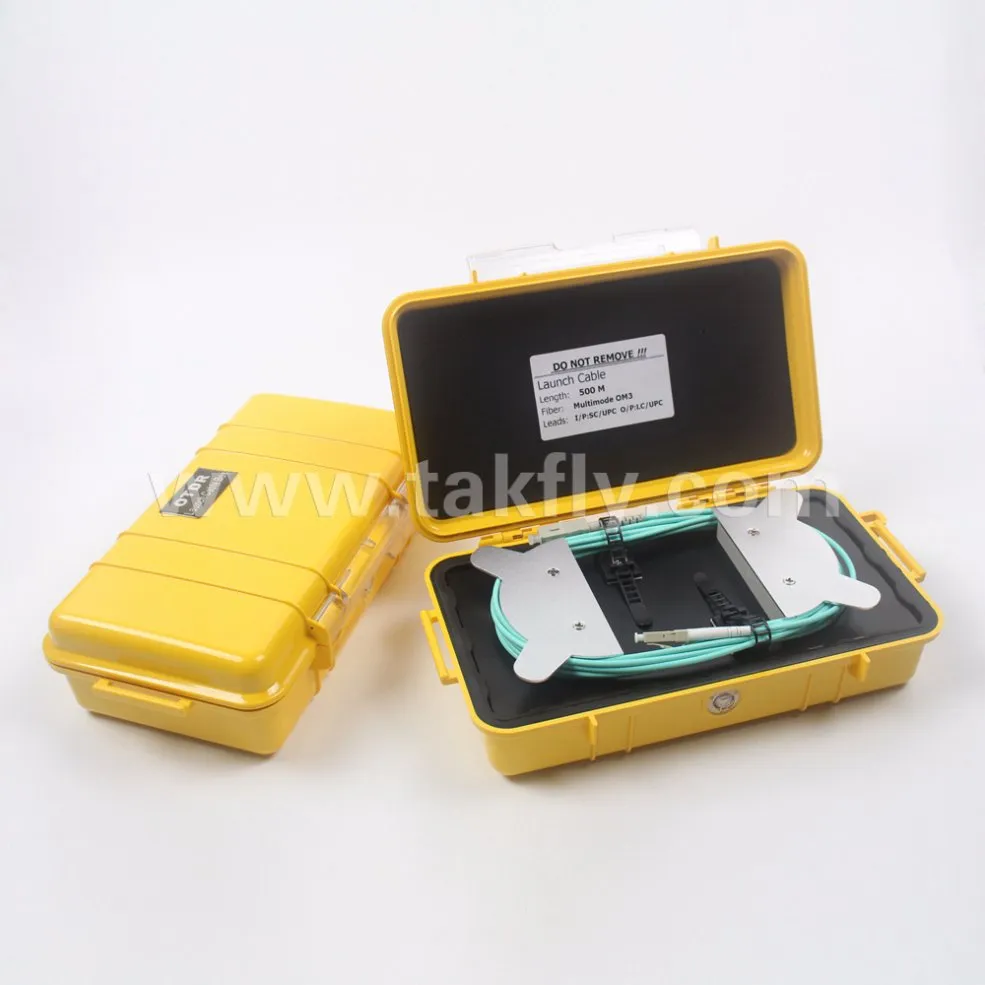

Customized 500m Om3 Sc-FC OTDR Fiber Optic Launch Cable Box
Customized 500m Om3 SC-FC OTDR fiber optic launch cable box OTDR Launch cable is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse......
Send Inquiry
Product Description
Customized 500m Om3 SC-FC OTDR fiber optic launch cable box
Features
Specifications
About Company

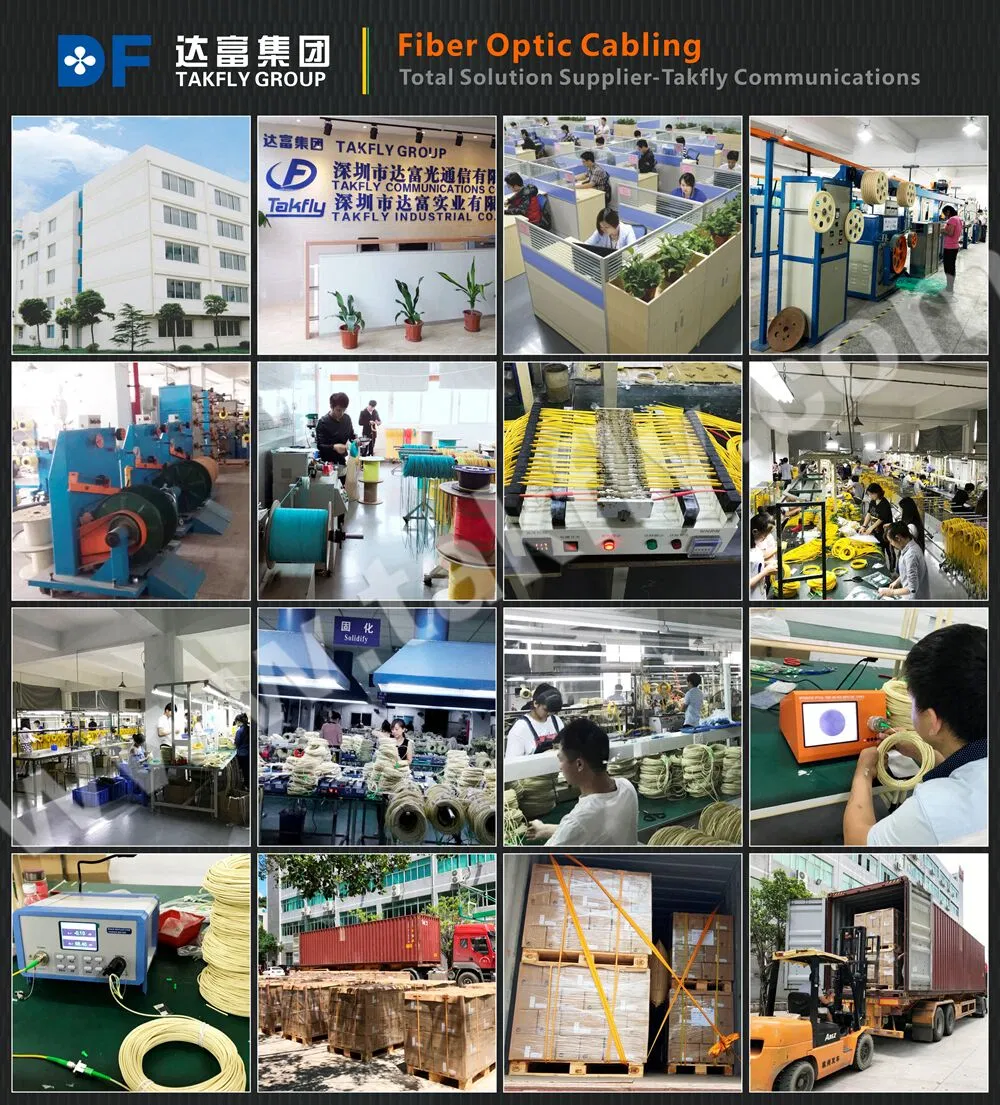

Takfly Communications Co.,Ltd is the high-tech manufacturering enterprise,which is established in 2000,and specialized in optical fiber transmission equipments,security surveilance monitoring equipment combined with researching developing,production,sales and services.Takfly mainly produce digital video transceiver,audio transceiver,internet transceiver,alarm transceiver,ethernet optical media converter,10M media converter,100M media converteres,1000M media converters,10/100M media converter,10/100/1000M media converter,business class of media converter,industrial telecom media converters and some other surveillance data communication products.Which are widely apply to metropolitan network access network,fiber to home network,electric power,education,army,safety city and some other important system
Takfly Strictly follow the ISO9001 quality management system,adopt advanced production technology,equipped with high standard,product passed CE,FCC,3C's certification,obtain the telecommunication equipment access network certification by national information industry.And qualified with inspection report from the ministry of public securityand police electronic quality testing.OEM or customized is available.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world.To be the super leaderof the optical communications scopes in China is the goal of Takfly.In the next five years.Takfly will keep the strategic pattern of development-"Based in south of China,penetrate into whole country,extend over the world".
Any question about this OTDR launch cable box,please leave me an inquiry or contact me directly.

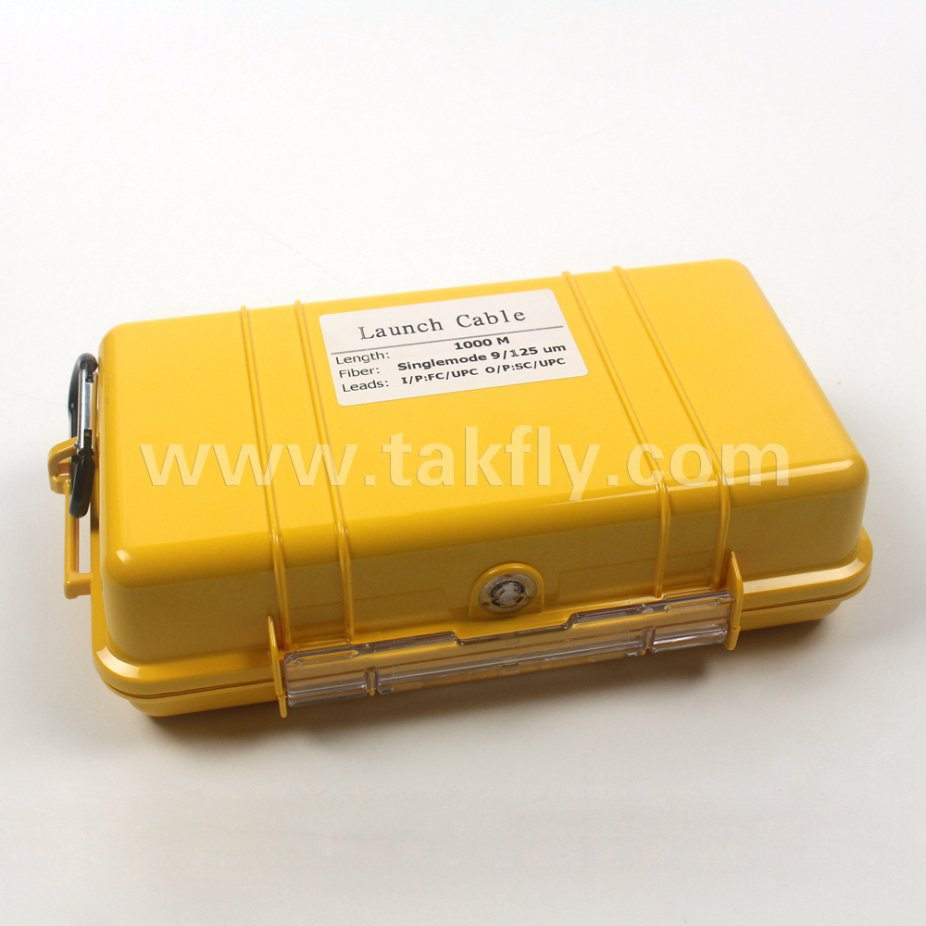

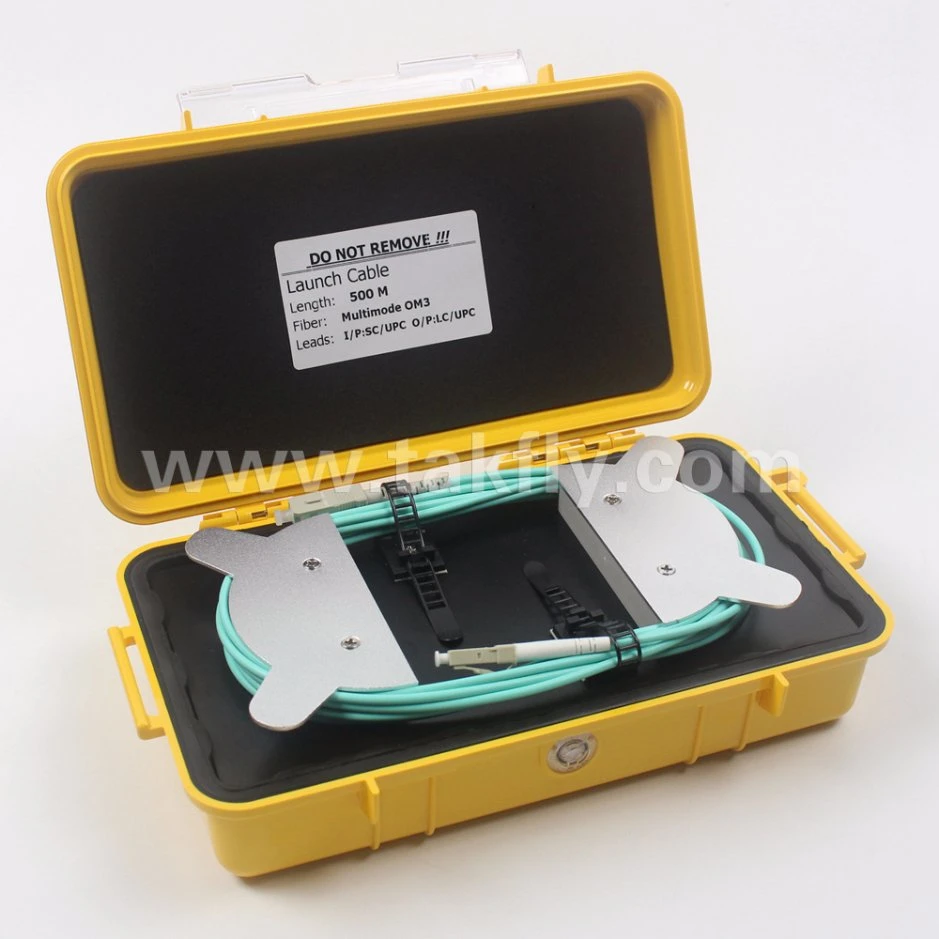

OTDR Launch cable is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in different configurations and fiber lengths.
Complied with or exceeds Standard
Applications
- ITU-T G652.D, G656.A
- ITU-T G651.1 OM1 OM2 OM3 OM4
- IEC60793-2-10 type A1a.1/A1b OM1/OM2,
- Telcordia (formerly Bellcore) GR-326-CORE
- RoHS Compliant Directive 2011/65/EU
Applications
- Use as OTDR launch/receive cable.
- Test link loss with an OTDR.
- Measure insertion loss and reflectance of near/far end connector.
- Pulse suppressor for the first reflection at the beginning of a fiber.
Features
- Standard boxes along with custom configurations for OTDR applications.
- Compact and rugged packaging.
- Portable for field use.
- Prevents fiber damage and ensures accurate results.
- Pulse suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
- Compound latch for positive seal and easy opening with locking feature.
- Water and dust prove allowing the unit to be taken into almost any environment.
- Case can house up to 2,000 meters of fiber.
- Auto Purge Valve for changes in altitude and temperature.
Specifications
| Mechanical & Environmental Characteristics | |
| Dimension | 23.8CMx 14.1CM x 6.7CM |
| Material | SR Polypropylene |
| Color | Yellow |
| Weight | 0.75kg without fiber |

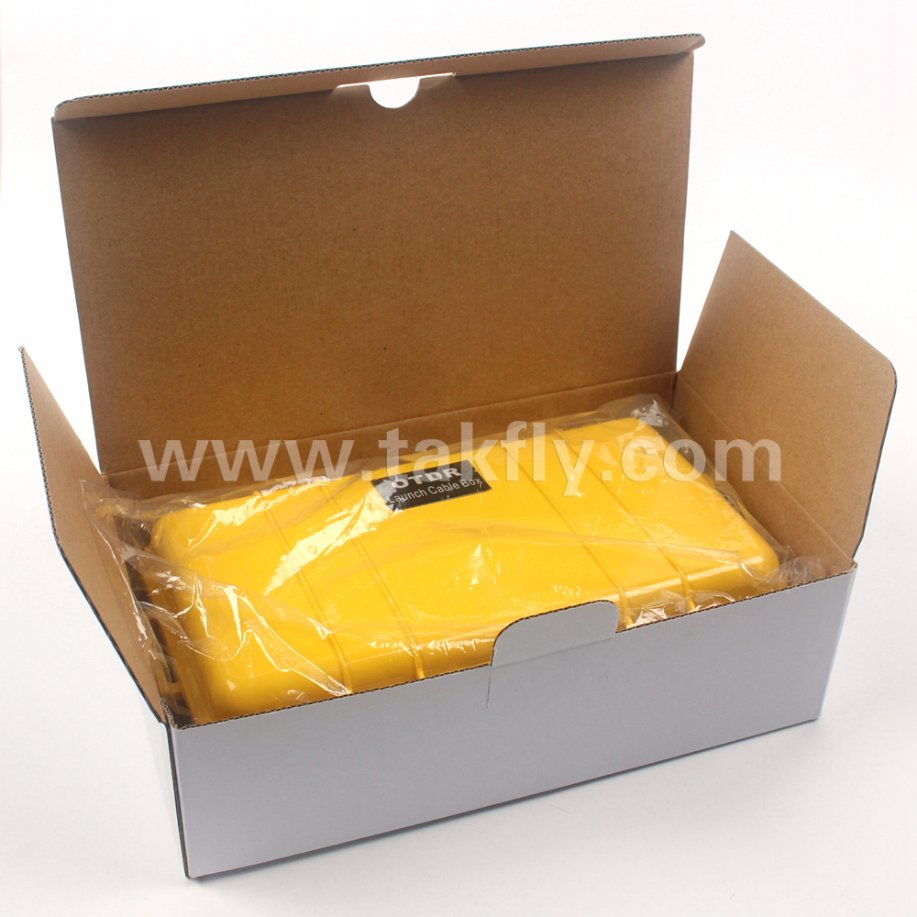

| Packaging | Rugged, hard-shell transit case |
| Storage Temperature | -40O to +85O C |
| Operating Temperature | -40O to +85O C |
| Humidity | 0 to 95%, non-condensing |
| Fiber & Connector Characteristics | |
| Fiber Types | G652D, G657A, OM1, OM2, OM3, OM4 |
| Fiber Length (m) | 100 up to 2000 (max) |
| Lead Length | 2 Meters, 3mm buffer |
| Typical Loss | <0.5dB @ 1310 for 1000 meters |
| Connector Type | SC/LC/FC/ST |
| Polish | PC, UPC, APC |
| Return Loss* | UPC>=50dB, APC>=60dB, PC>=35dB |
| Repeatability (dB) | <=0.2 (1000 times) |
| Exchangeability (dB) | <=0.2 |
About Company
Takfly Communications Co.,Ltd is the high-tech manufacturering enterprise,which is established in 2000,and specialized in optical fiber transmission equipments,security surveilance monitoring equipment combined with researching developing,production,sales and services.Takfly mainly produce digital video transceiver,audio transceiver,internet transceiver,alarm transceiver,ethernet optical media converter,10M media converter,100M media converteres,1000M media converters,10/100M media converter,10/100/1000M media converter,business class of media converter,industrial telecom media converters and some other surveillance data communication products.Which are widely apply to metropolitan network access network,fiber to home network,electric power,education,army,safety city and some other important system
Takfly Strictly follow the ISO9001 quality management system,adopt advanced production technology,equipped with high standard,product passed CE,FCC,3C's certification,obtain the telecommunication equipment access network certification by national information industry.And qualified with inspection report from the ministry of public securityand police electronic quality testing.OEM or customized is available.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world.To be the super leaderof the optical communications scopes in China is the goal of Takfly.In the next five years.Takfly will keep the strategic pattern of development-"Based in south of China,penetrate into whole country,extend over the world".
Any question about this OTDR launch cable box,please leave me an inquiry or contact me directly.
