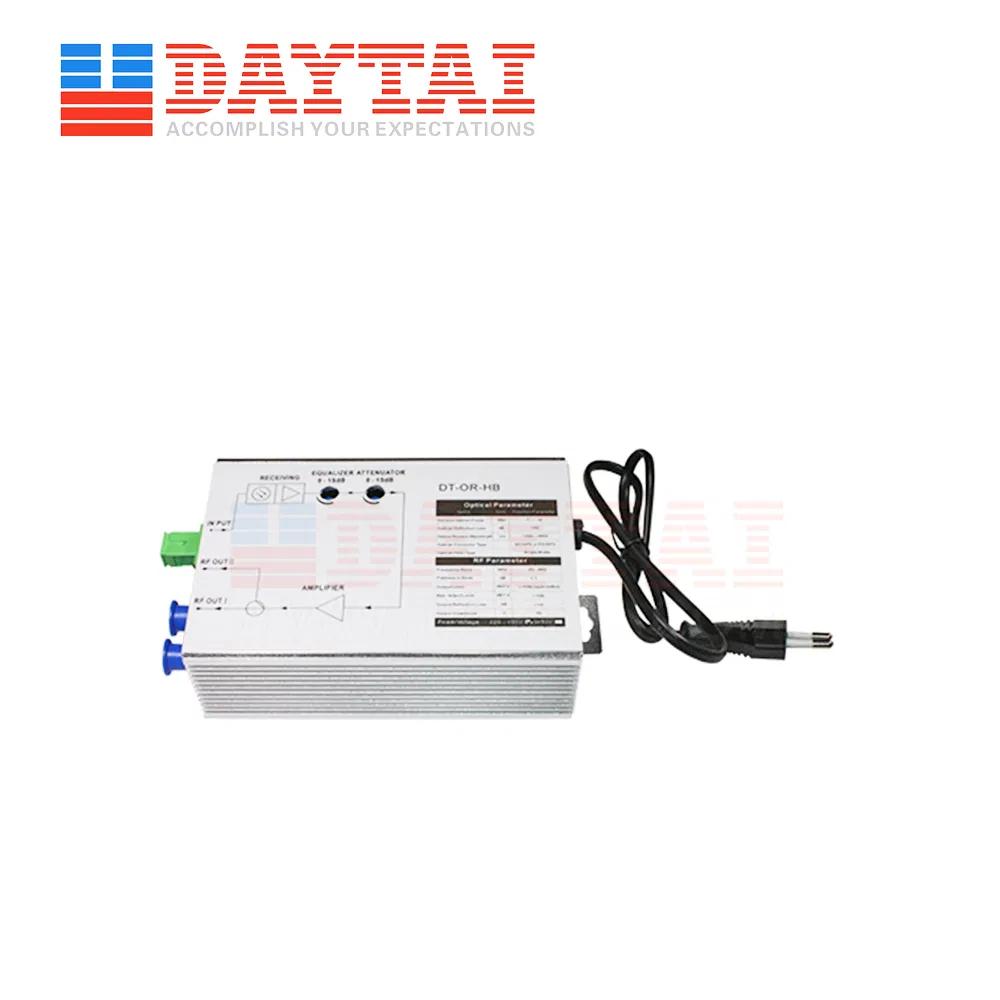

Daytai FTTH CATV Hfc Optical Receiver Node
DescriptionFTTH Optical Receiver,2-port output, E-O pin diode, amplifier module,45-862MHz,variable ATT and EQ (15dB), imperial F type female port,FC/APC or SC/APC connector, rated output level 98dBuV (input optical power-2dBm),AC220V or 30~60V is optional. FeatureFrequency bandwidth:5-862MHz.Two LED......
Send Inquiry
Product Description
★ Description
FTTH Optical Receiver,2-port output, E-O pin diode, amplifier module,45-862MHz,variable ATT and EQ (15dB), imperial F type female port,FC/APC or SC/APC connector, rated output level 98dBuV (input optical power-2dBm),AC220V or 30~60V is optional.
★Feature
⊙Frequency bandwidth:5-862MHz.
⊙Two LED in the front panel indicate the inputpower.
⊙High range switching power supply.
⊙Adjustable attenuator (-15~0dB).
⊙Adjustable equalizer (-15~0dB).

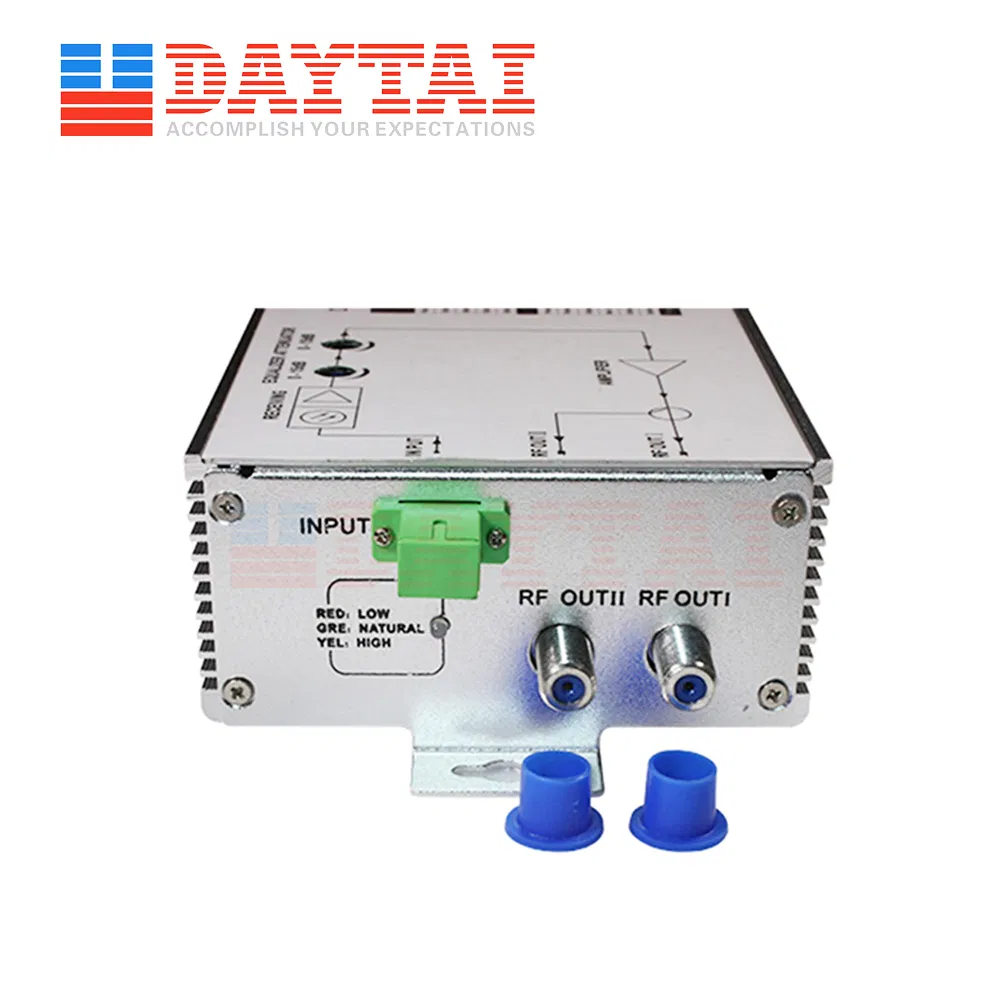

⊙2 output ports or1 output and 1 test point-30dB.
⊙The outline structure ofit is compact. And the installation and trial run of it is convenient. It isthe best choice for CATV HFC network.
★Main application
⊙CATV HFC Network.
★Product Performance
| Item | Unit | Specification | |
| Optical Feature | Operation Wavelength | nm | 1250~1600 |
| Receiving Power Range | dBm | -6~-2 | |
| Responsibility | A/W | 0.9 | |
| Optical Return Loss | dB | 55 | |
| RF Parameter | Operation Frequency | MHz | 47~862 |
| Flatness | dB | ±1.0 | |
| Max Output Level | dBuV | 108 | |
| Output Level Adjustment | dB | 0~18 | |
| Return Loss | dB | 16/14 | |
| Impedance | Ohm | 75 | |
| Link Parameter | C/N | dB | 56(-2dBm) |
| CTB | dB | 65 | |
| CSO | dB | 63 | |
| General Feature | Connector | SC,F type female | |
| Power Supply | V | AC 220 | |
| Power Consumption | VA | 12 | |
| Operation Temperature | ºC | -20~+50 | |
| Storage Temperature | ºC | -40~+65 | |
| Relative Humidity | % | 5~95 | |
