Product Description

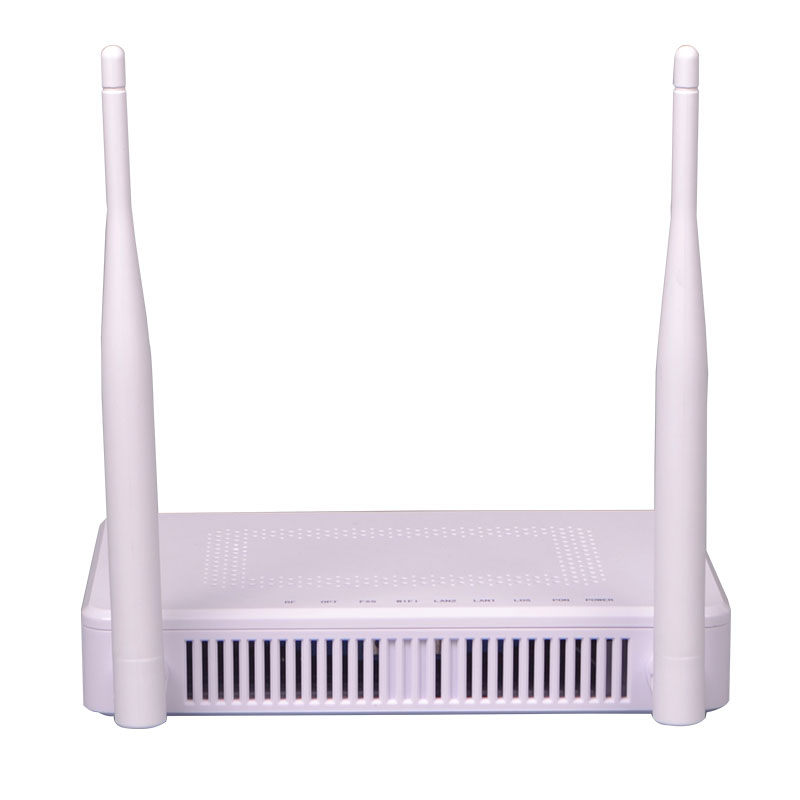

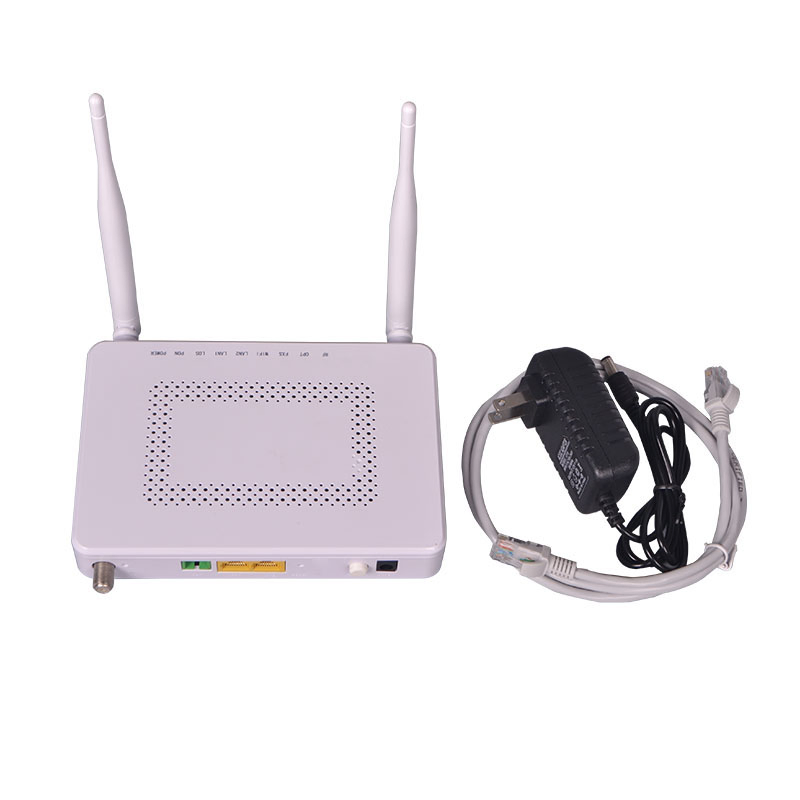

ONT-2GF-RFW is a residential gateway device with routing functions for XPON ONU and LAN Switch for residential and SOHO users, which is in line with ITU-T G.984 and IEEE802.3ah.

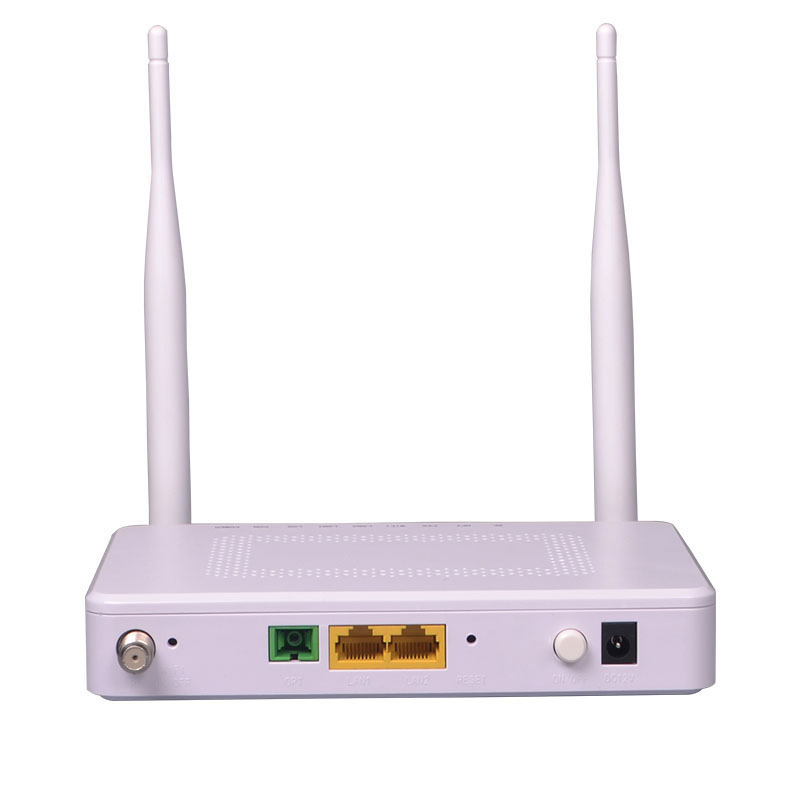

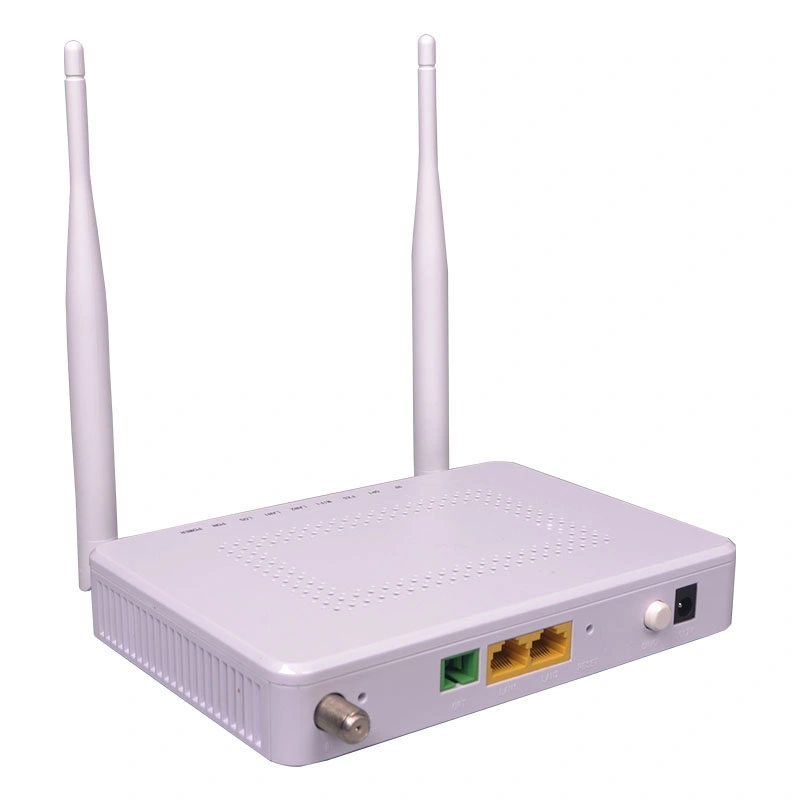

The uplink of ONT-2GF-RFW provides one PON interface, while downlink provides two Ethernet and one RF interfaces. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.

Product Description

Thank you for choosing the ONT-2GF-RFW Home Gateway Unit. The terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. The box is based on mature GPON and Gigabit EPON technology, which has high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2/3. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of XPON Equipment from China Telecom. Dual mode HGU can detect and exchange PON mode automatically.

Key Features

1.2 Special features

l Detect and exchange PON mode automatically.

l Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.

l Integrated TR069 remote configuration and maintenance function.

l Support rich VLAN, DHCP Server/Relay and IGMP/MLD snooping multicast feature.

l Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

l Support 802.11n WiFi(2T2R) function.

l Support NAT, Firewall function.

l Support IPv4 and IPv6 dual stack.
l The WAN port supports bridge, router and bridge/router mixed mode.

Technique Parameter

Technical items	Descriptions
PON interface	1GPON/EPON connector, SC single-mode/single-fiber. GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps.
Wavelength	Tx1310nm,Rx 1490nm
Optical interface	SC connector.
Interface	1* 10/100/1000Mbps and 110/100Mbps or 2 10/100Mbps auto adaptive Ethernet interfaces, RJ45 connector.
Wireless	Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R two external antennas.
LED	9 indicators, for status of POWER, PON, LOS,WIFI, LAN,RF,OPT.
Operating condition	-5ºC~55ºC,10%~90%(non-condensed)
Storing condition	-30ºC~60ºC,10%~90%(non-condensed)
Power supply	DC 12V, 1A
Power consumption	≤8W
Dimension	167mm118mm30mm(LWH)
Net weight	0.2Kg

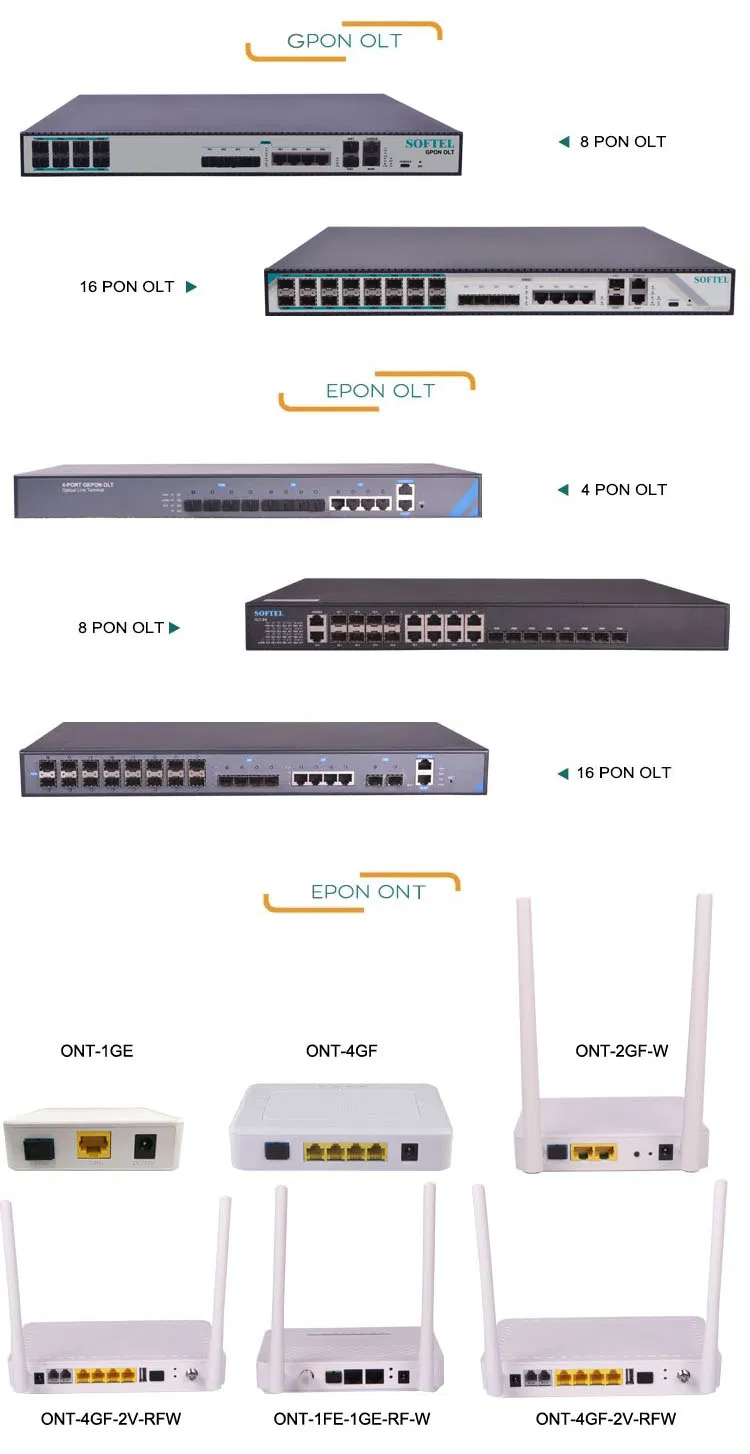

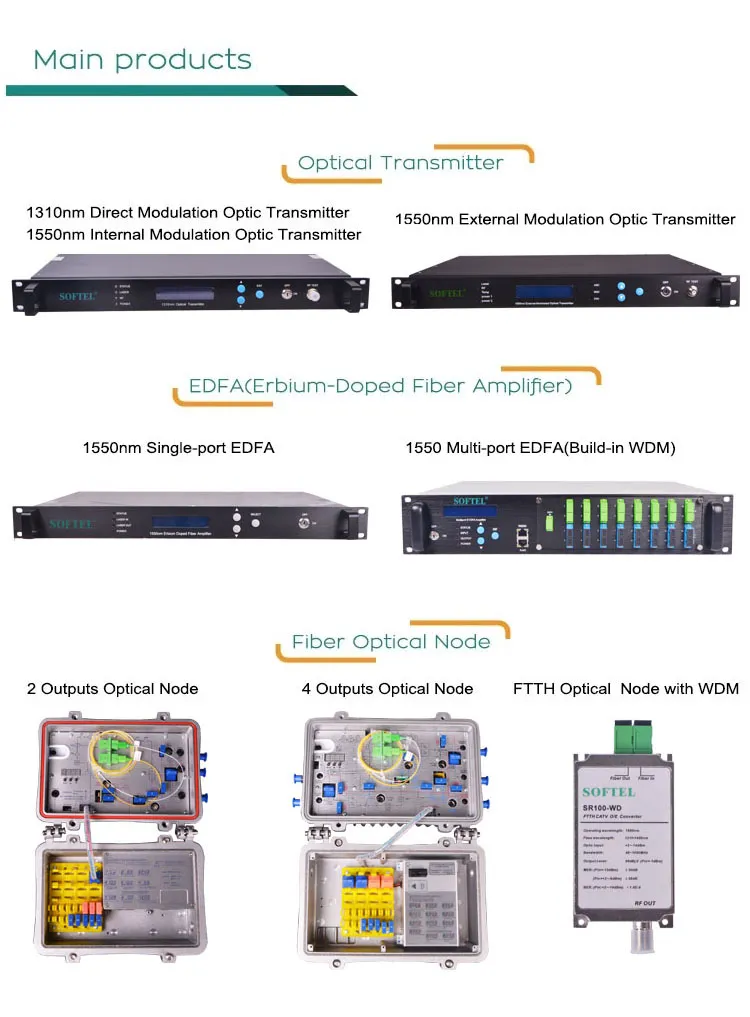

Main Products
