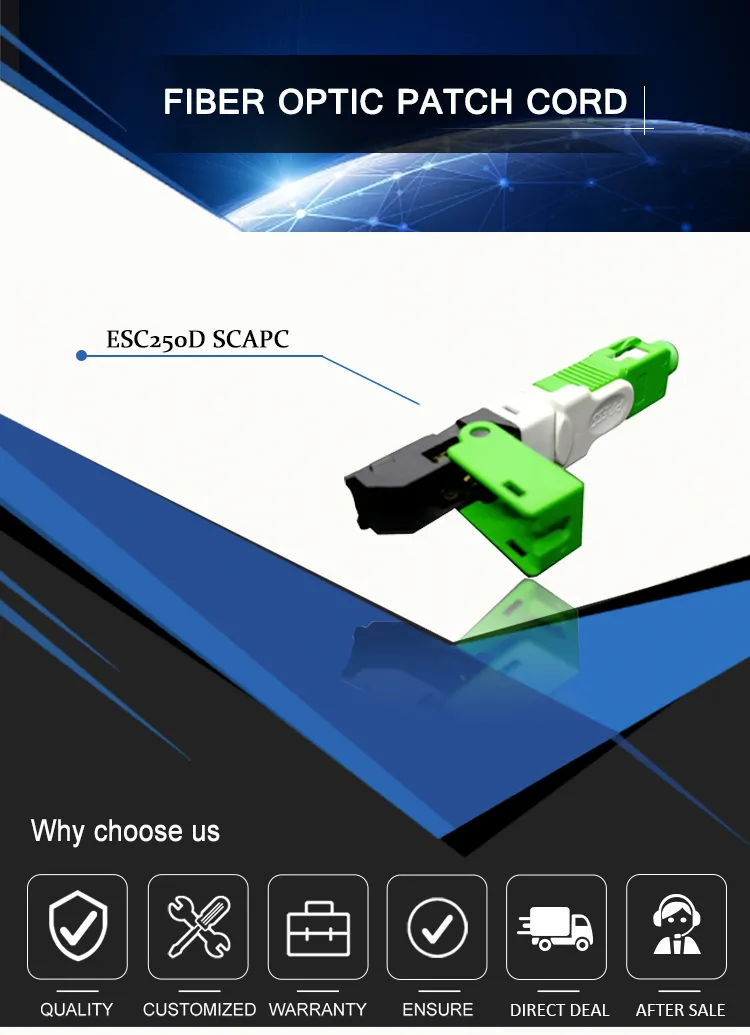

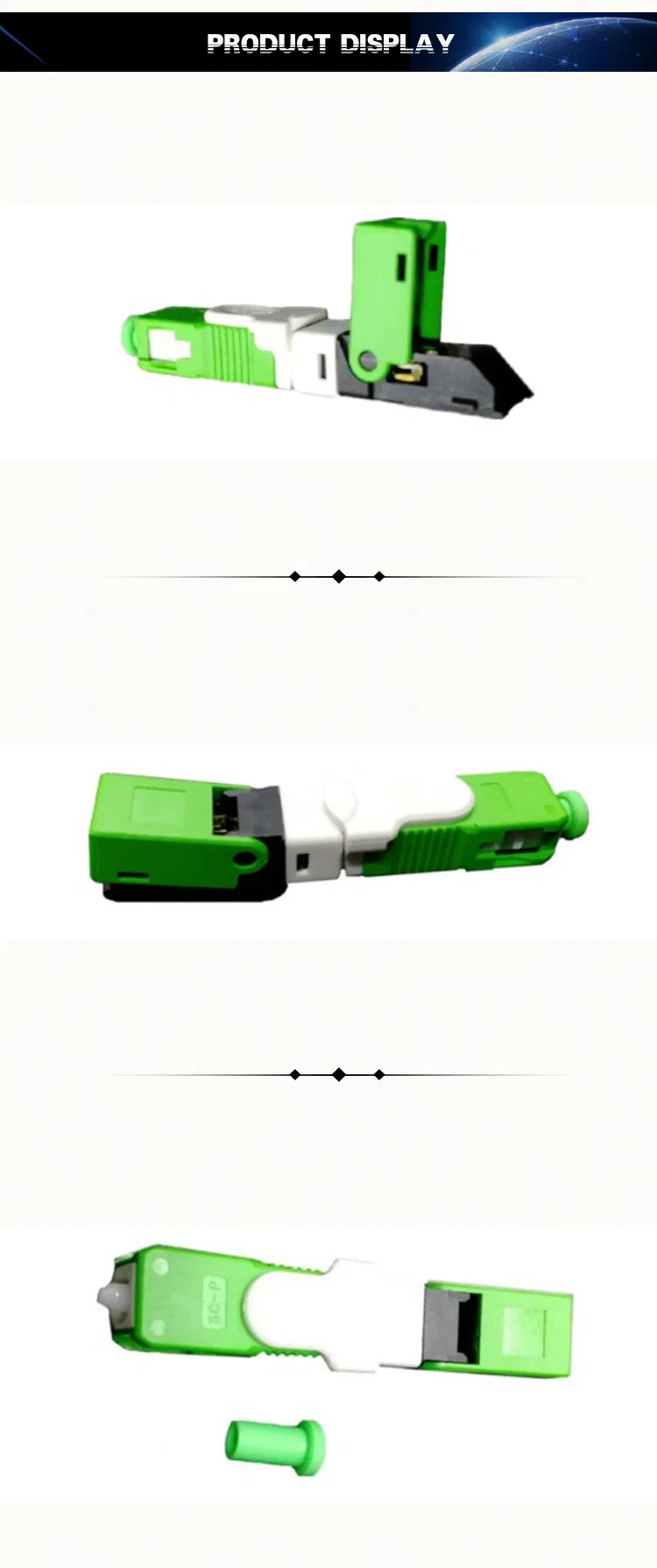

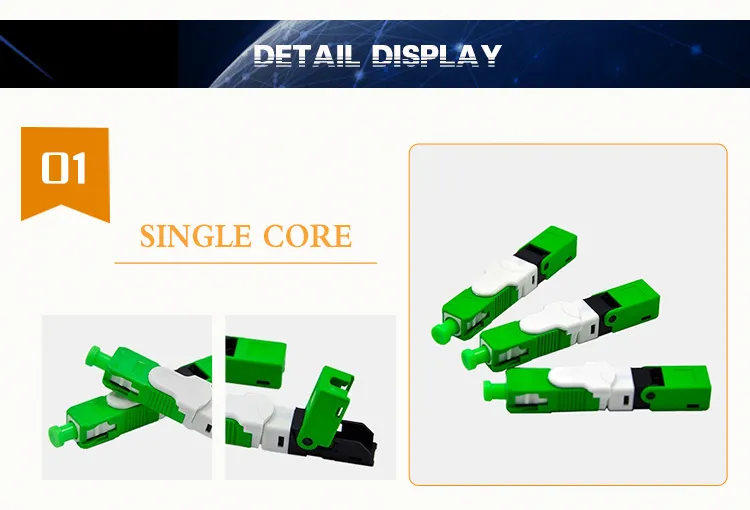

ESC250d Sc APC Fiber Optic Fast Connector
Description: Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks,to assemble with drop cable quickly. Fast Connector Features Factory-installed fiber stub No epoxy or polishing required Quick and easy fiber termi......
Send Inquiry
Product Description
Description:
Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks,to assemble with drop cable quickly.
Fast Connector Features - Factory-installed fiber stub
- No epoxy or polishing required
- Quick and easy fiber termination in the field
- Eliminates ca
- Patch panels
- Distribution frames
- Maintenance or emergency restoration of fiber networks
- FTTH Outlets
- Connection at the desk for LAN environments
- Suitable for FTTx butterfly type cable(both square and circle shape are available)
| Item | Parameter | |
| Cable Scope | 3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable | |
| Size: | 52*9*8.1mm | |
| Fiber Diameter | 125μm ( 652 & 657 ) | |
| Coating Diameter | 250μm | |
| Mode | SM | |
| Operation Time | about 15s(exclude fiber presetting) | |
| Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) | |
| Return Loss | ≥ 50dB for UPC, ≥ 55dB for APC | |
| Success Rate | >98% | |
| Reusable Times | >10 times | |
| Tighten Strength of Naked Fiber | >5 N | |
| Tensile Strength | >50 N | |
| Temperature | -40 ~ +85 C | |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB | |
| Mechanical Durability(500 times) | IL ≤ 0.3dB | |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB | |
Relevant Solutions
- Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
- With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
- Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
Q1: How can i get your catalogue and price list?A1: Please let us know your email or contactus from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts formultiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Qingdao, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will
check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery.We"ll show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
