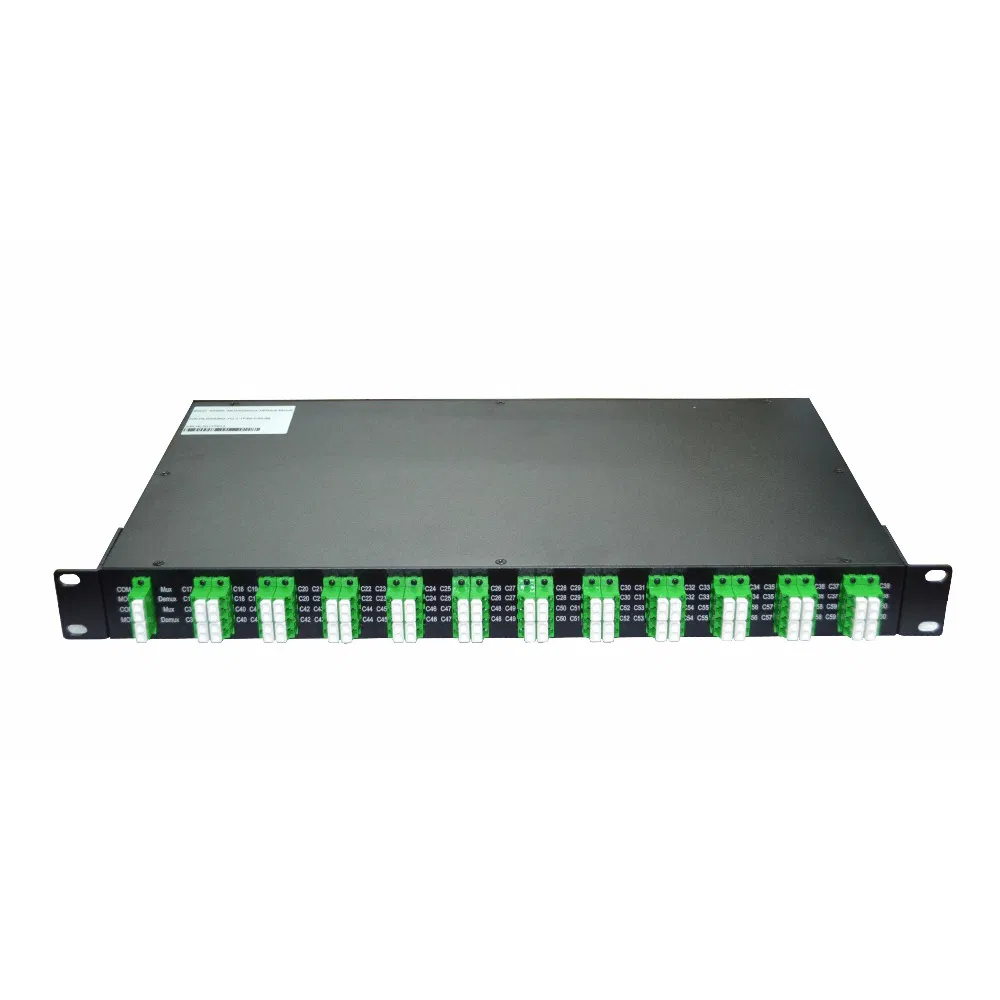

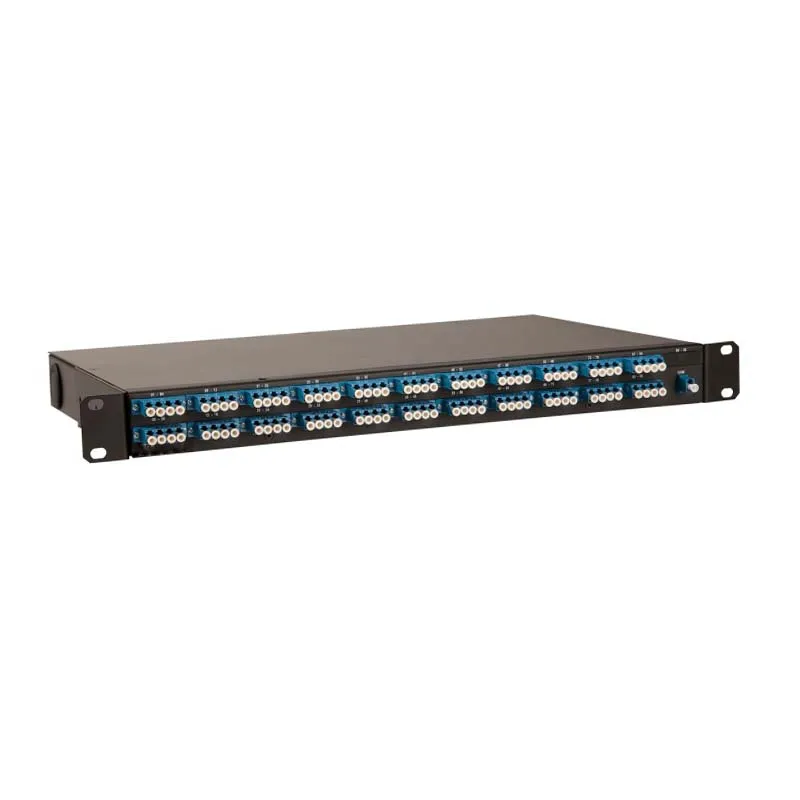

Excellent Channel Isolation 50GHz Spacing 88CH Aawg DWDM Mux
Excellent channel isolation 50GHz Spacing 88CH AAWG DWDM MuxProduct DescriptionLightwit Photonics provides passive optical layer functions for 4-96 DWDM wavelength mux/demux, 4-18 CWDM wavelength mux/demux, optical dispersion compensation module (DCM), optical add and drop (OADMs), splitters and com......
Send Inquiry
Product Description
Product Description
Lightwit Photonics provides passive optical layer functions for 4-96 DWDM wavelength mux/demux, 4-18 CWDM wavelength mux/demux, optical dispersion compensation module (DCM), optical add and drop (OADMs), splitters and combiners.
For DWDM, We have TFF and AAWG type
The DWDM AAWG (Athermal Arrayed Waveguide Grating) module is a kind of passive module based on PLC (Planar Waveguide) technology, which does not need additional power supply or temperature control; Compared with traditional TFF (thin film filter) products, AAWG has the advantages of high integration, good uniformity, low PMD and low insertion loss
The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information
Features:
~ Up to 96CH Rack Chassis100G AWG (48CH 100G DWDM Mux Demux)
~lnsertion Loss Ripple:1.0db
~Optical Returnloss:40db
~Band: C-Band, L-Band, C+L-Band, Customize is optional
~Number of Channeis:64CH,80CH,88CH,96CH,Special is optional
~Spacing:50G,100G,200G,Special is optional
~Filter Shape: Gaussian, Broad Gaussian, Flat Top is optional
~Package: Module, Rack, Special is optional
~Fiber Length:0.5m,1m,1.5m,2m,2.5m,3m,Specify is optional
~ln/Out Connector:None,FC/APC,FC/PC,SC/APC,SC/PC,LC/APC,LC/PC,ST/UPC,Specify is optional
Applications
Long-Haul/Metro Network
Data Center Network
Wireless Front-Haul/Back-Haul
PON and FTTx
Optical Specifications
| Parameter | Unit | Gaussian | Flat-Top | |
| Channel Wavelength (nm) | nm | ITU 50 GHz Grid | ||
| Number of channels | - | 64,80,88,96 or other | ||
| Wavelength Accuracy (nm) | nm | ± 0.05 | ||
| Insertion Loss (dB) | dB | < 5.5 | < 7.0 | |
| Channel Passband (@-1dB bandwidth) | nm | > 0.2 | > 0.3 | |
| Channel Passband (@-3dB bandwidth) | nm | > 0.4 | > 0.5 | |
| Total Crosstalk(dB) | dB | > 20 | > 23 | |
| Channel Ripple (dB) | dB | < 0.75 | ||
| Isolation(dB) | Adjacent | dB | > 25 | |
| Non-adjacent | dB | > 30 | ||
| Max. Uniformity | dB | 1.2 | ||
| Chromatic Dispersion | ps/nm | -20~+20 | ||
| Max. Polarization Dependent Loss | dB | 0.5 | ||
| Max. Polarization Mode Dispersion | ps | 0.5 | ||
| Min. Directivity | dB | > 50 | ||
| Min. Return Loss | dB | > 45 | ||
| Maximum Power Handling | mW | 300 | ||
| Fiber type | - | SMF-28e or other | ||
| Operating Temperature | °C | -5 ~+70 | ||
| Storage Temperature | °C | -40 ~+85 | ||
| Dimension | mm | L120 x W70 x H12 | ||
| 19" 1U Rack mount:431.5*250*44 | ||||
WAVELENGTH PLAN
| No | C Even | C Even + | C Odd | C Odd + | ||||
| ƒ(THz) | λ(nm) | ƒ(THz) | λ(nm) | ƒ(THz) | λ(nm) | ƒ(THz) | λ(nm) | |
| 1 | 196.000 | 1529.553 | 196.025 | 1529.358 | 196.050 | 1529.163 | 196.075 | 1528.968 |
| 2 | 195.900 | 1530.334 | 195.925 | 1530.139 | 195.950 | 1529.944 | 195.975 | 1529.748 |
| 3 | 195.800 | 1531.116 | 195.825 | 1530.920 | 195.850 | 1530.725 | 195.875 | 1530.529 |
| 4 | 195.700 | 1531.898 | 195.725 | 1531.702 | 195.750 | 1531.507 | 195.775 | 1531.311 |
| 5 | 195.600 | 1532.681 | 195.625 | 1532.485 | 195.650 | 1532.290 | 195.675 | 1532.094 |
| 6 | 195.500 | 1533.465 | 195.525 | 1533.269 | 195.550 | 1533.073 | 195.575 | 1532.877 |
| 7 | 195.400 | 1534.250 | 195.425 | 1534.054 | 195.450 | 1533.858 | 195.475 | 1533.661 |
| 8 | 195.300 | 1535.063 | 195.325 | 1534.839 | 195.350 | 1534.643 | 195.375 | 1534.446 |
| 9 | 195.200 | 1535.822 | 195.225 | 1535.625 | 195.250 | 1535.429 | 195.275 | 1535.232 |
| 10 | 195.100 | 1536.609 | 195.125 | 1536.412 | 195.150 | 1536.216 | 195.175 | 1536.019 |
| 11 | 195.000 | 1537.397 | 195.025 | 1537.200 | 195.050 | 1537.003 | 195.075 | 1536.806 |
| 12 | 194.900 | 1538.186 | 194.925 | 1537.989 | 194.950 | 1537.792 | 194.975 | 1537.594 |
| 13 | 194.800 | 1538.976 | 194.825 | 1538.778 | 194.850 | 1538.581 | 194.875 | 1538.383 |
| 14 | 194.700 | 1539.766 | 194.725 | 1539.568 | 194.750 | 1539.371 | 194.775 | 1539.173 |
| 15 | 194.600 | 1540.557 | 194.625 | 1540.359 | 194.650 | 1540.162 | 194.675 | 1539.964 |
| 16 | 194.500 | 1541.349 | 194.525 | 1541.151 | 194.550 | 1540.953 | 194.575 | 1540.755 |
| 17 | 194.400 | 1542.142 | 194.425 | 1541.944 | 194.450 | 1541.746 | 194.475 | 1541.548 |
| 18 | 194.300 | 1542.936 | 194.325 | 1542.737 | 194.350 | 1542.539 | 194.375 | 1542.341 |
| 19 | 194.200 | 1543.730 | 194.225 | 1543.532 | 194.250 | 1543.333 | 194.275 | 1543.135 |
| 20 | 194.100 | 1544.526 | 194.125 | 1544.327 | 194.150 | 1544.128 | 194.175 | 1543.929 |
| 21 | 194.000 | 1545.322 | 194.025 | 1545.123 | 194.050 | 1544.924 | 194.075 | 1544.725 |
| 22 | 193.900 | 1546.119 | 193.925 | 1545.920 | 193.950 | 1545.720 | 193.975 | 1545.521 |
| 23 | 193.800 | 1546.917 | 193.825 | 1546.717 | 193.850 | 1546.518 | 193.875 | 1546.318 |
| 24 | 193.700 | 1547.715 | 193.725 | 1547.516 | 193.750 | 1547.316 | 193.775 | 1547.116 |
| 25 | 193.600 | 1548.515 | 193.625 | 1548.315 | 193.650 | 1548.115 | 193.675 | 1547.915 |
| 26 | 193.500 | 1549.315 | 193.525 | 1549.115 | 193.550 | 1548.915 | 193.575 | 1548.715 |
| 27 | 193.400 | 1550.116 | 193.425 | 1549.916 | 193.450 | 1549.715 | 193.475 | 1549.515 |
| 28 | 193.300 | 1550.918 | 193.325 | 1550.717 | 193.350 | 1550.517 | 193.375 | 1550.317 |
| 29 | 193.200 | 1551.721 | 193.225 | 1551.520 | 193.250 | 1551.319 | 193.275 | 1551.119 |
| 30 | 193.100 | 1552.524 | 193.125 | 1552.323 | 193.150 | 1552.122 | 193.175 | 1551.922 |
| 31 | 193.000 | 1553.329 | 193.025 | 1553.128 | 193.050 | 1552.926 | 193.075 | 1552.725 |
| 32 | 192.900 | 1557.134 | 192.925 | 1553.933 | 192.950 | 1553.731 | 192.975 | 1553.530 |
| 33 | 192.800 | 1554.940 | 192.825 | 1554.739 | 192.850 | 1554.537 | 192.875 | 1554.335 |
| 34 | 192.700 | 1555.747 | 192.725 | 1555.545 | 192.750 | 1555.343 | 192.775 | 1555.142 |
| 35 | 192.600 | 1556.555 | 192.625 | 1556.353 | 192.650 | 1556.151 | 192.675 | 1555.949 |
| 36 | 192.500 | 1557.363 | 192.525 | 1557.161 | 192.550 | 1556.959 | 192.575 | 1556.757 |
| 37 | 192.400 | 1558.173 | 192.425 | 1557.970 | 192.450 | 1557.768 | 192.475 | 1557.566 |
| 38 | 192.300 | 1558.983 | 192.325 | 1558.780 | 192.350 | 1558.578 | 192.375 | 1558.375 |
| 39 | 192.200 | 1559.794 | 192.225 | 1559.591 | 192.250 | 1559.389 | 192.275 | 1559.186 |
| 40 | 192.100 | 1560.606 | 192.125 | 1560.403 | 192.150 | 1560.200 | 192.175 | 1559.997 |
Pigtail and connector type/length
Parameter | Specifications | Unit | |
Fiber Type | SMF28e, with 0.9mm loose tube fiber |
| |
Fiber Length | Common Fiber | 500±50 | mm |
Ribbon Fiber | 500±50 | mm | |
Fan-out | 500±50 | mm | |
Optical Adaptors (All port) | LC/UPC (others optional) |
| |
