Factory Supply High Quality Fiber Optic Ftb Couplers

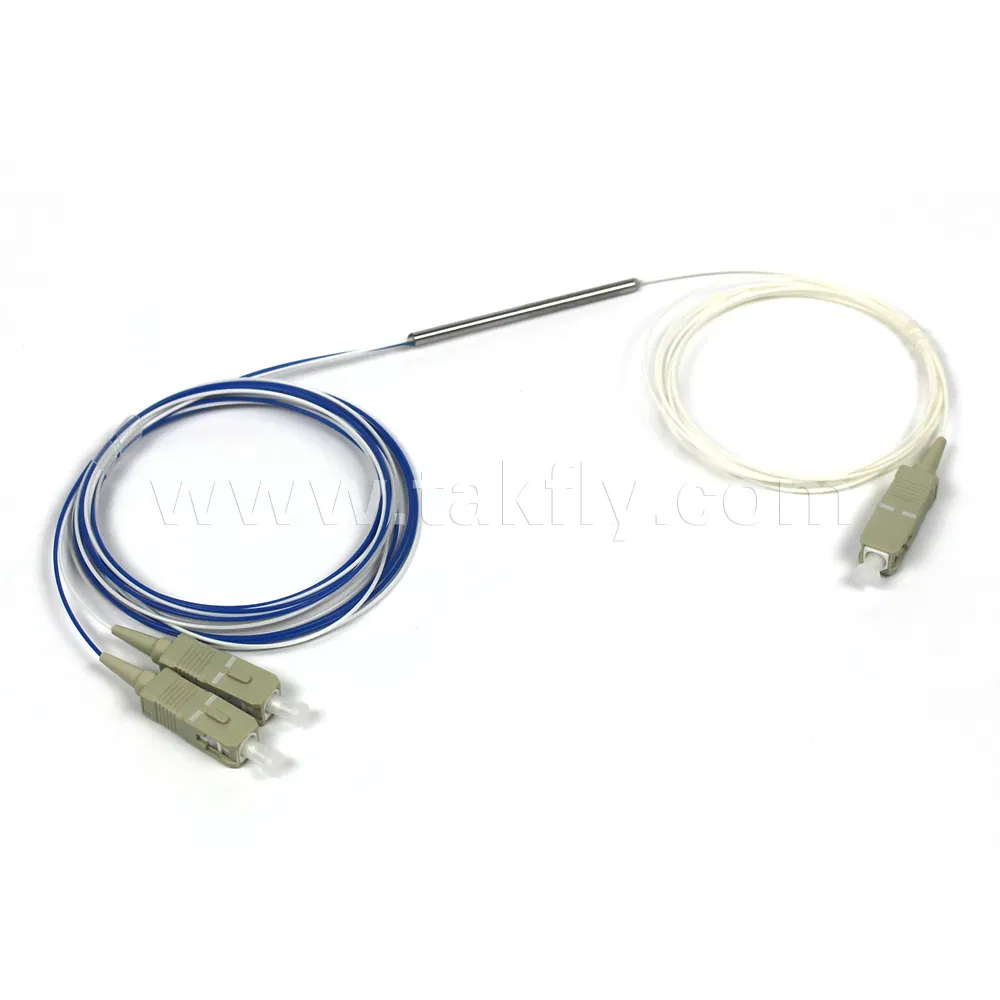

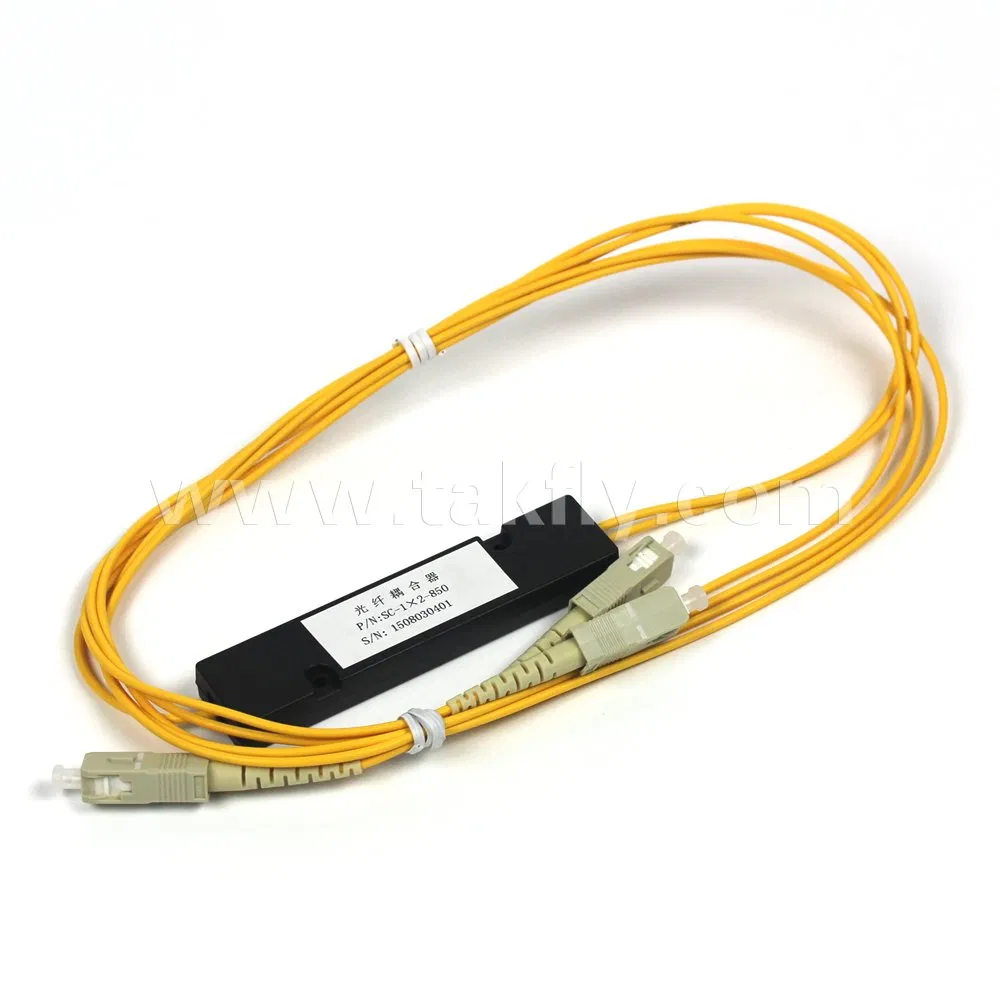

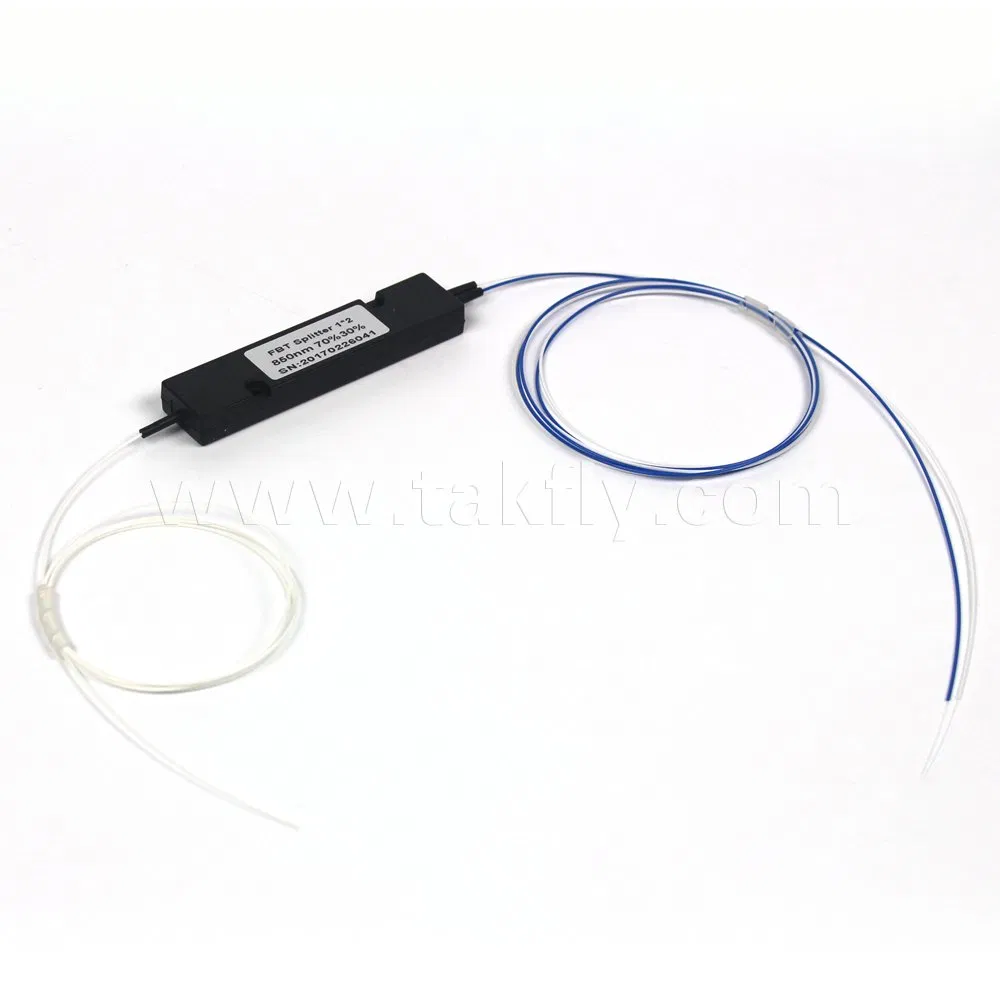

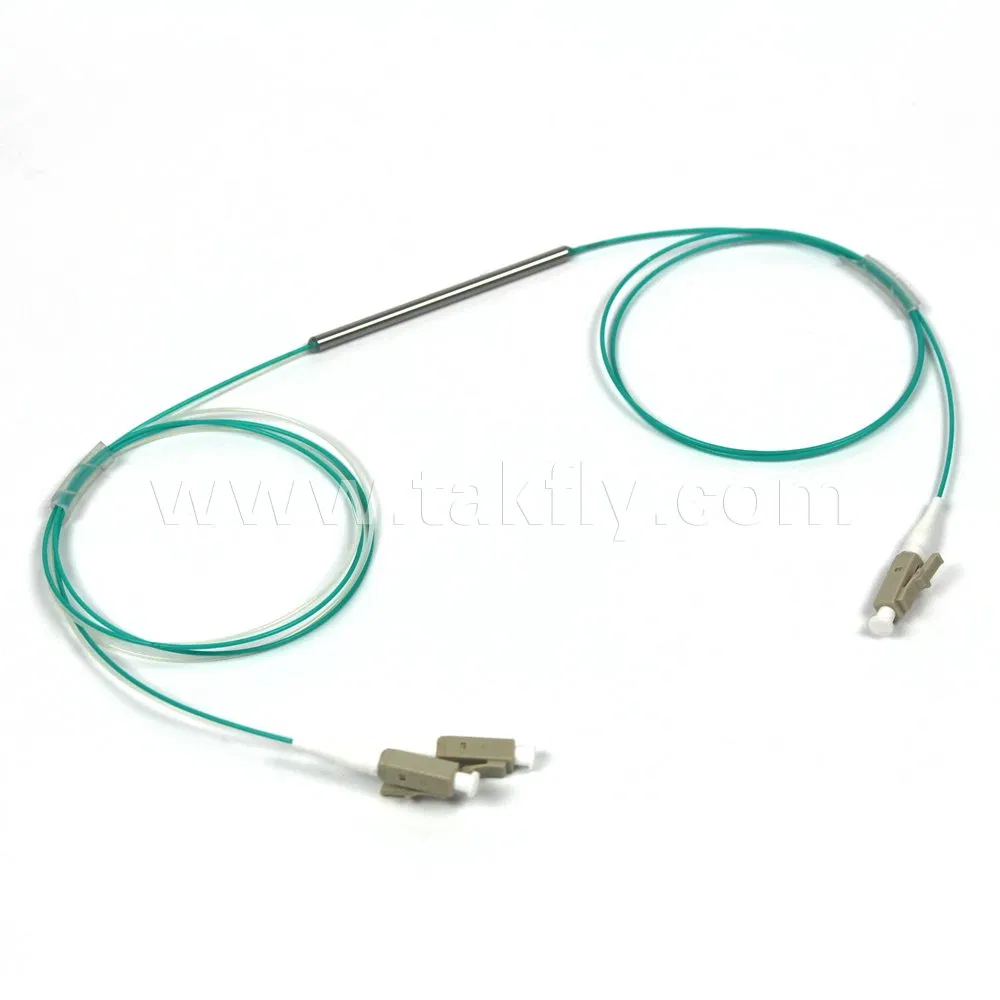

Fiber optic coupler, is a device applicated in optical fiber systems with one or more input fibers and one or several output fibers.For the fused optical splitter,It can be divided into different ratios.such as 50/50 if the split is even, or 80/20 if 80% of the signal goes to one side and only 20% to the other.As a result of its great funciton,Optical splitter is a very important part in passive opitc networks (PON).FTB Fused fiber splitter (coupler) can do Singlemode (1310/1550nm) and Multimode (850nm).Cable diameter can be 0.9mm,2.0mm,3.0mm ,Single window,dual window and three window all we can supply .

Characteristics:

     Low insertion loss and excess loss
     Low polarization dependence
     High optical return loss
     Better uniformity
     Environmental Stability and Reliability
     Small package size

Application:

      FTTH, LAN, PON and Optical CATV
     Local ring net
     Optical fiber communication system
     Optical fiber test equipment
     Optical fiber sensor
     Coupling Ratio/Insertion Loss Conversion Chart

Ordering Information:

1.  Different split ratios of the optical power can be selected: 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 4/96, 3/97,2/98, 1/99...

2. 310nm, 1490nm and 1550nm operating wavelength are all available

3. 1310nm, 1490nm and 1550nm operating wavelength are all available

4.1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20, 1x24 configurations of splitters are available.
5. 250um bare fiber, 0.9 loose tube, 2. 0mm or 3.0mm LSZH fiber cables can be selected.
6. The length of input or output fibers can be also customized; 1m length as default
