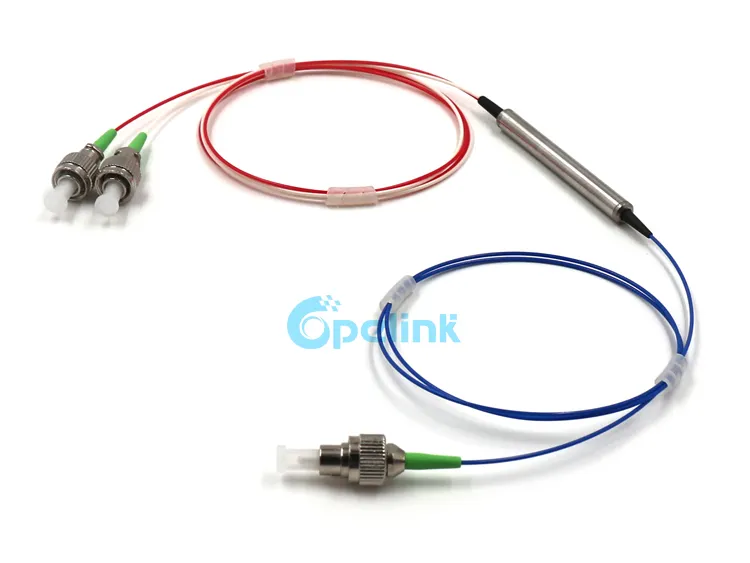

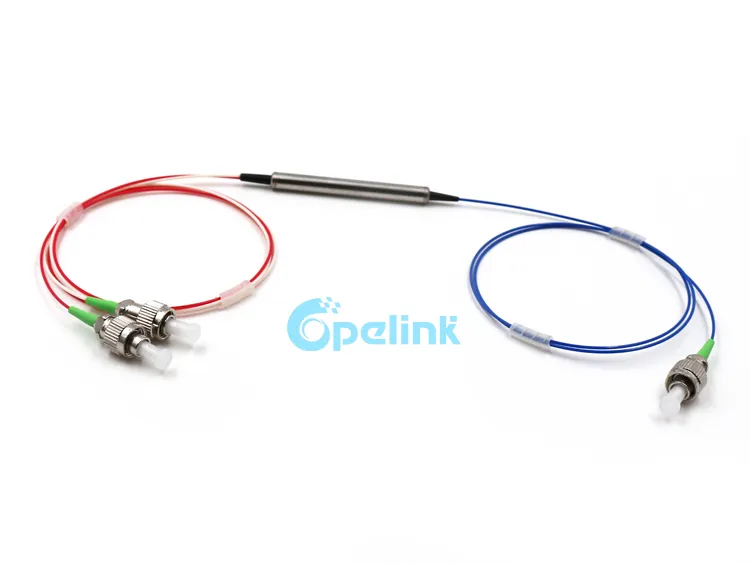

FC/APC Low Pdl 3 Ports Optical Circulator for Optical EDFA
FC/APC Low PDL 3 Ports Optical Circulator For Optical EDFADescription:Optical circulator is a special fiber optic device that is capable of separating optical power traveling in opposite directions in one optical fiber. It can be used to achieve bi-directional transmission over a single fiber. Becau......
Send Inquiry
Product Description
Description:
Optical circulator is a special fiber optic device that is capable of separating optical power traveling in opposite directions in one optical fiber. It can be used to achieve bi-directional transmission over a single fiber. Because of its high isolation between the input and reflected optical power and its low insertion loss, optical circulator is widely used in advanced communication systems and fiber-optical sensor systems.
Features:
Low Insertion Loss
Wide Band High Isolation
Ultra-low PDL and PMD
Compact In-Line Package
High Stability and Reliability
Application:
Metro Area Network
Wavelength Add/Drop
Dispersion Compensation
Bi-Direction Communication
Fiber optic instruments
EDFA, optical fiber amplifiers
Dispersion compensation modules
Optical fiber communication networks
Specification:
| Parameter | Specification | |||
| Configuration | Port 1 to Port 2 to Port 3 | Port 1 to Port 2 to Port 3 to Port 4 | ||
| Operation Wavelength (nm) | 1310±30 or 1550±30 or 1585±30 | 1525 to 1610 | 1310±30 or 1550±30 | |
| I.L (dB) | Typical | 0.6 | 1.0 | 0.8 |
| Maximum | 0.8 | 1.2 | 1.0 | |
| Typical Isolation (dB) | 50 | 50 | 50 | |
| Minimum Isolation (dB) | 40 | 35 | 40 | |
| Cross Talk (dB) | ≥50 | ≥50 | ≥50 | |
| Polarization Dependent Loss (dB) | <0.15 | <0.2 | <0.2 | |
| Polarization Mode Dispersion | <0.1 | <0.1 | <0.1 | |
| Return Loss(dB) | ≥50 | ≥50 | ≥50 | |
| Power Handling (mW) | 300 | 300 | 300 | |
| Operating Temperature (ºC) | -0~+70 | -0~+70 | -0~+70 | |
| Storage Temperature (ºC) | -40~+85 | -40~+85 | -40~+85 | |
Note:
1.All the data above does not include connectors
2.For more details, please contact our sales
Order Information:
Type | Operating Wavelength | Fiber Type | Package | Cable Type | Fiber Length | Connector Type |
| 3=3 Ports | 13=1310nm 15=1550nm 16=1585nm | 1=G652D 2=G657A1 | C3=5.5x50mm Steel Tube D=90x20x9.5mm Plastic Box | B=250um Bare Fiber L=900um Loose Tube S=2.0mm R=3.0mm | 10=1.0m 15=1.5m 20=2.0m | 00=None FA=FC/APC FU=FC/UPC SA=SC/APC SU=SC/UPC ST=ST/UPC LU=LC/UPC LA=LC/APC |
