FC/Sc/LC/St Upc Polish Singlemode Fiber Optical Jumper Fiber Optical Patch Cord
Description MPO Trunk Patch Cord,MPO Female to MPO Female Connector,12Core Multi Mode 50/125-OM3-300 optical cable,cable diameter:3.0MM,LSZH,(Standard Loss: ≤ 0.7dB) or (Low Loss:≤ 0.35dB) is optional,Polarity Type:(Type A:TIA-568-C.3A),(Type B:TIA-568-C.3B),(Type C:TIA-568-C.3C) is Op......
Send Inquiry
Product Description
★Description

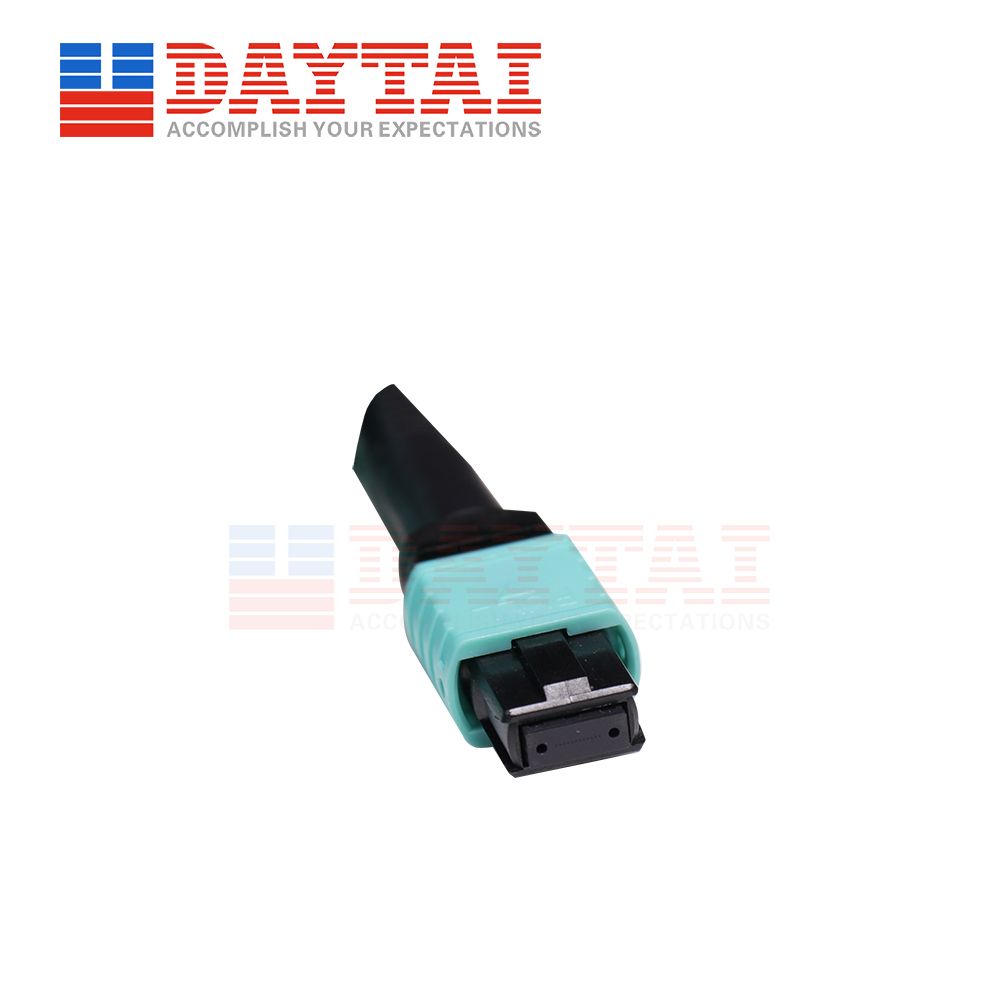

MPO Trunk Patch Cord,MPO Female to MPO Female Connector,12Core Multi Mode 50/125-OM3-300 optical cable,cable diameter:3.0MM,LSZH,(Standard Loss: ≤ 0.7dB) or (Low Loss:≤ 0.35dB) is optional,Polarity Type:(Type A:TIA-568-C.3A),(Type B:TIA-568-C.3B),(Type C:TIA-568-C.3C) is Optional,Length:1M,2M,3M…is Optional.
★Features
⊙Small diameter cable can optimize the air flow in the data center, effectively control the heat;
⊙Meet the requirements of high-speed, big data, support the requirements of 10Gb / s, 40Gb / s, 100Gb / s.
⊙The combination of high quality fiber optic cables and components ensures support for data center links;
★Product Specification
MPO Trunk Patch Cord,MPO Female to MPO Female Connector,12Core Multi Mode 50/125-OM3-300 optical cable,cable diameter:3.0MM,LSZH,(Standard Loss: ≤ 0.7dB) or (Low Loss:≤ 0.35dB) is optional,Polarity Type:(Type A:TIA-568-C.3A),(Type B:TIA-568-C.3B),(Type C:TIA-568-C.3C) is Optional,Length:1M,2M,3M…is Optional.
★Features
⊙Small diameter cable can optimize the air flow in the data center, effectively control the heat;
⊙Meet the requirements of high-speed, big data, support the requirements of 10Gb / s, 40Gb / s, 100Gb / s.
⊙The combination of high quality fiber optic cables and components ensures support for data center links;
★Product Specification
| ITEM | Fiber Type | Single Mode | Multi Mode |
| Fiber Count | 8/12/16/24/48/72/144 Core | ||
| Standard Insertion Loss | Typical | 0.30dB | 0.35dB |
| Max | 0.60dB | 0.50dB | |
| Low Insertion Loss | Typical | 0.20dB | 0.20dB |
| Max | 0.35dB | 0.30dB | |
| Return Loss (dB) | ≥60 APC, ≥50PC | ≥20 | |
| Male / Female | Male: With PIN / Female: Without PIN | ||
| Mechanical durability (dB) | ≤0.2 200 times mate-demate | ||
| Test wavelength (nm) | 1310/1550 | 850/1300 | |
| Maximum Installation Tension (N) | 500 | ||
| Minimum bending radius of cable (Static) | 10 times the cable diameter | ||
| Minimum bending radius of the cable (Dynamic) | 20 times the cable diameter | ||
| Work temperature (ºC) | -40-+85 | ||
