Fiber Optic 8+1 Channel ABS Box Mux/Demux CWDM Module
Fiber Optic 8+1 Channel ABS Box MUX/Demux CWDM ModuleFeatures:Low Insertion LossWide pass bandHigh Channel IsolationHigh Stability and reliabilityEpoxy-free on Optical PathApplications:Line MonitoringWDM NetworkTelecommunicationCellular ApplicationFiber Optical amplifierAccess NetworkPerformance Spe......
Send Inquiry
Product Description

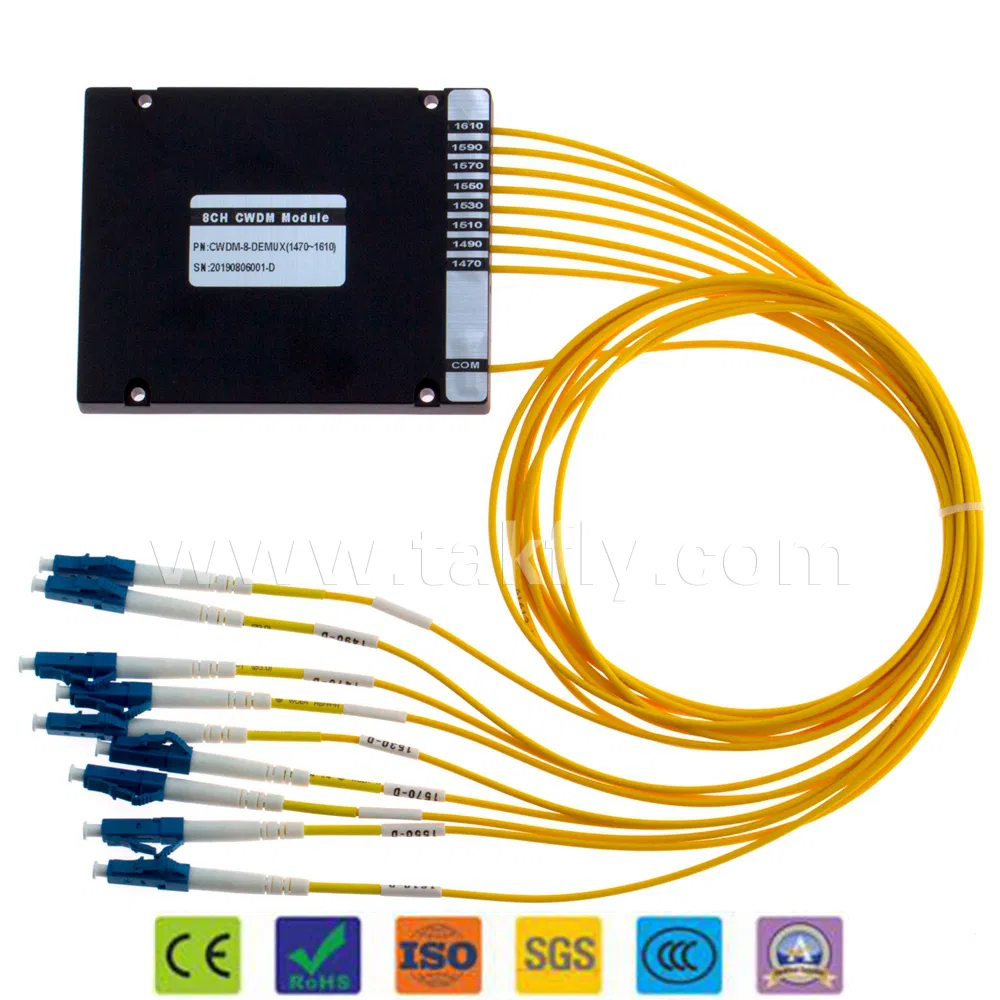

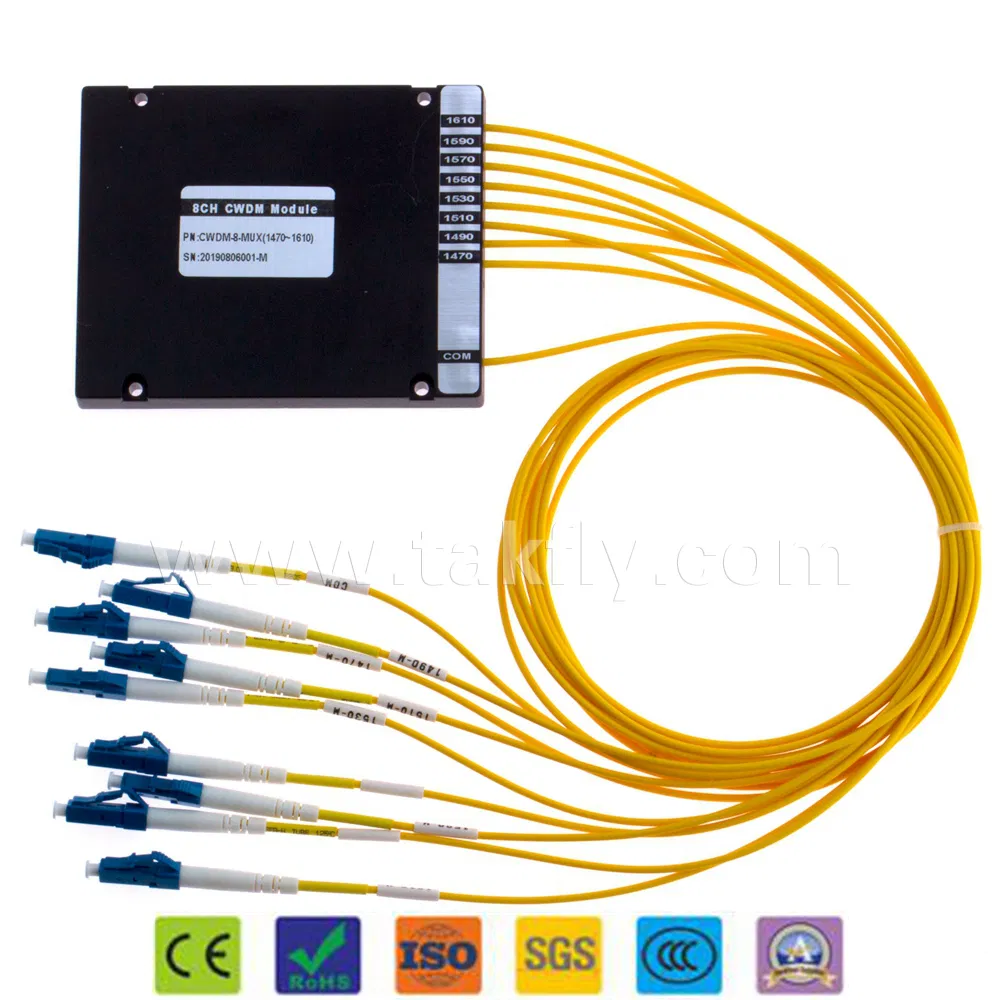

Fiber Optic 8+1 Channel ABS Box MUX/Demux CWDM Module
Features:
- Low Insertion Loss
- Wide pass band
- High Channel Isolation
- High Stability and reliability
- Epoxy-free on Optical Path
- Line Monitoring
- WDM Network
- Telecommunication
- Cellular Application
- Fiber Optical amplifier
- Access Network

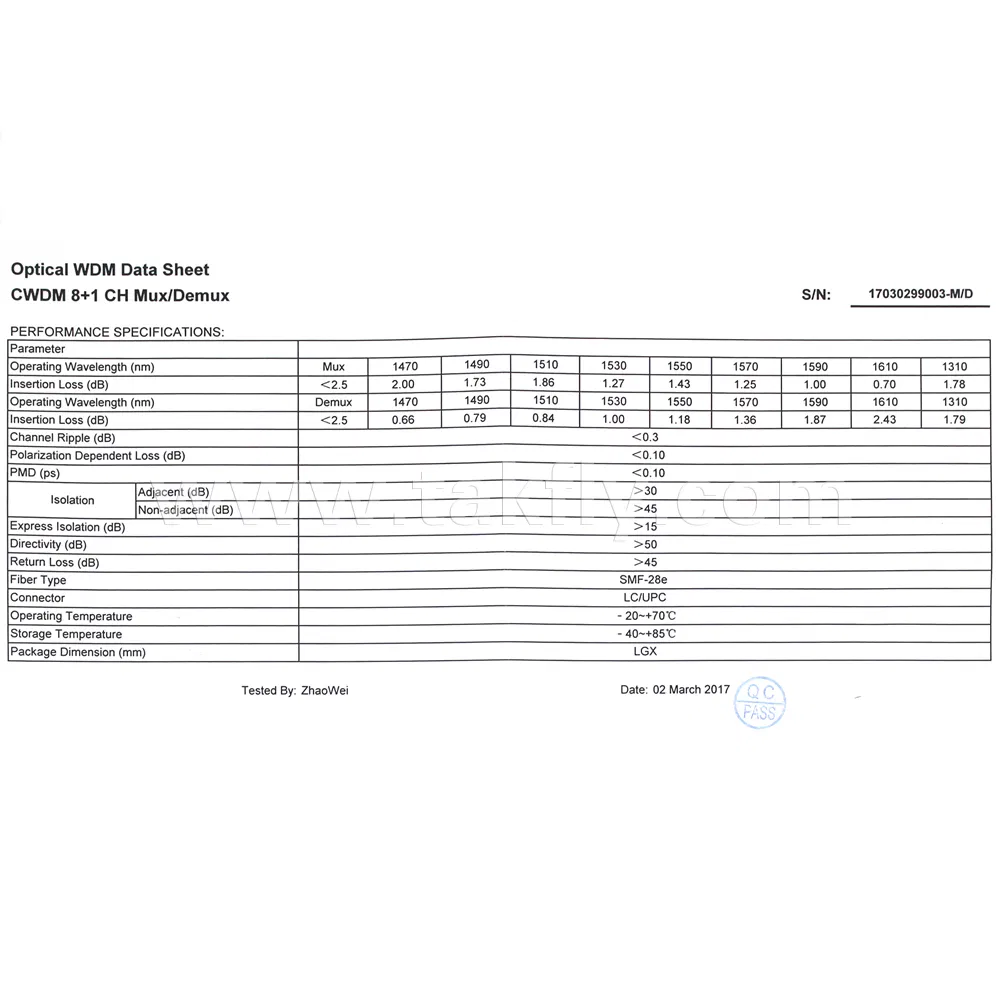

Performance Specification:
| Parameters | Unit | Specification | |||
| Channel Count | Ch | 8+1 | |||
| Channel Center Wavelength | nm | 1470/1490/1510/1530/1550/1570/1590/1610/UPGRADE1270-1350 | |||
| Channel Passband | Min | nm | ±7.5 | ||
| Insertion Loss | Max | dB | <2.2 | ||
| Isolation | Adjacent Channel | Min | dB | 30 | |
| Non-Adjacent Channel | Min | dB | 40 | ||
| Passband Ripple | Max | dB | 0.3 | ||
| Polarization Dependent Loss | Max | dB | 0.1 | ||
| Directivity | Min | dB | 55 | ||
| Return Loss | Min | dB | 50 | ||
| Polarization Mode Dispersion | Max | ps | 0.1 | ||
| Power Handling | Max | mW | 500 | ||
| Pigtail and Connector Type | COM | 0.9/mm black loose tube with connector | |||
| Other ports | 0.9/mm white loose tube with connector | ||||
| Fiber Type | SMF-28e | ||||
| Fiber length | m | ≥1 | |||
| Operating Temperature | °C | -10 ~ 70 | |||
| Storage Temperature | °C | -40 ~ 85 | |||
| Package Dimension | mm | (L)100×(W)80×(H)10 | |||

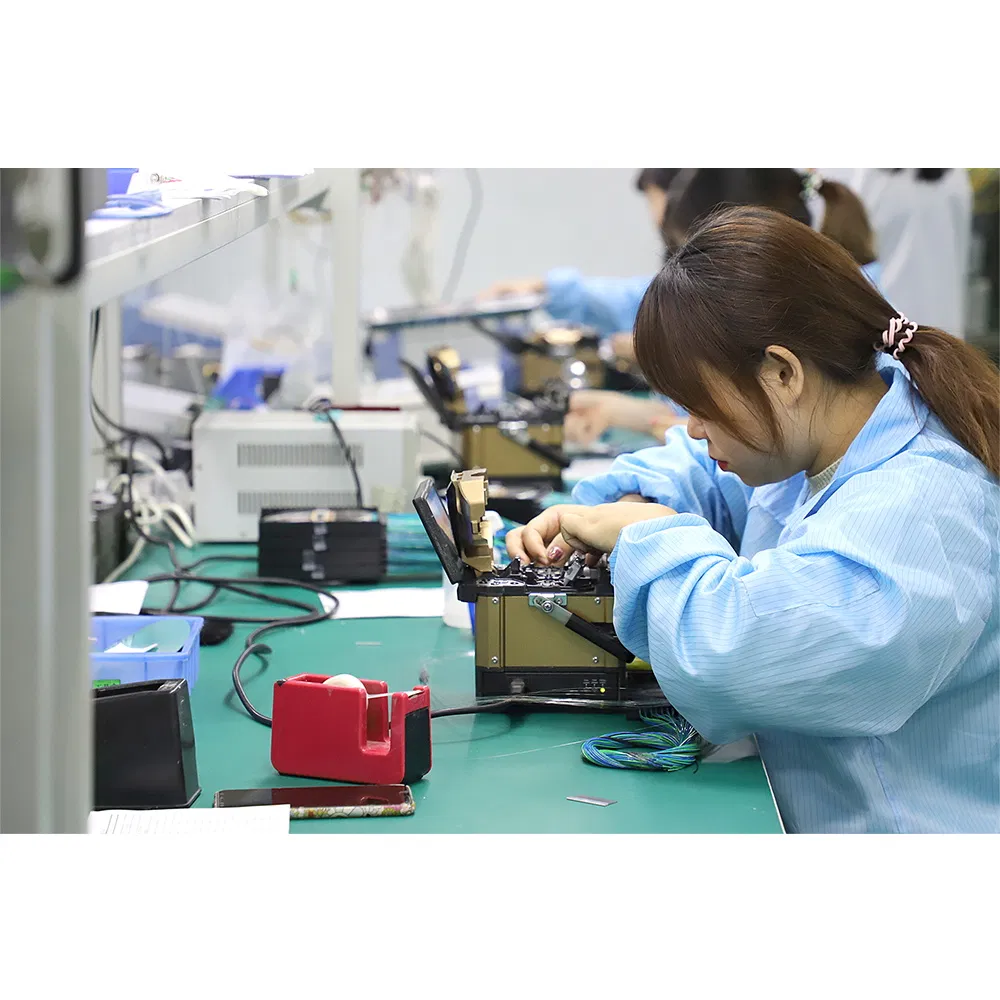

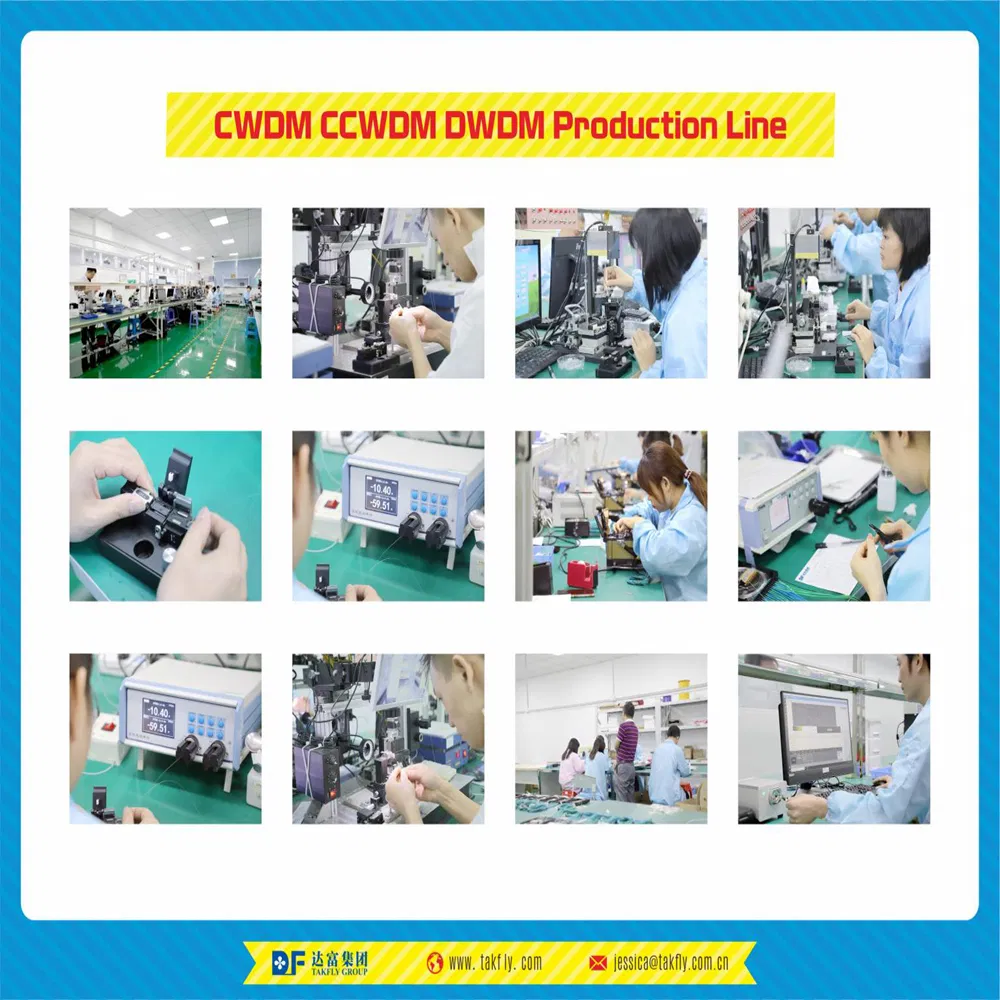

Workshop

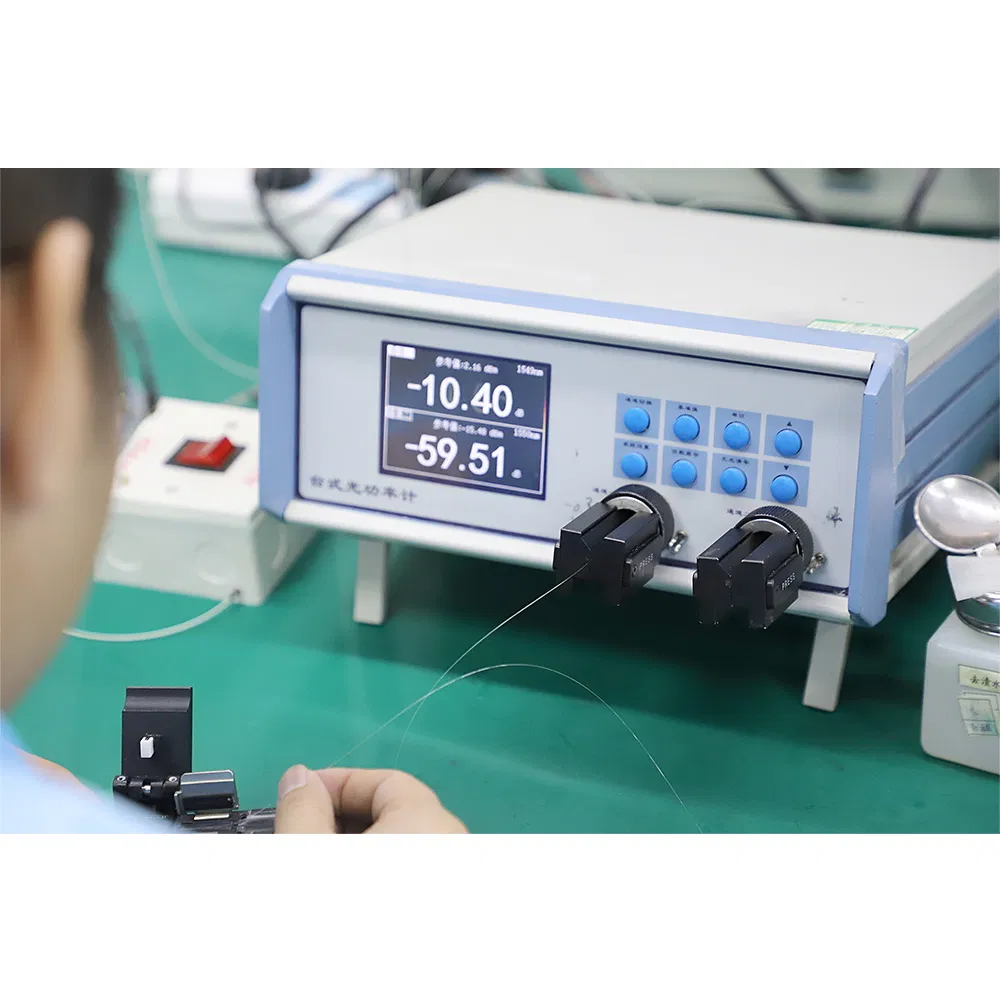

Quality ControlAll products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
