Fibre optic passive equipment Drop cable Patchcords pigtail splitter manufacturer
Product Description

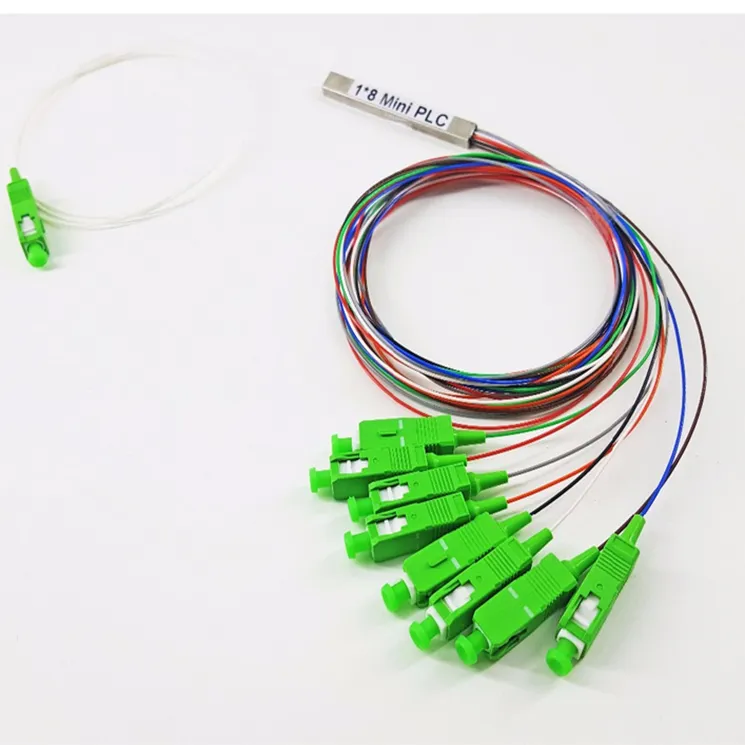

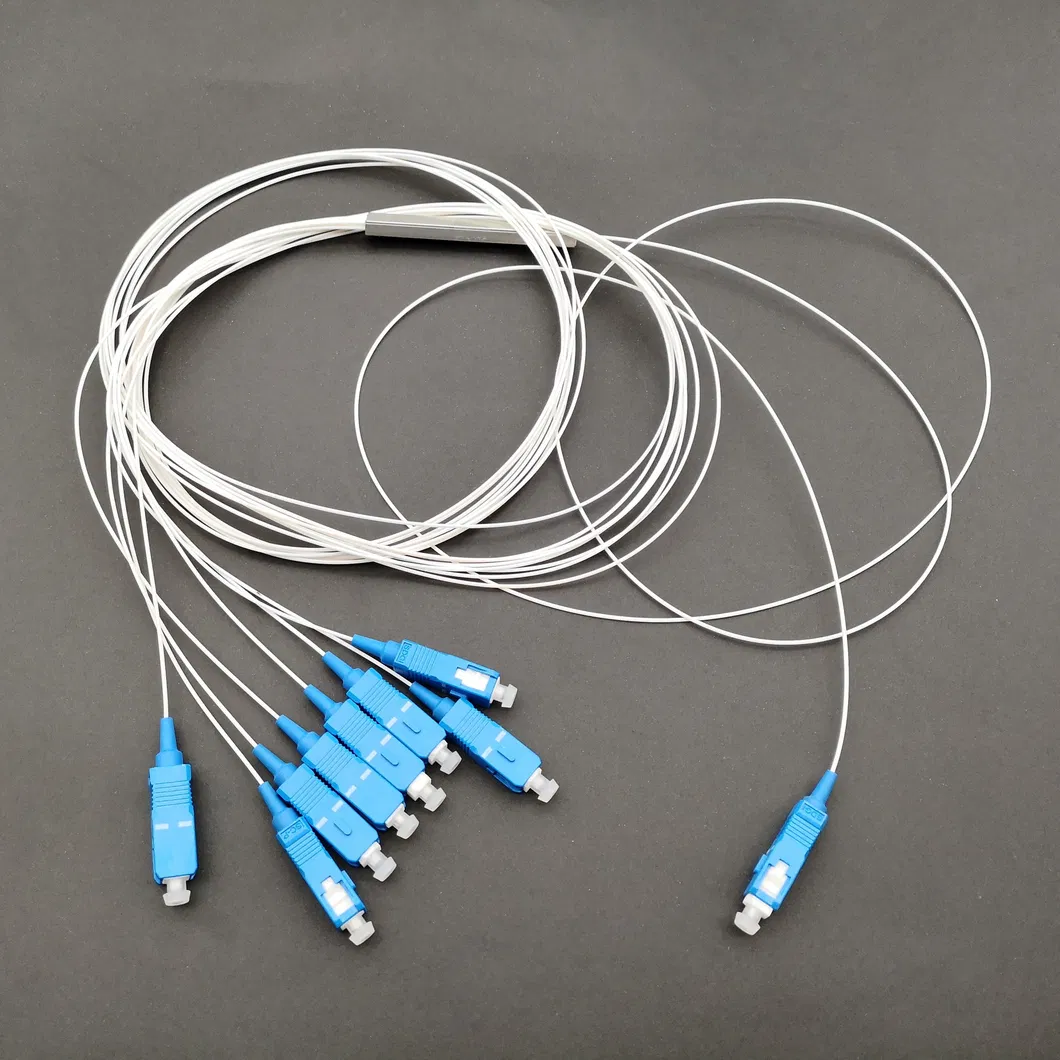

LW Photonics 's PLC splitter is the planer wavelength integrated optic device which based on the quartz substrate, with small size, wide-field operation wavelength and high reliability and high splitter ratio features. Our company can manufacture the 1*N and 2*N all series products, and can be customized according to customer requirements in different situation.
Features
1. Low Insertion loss
2. Low PDL
3. Compact Design
4. Good channel-to-channel uniformity
5. Wide Operating Wavelength: From1260nm to 1650nm
6. Wide Operating Temperature: From-40°C to 85°C
7. High Reliability and Stability
1xN PLC Specifications
2xN PLC Specifications
Ordering Information
We can customize PLC Splitter as your requirements.
Product Description
LW Photonics 's PLC splitter is the planer wavelength integrated optic device which based on the quartz substrate, with small size, wide-field operation wavelength and high reliability and high splitter ratio features. Our company can manufacture the 1*N and 2*N all series products, and can be customized according to customer requirements in different situation.
Features
1. Low Insertion loss
2. Low PDL
3. Compact Design
4. Good channel-to-channel uniformity
5. Wide Operating Wavelength: From1260nm to 1650nm
6. Wide Operating Temperature: From-40°C to 85°C
7. High Reliability and Stability
Applications
1.FTTX Systems
2. PON Networks
3. CATV Links
4. Optical Signal Distribution
1xN PLC Specifications
| Parameter | Port Configuration | ||||||
| 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | ||
| Fiber Type | SMF-28e or customer specified | ||||||
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Insertion Loss(dB) | Typical | 3.7 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| Max | 4.0 | 7.2 | 10.5 | 13.5 | 16.9 | 21.0 | |
| Loss Uniformity (dB) | Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 |
| PDL (dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 |
| Temperature Dependent Loss(-40~+85°C) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 |
| Operating Temperature (°C) | -40~+85 | ||||||
| Storage Temperature (°C) | -40~+85 | ||||||
| Packaging Size(mm) | 40x4x4 | 40x4x4 | 50x4x4 | 50x7x4 | 60x7x4 | 60x12x4 | |
2xN PLC Specifications
| Parameter | Port Configuration | ||||||
| 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | ||
| Fiber Type | SMF-28e or customer specified | ||||||
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Insertion Loss(dB) | Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17.0 | 21.0 |
| Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 | |
| Loss Uniformity (dB) | Max | 1.0 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 |
| Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 |
| PDL (dB) | Max | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1.0 |
| Temperature Dependent Loss(-40~+85°C) | Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 |
| Operating Temperature (°C) | -40~+85 | ||||||
| Storage Temperature (°C) | -40~+85 | ||||||
| Packaging Size(mm) | 40x4x4 | 40x4x4 | 50x4x4 | 50x7x4 | 60x7x4 | 60x12x4 | |
Ordering Information
| PLC-F | ||||||
| Fan-out PLC | Port | Wavelength | Input Pigtail Length | Input connector | Output Pigtail Length | Output connector |
| 102=1x2 104=1x4 108=1x8 116=1x6 132=1x32 164=1x64 204=2x4 208=2x8 216=2x16 232=2x32 264=2x64 | 01=1260-1620nm 02=1310nm 03=1550nm 04=1310&1550nm 05=1310&1490&1550 | 0.5=0.5m 10=1.0m 15=1.5m 20=2.0m S= customized | 00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC LP=LC/UPC LA=LC/APC MU=MU/UPC S= customized | 0.5=0.5m 10=1.0m 15=1.5m 20=2.0m S= customized | 00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC LP=LC/UPC LA=LC/APC MU=MU/UPC S= customized |
We can customize PLC Splitter as your requirements.
