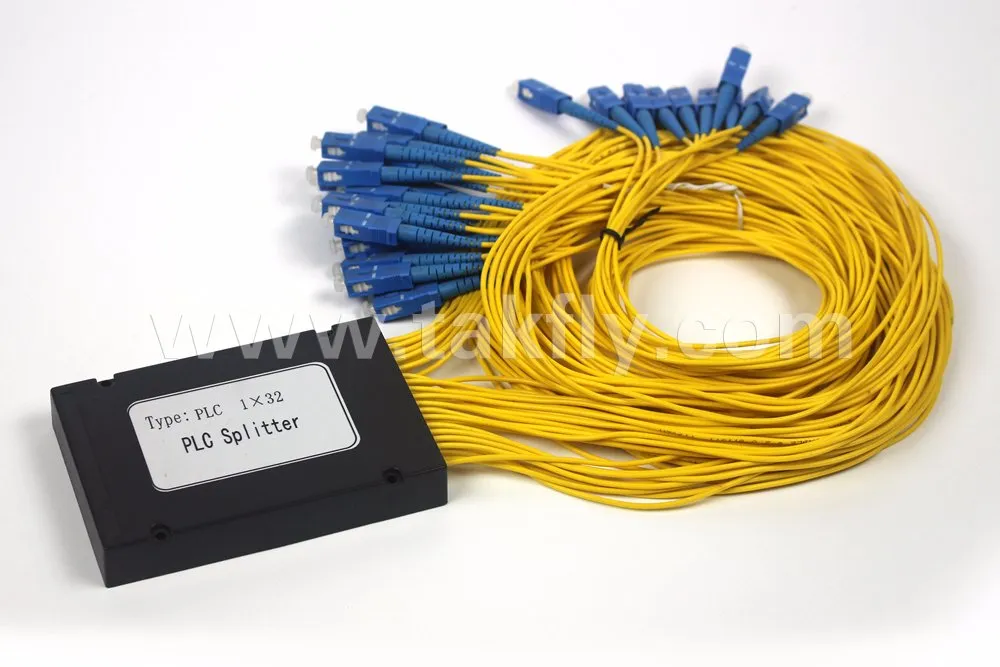

FTTH 1*32 Sc/Upc Fiber Optic PLC Splitter

Product Description

FTTH 1*32 SC/UPC Fiber Optic PLC Splitter

Details:
Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.

Features:
Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available

Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting

Ports		1x2	2x2	1x4	2x4	1x8	2x8	1x16	2x16	1x32	2x32	1x64	2x64
Operating Wavelengths(nm)		1260~1650
Insertion Loss(dB)	Max P/S	4.0	4.0	7.3	7.6	10.5	11.0	13.5	14.4	16.5	17.5	20.5	21.0
Loss Uniformity(dB)	Max	0.4	0.6	0.6	0.8	0.8	1.2	1.2	1.5	1.5	2.0	2.0	2.2
PDL(dB)	Max	0.2	0.2	0.2	0.2	0.2	0.3	0.25	0.3	0.3	0.4	0.35	0.4
Return Loss(dB)	Min	UPC: 50 APC: 55
Directivity(dB)	Min	55
Input Fiber		Bend Insenstive SM Fiber(ITU G657A)
Output Fiber		Bend Insenstive SM Fiber(ITU G657A)
Max. Optic Power(mw)		300
Humidity Range(rh)		5% ~ 85%
Opreating Temperature(° C)		-40 ~ 85
Storage Temperature(° C)		-40 ~ 85

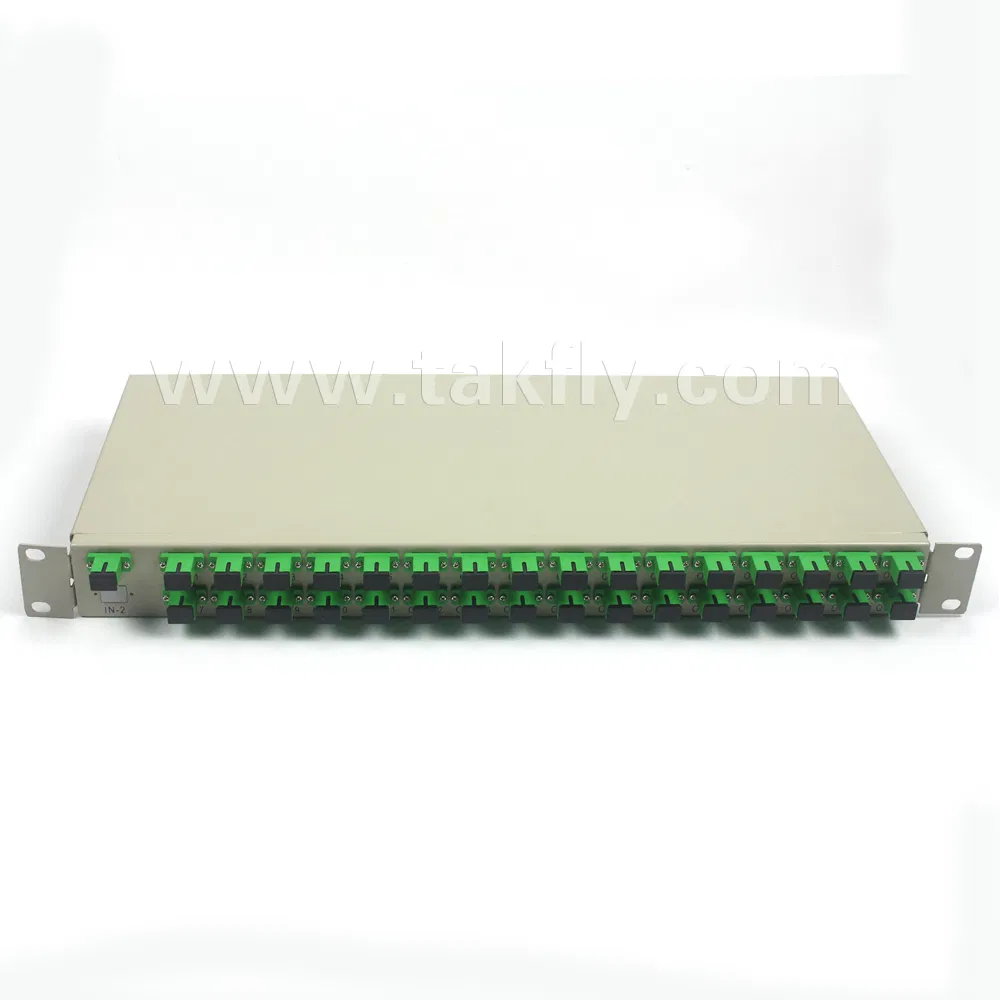

Packaing Option		Bare Device, Mini Tube, ABS Module, LGX BOX, 19' 1U 2U Rack-Mount
Mini Tube(Metal) Dimension(mm) (LxWxH)		50x4x4		50x7x4		50x7x4		60x12x4		80x20x6		100x40x6
ABS Module Dimension(mm) (LxWxH)		100x80x10		100x80x10		100x80x10		120x80x18		120x80x18		140x115x18
BOX Dimension(mm) (LxWxH)		LGX BOX, 19' 1U 2U Rack-Mount
