Product Description
FTTH XPON ONT-2GF-RFW ONT

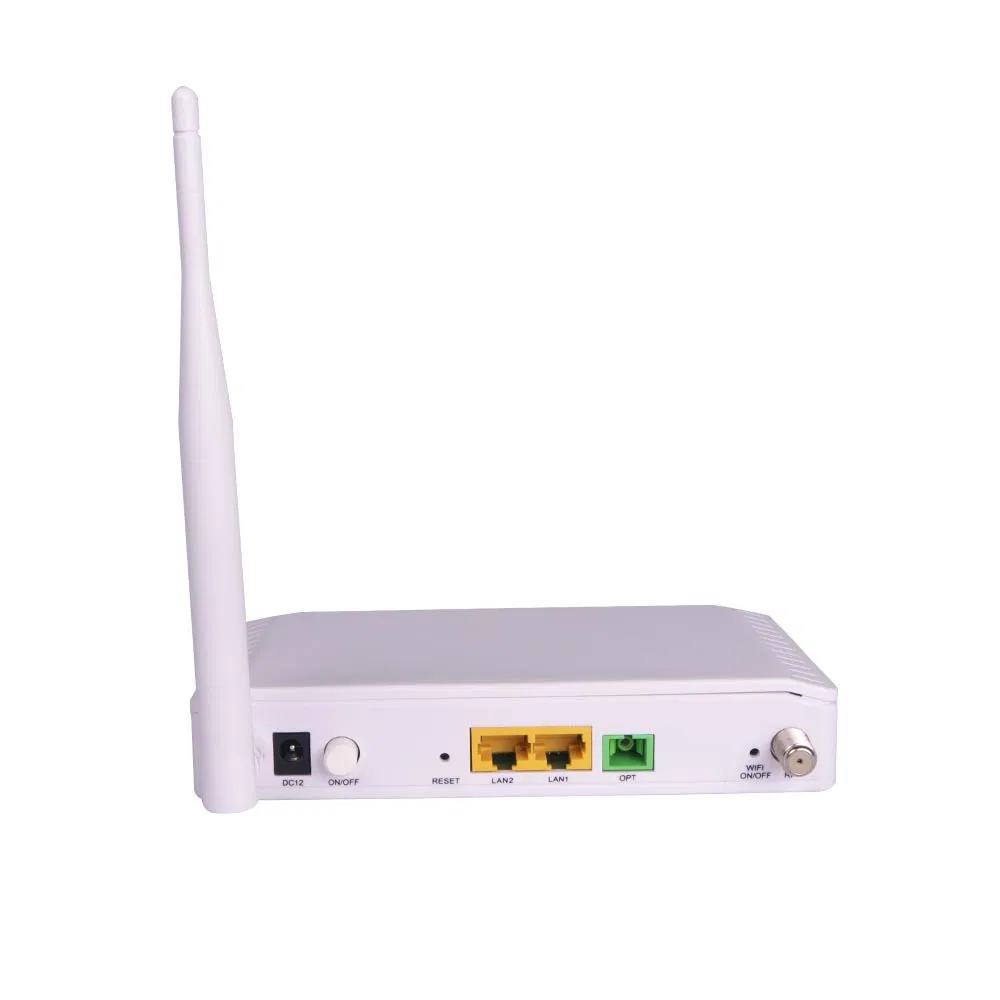

The uplink of ONT-2GF-RFW provides one PON interface, while downlink provides two Ethernet and one RF interfaces. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.
*note1:The test conditions are 59 analog channels and 38 digital channels.
Product Overview
ONT-2GF-RFW is a residential gateway device with routing functions for XPON ONU and LAN Switch for residential and SOHO users, which is in line with ITU-T G.984 and IEEE802.3ah.The uplink of ONT-2GF-RFW provides one PON interface, while downlink provides two Ethernet and one RF interfaces. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.
Hardware Specifications
| PON Interface | Interface Type | SC/PC, CLASS B+ |
| Rate | Uplink: 1.25Gbps; Downlink: 2.5Gbps | |
| User-Side Interface | 1*10/100BASE-T;1*10/100/1000BASE-T; 1*RF interface | |
| Size (Mm) | 167(L)×118(W)×30(H) | |
| Maximum Power Consumption | <8W | |
| Weight | 200g | |
| Operating Environment | Temperature: -10°C ~ 55°C | |
| Humidity: 5% ~ 95% (no condensation) | ||
| Power Supply | External Power Adapter 12V/1A | |
| Power Adapter Input | 100-240V AC, 50/60Hz | |
| Power Interface Size | metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm | |
| WLAN Module | Internal and external dual antenna, antenna gain 5db, antenna power 16~21dbm | |
| Support 2.4GHz, 300M transmission rate | ||

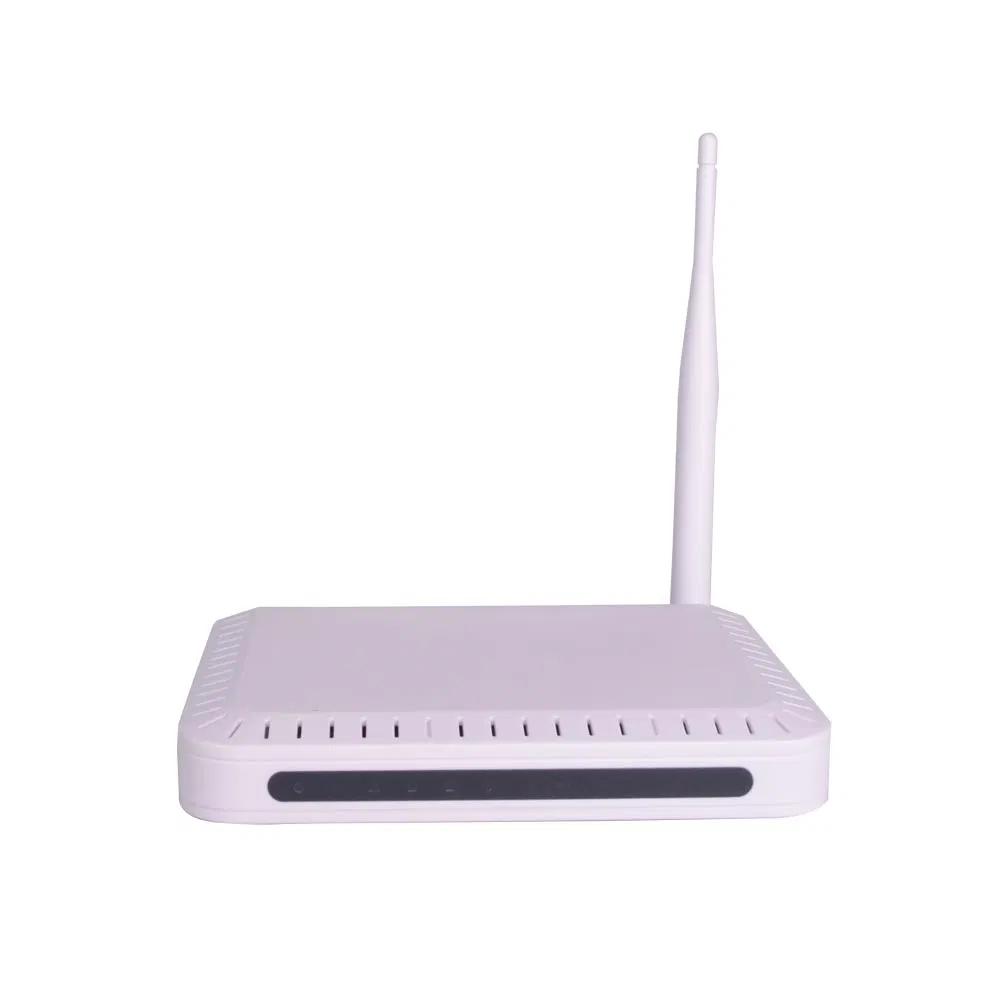

LED
| State | Color | Descriptions | |
| PWR | Solid | Green | Normal |
| Off | No power | ||
| PON | Solid | Green | ONU is authorized |
| Flash | ONU is Registering | ||
| Off | ONU is not authorized | ||
| LOS | Solid | Red | Abnormal |
| Flash | In diagnostic mode | ||
| Off | Normal | ||
| LAN 1 | Solid | Green | Link UP |
| Flash | Active(Tx and/or Rx) | ||
| Off | Link down | ||
| LAN 2 | Solid | Green | Link UP |
| Flash | Active(Tx and/or Rx) | ||
| Off | Link down | ||
| WIFI | Flash | Green | Normal |
| Off | Error/WLAN disable | ||
| OPT | Solid | Green | CATV optical signal reception is normal |
| Off | CATV optical signal power is abnormal or faulty | ||
| RF | Solid | Green | CATV optical machine output level is normal |
| Off | CATV optical machine output level is abnormal or faulty |
Optical machine index parameters
| project | unit | performance parameters | note | |
| Optical parameters | Wavelength of light | nm | 1200~1600 | |
| Optical connector form | SC/APC | Other customizable | ||
| Receiving light power range | dBm | -18~0 | Other customizable | |
| Optical AGC control accuracy | dBm | -15~0 | Other customizable | |
| Radio frequency (rf) parameters | Frequency range | MHz | 47~1000 | |
| Output rf impedance | Ω | 75 | ||
| Output flatness | dB | ±1.5 | ||
| Number of RF ports | 1 | |||
| Nominal output level | dBuv | ≥(75±1.5) | Other customizable | |
| Output reflection loss | dB | >14 | ||
| MER | dB | >31@-15dBm | see*note1 | |
| >34@-9dBm | ||||
| Link indicators | C/N | dB | >51 | GYT143-2000 |
| CTB | dBc | >65 | ||
| CSO | dBc | >61 | ||
| Working temperature | ºC | -10~+60 | ||
| Storage temperature | ºC | -40~+80 | ||
| Working humidity | 20%~90% | |||
| Store humidity | 10%~95% | |||
| Dustproof requirements | YD/T1475-2006 | |||
| MTBF | H | 40000H |
Software Characteristic(GPON)
| Standard Compliance | Comply with ITU-T G.984/G.988 Comply with IEEE802.11b/g/n Comply with China Telecom/China Unicom GPON Interoperability Standard |
| GPON | Support for the ONT registration mechanism |
| Support DBA | |
| Support FEC | |
| Support link encryption | |
| Supports the maximum effective transmission distance of 20 km | |
| Support long illuminating detection and optical power detection | |
| Multicast | IGMP V2 Proxy/Snooping |
| WLAN | Support WPA2-PSK/WPA-PSK encryption |
| Support client isolation | |
| Support for 4 * SSID | |
| Support for 802.11 BGN mode | |
| Support maximum rate of 300M | |
| Management & Maintenance | Support web management |
| Support CLI/Telnet management | |
| Support port loopback detection | |
| Compatibility | Support the connection with the business competitor's OLT and its proprietary protocols, including Huawei, H3C, ZTE, BDCOM, RAISECOM, and so forth. |
Software Characteristic(EPON)
| Standard Compliance | Comply with IEE802.3ah EPON Comply with China Telecom/China Unicom EPON Interoperability Standard |
| EPON | Support for the ONT registration mechanism |
| Support DBA | |
| Support FEC | |
| Support link encryption | |
| Supports the maximum effective transmission distance of 20 km | |
| Support long illuminating detection and optical power detection | |
| Multicast | IGMP V2 Proxy/Snooping |
| WLAN | Support WPA2-PSK/WPA-PSK encryption |
| Support client isolation | |
| Support for 4 * SSID | |
| Support for 802.11 BGN mode | |
| Support maximum rate of 300M | |
| Management & Maintenance | Support web management |
| Support CLI/Telnet management | |
| Support port loopback detection | |
| Compatibility | Support the connection with the business competitor's OLT and its proprietary protocols, including Huawei, H3C, ZTE, BDCOM, RAISECOM, and so forth. |
