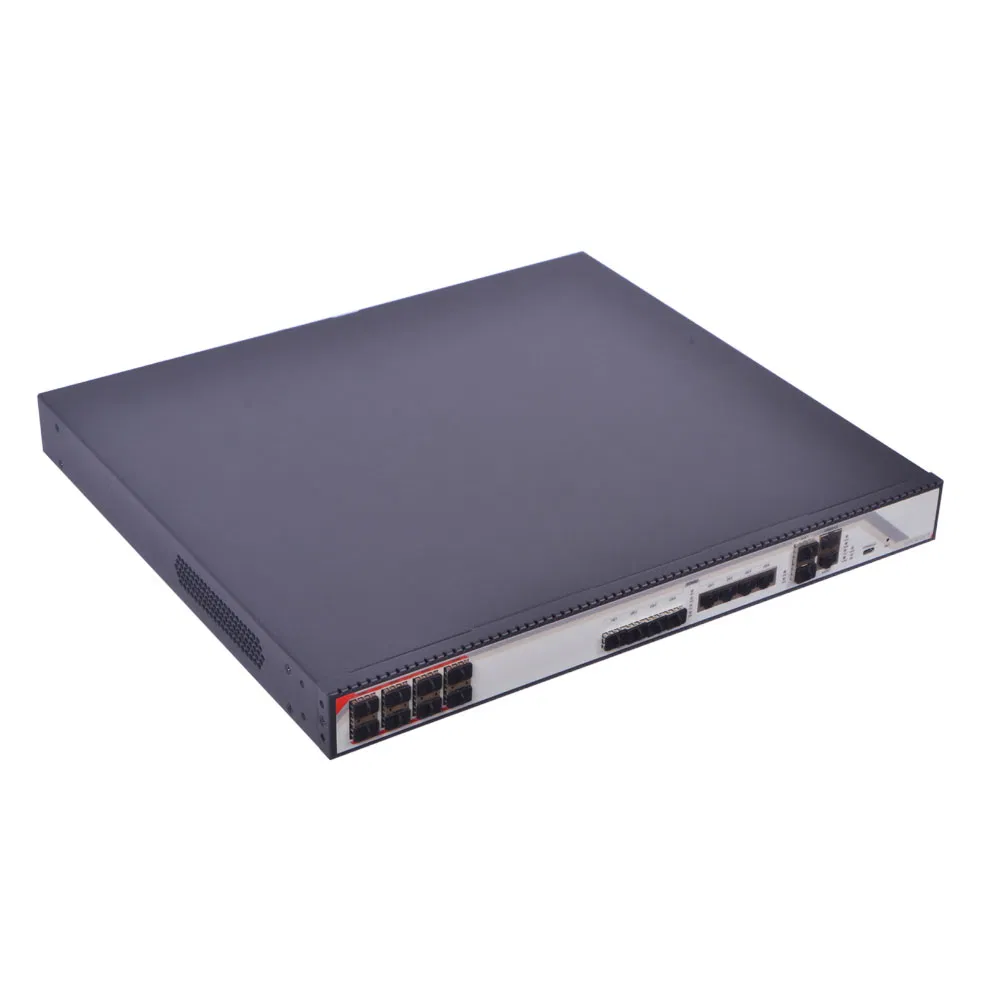

Gpon Olt 1 U with 8 Ports for FTTH
[Softel]Best Price Gpon OLT 1 U With 8 Ports For FTTH GEPON (Gigabit Ethernet Passive Optical Network) is consist of OLT(Optical Line Terminal), ONU (Optical Network Unit) and the optical splitter. OLT provides the uplink Ethernet port which is connected to IP core network, and meanwhile offers ......
Send Inquiry
Product Description
[Softel]Best Price Gpon OLT 1 U With 8 Ports For FTTH
GEPON (Gigabit Ethernet Passive Optical Network) is consist of OLT(Optical Line Terminal), ONU (Optical Network Unit) and the optical splitter. OLT provides the uplink Ethernet port which is connected to IP core network, and meanwhile offers the downlink PON ports. Every PON port is connected to the optical splitter by the single optical fiber, and then connected to ONU according to the certain ratio.
GEPON OLT-OPM production series provide the higher access bandwidth, more terminal users, and effectively decrease the project operation and investment cost. So it's the ideal FTTx solution for operators.
Characteristic
1U height, the installation is simple and flexible
Follow IEEE802.3ah standard
Support 1:64 splitting ratio, High utilization rate of optical fiber
Support the transmission distance 20 kilometers
Offer L2/L3 switch function
Support ACL
Support DBA(Dynamic Bandwidth Allocation)
QoS supports IEEE802.1p, IP Precedence, DSCP IP
ONU automatic identification
MAC address limitation
Have AES-128 encryption technology
Support IGMP Snooping
Support OAM
Support IEEE802.1x
Provide NMS based on SNMP, GUI interface, and support in-band and out-band management
Main application
Following picture is the typical GEPON system application, OLTW3000 is used in the center end for operators, and ONU is used in the customers' place. As the FTTx solution, there are the following features:
Each OLT uplink can offer up to 1Gbps bandwidth, support high-speed internet, IPTV multicast/VoD, etc high bandwidth IP data service.
OLT downlink can support up to 512 ONU customers by the optical splitter
It's the passive optical network between OLT and ONU, greatly reduce the optical cable line investment for operators
GEPON (Gigabit Ethernet Passive Optical Network) is consist of OLT(Optical Line Terminal), ONU (Optical Network Unit) and the optical splitter. OLT provides the uplink Ethernet port which is connected to IP core network, and meanwhile offers the downlink PON ports. Every PON port is connected to the optical splitter by the single optical fiber, and then connected to ONU according to the certain ratio.
GEPON OLT-OPM production series provide the higher access bandwidth, more terminal users, and effectively decrease the project operation and investment cost. So it's the ideal FTTx solution for operators.
Characteristic
1U height, the installation is simple and flexible
Follow IEEE802.3ah standard
Support 1:64 splitting ratio, High utilization rate of optical fiber
Support the transmission distance 20 kilometers
Offer L2/L3 switch function
Support ACL
Support DBA(Dynamic Bandwidth Allocation)
QoS supports IEEE802.1p, IP Precedence, DSCP IP
ONU automatic identification
MAC address limitation
Have AES-128 encryption technology
Support IGMP Snooping
Support OAM
Support IEEE802.1x
Provide NMS based on SNMP, GUI interface, and support in-band and out-band management
Main application
Following picture is the typical GEPON system application, OLTW3000 is used in the center end for operators, and ONU is used in the customers' place. As the FTTx solution, there are the following features:
Each OLT uplink can offer up to 1Gbps bandwidth, support high-speed internet, IPTV multicast/VoD, etc high bandwidth IP data service.
OLT downlink can support up to 512 ONU customers by the optical splitter
It's the passive optical network between OLT and ONU, greatly reduce the optical cable line investment for operators
| Item | OLT-G08P/16P |
| Switching Capacity | 140Gbps |
| Forwarding Capacity(Ipv4/Ipv6) | 104MPPS |

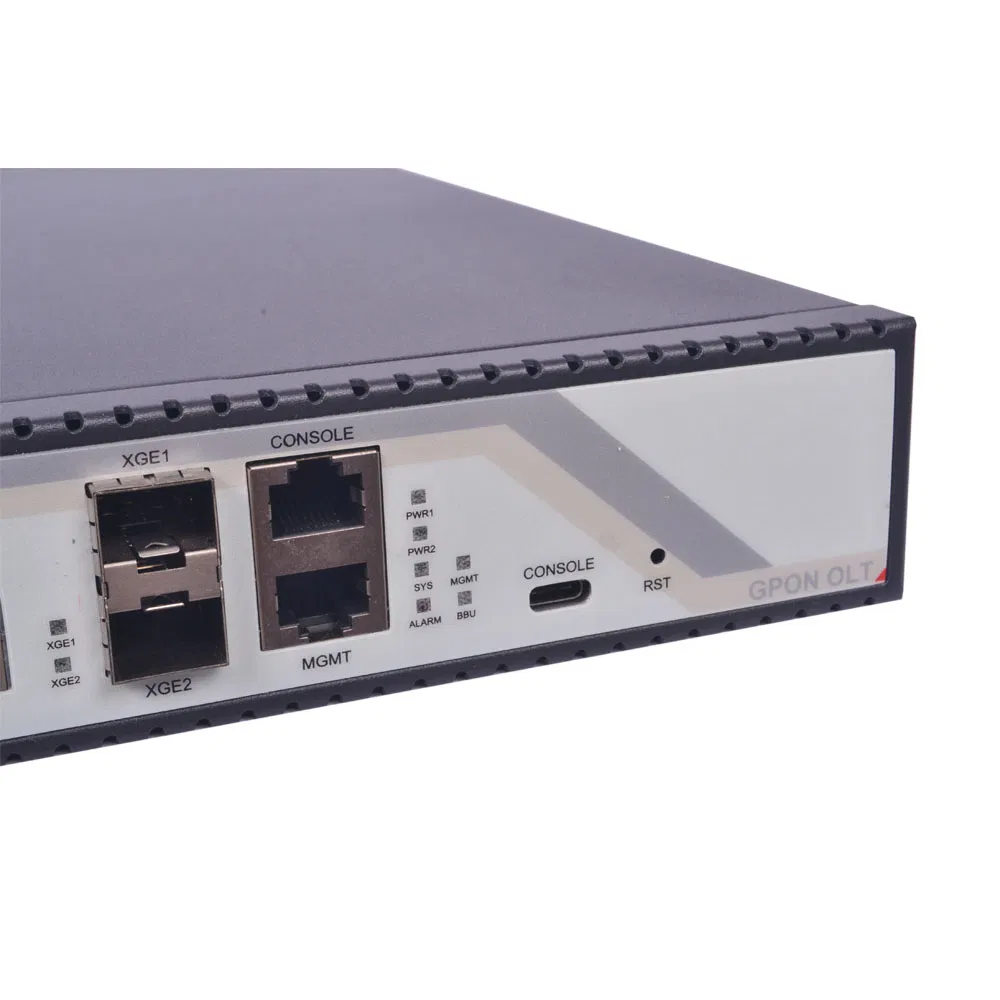

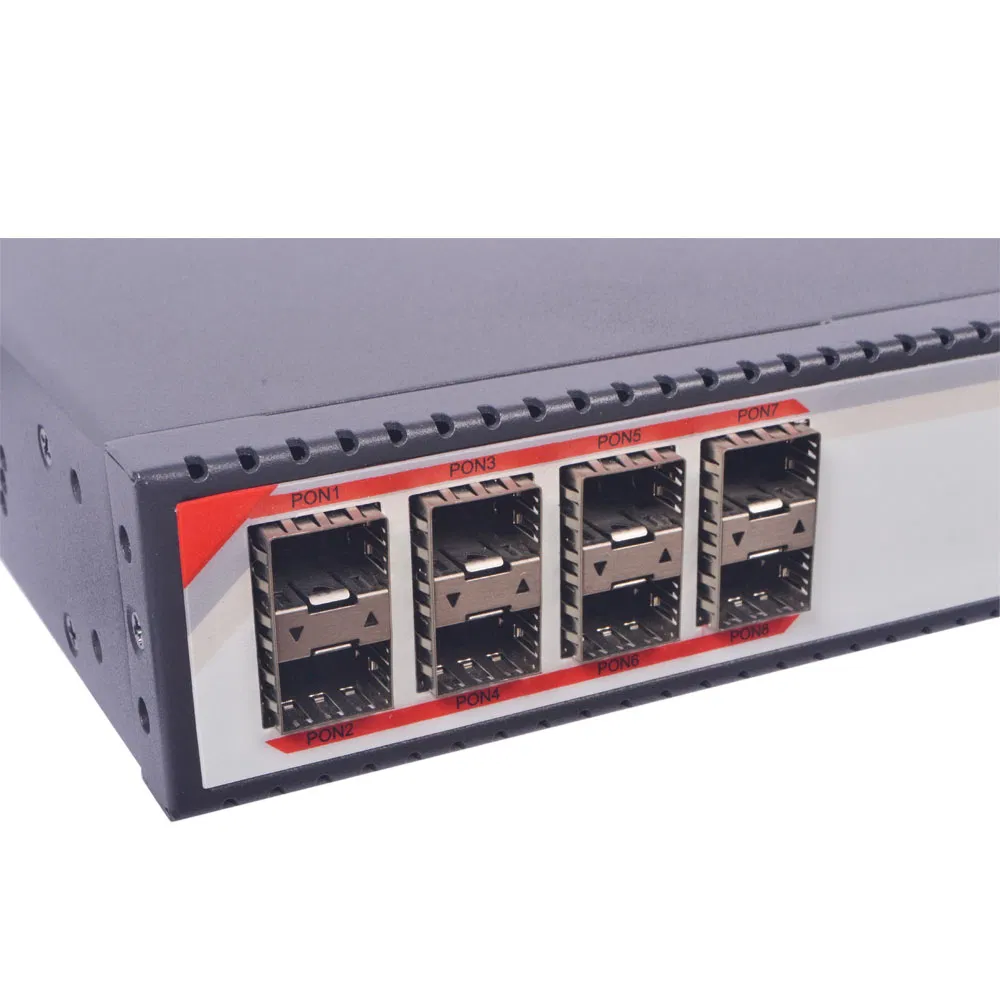

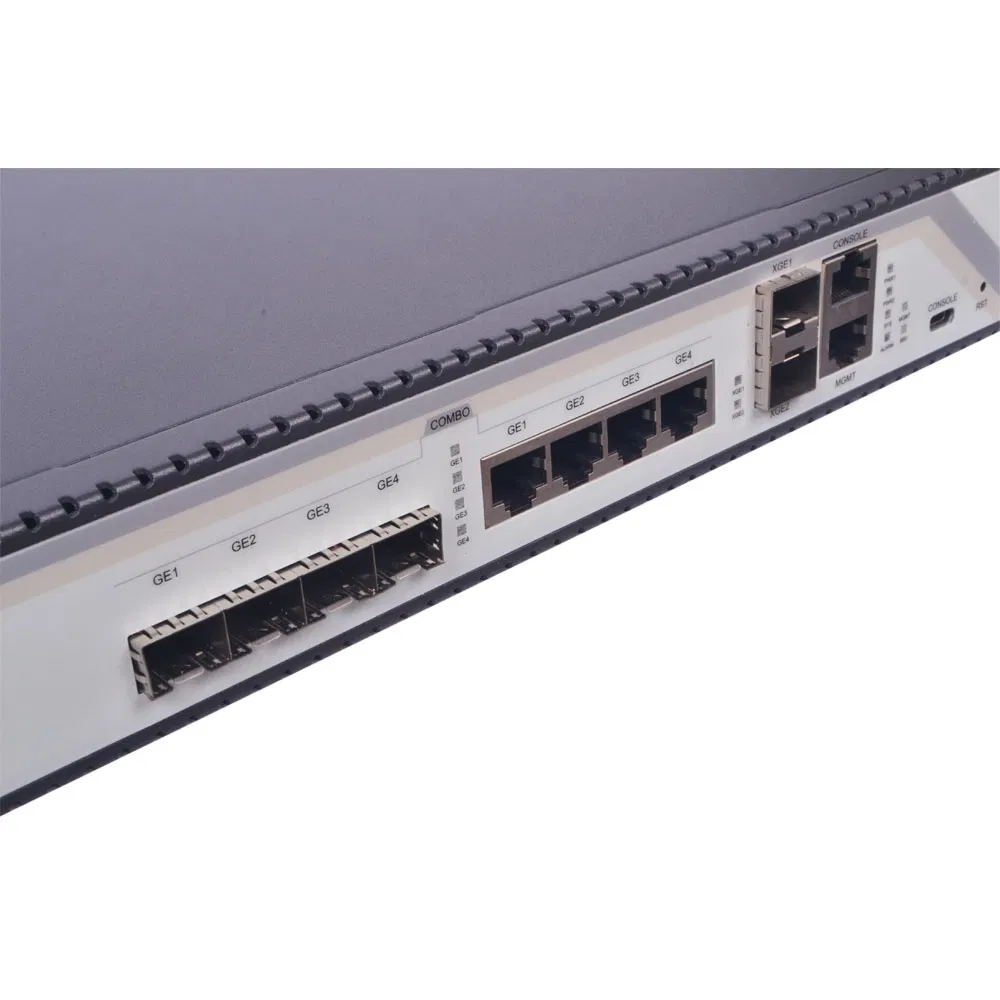

| Service Port | 8*PON port(OLT-G08P)/16*PON port(OLT-G16P), 4*GE SFP, 4*GE COMBO port, 2*10GE SFP+ port |

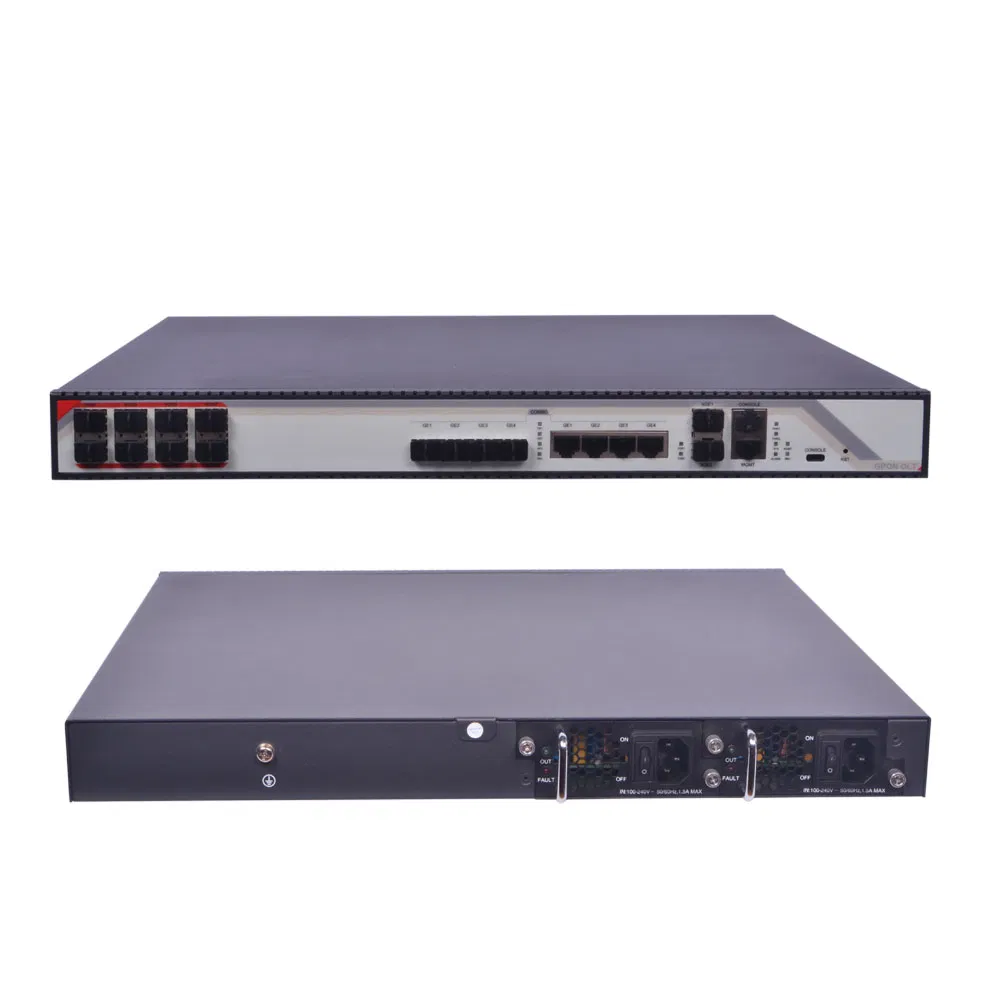

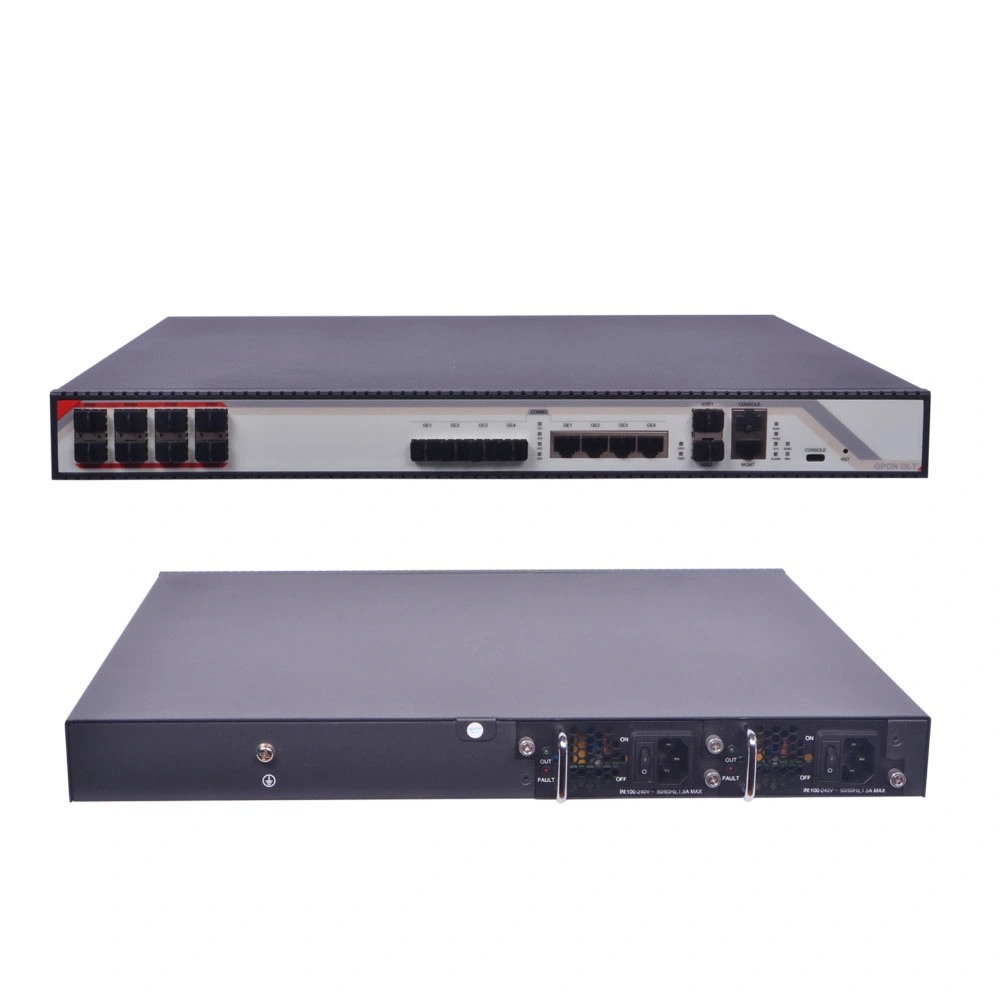

| Redundancy Design | Dual power supply |
| Support AC input, double DC input and AC+DC input | |
| Power Supply | AC: input 90~264V 47/63Hz; |
| DC: input -36V~-72V; | |
| Power Consumption | ≤110W |
| Dimensions (Width x Depth x Height) | 440mm×44mm×380mm |
| Weight (Full-Loaded) | ≤3kg |
| Environmental Requirements | Working temperature: -10°C~55°C |
| Storage temperature: -40°C~70°C | |
| Relative humidity: 10%~90%, non-condensing |
