Guangtai Multi-Ports Output CATV High Power EDFA Module Eatv5400X-FM05
Product DescriptionEATV5400 series is a low noise, high performance, high power multi-ports EYDFA module, which is specially designed for CATV system. It offers a flexible and low-cost FTTP solution for CATV large area coverage of metropolises and medium-sized cities.GM is Gain Block Module, without......
Send Inquiry
Product Description
EATV5400 series is a low noise, high performance, high power multi-ports EYDFA module, which is specially designed for CATV system. It offers a flexible and low-cost FTTP solution for CATV large area coverage of metropolises and medium-sized cities.
GM is Gain Block Module, without electronic control circuit.
FM is Full function Module which is with electronic control circuit.
EATV5400D series adopts with Pre-amplifier , and the pre-amplifier adopts low noise EDFA, output cascade adopts high power EYDFA. When input optical power Pin=0dBm, the noise figure of unit is: Typ ≤4.5dB, Max ≤5.0dB.
EATV5400S series adopts without Pre-amplifier high power EYDFA. In order to make sure the good noise figure, the input optical power should be >15dBm. distance.
EATV5400x-FM05 is a full function module, adopts industry standard form factor 125×150×30.5mm. Total output power≤37dBm, and output optical ports ≥4 .
When use this module, customers should add heat sink and forced air -cooling, to ensure high reliability and long life of the module.
1. Industry Standard Form Factor (125×150×30.5mm)
2. Advanced electronic control circuit
3. Perfect optic feature
4. The integrated low-power design
5. APC, ACC work mode
6. The standard RS232 communication interface
7. Low noise figure (Typ≤4.5dB, Max≤5.0dBPin=0dBm, EATV5400D )
8. EATV5400D (with Pre-amplifier ), EATV5400S (without Pre-amplifier ) optional
9. Output power adjustable
10. Total output power 27~37dBm optional
11. Output optical ports:4~64 optional
12. Excellent P/P ratio
1. AM CATV
2. Digital CATV
3. DBS
4. FTTx PON
| Performance | Index | Supplement | ||||
| Min. | Typ. | Max. | ||||
| Optical feature | Operating wavelength range | (nm) | 1540 | 1563 | EATV5400D | |
| 1540 | 1575 | EATV5400S | ||||
| CATV input power range | (dBm) | -10 | >0 | +10 | EATV5400D | |
| 15 | EATV5400S | |||||
| Total output power | (dBm) | 27 | 37 | |||
| Number of output ports | 4 | 64 | ||||
| Each of output power | (dBm) | 27 | ||||
| Difference each of output power | (dB) | -0.5 | +0.5 | |||
| Output power adjustable range | (dBm) | -6 | 0 | |||
| Noise figure | (dB) | 4.5 | 5.0 | EATV5400D: Pin=0dBm | ||
| 4.5 | 5.0 | EATV5400S: Pin>15dBm | ||||
| Polarization dependence loss | (dB) | 0.3 | ||||
| Polarization dependence gain | (dB) | 0.4 | ||||
| Polarization mode dispersion | (ps) | 0.3 | ||||
| Input / output isolation | (dB) | 30 | ||||
| Pump power leakage | (dBm) | -30 | ||||
| Echo loss | (dB) | 45 | UPC | |||
| 55 | APC | |||||
| General feature | Communication interface | RS232 | ||||
| Fiber type | Coming SMF-28TM or equivalent | |||||
| Pigtail buffer diameter | (mm) | 0.9 | Optional 1.2, 1.5, 2.0 | |||
| Pigtail length | (mm) | 1000 | ||||
| Power supply | (V) | +4.75 | +5 | +5.25 | ||
| Power consumption | (W) | 30 | ||||
| Work temp. | ( ºC ) | -5 | 70 | |||
| Storage temp. | ( ºC ) | -40 | 85 | |||
| Working relative humidity | (%) | 5 | 95 | |||
| Size (W) × (D) × (H) | ( mm ) | 125 × 150 × 30.5 | ||||
1. What are the payment terms of payment?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 5-7 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we will deliver the goods via international Express like FedEx , DHL,TNT and UPS and so on. Door to door delivery service will be provided; while the goods have high weight and volume, we suggest using air or sea shipment.
4. Can you do OEM for us?
Yes. if there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
5. What are the advantages of your products?
A. Good quality and competitive prices
B. Strict quality control during production process.

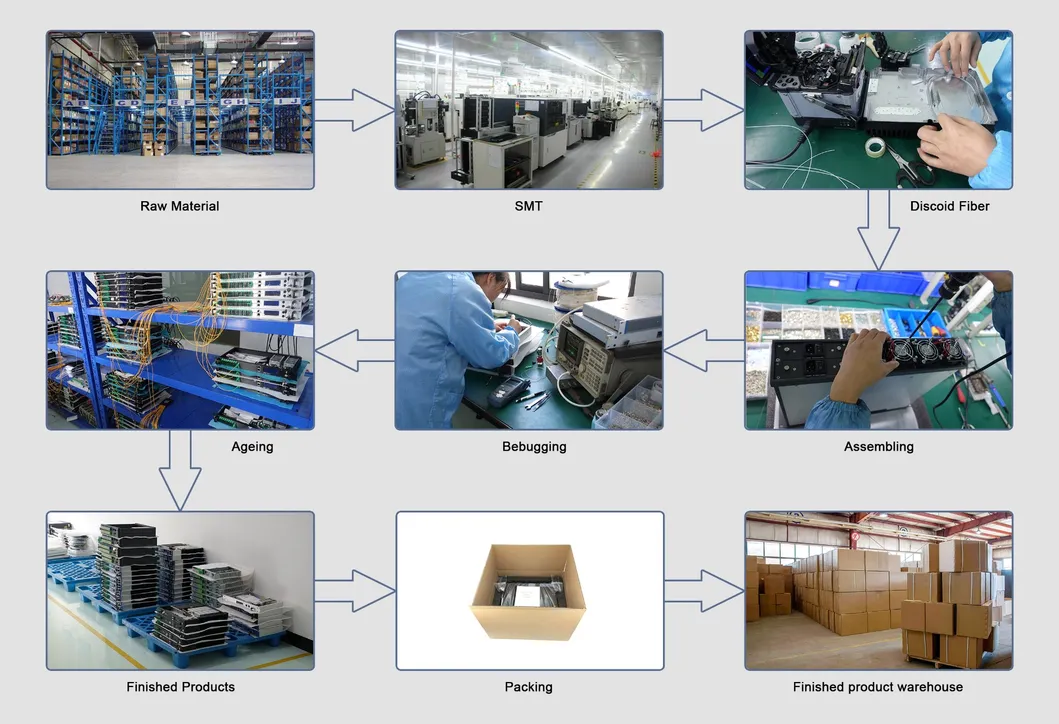

C. Professional operations in processes of production, sales, assembling, packaging and shipping
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods
6. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
