Product Description

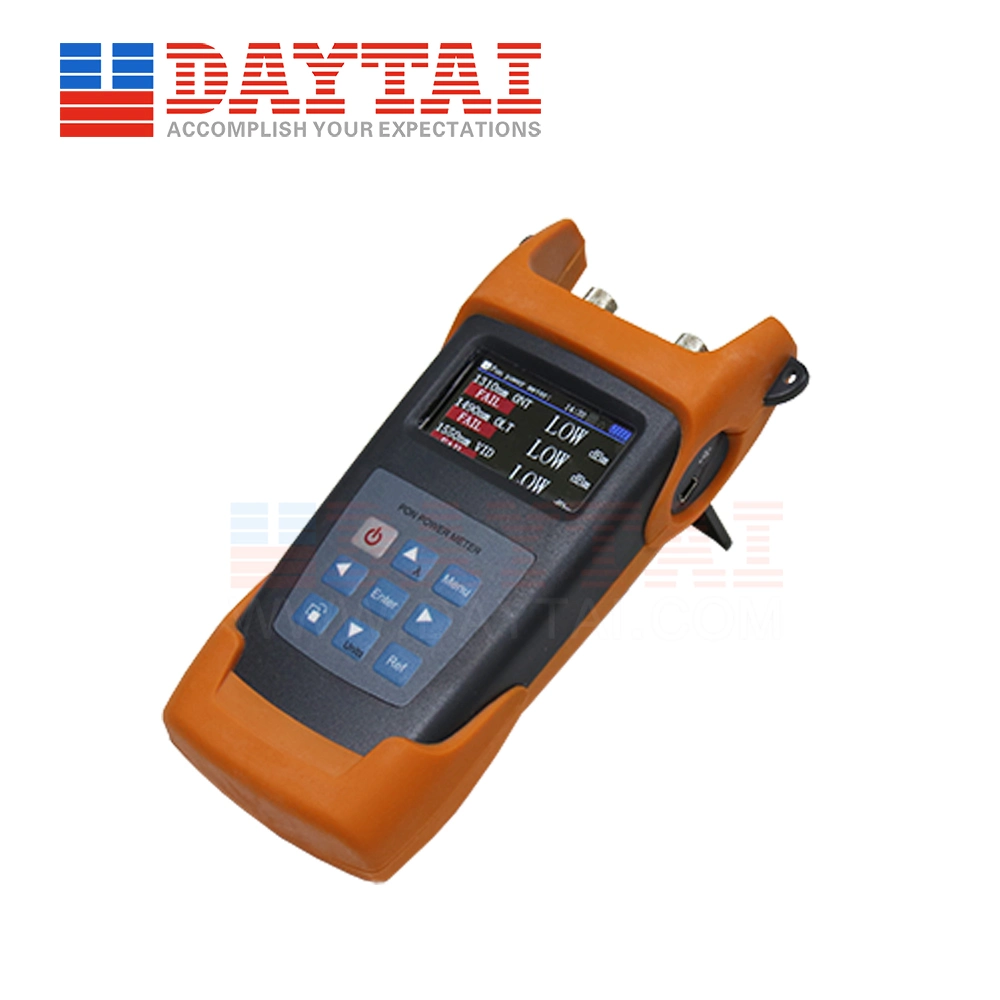

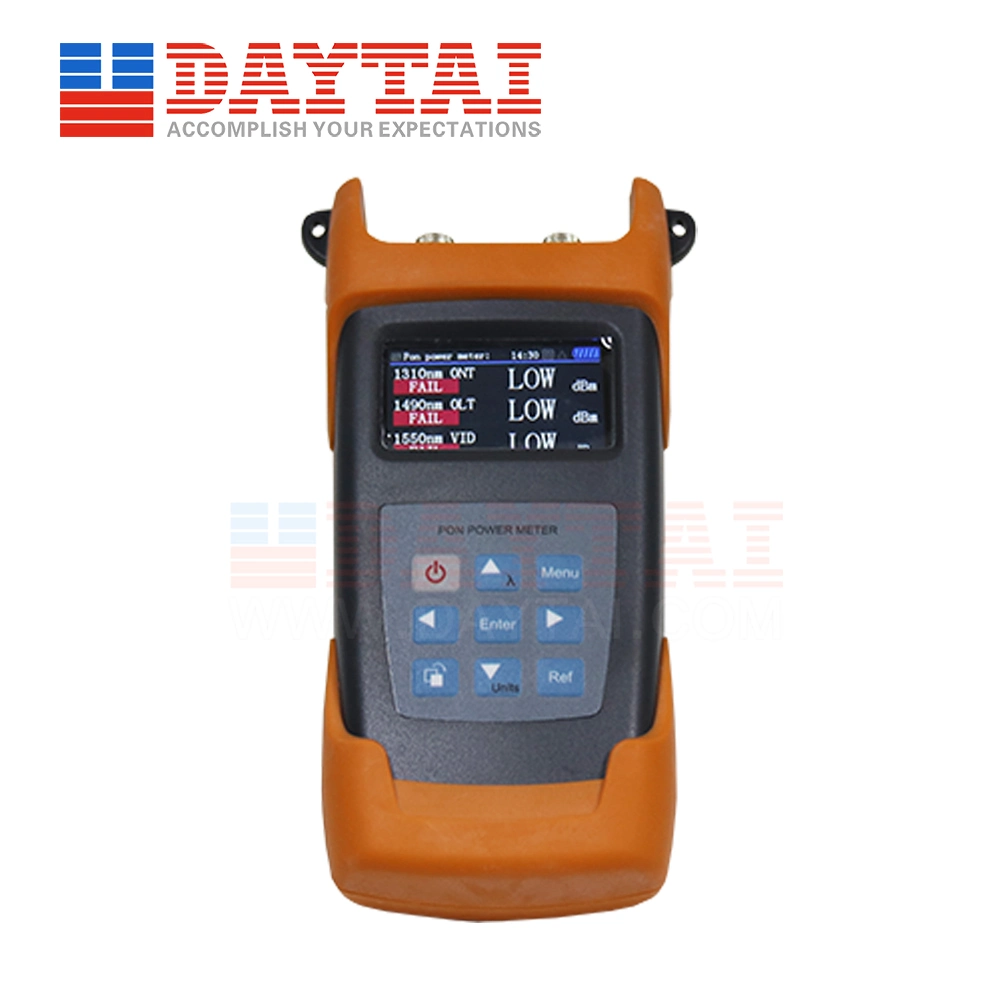

High Quality 40dB 1310/1490/1550nm Pon Optical Power Meter with Color Screen

★Description

PON Power Meter (DT-POPM-213N)-1310/1490/1550N-Color Screen-40dB, DT-POPM-213N PON Optical Power Meter is designed base on DT-POPM-213 PON power meter. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.

★Features

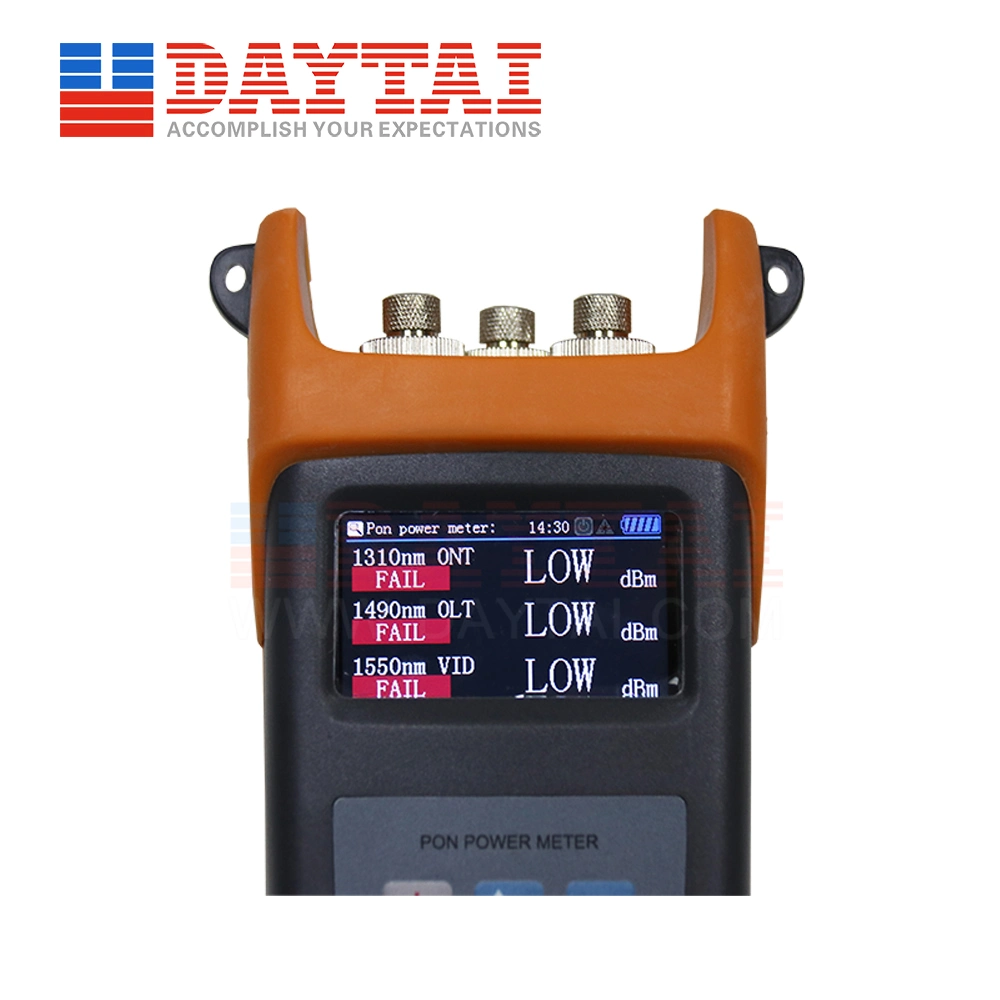

⊙ It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
⊙ Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm).
⊙ Used in Burst mode measurement of 1310nm upstream.
⊙ Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
⊙ USB communication port enables data transfer to a PC.1000measurement items can be saved in DT-POPM-213N
PON power meter or computer for data review.
⊙ Optical power meter and VFL with one port.(only DT-POPM-213N)
⊙ Optional Chinese/English display.
⊙ Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
⊙ 10 minutes Auto-off function can be activated or deactivated
⊙ Good key design,high sensitivity, greatly reducing the volume and weight of the tester.
⊙ Different models corresponding to different function, according to own use to choose .

★Product Specification

PON module:	DT-POPM-213		DT-POPM-213A		DT-POPM-213N		DT-POPM-213NA
1310 upstream measurement
Pass Zone(nm)	1260nm~1360nm
Measurement Range(dBm)	-35dBm~+10dBm
Output power(max)	15dBm
Isolation@1490/1550(dB)	>40dB
Burst mode measurement error	<±0.5dB
1490 downstream measurement
Pass Zone(nm)	1470nm~1505nm
Measurement Range(dBm)	-40dBm~+12dBm
Output power(max)	15dBm
Isolation@1310/1550(dB)	>40dB
1550 downstream measurement
Pass Zone(nm)	1540nm~1560nm
Measurement Range(dBm)	-40dBm~+25dBm
Output power(max)	25dBm
Isolation@(1310/1490nm)	>40dB
Measurement Accuracy
Connatural uncertainty(dB)	±0.5dB
Linearity(dB)	±0.1dB
Passing through insertion Loss(dB)	<1.5dB
General Information
Detector Type	InGaAs
Optical Connector	FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type	SM 9/125um
Measurement Unit	dB/dBm/xW
Resolution (dB)	0.01dB
Operation Voltage(V)	DC 3.3V~5.5V

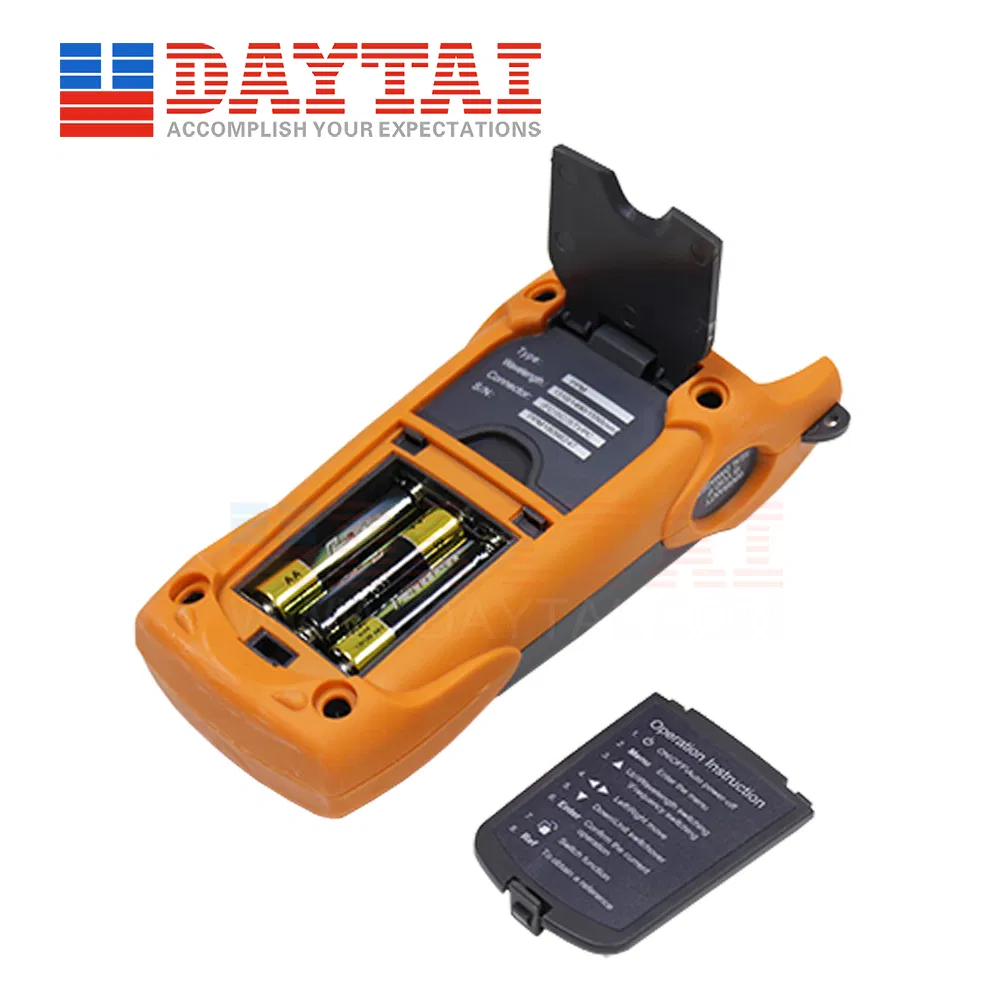

Power Supply	3pc1.5V battery
Continuously Operation time (h)	PON:90h	PON:90h OPM:100h VFL:50h		PON:90h VFL:50h		PON:90h OPM:100h
Operation Temperature(ºC)	-10ºC~60ºC
Storage temperature(ºC)	-25ºC~70ºC
Weight(kg)	423g	425g		424g		424g

★Standard Packages

Model	DT-POPM-213N Series PON Optical Power Meter
Items	Title	Quantity
1	DT-POPM-213N tester	1unit
2	User Manual	1pc
3	USB	1pc
4	Soft CD	1pc
5	1.5VAA Battery	3pc
