High Quality 6 Core G657A Cable Gjyxch Drop Cable

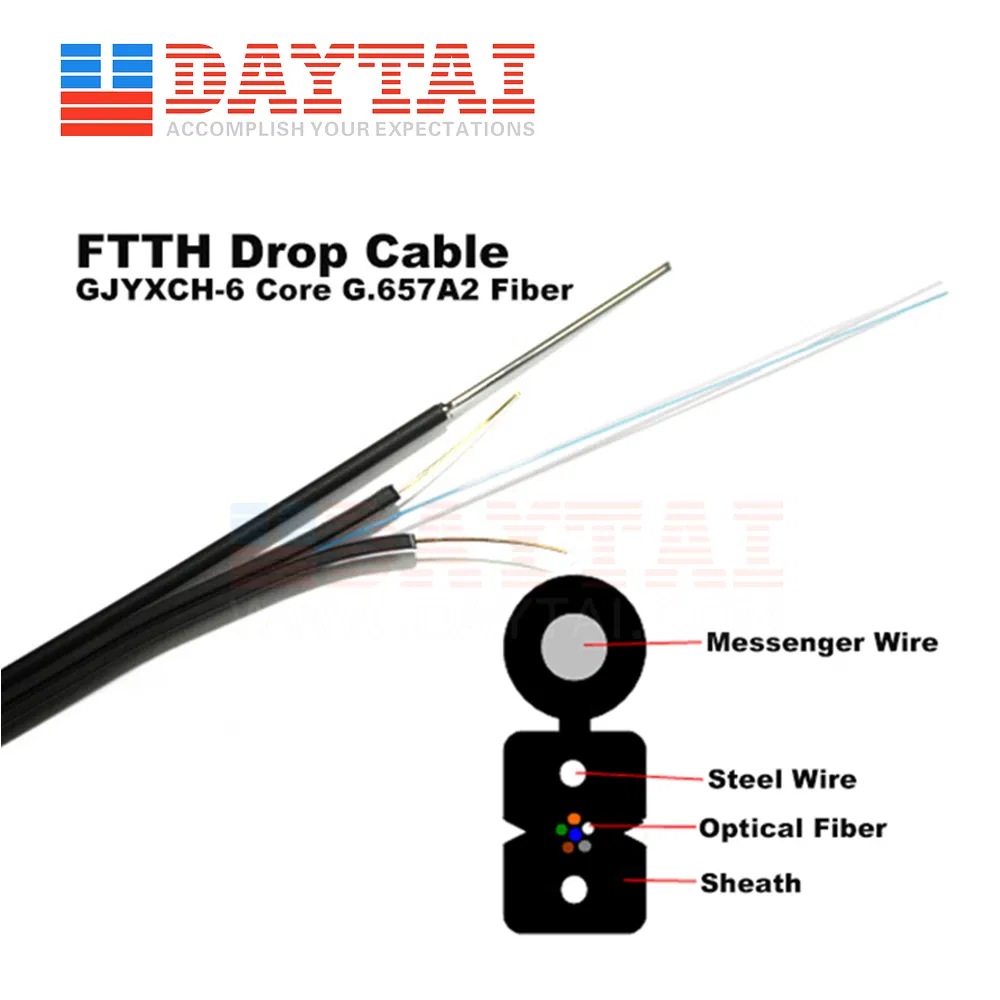

FTTH Drop cable,GJYXCH 6 core B6 9/125(G657A2) fiber,fiber color:Nature,Blue,Orange,Green,
Attenuation:<= 0.336 at 1310nm, <= 0.198 at 1550nm (dB/KM),Min. bending radius :10mm(Static),25mm(Dynamic),
Steel Wire and Messenger Strength member,Crush resistance:2200N/100mm.Sheath material:LSZH,Cable size:5.2mm*2.0mm.

⊙The optical cable has small diameter, lightweight, low cost, lowconstruction cost.

⊙It is suitable for mechanical splicing technology, fast, and flexible.

⊙The optical cable has high-tension and anti-squashforce,self-supportingstructure can meet the requirement of 50 meters pull-fly.

⊙Ituses aromatic polyamide materials to be the strengthen material.

⊙The optical cable is soft, good bending performance, and ensure that thebendingperformance can meet the requirements.

⊙It uses low smoke zero-halogen material, ensure that the cable can meettherequirements for the flame-retardant materials indoor.

⊙The optical fiber is the bend insensitive fiber which can meet requirementofITU-T G.657.

⊙High-carbon steel wire should be used for Self-supporting strengthendevice of optical cable, superior tensile properties contented.

Applications

FTTH Drop cable,GJYXCH 6 core B6 9/125(G657A2) fiber,fiber color:Nature,Blue,Orange,Green,
Attenuation:<= 0.336 at 1310nm, <= 0.198 at 1550nm (dB/KM),Min. bending radius :10mm(Static),25mm(Dynamic),
Steel Wire and Messenger Strength member,Crush resistance:2200N/100mm.Sheath material:LSZH,Cable size:5.2mm*2.0mm.

Performanc

Note: the product is in accord with the instruction of EU RoHS.

Detail Image
