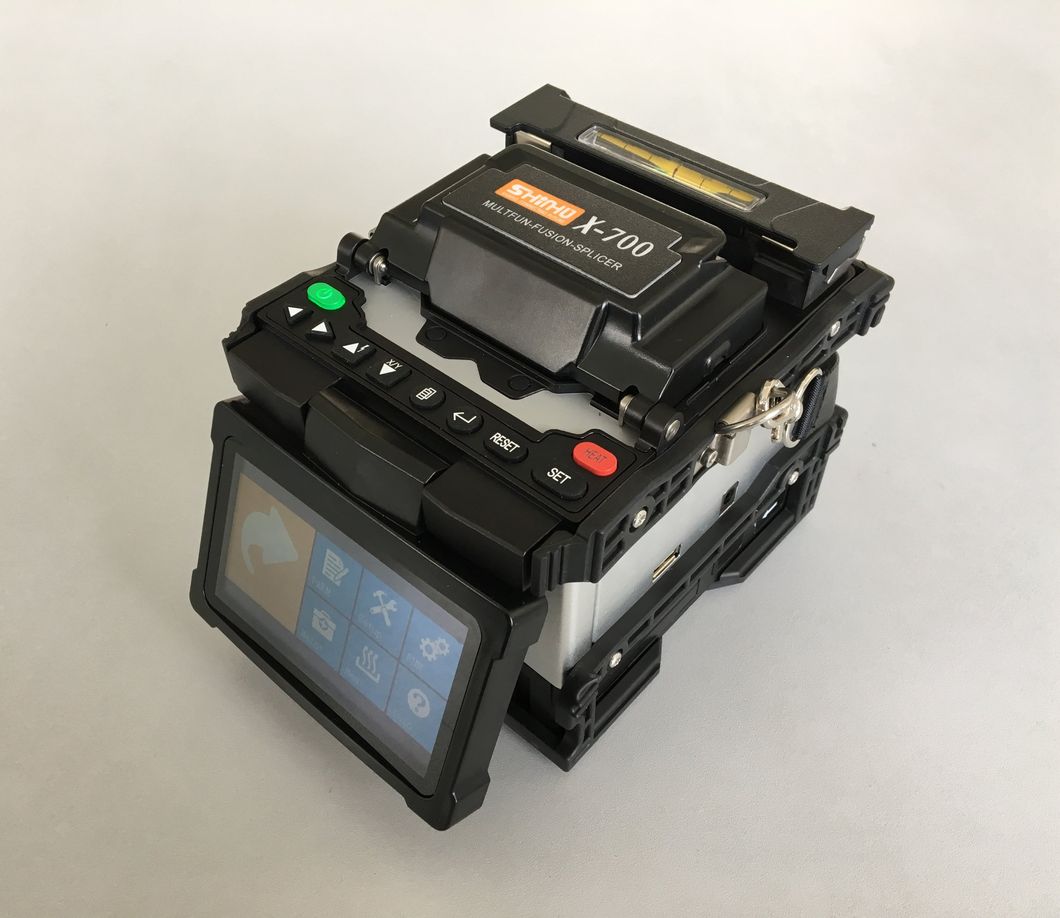

High Quality Automatic Splicing Machine X-700 Optical Fiber Fusion Splicer

Product Description

Product Descriptions

We're a professional manufacturer of fusion splicers, OEM is available. We also offer related products, such as OTDR, power meter, light source, VFL, toolkit etc.

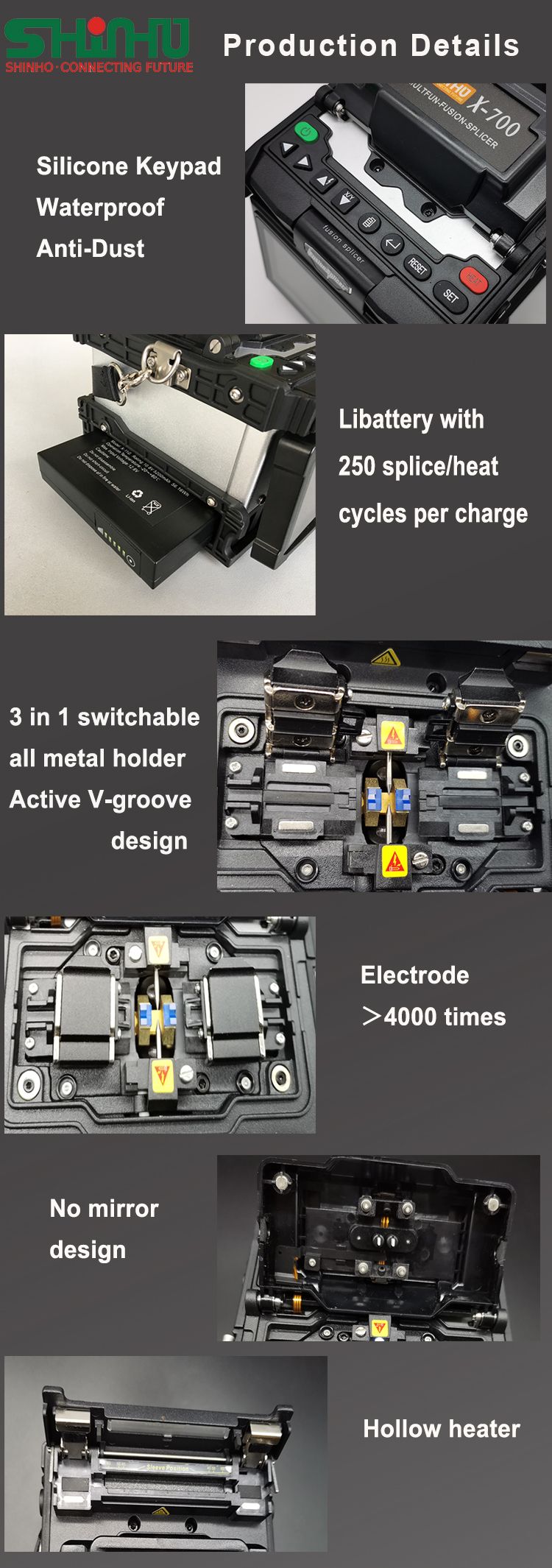

Features

*Ruggedness and durability are greatly enhance by a mirror-less optical system and "severe-impact resistant" monitor.
*Fully ruggedized for shock, dust and moisture
*Automated and programmable wind protector
*Li-ion battery with 250 splice/heat cycles per charge
*On-board training and support videos
*Internet software upgrades
*Multi-function transit case with integrated workstation
*Automatic self-inspection: Display inspection, Forward inspection
*Splice Loss 0.02dB
*Multi-function holder clamps, suitable for bare fibers, drop cables, patch cords etc.

X-700 Fusion Splicer Data Sheet

Applicable fiber	SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Diameter of cladding	80 -150μm
Diameter of coating	160-900μm
Typical splice loss	SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss	> 60dB
Fibe cleaved length	5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um)
Splicing program	40 groups
Operate mode	Automatic/Manual
Auto-heating	Available
Typical splicing time	6 seconds
Typical heating time	20 seconds
Fiber magnification	250X (X or Y view), 125X (X and Y view)
Display screen	4.3 inch color LCD monitor
Records storage	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easy for operation
Battery	5200mAh Li-battery, typical 250 cycles splicing and heating, support separating charging
Power supply	Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V
Electrodes life	More than 4000 ARC discharges, can be replaced conveniently
Ternimal	USB2.0 port, for software upgrading and records exporting
Operating conditions	Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC, Wind speed: Max 15m/s

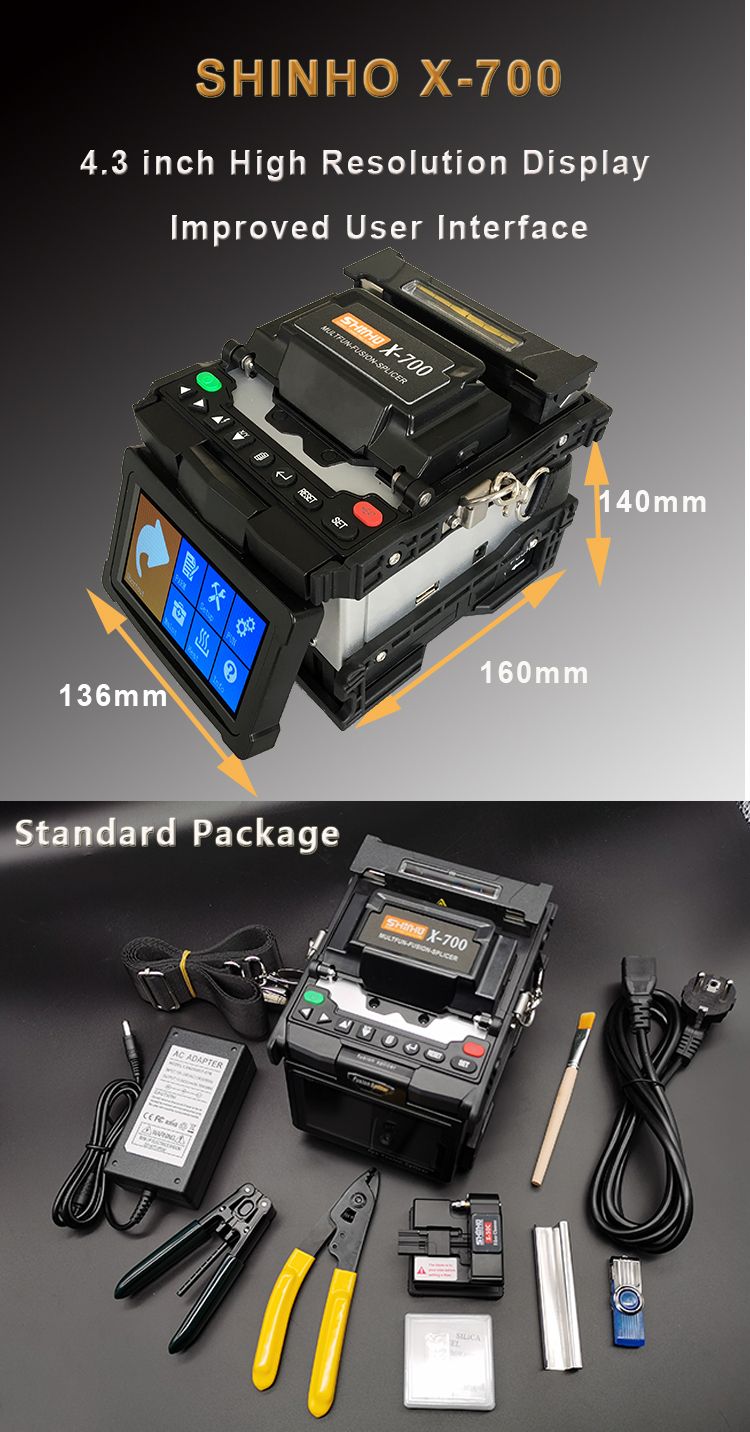

Dimension	160mm(L) * 136mm(W) * 140mm(H) (including rubber armor)
Weight	2.10kg (including battery)

Packing&Shipping

Delivery leading period
Within 3 working days for small orders after receiving full payment;
Kindly consult us for bulk orders.

Shipment
Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders;
By sea or by aircargo for bulk orders.

After-sales Services
We guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.

We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.

We guarantee all our fusion splicers for 36 months from the date customers receive them. Other parts for six months. During the warranty period, we can repair or replace the defective parts for free. After the warranty time, we can also repair the defective parts, but only charge for parts.

High Quality Automatic Splicing Machine X-700 Optical Fiber Fusion Splicer

Production and Test

Company Profile
Shinho Fiber Communication Co., Ltd is a professional manufacturer of fiber optic fusion splicers. Besides, Shinho could also supply other related test equipment, like palm OTDRs, power meters, VFLs, light sources, fiber identifiers, toolkits, cleavers, etc.

Shinho X-series of optical fiber fusion splicers have Independent Intelligent Property Right (IIPR). They have advanced functions and stable performance, and their splicing loss could reach the top level in the world. After several years' development, Shinho products are broadly acknowledged and trusted by different clients around the world, like USA, South America, Russia, India, Pakistan, Europe, Middle East, South Africa, etc.

Shinho would keep researching and developing the top level fiber optic fusion splicers, providing the excellent and quick service to our customers.
