High Quality FTTH CATV 1310 /1550nm Outdoor Optical Receiver
High Quality FTTH CATV 1310/1550nm Outdoor Optical ReceiverDescription Optical Receiver With AGC Suitable For Drop Cable-(DT-DORA-8602:Frequency Range:47~862MHz,RF Output Level:≥102dBuV),(DT-DORA-8606:Frequency Range:47~862MHz,RF Output Level:≥106dBuV),(DT-DORA-1G06:Frequency Range:47~......
Send Inquiry
Product Description

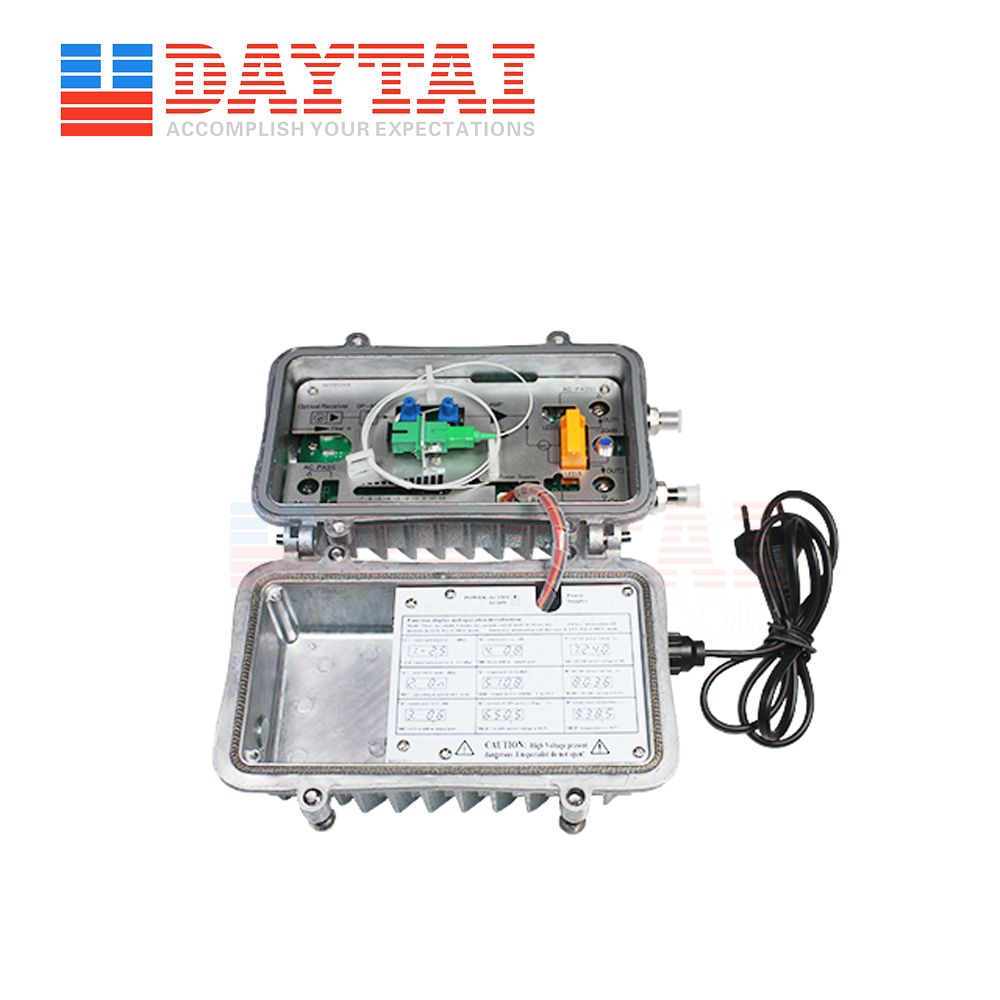

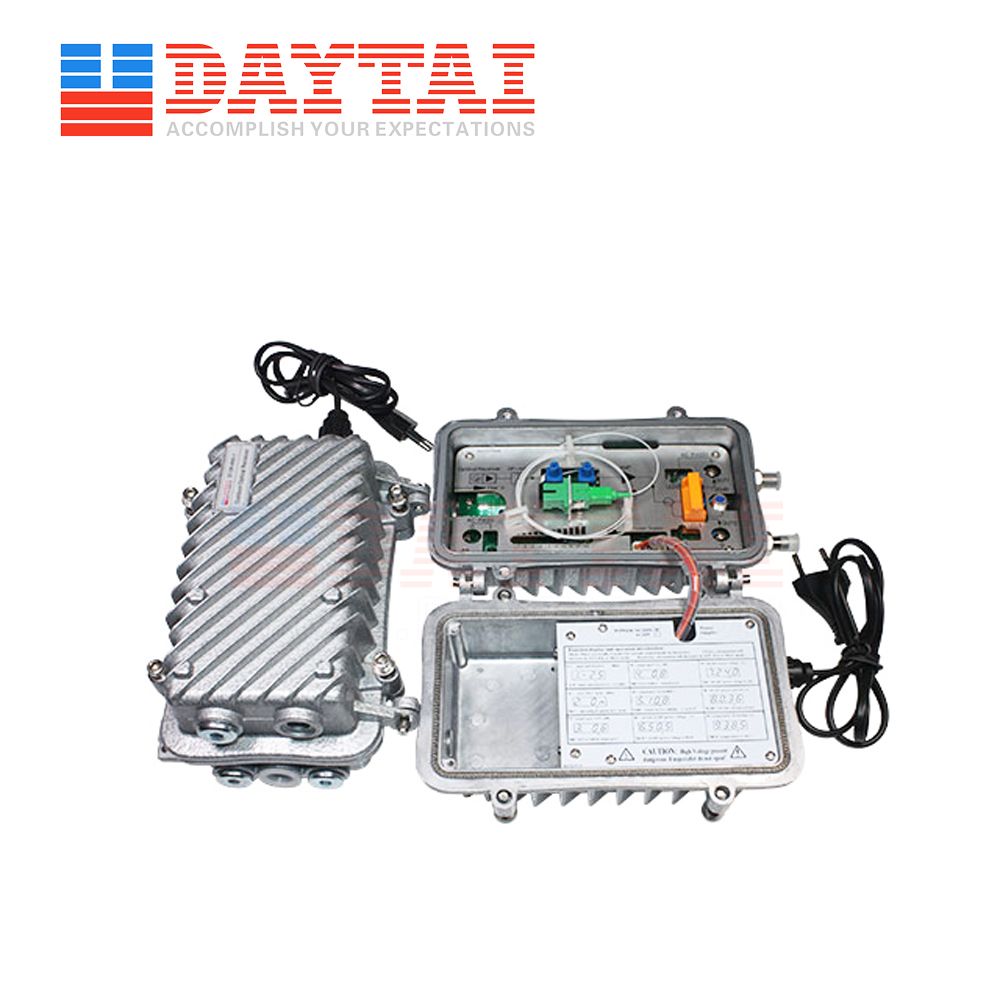

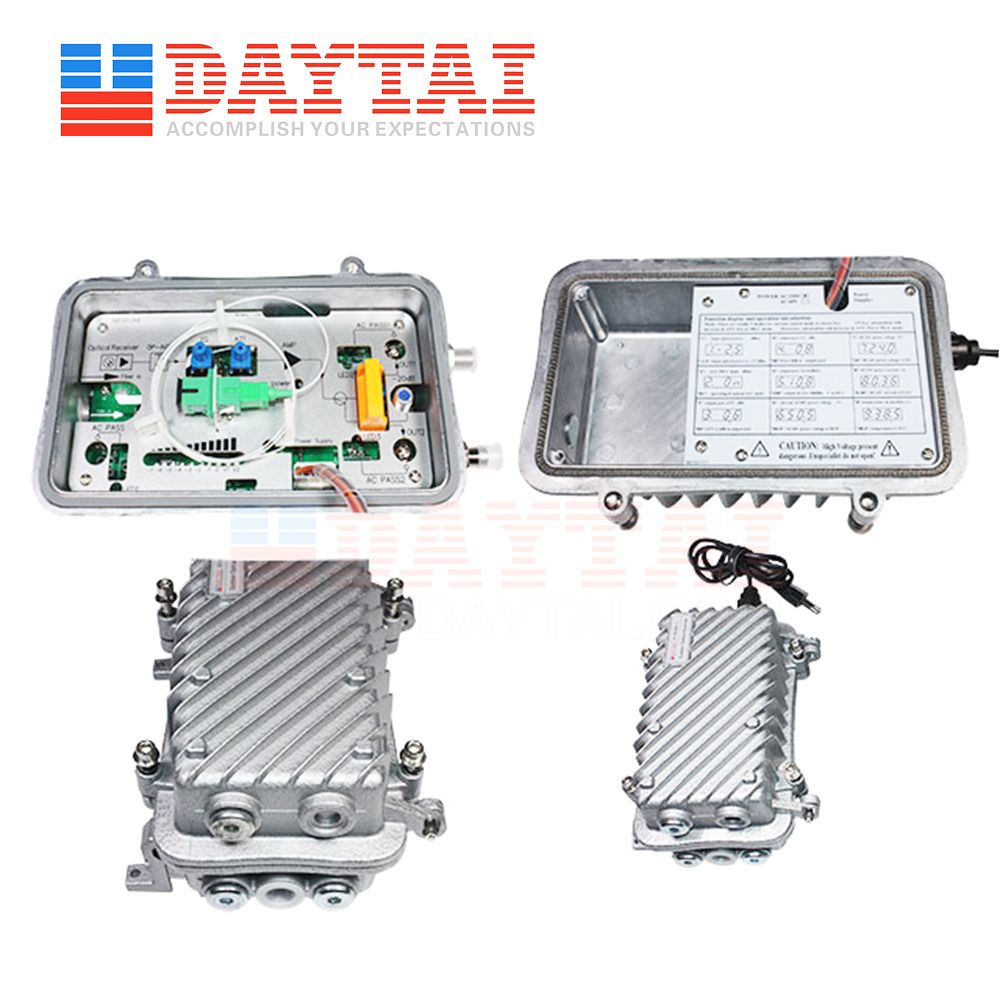

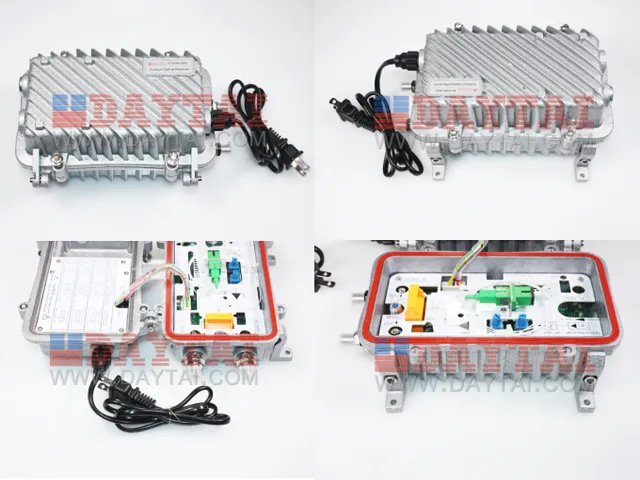

High Quality FTTH CATV 1310/1550nm Outdoor Optical Receiver
Description
Optical Receiver With AGC Suitable For Drop Cable-(DT-DORA-8602:Frequency Range:47~862MHz,
RF Output Level:≥102dBuV),(DT-DORA-8606:Frequency Range:47~862MHz,RF Output Level:≥106dBuV),
(DT-DORA-1G06:Frequency Range:47~1000MHz,RF Output Level:≥106dBuV),Receiving optical wavelength:1290~1600nm,Receiving optical power:-8~+2,Optical connector type:SC/APC OR FC/APC,AGC:Optical control AGC,
AGC Range:-6~+2 dBm,Optical return loss:≥45dBm,
C/CTB:≥65(-1dBm receiving, 40 channels),C/CSO:≥60(-1dBm receiving, 40 channels),Frequency range:45~862MHz,Power:AC35~90V OR AC110~265V,Outer
dimension: 240mm×150mm×110mm,Net weight:2.2Kg.With or Without SNMP is optional.
Features
AGC function(-6~+2dBm).
10-section LED displays input optical power.
1310nm and 1550nm dual-window receiving.
Equipped AC60V sole power supply port, easy to operate.
Each port is equipped AC60V LED indicator light, easy to operate.
Output designed with adjustable attenuator and equalizer, easy to debug.
Output plug-in one-way tap or two-way splitter, easy to replace and operater
Perfect surge suppression circuitry, which is effectively to prevent shock and lightning surge.
Built-in High-reliable switching power supply, small temperature rise, high conversion efficiency, wide voltage range.
High-quality die-casting aluminum housing, dust-proof, water-proof, shield and good heating performance, convenient to install.
SNMP component can be selected for installation to achieve remote control on working status and performance Parameter.
Specification
General Performance | ||
Power Voltage | V | A:AC(150~265)V;B:AC(35~90)V |
Operating Temperature | ºC | -40~60 |
Storage Temperature | ºC | -40~65 |
Relative Humidity | % | Max 95% no condensation |
Consumption | VA | ≤ 30 |
Dimension | mm | 280(L)*210(W)*140(H) |

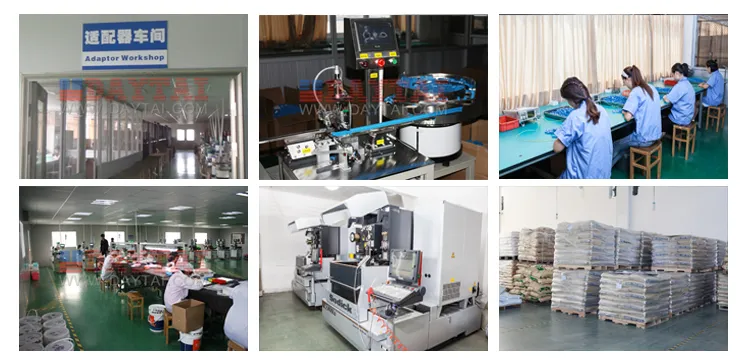

Our Workshop
