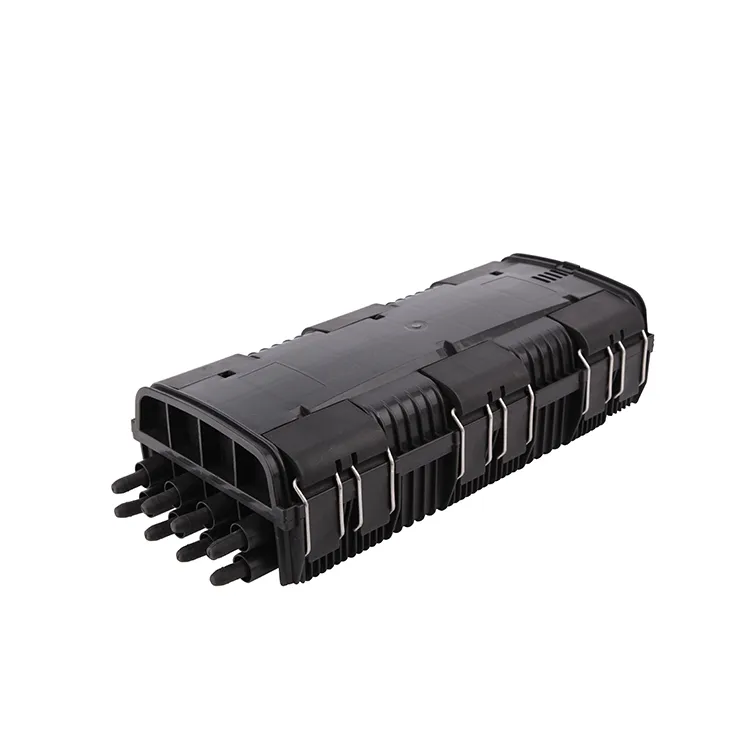

Horizontal 2in 8 out 96 Core Fiber Optic Splice Closure

Product Description

Horizontal type fiber optic splice closures are made of excellent engineering plastics, they are with different ports types, fitting different fiber counts.  The vertical fiber optic splice closure is used in CATV, telecommunications and fiber optic networks. Our vertical (Dome) fiber splice closures feature the high mechanical  performance, great aging resistant ability, excellent sealing performance. They are suitable for protecting optical fiber splices in straight through and  branching applications. Related fiber optic trays and splice protection sleeves are supplied with the vertical splice closures. These products can be used in aerial,  duct and direct buried fiber optic cable projects.

Feature

1. High quality engineering ABS plastics
2. The closure can be used in duct, buried, overhead..etc
3. Designed for ftth with adapter if need.
4. Fiber storage with big basket
5. Modular fiber management system
6. Cable diameter range: 8~20 mm
7. Sealing way of cables: Mechanical sealing by silicon rubber
8. Quality warranty:2 years
9. IP rating is IP68

Specification

Size: 430*190*110MM

Type: Horizontal

Tray: 1- 4 pcs

Port: 2 In 8 Out

Support cabel Diameter: 22mm

Key Features

· Pre-installed slide-rail allows for fast installation and re-entry regardless of equipment or enclosures above

· Completely removable top with tilt- up, removable front and rear doors provides unobstructed access to the enclosure interior
 · Reversible mounting brackets for mid- or flush-mounting on rack
· Accepts two six-fiber mounting plates to house ST, SC, FC, and MT-RJ adapters (sold separately).
· Mounting plates can also be changed out for plates with Quick port adapters (sold separately)
· Includes self-healing grommets and various cable management straps for securing cabling
