Hot Selling Metal Opgw Closure
Hot selling metal OPGW closureProduct Description:ADSS & OPGW cable splice closure cable joint boxes are sealed with sealing ring and silicone, it could be opened, expansed, fixed, and connected repeatedly.ADSS & OPGW cable splice closure cable joint box bears the excellence of high mechani......
Send Inquiry
Product Description
Product Description:

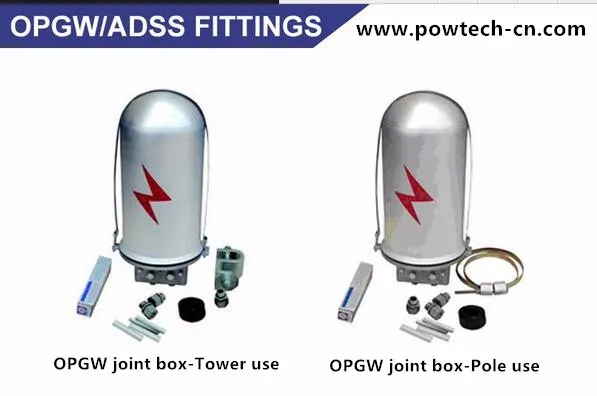

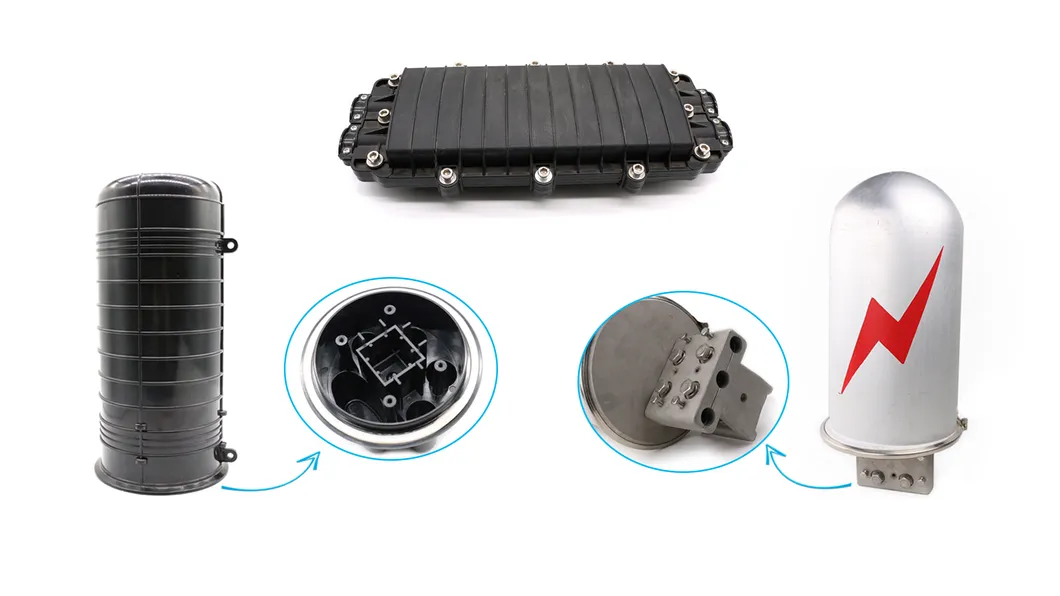

ADSS & OPGW cable splice closure cable joint boxes are sealed with sealing ring and silicone, it could be opened, expansed, fixed, and connected repeatedly.
ADSS & OPGW cable splice closure cable joint box bears the excellence of high mechanical strength, good airproof performance and excellent corrosion resistance. Having been sealed with sealing ring and silicone, it could be opened, expanded, fixed, and connected repeatedly. The maximal capacity is 96cores.
Technical Data:
Water resistance:Rubber buffer
Additional wastage:≤0.01dB
Temperature range:-40°c-80°c
Anti-side-pressure:≥2000N
Bend radius diameter ≥45mm
| Dimension(mm) | 480(H)×200(φ) |
| Weight(Kg) | About 6 |
| Cable Entry Ports | 2 and 2 |
| Max Capacity Of Fiber Splice Tray | 24 |
| Max Capacity Of Splice Tray | 4 |
| Max Capacity | 96core |
| Sealing Structure | Silicon Gum Material |
| Protection Class | IP66 |
Application:
